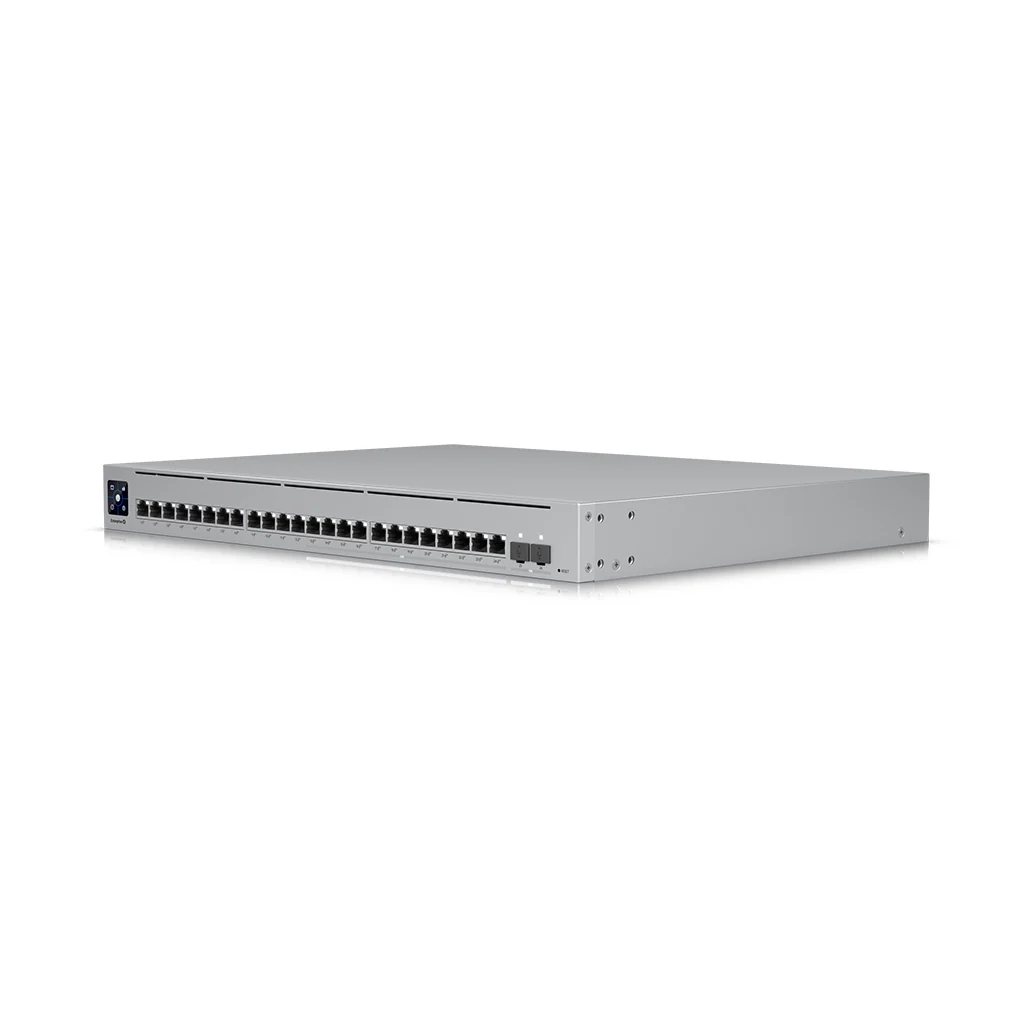

Ubiquiti UniFi USW-Enterprise-24 PoE Gen1 – 24-Port Layer 3 PoE+ Switch, 400 W Budget

The Ubiquiti UniFi USW-Enterprise-24 PoE Gen1 is a powerful, rack-mountable Layer 3 switch designed for enterprise deployments requiring robust PoE+ support and advanced switching capabilities. It features 24 PoE+ ports (divided equally between 1 GbE and 2.5 GbE) and delivers a total PoE budget of 400 W, enabling reliable powering of numerous access points, cameras, or other devices without external injectors. This switch is ideal for midsize networks, branch offices, or core wiring closets that demand both data throughput and flexible power delivery.

Built for performance, the switch offers a switching capacity of 124 Gbps, a forwarding rate of 92 Mpps, and full Layer 3 functionality for routing, VLANs, and inter-VLAN traffic. Designed for dense environments, it supports Pro AV profiles, QoS, LACP, STP/RSTP, ACLs, DHCP relay, static routing, and more. A touchscreen LCM display provides at-a-glance status, while dual power input and redundancy features ensure continuous operation.

---

Key Features

• 24 PoE+ Ports – Twelve 1 GbE and twelve 2.5 GbE PoE+ ports, all capable of supplying power and data.

• 400 W PoE Budget – High total power to support multiple access points, cameras, and devices from a single unit.

• Full Layer 3 Functionality – Implements inter-VLAN routing, static routes, DHCP relay, and more.

• High Switching Performance – 124 Gbps switching capacity and 92 Mpps forwarding rate to handle heavy traffic loads.

• Advanced Network Protocols – Supports LACP, VLANs, STP/RSTP, QoS, ACLs, IGMP snooping, port isolation, rate limiting, and more.

• Rack-Mount 1U Design – 442 × 325 × 44 mm form factor fits standard rack systems with ease.

• Redundant Power Options – Internal 550 W AC power supply and DC backup input for uninterrupted operation.

• Touchscreen LCM Display – Onboard screen for top-level status and configuration feedback.

• Compliance & Reliability – NDAA compliance, CE/FCC/IC certifications, ESD protection.

• Management via UniFi Network – Seamless integration into the UniFi ecosystem for centralized monitoring and control.

---

Technical Specifications

Physical & Environmental

• Dimensions: 442 × 325 × 44 mm (17.4 × 12.8 × 1.7 in)

• Weight: 5.1 kg (without mounting brackets); 5.2 kg with brackets

• Enclosure Material: SGCC steel

• Mounting: 1U rack-mount

• Operating Temperature: –5 to 40 °C (23 to 104 °F)

• Operating Humidity: 10% to 90% non-condensing

Networking & Ports

• 1 GbE RJ-45 PoE+ Ports: 12 ports (10/100/1000 Mbps)

• 2.5 GbE RJ-45 PoE+ Ports: 12 ports (2.5G / 1G / 100M / 10M)

• SFP+ Ports: 2 x 10G / 1G

• Total PoE Power Budget: 400 W

• Max PoE per Port (PSE): Up to 32 W

• Internal Power Supply: 550 W AC

• Power Consumption (No PoE): 60 W

• Power Consumption (With PoE): 460 W (approximate when fully loaded)

• Voltage Input (AC): 100–240 V AC, 50/60 Hz

• DC Backup Input: Supported

Performance & Capacity

• Switching Capacity: 124 Gbps

• Non-Blocking Throughput: 62 Gbps

• Forwarding Rate: 92 million packets per second (Mpps)

• MAC Address Table: 16,000 entries

• VLANs Supported: Up to 1,000

• Layer 3 / IP Routing:
    • IPv4 Routes: 1,000
    • ARP Table: 4,000 entries
    • Static Routing, DHCP Relay, Inter-VLAN Routing

Layer 2 / Protocol Features

• LACP (link aggregation)

• Spanning Tree (STP & RSTP)

• QoS (DSCP) support

• Pro AV Profiles (Play, Dante, NDI, AES67, etc.)

• IGMP Snooping, Querier, Fast Leave

• ACLs: IP, MAC filtering, device isolation

• Storm control, flow control, multicast / broadcast rate limiting

• Port mirroring

• Jumbo frame support

• VLAN tagging, voice VLAN

• Loop protection

Management & Software

• Controller Required: UniFi Network (version 5.14.12 or later)

• Touchscreen LCM Display: 1.3″ internal display

• ESD Protection: ±16 kV air, ±12 kV contact

• Certifications: CE, FCC, IC, Anatel

• Compliance: NDAA Compliant

---

Conclusion

The Ubiquiti UniFi USW-Enterprise-24 PoE Gen1 is built for network environments that demand high performance, power delivery, and advanced switching flexibility. With full PoE+ support across 24 ports, robust Layer 3 capabilities, and a powerful switching backbone, it addresses the needs of modern enterprise, campus, or AV deployments. Integrated management through UniFi ensures visibility and control over your infrastructure, while its redundant power and enterprise protocols guarantee reliability under load.
