Ubiquiti UniFi U7 Pro Max Tri-Band Wi-Fi 7 Access Point | High-Capacity 2.5GbE PoE+ Mesh System

Engineered for next-generation wireless environments, the Ubiquiti UniFi U7 Pro Max Tri-Band Wi-Fi 7 Access Point is designed to handle dense client deployments and high-throughput applications with maximum efficiency. Supporting the latest Wi-Fi 7 (802.11be) standard, this access point delivers ultra-fast wireless performance across three bands—2.4 GHz, 5 GHz, and 6 GHz—with a combined maximum data rate exceeding 15 Gbps. With multi-user MIMO (MU-MIMO), OFDMA, and advanced spectral analysis, the UniFi U7 Pro Max ensures minimal interference and seamless connectivity for over 500 simultaneous clients within a 160 m² (1,750 ft²) area.

Built for scalable networks, this enterprise-grade device features a 2.5 GbE uplink port and is powered via PoE+ for flexible installation. Integrated support for features such as wireless meshing, dynamic VLAN assignment via RADIUS, private pre-shared key (PPSK), and captive portal customization allows for secure and tailored network deployments. Whether mounted on a wall or ceiling, the UniFi U7 Pro Max is NDAA-compliant and housed in a robust polycarbonate and aluminum enclosure, making it a future-proof solution for demanding environments such as offices, retail spaces, schools, and hospitality venues.

Key Features

• Tri-Band Wi-Fi 7 Performance:
  The access point supports three frequency bands—2.4 GHz, 5 GHz, and 6 GHz—offering a peak combined data rate of up to 15.1 Gbps. It ensures broader spectrum usage, reduced latency, and minimal interference.

• High Client Capacity:
  Designed for large-scale environments, it supports over 500 active clients with optimal load balancing and uninterrupted service.

• Advanced MU-MIMO and OFDMA:
  Multiple devices are served simultaneously with optimized performance using DL/UL MU-MIMO technology across all bands.

• Dynamic and Secure Guest Access:
  Features such as voucher authentication, password access, and external portal server support enable secure guest management.

• Enterprise-Grade Security and Management:
  Includes PPSK, RADIUS over TLS (RadSec), VLAN assignment, and network isolation options to support complex organizational policies.

• Wireless Mesh & Band Steering:
  Ensures smart traffic routing and self-healing mesh capabilities across access points to expand coverage without additional wiring.

• Real-Time Spectral Analysis & Radio Management:
  Built-in diagnostics tools provide visibility into radio frequency environments, enabling interference mitigation and performance optimization.

Specifications

Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
Weight: 680 g (1.5 lb)
WiFi Standard: WiFi 7 (802.11be)
Spatial Streams: 8
Coverage Area: 160 m² (1,750 ft²)
Maximum Client Count: 500+
Uplink: 2.5 GbE (1x RJ45 port)
Power Method: PoE+ (25W max. consumption)

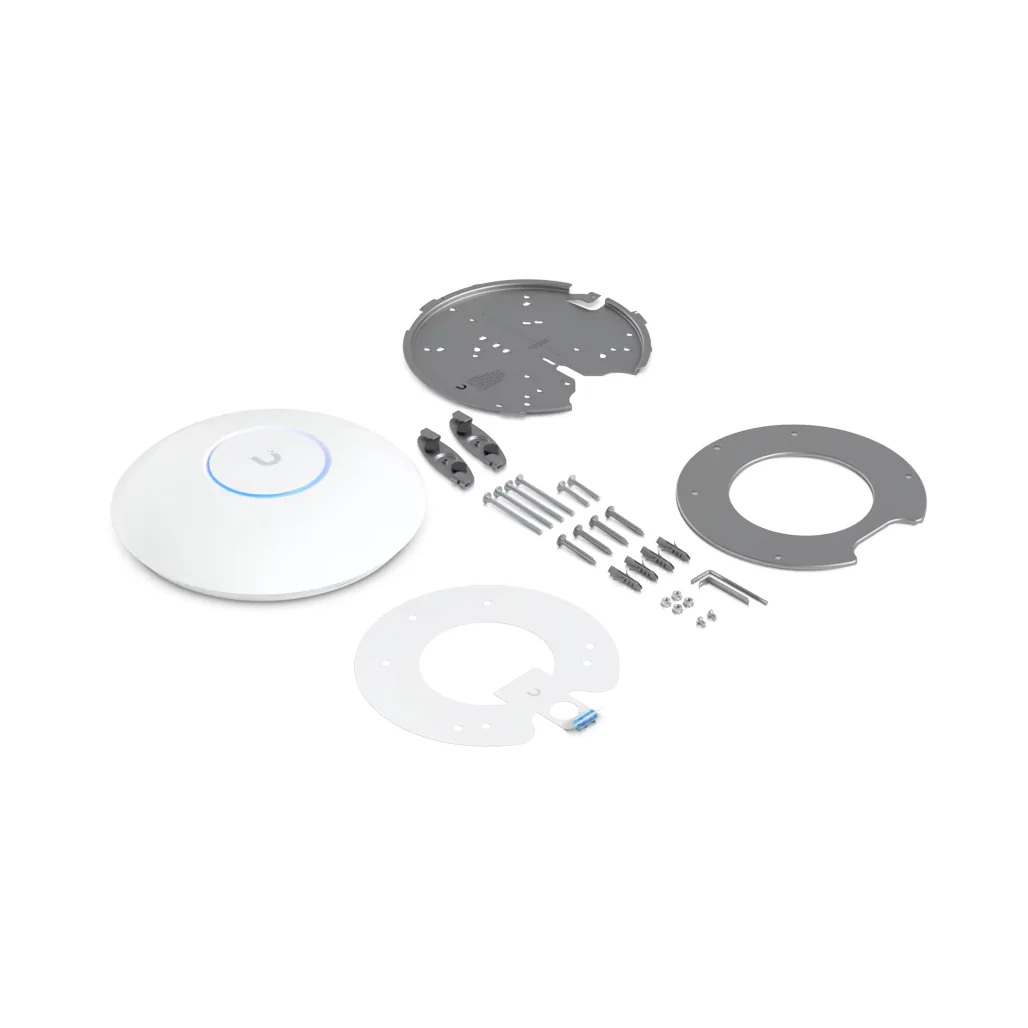

Mounting: Ceiling, Wall (Pro Mount Included)

MIMO Configuration:

• 6 GHz: 2x2 DL/UL MU-MIMO

• 5 GHz: 4x4 DL/UL MU-MIMO

• 2.4 GHz: 2x2 DL/UL MU-MIMO

Max Data Rates:

• 6 GHz: 5.8 Gbps

• 5 GHz: 8.6 Gbps

• 2.4 GHz: 688 Mbps

Antenna Gain:

• 6 GHz: 5.9 dBi

• 5 GHz: 6 dBi

• 2.4 GHz: 4 dBi

Transmit Power:

• 6 GHz & 2.4 GHz: 23 dBm

• 5 GHz: 29 dBm

Channel Bandwidth:
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz

Data Rates Supported:

• 802.11be: Up to 5.8 Gbps (6 GHz), 8.6 Gbps (5 GHz)

• 802.11ax: Up to 4.8 Gbps

• 802.11ac: Up to 3.4 Gbps

• 802.11n: Up to 600 Mbps

Advanced Features:
Wireless Meshing, Band Steering, 802.11k/v/r, Spectral Analysis, Passpoint 2.0, Captive Portal, PPSK, VLAN via RADIUS, Client Isolation, WiFi Scheduling, and more

Certifications: CE, FCC, IC
NDAA Compliant: Yes

Operating Conditions:

• Temperature: -30 to 50°C (-22 to 122°F)

• Humidity: 5 to 95% non-condensing

Software Requirements:
UniFi Network Application v8.2.93 or later

Conclusion:
The Ubiquiti UniFi U7 Pro Max offers a high-performance solution for modern wireless demands, combining Wi-Fi 7 speed, advanced security, and seamless scalability. Built to serve dense environments with efficiency and reliability, it provides IT professionals with an intelligent access point engineered to meet future connectivity standards today.
