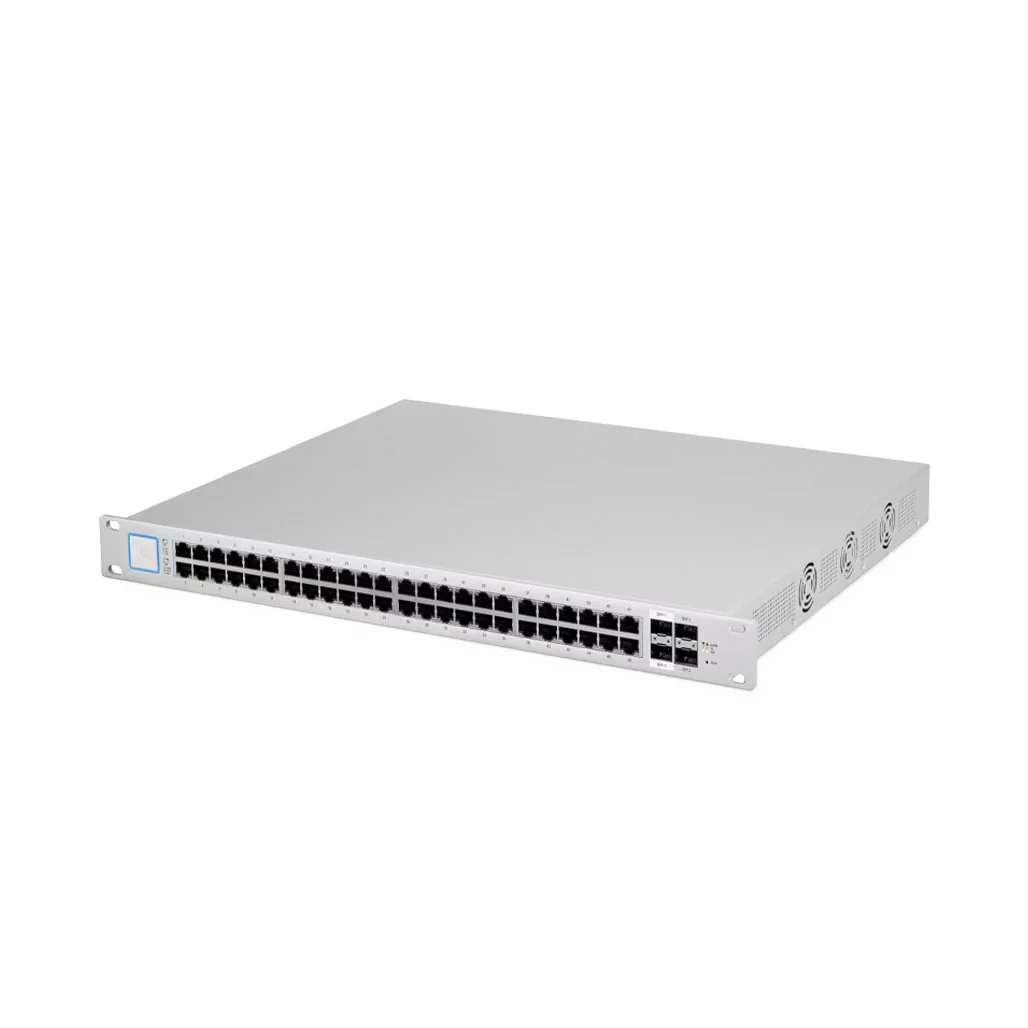

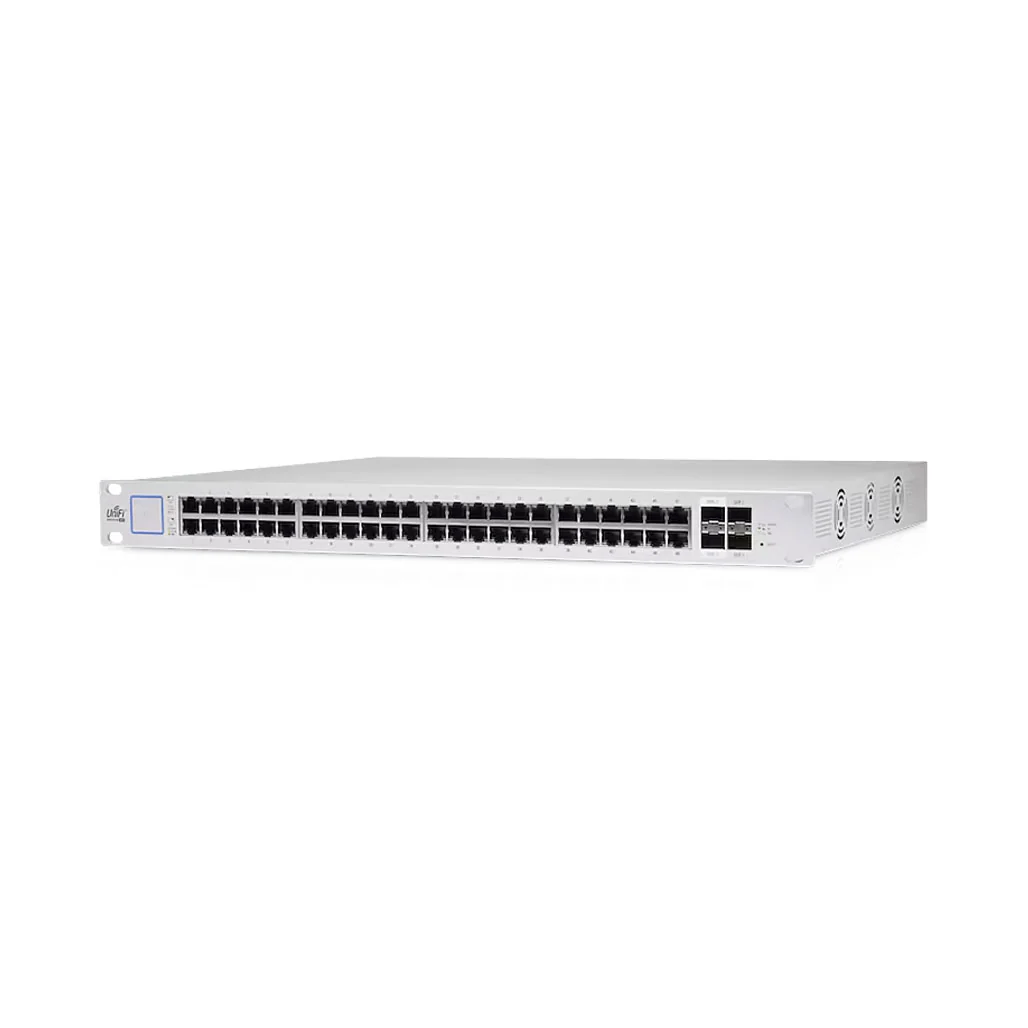

Ubiquiti PoE Switch 48-Port GbE, PoE+ and 24V Passive PoE with 1G & 10G SFP Ports



The Ubiquiti PoE Switch is a high-capacity network switch designed for robust and efficient performance in demanding environments. This model features 48 Gigabit Ethernet (GbE) RJ45 ports with Power over Ethernet (PoE+) and 24V passive PoE support, making it ideal for powering a variety of network devices while ensuring high-speed connectivity. It is equipped with two 1G SFP ports and two 10G SFP+ ports, providing flexible fiber uplink options and supporting high-throughput applications.

With a total non-blocking throughput of 70 Gbps, this switch delivers exceptional performance for large-scale networks. Its switching capacity of 140 Gbps and forwarding rate of 104.16 million packets per second (Mpps) ensures efficient data handling and minimized network congestion. The switch also includes a universal input power supply, supporting a voltage range of 100–240V AC, with a maximum power consumption of 500W, including PoE output. Designed to meet high standards of reliability and protection, it supports extensive ESD/EMP protection and operates within a wide temperature range.

Key Features:

1. High-Port Density and Versatility:

   • 48 GbE RJ45 Ports: Equipped with PoE+ and 24V passive PoE capabilities, allowing for seamless power and data transmission to connected devices.
   • SFP and SFP+ Ports: Includes two 1G SFP ports and two 10G SFP+ ports for versatile fiber uplink options and enhanced network performance.

2. Exceptional Performance:

   • Total Non-Blocking Throughput: 70 Gbps, providing high-speed data transfer across the network.
   • Switching Capacity: 140 Gbps, ensuring efficient data handling and minimal latency.
   • Forwarding Rate: 104.16 Mpps, supporting high-performance data processing.

3. Power and Efficiency:

   • PoE Capabilities: Delivers up to 500W total PoE power, with 24V passive PoE providing up to 17W per port and PoE+ up to 34W per port.
   • Power Supply: Internal AC/DC power supply with universal input, supporting 100–240V AC.

4. Robust Design and Protection:

   • Enclosure Material: SGCC steel for durability and reliability.
   • Environmental Protection: ESD/EMP protection with ±24kV air and contact.
   • Operating Conditions: Designed to function in temperatures from -5 to 40°C (23 to 104°F) and humidity levels of 5 to 95% noncondensing.

Specifications:

• Dimensions: 485 x 374.6 x 43.7 mm (19.1 x 14.8 x 1.7")
• Weight: 6.1 kg (13.5 lb)
• Enclosure Material: SGCC steel
• Management Interface: Ethernet In-Band, (1) RJ45 Serial port Out-of-Band
• Networking Interface: (48) GbE RJ45 ports, (2) 1G SFP ports, (2) 1/10G SFP+ ports
• PoE Interface: (48) PoE/PoE+ (Pins 1, 2+; 3, 6-), 24V DC passive PoE (Pins 4, 5+; 7, 8-)
• Total Non-Blocking Throughput: 70 Gbps
• Switching Capacity: 140 Gbps
• Forwarding Rate: 104.16 Mpps
• Power Method: Universal input, 100—240V AC, 50/60 Hz
• Power Supply: AC/DC, internal, 500W
• Supported Voltage Range: 100—240V AC
• Max. Power Consumption: Excluding PoE output: 64W; Including PoE output: 500W
• Total Available PoE: 500W
• Max. PoE Wattage per Port by PSE: 24V Passive PoE: 17W; PoE+: 34W
• Voltage Range PoE Mode: 24V Passive PoE: 20–27V; PoE+: 50—57V
• ESD/EMP Protection: Air: ±24kV, Contact: ±24kV
• Sound Level: Fan level 0: 10.7 dBr; Fan level 1: 16.2 dBr; Fan level 2: 19.3 dBr; Fan level 3: 23.6 dBr
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
• LEDs: System Status, Ethernet PoE, Speed/Link/Activity, SFP Speed/Link/Activity

Conclusion: The Ubiquiti PoE Switch with 48 GbE, PoE+, and 24V passive PoE ports offers a high-performance solution for network expansion and device connectivity. Its extensive feature set, including high throughput, multiple uplink options, and robust power delivery, makes it an excellent choice for managing complex network environments. The switch's durable construction and comprehensive protection ensure reliability and longevity, making it a valuable addition to any enterprise or advanced home network setup.
