$6.90
Original: $23.00

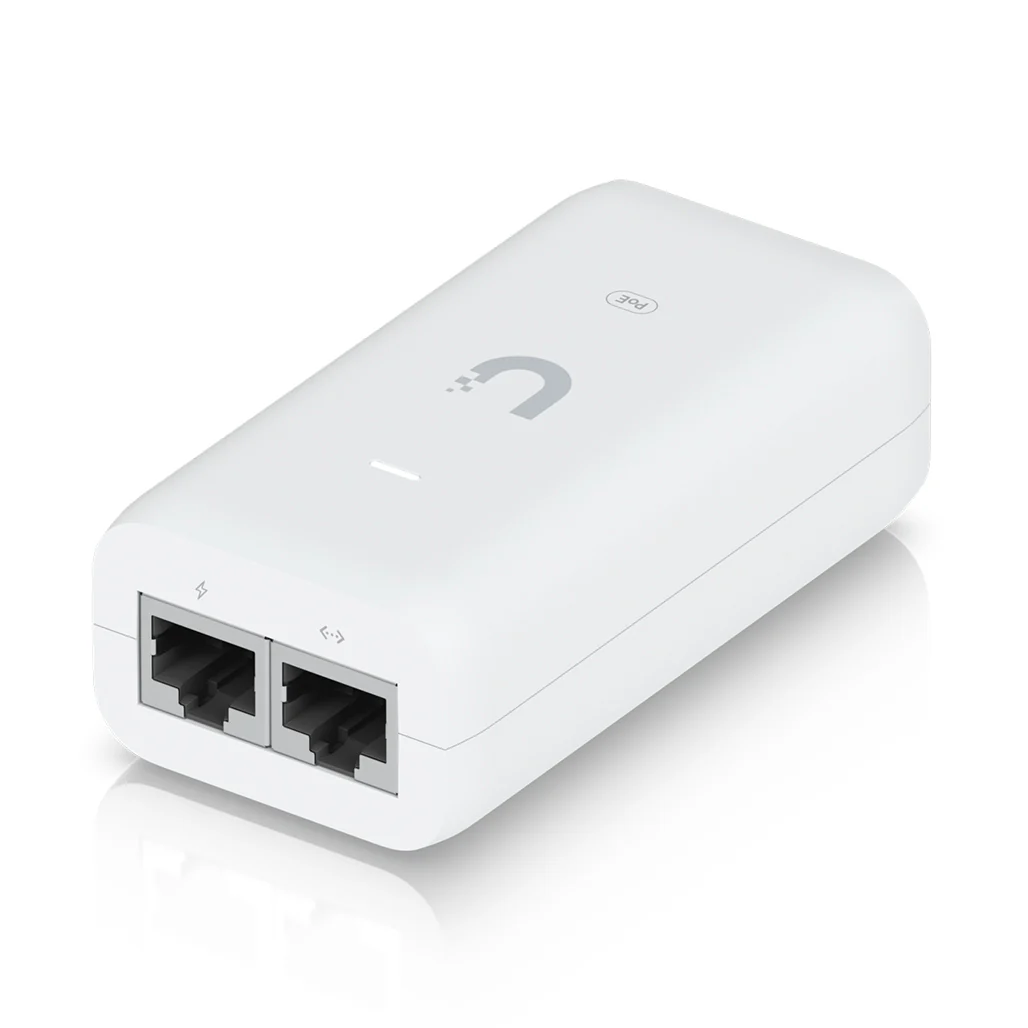

-70%Ubiquiti PoE Adapter (15W) - U-POE-AF—
$23.00
$6.90The Story
The U-POE-af Passive PoE Adapter is designed to power PoE devices from Ubiquiti Networks like the UniFi6 Lite. This 48 VDC adapter provides surge, clamping, maximum surge discharge, and peak pulse current protection to ensure that your connected PoE devices remain operational.
Specifications
| Model | U-POE-af |
| Dimensions | 86 x 46 x 33 mm (3.39 x 1.81 x 1.30") |
| Weight | 100 g (3.53 oz) |
| Output voltage | 48V DC @ 0.32A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset Button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 500mA Max. |
| Inrush current | <100A Peak at 25°C |
| Efficiency | 84.25+% |
| Output ripple | 200mV p-p |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |
| AC connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The U-POE-af Passive PoE Adapter is designed to power PoE devices from Ubiquiti Networks like the UniFi6 Lite. This 48 VDC adapter provides surge, clamping, maximum surge discharge, and peak pulse current protection to ensure that your connected PoE devices remain operational.
Specifications
| Model | U-POE-af |
| Dimensions | 86 x 46 x 33 mm (3.39 x 1.81 x 1.30") |
| Weight | 100 g (3.53 oz) |
| Output voltage | 48V DC @ 0.32A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset Button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 500mA Max. |
| Inrush current | <100A Peak at 25°C |
| Efficiency | 84.25+% |
| Output ripple | 200mV p-p |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |
| AC connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL |
