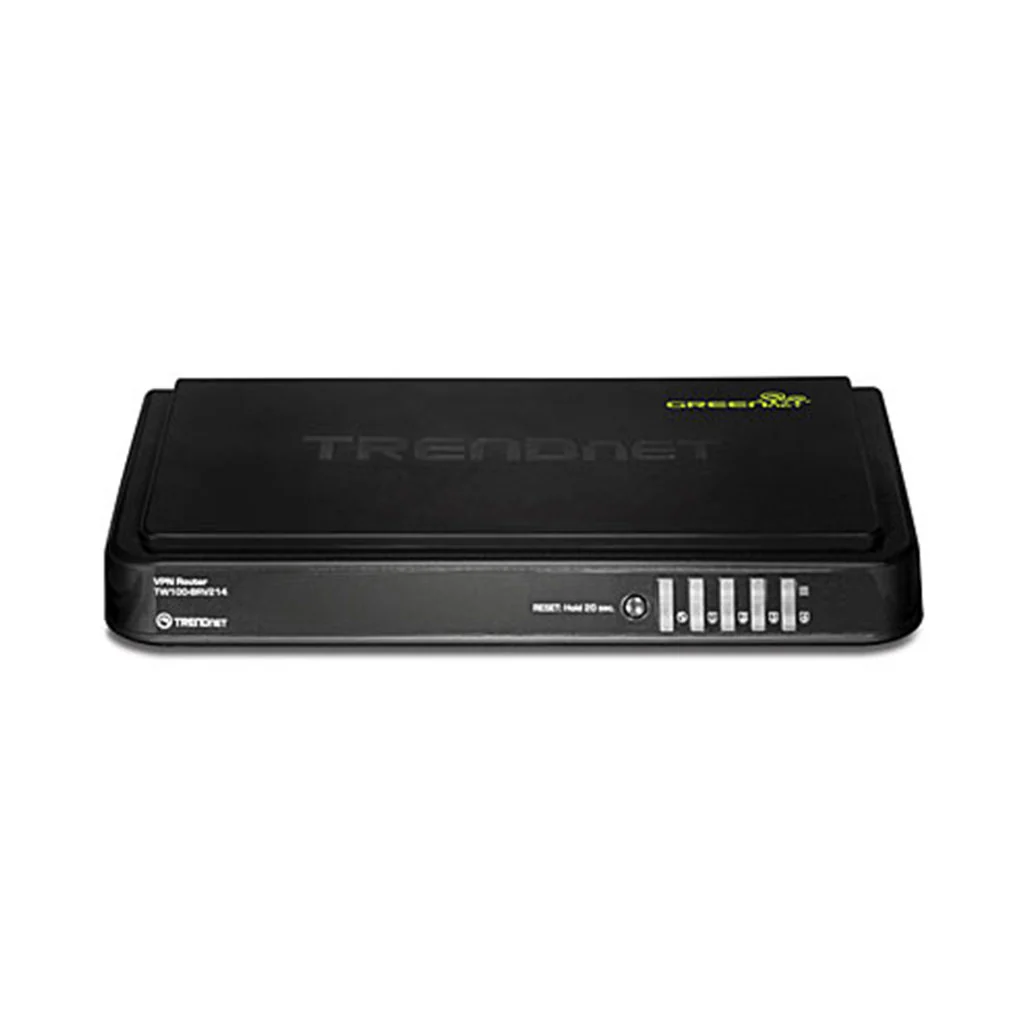

TrendNet VPN Router 4-Port
HomeStore

TrendNet VPN Router 4-Port

TrendNet VPN Router 4-Port

$67.00
TrendNet VPN Router 4-Port—
$67.00

The Story

HARDWARE
Standards
  • IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
WAN
  • 1 x 10/100 Mbps Auto-MDIX port (Internet)
LAN
  • 4 x 10/100 Mbps Auto-MDIX ports
Power Switch
  • On / off power switch
Reset Button
  • Reset button - Factory Default (Hold for 20 seconds)
Connection Type
  • Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
Firewall
  • NAT, SPI, and DoS prevention
VPN
  • IPsec / PPTP / L2TP– Up to 80* tunnels
  • PPTP / L2TP Server and Client – Define up to 5 user accounts each (multiple logins per account)
  • IPsec / L2TP / PPTP VPN pass through – Up to 100 sessions
  • IPsec VPN Protocols
  • Encryption (DES, 3DES, AES-128/192/256 bit)
  • Authentication (MD5, SHA1)
  • DH / PFS Groups (1-18)
  • Key Management (Manual/IKE)
  • Preshared Key (PSK)
  • Encapsulation (ESP, AH, ESP+AH)
  • Mode (Main/Aggressive)
  • NAT Traversal
  • NetBIOS over IPsec
  • XAUTH
  • Keep-Alive
  • Dead Peer Detection (DPD)
  • Local / Remote ID (FQDN, E-Mail, Key ID)
PPTP / L2TP VPN Protocols
  • Authentication (PAP, CHAP, MS-CHAP v1/2), Encryption (MPPE-40/56/128 bit)
Access Control
  • Virtual Servers, Packet MAC / IP Packet Filters, URL / Keyword Filters, DMZ host, Multi-DMZ, UPnP, and IGMPv1/2 pass through
Time / Schedule
  • Set time via NTP or manually and define schedules: virtual server, packet filters, and QoS
Routing
  • Static and Dynamic RIP v1/2
Quality of Service
  • Service-Based IP (TCP/UDP) port with 3 priority queues (High, Normal, Low)
Management / Monitoring
  • Local / remote configuration, upgrade firmware, backup / restore configuration via Web browser
  • Internal System Log, Syslog, E-Mail Alert, SNMPv1/v2c, Ping Test Tool, and Wake-on-LAN (WoL)
LED Indicator
  • Status, LAN1~LAN4, WAN (Internet)
Power
  • Input: 100~240V AC, 50~60Hz
  • Output: 12V DC, 1A
Power Consumption
  • 4.08 watts (max)
Dimension (L x W x H)
  • 189 x 118 x 33 mm (7.4 x 4.6 x 1.3 in)
Weight
  • 249 g (8.8 oz)
Temperature
  • Operation: 0°~ 40°C (32°F~ 104°F)
  • Storage: -10°~ 90°C (14°F~158°F)
Humidity
  • Max 95% (non-condensing)
Certifications
  • CE, FCC
TrendNet VPN Router 4-Port - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

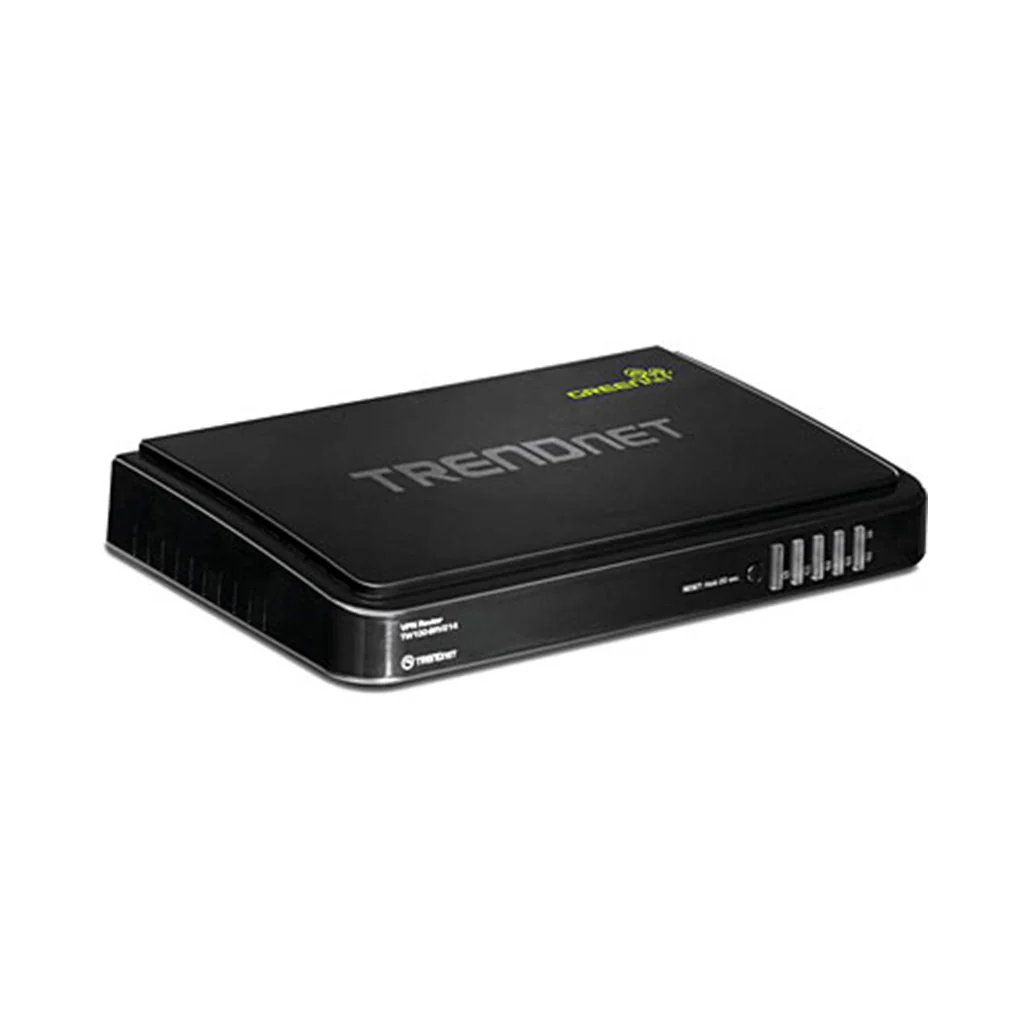

TrendNet VPN Router 4-Port - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

HARDWARE
Standards
  • IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
WAN
  • 1 x 10/100 Mbps Auto-MDIX port (Internet)
LAN
  • 4 x 10/100 Mbps Auto-MDIX ports
Power Switch
  • On / off power switch
Reset Button
  • Reset button - Factory Default (Hold for 20 seconds)
Connection Type
  • Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
Firewall
  • NAT, SPI, and DoS prevention
VPN
  • IPsec / PPTP / L2TP– Up to 80* tunnels
  • PPTP / L2TP Server and Client – Define up to 5 user accounts each (multiple logins per account)
  • IPsec / L2TP / PPTP VPN pass through – Up to 100 sessions
  • IPsec VPN Protocols
  • Encryption (DES, 3DES, AES-128/192/256 bit)
  • Authentication (MD5, SHA1)
  • DH / PFS Groups (1-18)
  • Key Management (Manual/IKE)
  • Preshared Key (PSK)
  • Encapsulation (ESP, AH, ESP+AH)
  • Mode (Main/Aggressive)
  • NAT Traversal
  • NetBIOS over IPsec
  • XAUTH
  • Keep-Alive
  • Dead Peer Detection (DPD)
  • Local / Remote ID (FQDN, E-Mail, Key ID)
PPTP / L2TP VPN Protocols
  • Authentication (PAP, CHAP, MS-CHAP v1/2), Encryption (MPPE-40/56/128 bit)
Access Control
  • Virtual Servers, Packet MAC / IP Packet Filters, URL / Keyword Filters, DMZ host, Multi-DMZ, UPnP, and IGMPv1/2 pass through
Time / Schedule
  • Set time via NTP or manually and define schedules: virtual server, packet filters, and QoS
Routing
  • Static and Dynamic RIP v1/2
Quality of Service
  • Service-Based IP (TCP/UDP) port with 3 priority queues (High, Normal, Low)
Management / Monitoring
  • Local / remote configuration, upgrade firmware, backup / restore configuration via Web browser
  • Internal System Log, Syslog, E-Mail Alert, SNMPv1/v2c, Ping Test Tool, and Wake-on-LAN (WoL)
LED Indicator
  • Status, LAN1~LAN4, WAN (Internet)
Power
  • Input: 100~240V AC, 50~60Hz
  • Output: 12V DC, 1A
Power Consumption
  • 4.08 watts (max)
Dimension (L x W x H)
  • 189 x 118 x 33 mm (7.4 x 4.6 x 1.3 in)
Weight
  • 249 g (8.8 oz)
Temperature
  • Operation: 0°~ 40°C (32°F~ 104°F)
  • Storage: -10°~ 90°C (14°F~158°F)
Humidity
  • Max 95% (non-condensing)
Certifications
  • CE, FCC
