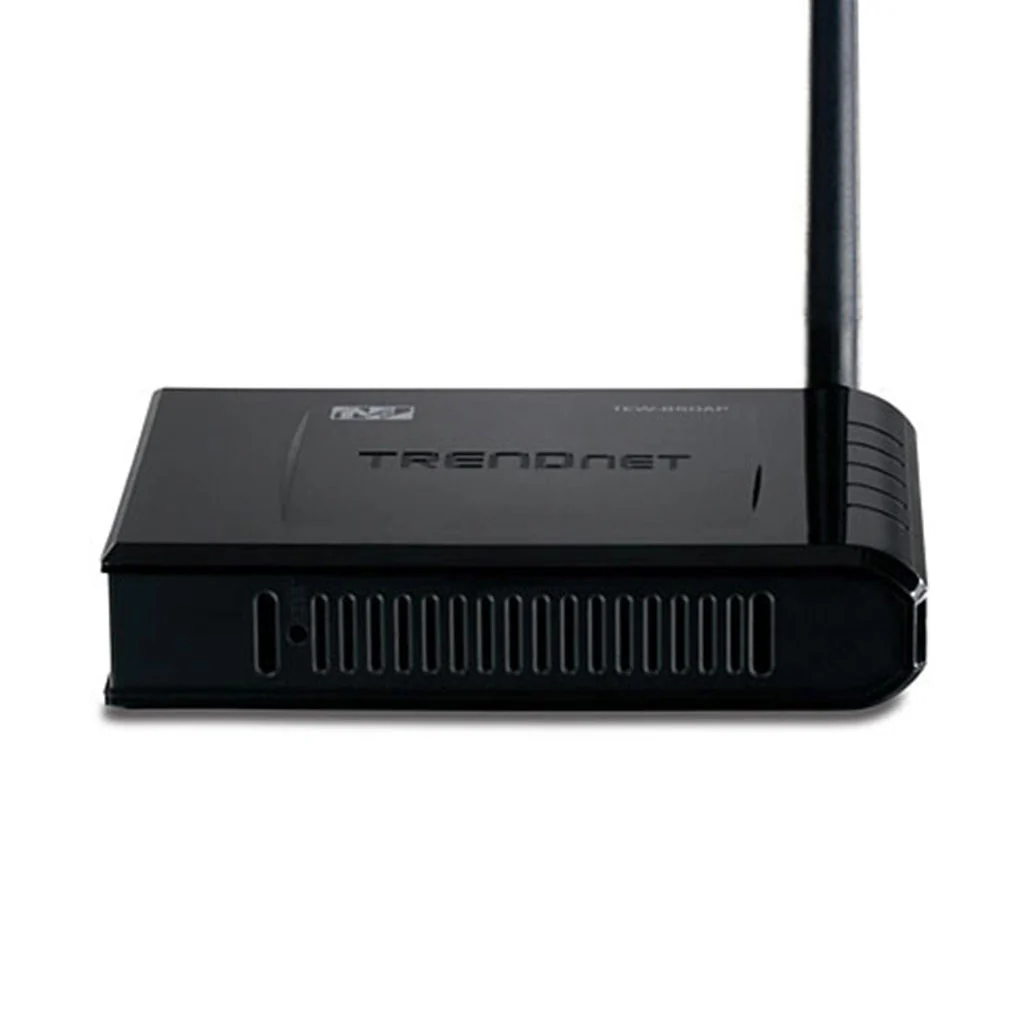

TrendNet N150 Wireless Access Point
HomeStore

TrendNet N150 Wireless Access Point

TrendNet N150 Wireless Access Point

$50.00
TrendNet N150 Wireless Access Point—
$50.00

The Story

TEW-650AP (Version v1.0R)

  • Extend your wireless network with Wireless Distribution System (WDS) technology
  • AP Client mode wirelessly connects game consoles, computers, and DVRs
  • Create up to 4 wireless networks (SSIDs)
  • Intuitive Windows-based setup wizard
HARDWARE
Standards
  • Based on IEEE 802.11n Technology, IEEE 802.11b, IEEE 802.11g, and 802.11e
Interface
  • 1 x 10/100 Mbps Auto-MDIX LAN port
LED Indicators
  • Power, LAN, WPS, and Wireless
Buttons
  • Reset button - restores factory default settings
  • WPS button - enables WPS function
Power Supply
  • 12 V DC 0.5A external power adapter
Dimensions (LxWxH)
  • 119 x 25 x 85 mm (4.6 x 1.0 x 3.3 in.)
Weight
  • 113.4 g (4 oz)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F),
  • Storage: -20°C ~ 60°C (-4° ~ 140° F)
Humidity
  • Max. 90% non-condensing
WIRELESS
Modulation
  • 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
  • 802.11g: OFDM with BPSK, QPSK and 16/64-QAM Sub-Carrier Modulations
  • 802.11b: CCK (11 and 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
WDS
  • Enable/disable Wireless Distribution System support
Access Control
  • MAC Address Filter (Up to 64 entries)
Repeater Mode
  • Enable/disable AP Mode Support
Antenna
  • 1 x 2dBi detachable antenna
Frequency
  • 2.412 - 2.462 GHz (North America)
  • 2.412 - 2.472 GHz (Europe)
Media Access Protocol
  • IEEE 802.11
Data Rate (Auto Fallback)
  • 802.11n: up to 150 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11b: up to 11 Mbps
Output Power
  • 802.11n: 11 dBm (typical) @ 150 Mbps
  • 802.11g: 15 dBm (typical) @ 54 Mbps
  • 802.11b: 18 dBm (typical) @ 11 Mbps
Receiving Sensitivity
  • 802.11n: -68 dBm (typical) @ 150 Mbps
  • 802.11g: -72 dBm (typical) @ 54 Mbps
  • 802.11b: -84 dBm (typical) @ 11 Mbps
Encryption
  • 64/128-bit WEP (HEX & ASCII), WPA/WPA2 RADIUS (AP mode only), WPA/WPA2-PSK
Channels
  • 1-11 (FCC), 1-13 (ETSI)
PACKAGE CONTENTS
  • TEW-650AP
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility and User's Guide)
  • 1 x Cat. 5 Ethernet cable (0.6 m / 2 ft.)
  • Power adapter (12V DC, 0.5A)
TrendNet N150 Wireless Access Point - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

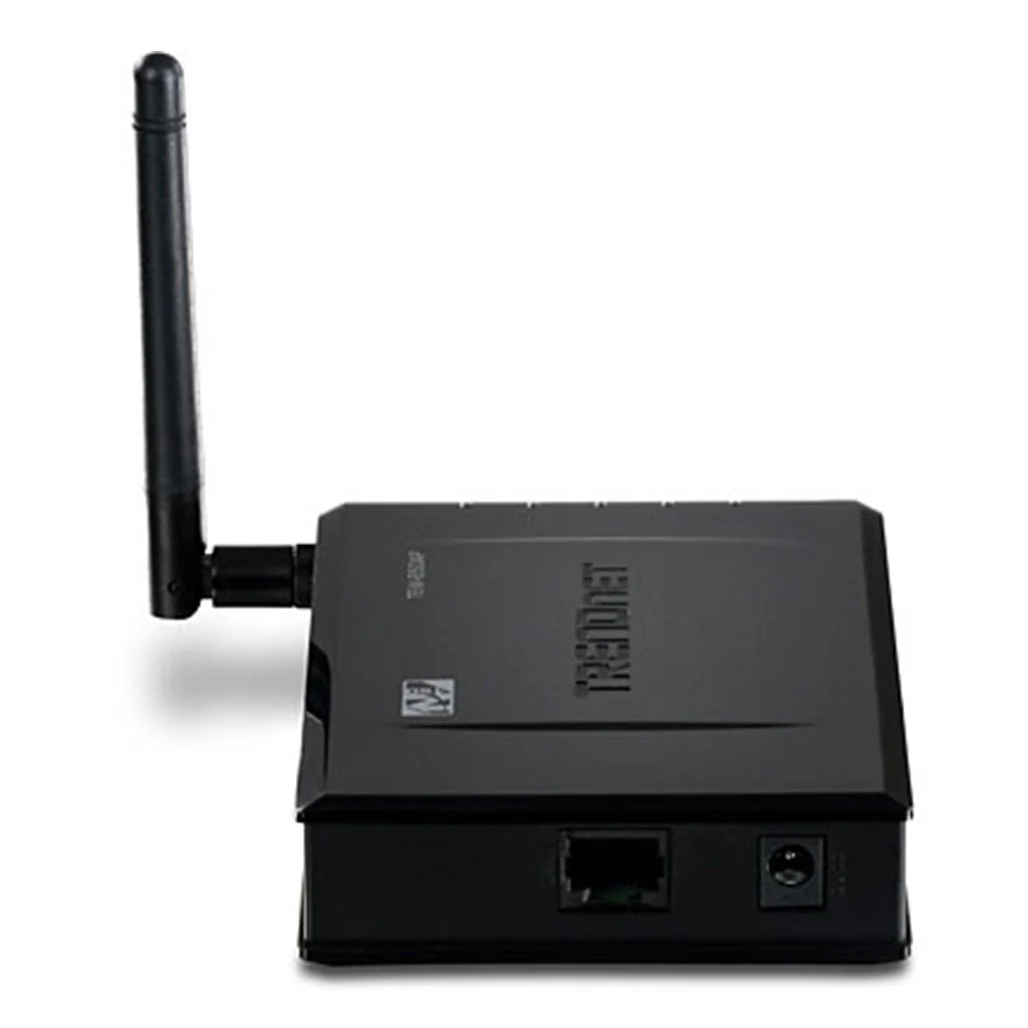

TrendNet N150 Wireless Access Point - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

TEW-650AP (Version v1.0R)

  • Extend your wireless network with Wireless Distribution System (WDS) technology
  • AP Client mode wirelessly connects game consoles, computers, and DVRs
  • Create up to 4 wireless networks (SSIDs)
  • Intuitive Windows-based setup wizard
HARDWARE
Standards
  • Based on IEEE 802.11n Technology, IEEE 802.11b, IEEE 802.11g, and 802.11e
Interface
  • 1 x 10/100 Mbps Auto-MDIX LAN port
LED Indicators
  • Power, LAN, WPS, and Wireless
Buttons
  • Reset button - restores factory default settings
  • WPS button - enables WPS function
Power Supply
  • 12 V DC 0.5A external power adapter
Dimensions (LxWxH)
  • 119 x 25 x 85 mm (4.6 x 1.0 x 3.3 in.)
Weight
  • 113.4 g (4 oz)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F),
  • Storage: -20°C ~ 60°C (-4° ~ 140° F)
Humidity
  • Max. 90% non-condensing
WIRELESS
Modulation
  • 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
  • 802.11g: OFDM with BPSK, QPSK and 16/64-QAM Sub-Carrier Modulations
  • 802.11b: CCK (11 and 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
WDS
  • Enable/disable Wireless Distribution System support
Access Control
  • MAC Address Filter (Up to 64 entries)
Repeater Mode
  • Enable/disable AP Mode Support
Antenna
  • 1 x 2dBi detachable antenna
Frequency
  • 2.412 - 2.462 GHz (North America)
  • 2.412 - 2.472 GHz (Europe)
Media Access Protocol
  • IEEE 802.11
Data Rate (Auto Fallback)
  • 802.11n: up to 150 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11b: up to 11 Mbps
Output Power
  • 802.11n: 11 dBm (typical) @ 150 Mbps
  • 802.11g: 15 dBm (typical) @ 54 Mbps
  • 802.11b: 18 dBm (typical) @ 11 Mbps
Receiving Sensitivity
  • 802.11n: -68 dBm (typical) @ 150 Mbps
  • 802.11g: -72 dBm (typical) @ 54 Mbps
  • 802.11b: -84 dBm (typical) @ 11 Mbps
Encryption
  • 64/128-bit WEP (HEX & ASCII), WPA/WPA2 RADIUS (AP mode only), WPA/WPA2-PSK
Channels
  • 1-11 (FCC), 1-13 (ETSI)
PACKAGE CONTENTS
  • TEW-650AP
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility and User's Guide)
  • 1 x Cat. 5 Ethernet cable (0.6 m / 2 ft.)
  • Power adapter (12V DC, 0.5A)
