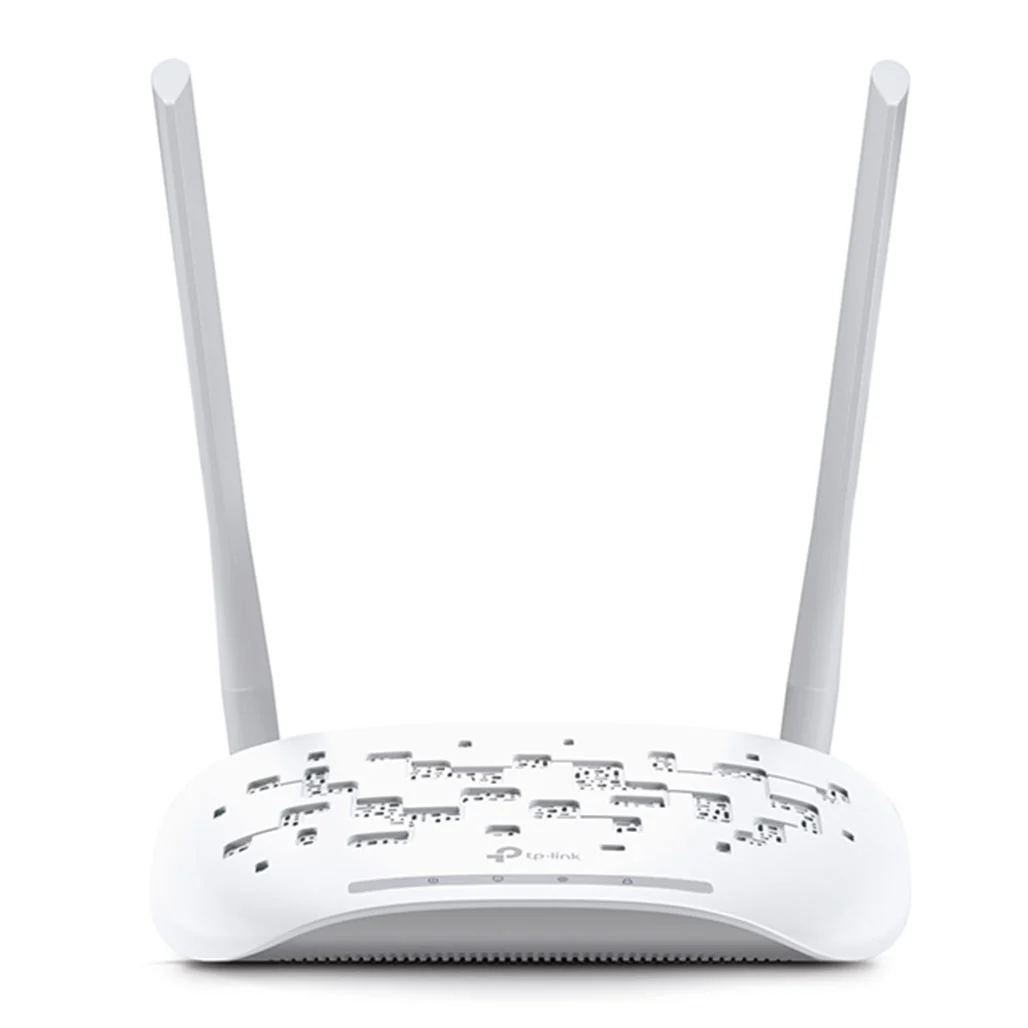

TP-Link TL-WA801ND - 300Mbps Wireless N Access Point

The TP-Link TL-WA801ND 300Mbps Wireless N Access Point offers robust and high-speed wireless connectivity for various networking needs. Designed for flexibility and performance, this access point supports IEEE 802.11n, 802.11g, and 802.11b standards, delivering speeds up to 300 Mbps. With multiple operating modes and passive PoE support, it provides a reliable solution for extending and enhancing your wireless network.

Featuring two detachable 5dBi omni-directional antennas, the TL-WA801ND ensures broad coverage and strong signal strength across your space. The access point supports various modes, including AP Mode, Multi-SSID Mode, Client Mode, Repeater Mode, and Bridge with AP Mode, making it adaptable to different network configurations and requirements.

The inclusion of Passive PoE support simplifies installation by enabling power delivery through the Ethernet cable, reducing the need for additional power adapters. This feature is complemented by a range of wireless security options and advanced functions to ensure a secure and efficient network environment.

Key Features:

1. High-Speed Wireless Performance: The TP-Link TL-WA801ND supports IEEE 802.11n, providing dynamic wireless speeds up to 300 Mbps, along with compatibility with 802.11g and 802.11b standards for versatile connectivity.

2. Detachable High-Gain Antennas: Equipped with two 5dBi detachable omni-directional antennas, the access point enhances signal strength and coverage, improving overall network performance.

3. Multiple Wireless Modes: The access point operates in various modes including AP Mode, Multi-SSID Mode, Client Mode, Repeater Mode, and Bridge with AP Mode, offering flexibility for different networking needs.

4. Passive PoE Support: Passive PoE support allows the TL-WA801ND to be powered through the Ethernet cable, simplifying installation and reducing the need for a separate power source.

5. Comprehensive Wireless Security: Supports multiple security protocols including 64/128/152-bit WEP, WPA, WPA2, WPA-PSK, and WPA2-PSK, ensuring a secure wireless network.

6. Quality of Service (QoS): The WMM (Wi-Fi Multimedia) feature helps manage network traffic, improving performance for streaming and other high-bandwidth applications.

7. Management and Advanced Functions: Includes SNMP management and support for up to 30 meters of Passive PoE, providing additional convenience and functionality.

Specifications:

• Interface:

  • One 10/100M Ethernet Port (RJ45)
  • Power Supply: 9VDC / 0.6A

• Dimensions: 7.1 × 4.9 × 1.4 in (181 × 125 × 36 mm)

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Frequency: 2.4-2.4835 GHz

• Signal Rate:

  • 11n: Up to 300 Mbps (dynamic)
  • 11g: Up to 54 Mbps (dynamic)
  • 11b: Up to 11 Mbps (dynamic)

• Reception Sensitivity:

  • 270M: -68 dBm @ 10% PER
  • 130M: -68 dBm @ 10% PER
  • 108M: -68 dBm @ 10% PER
  • 54M: -68 dBm @ 10% PER
  • 11M: -85 dBm @ 8% PER
  • 6M: -88 dBm @ 10% PER
  • 1M: -90 dBm @ 8% PER

• Transmit Power: < 20 dBm (EIRP)

• Wireless Modes: AP Mode, Multi-SSID Mode, Client Mode, Repeater Mode, Bridge with AP Mode

• Wireless Functions: Enable/Disable Wireless Radio, MAC Address Filter

• Wireless Security: 64/128/152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK

• Quality of Service: WMM

• Management: SNMP

• Advanced Functions: Up to 30 meters Passive PoE support

• Certification: CE, FCC, RoHS

• Package Contents: Wireless Access Point TL-WA801ND, 2 Detachable Omni-Directional Antennas, Power Supply Unit, Passive PoE Power Injector, Resource CD, Quick Installation Guide, RJ-45 Ethernet Cable

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7, 10, MAC OS, NetWare, UNIX, Linux

• Environment:

  • Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
  • Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing

The TP-Link TL-WA801ND 300Mbps Wireless N Access Point combines high-speed performance with versatile wireless modes and Passive PoE support, making it an excellent choice for expanding and optimizing your network coverage.
