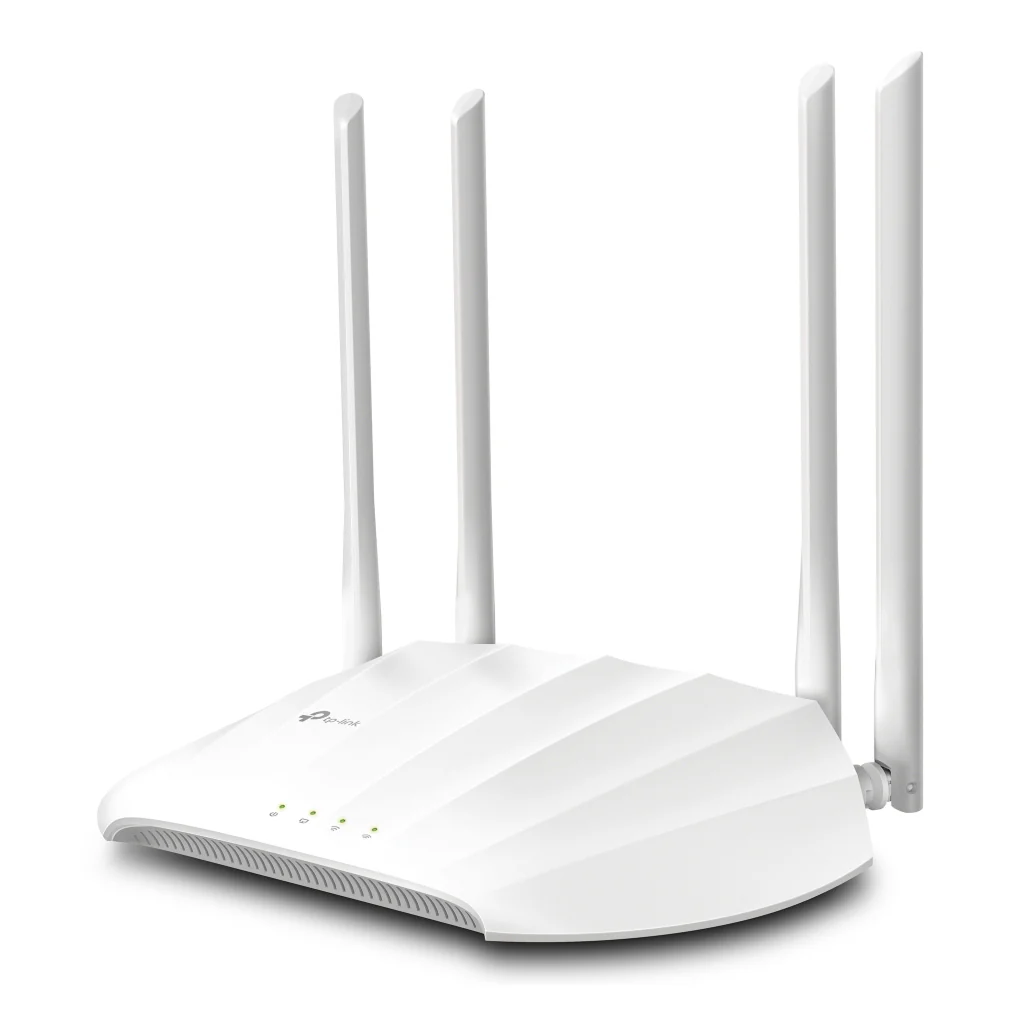

TP-Link TL-WA1801 - AX1800 Gigabit Wi-Fi 6 Access Point



The TP-Link TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point provides high-speed wireless connectivity and flexible deployment options. Designed to enhance both home and office networks, this access point offers dual-band speeds of up to 1800 Mbps, ensuring fast and reliable browsing, streaming, and downloading. With support for the latest Wi-Fi 6 (802.11ax) technology, it delivers increased capacity and efficiency for multiple devices simultaneously.

The TL-WA1801 features four fixed antennas equipped with Beamforming technology, which extends and concentrates Wi-Fi signals to cover every corner of your space. Its flexible deployment capabilities are supported by Passive PoE, allowing for easy installation with a single Ethernet cable that carries both power and data. Additionally, the access point supports multiple modes including Access Point, Range Extender, Multi-SSID, and Client modes to suit various network needs.

Key Features:

• Gigabit WiFi 6 Speed: Achieves combined speeds of up to 1800 Mbps, with 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz bands, perfect for high-demand tasks like streaming and gaming.
• Flexible Deployment: Supports Passive PoE for easy installation with a single cable that delivers power and data simultaneously.
• Boosted Coverage: Four external antennas and Beamforming technology provide extended and reliable Wi-Fi coverage.
• Advanced Security: Incorporates WPA3 protocol for enhanced encryption and protection against cyber threats.
• Multiple Operating Modes: Offers Access Point, Range Extender, Multi-SSID, and Client modes for versatile network configurations.
• Gigabit-Class Wired Performance: Includes a gigabit Ethernet port for high-speed wired connections and additional device support.

Specifications:

• Wireless Standards: IEEE 802.11b/g/n/ax (2.4 GHz), IEEE 802.11a/n/ac/ax (5 GHz)
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz
• Reception Sensitivity:
  • 5 GHz: Up to -60 dBm
  • 2.4 GHz: Up to -62 dBm
• Transmit Power: FCC: <30 dBm (2.4 GHz & 5.15 GHz–5.825 GHz)
• Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions
• Ports: 1 Gigabit Port (Supports Passive PoE)
• Dimensions: 8.9 × 5.7 × 1.5 in (225 × 145.5 × 37 mm)
• Power Supply: 48V/0.375A
• Certifications: FCC, RoHS
• Package Contents: Wireless Access Point TL-WA1801, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide, PoE Power Injector

Conclusion: The TP-Link TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point is an excellent solution for expanding your network with high-speed, reliable connectivity. With its support for advanced Wi-Fi 6 features, multiple deployment options, and robust security protocols, this access point is ideal for both home and office environments. Enjoy seamless browsing, streaming, and gaming with boosted coverage and flexible installation options.
