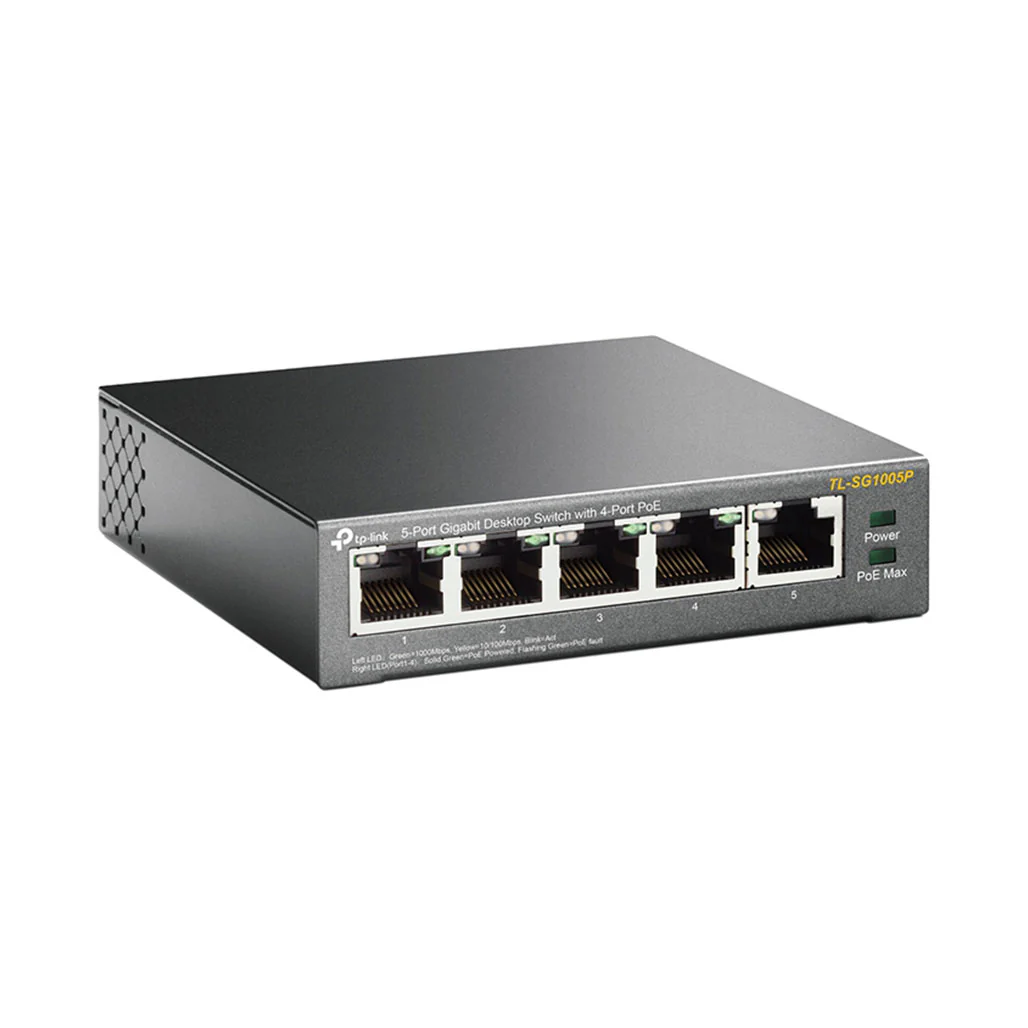

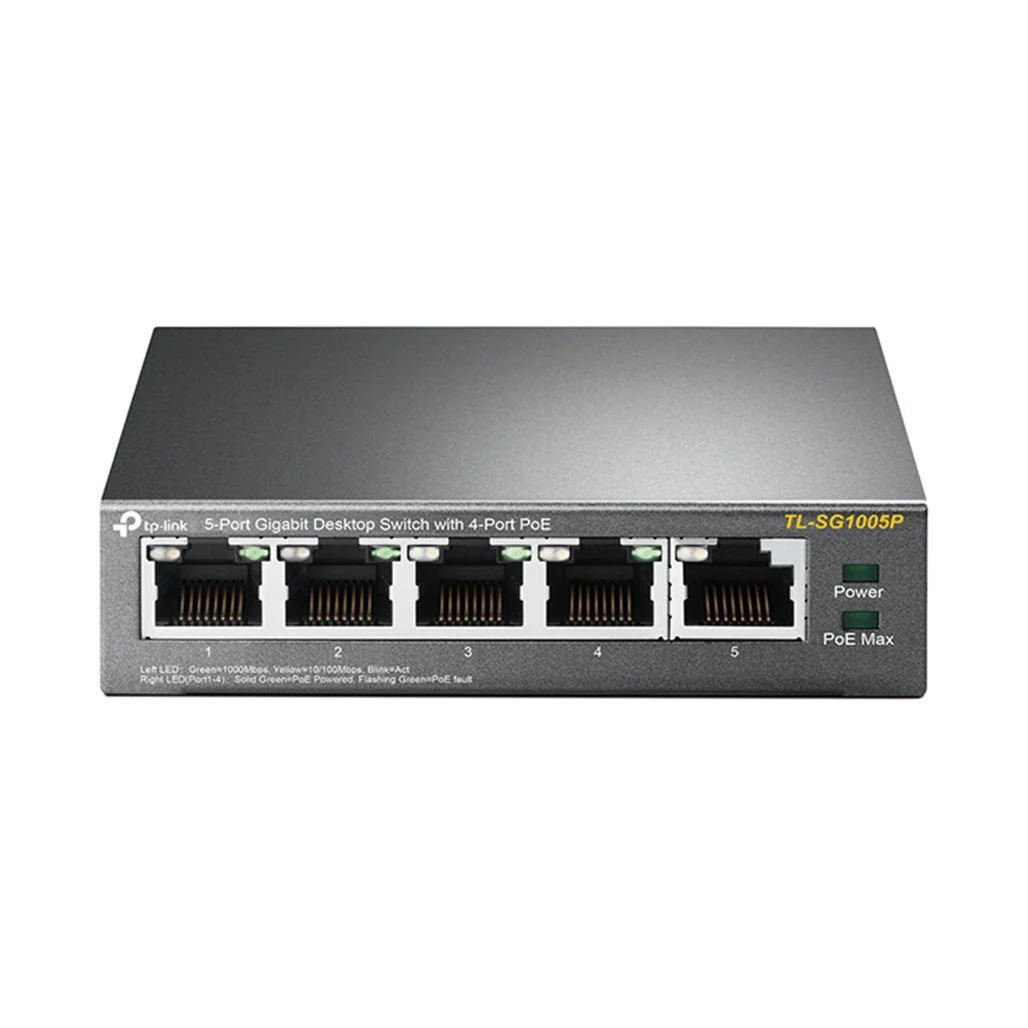

TP-Link TL-SG1005P - 5-Port Gigabit Desktop Switch with 4 PoE Ports



The TP-Link TL-SG1005P is a 5-port Gigabit desktop switch designed to deliver high-speed connectivity and power over Ethernet (PoE) for enhanced network capabilities. Featuring four PoE ports, this switch adheres to the IEEE 802.3af standard, providing up to 56 watts of power across these ports. This makes it an excellent choice for powering devices such as IP cameras, access points, and VoIP phones while ensuring robust network performance.

The switch includes five 10/100/1000 Mbps RJ45 ports, with support for auto-negotiation and Auto MDI/MDIX, facilitating easy and flexible network setup. It features a fanless design for silent operation and uses an external power adapter (48V DC / 1.25A) to ensure stable power delivery.

Key Features

• 5 Gigabit Ports: Offers 5× 10/100/1000 Mbps RJ45 ports for high-speed network connections.
• 4 PoE Ports: Provides PoE functionality on ports 1–4, delivering up to 56 watts of power to connected devices.
• Advanced Management: Includes features such as Priority Function, IGMP Snooping, and IEEE 802.3x Flow Control for efficient data handling and network performance.
• Energy Efficient: Designed with Green Ethernet technology to reduce power consumption when possible.
• Compact Design: Fanless and compact, suitable for desktop or wall-mount installation.

Specifications

Hardware Features

• Interface:
  • 5× 10/100/1000 Mbps RJ45 Ports
  • Auto Negotiation/Auto MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 48V DC / 1.25A)
• PoE Ports:
  • Standard: 802.3 af compliant
  • Ports: 1–4
  • Power Supply: 56W
• Backbound Bandwidth: 10 Gbps
• Mac Address Table: 2K
• Dimensions (W x D x H): 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
• Max Power Consumption:
  • 4.0W (no PD load)
  • 64.4W (with 56W PD load)
• Max Heat Dissipation:
  • 13.5 BTU/h (no PD load)
  • 219.9 BTU/h (with 56W PD load)

Software Features

• Advanced Functions:
  • Compatible With IEEE 802.3af Compliant PDs
  • Priority Function
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
• Transfer Method: Store-And-Forward

Others

• Certification: FCC, RoHS
• Package Contents: TL-SG1005P, Power Adapter, Installation Guide
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% RH non-condensing
  • Storage Humidity: 5%~90% RH non-condensing

Conclusion

The TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch is a robust networking solution featuring four PoE ports and high-speed Gigabit connectivity. Its compact, fanless design and advanced management features make it suitable for a range of applications, including office setups and small businesses. With easy plug-and-play installation and support for priority and isolation modes, it delivers reliable performance and efficient power management for all your networking needs.
