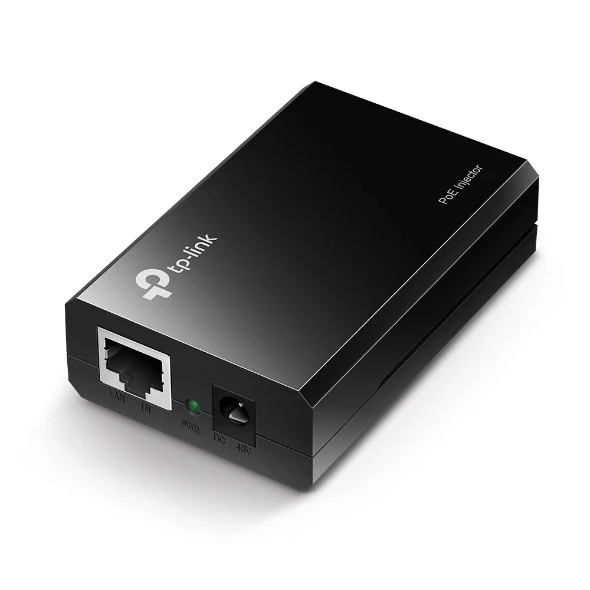

TP-Link TL-POE150S PoE Injector



The TP-Link TL-POE150S PoE Injector is designed to simplify network expansion by delivering power and data over a single Ethernet cable. Fully compliant with the IEEE 802.3af standard, this injector is compatible with all IEEE 802.3af PoE compliant Powered Devices (PDs), such as access points, IP cameras, and IP phones. It provides a practical solution for installing devices in locations without direct access to power outlets.

Featuring two 10/100/1000 Mbps RJ45 ports, the TL-POE150S ensures high-speed data transfer while maintaining the power supply. The injector can deliver power up to 100 meters, making it ideal for extending network connectivity to areas where traditional power sources are unavailable. Its compact design, with dimensions of 3.2 × 2.1 × 0.9 inches, allows for easy installation in tight spaces.

Key Features

• IEEE 802.3af Compliance: Adheres to the IEEE 802.3af standard, ensuring compatibility with various PoE devices and receiver adapters, such as TP-Link's TL-POE10R.
• Power Over Ethernet: Provides up to 15.4W of power at 48V DC, supporting network devices without requiring separate power sources.
• High-Speed Connectivity: Equipped with two 10/100/1000 Mbps RJ45 ports, supporting fast data transfer and network efficiency.
• Extended Power Delivery: Capable of delivering power up to 100 meters, facilitating network expansion in locations lacking power outlets.
• Auto-Negotiation and Auto MDI/MDIX: Automatically adjusts to the optimal connection settings for seamless integration with existing network equipment.
• Compact Design: Measures 3.2 × 2.1 × 0.9 inches, allowing for discreet installation and space-saving setup.

Specifications

Hardware Features

• Interface: 2× 10/100/1000 Mbps RJ45 Ports, 1× 48V DC Power Input Port
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
• Power Supply: 15.4W (Max. 48V DC)
• LED Indicator: PWR
• Dimensions (W x D x H): 3.2 × 2.1 × 0.9 in (81 × 54 × 24 mm)

Software Features

• Basic Function:
  • Compatible with IEEE 802.3af compliant PDs
  • Delivers power up to 100 meters
  • Automatically determines the necessary power requirements

Others

• Certification: FCC, RoHS
• Package Contents: Gigabit PoE Injector TL-POE150S, Power Adapter, RJ45 Cable, Installation Guide
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link TL-POE150S PoE Injector is an essential tool for network setups that require power and data delivery over a single Ethernet cable. Its compliance with IEEE 802.3af standards, high-speed connectivity, and power delivery capabilities make it a reliable choice for extending network infrastructure to areas lacking power outlets. Whether used in a home or business environment, this PoE injector ensures efficient and effective network expansion.
