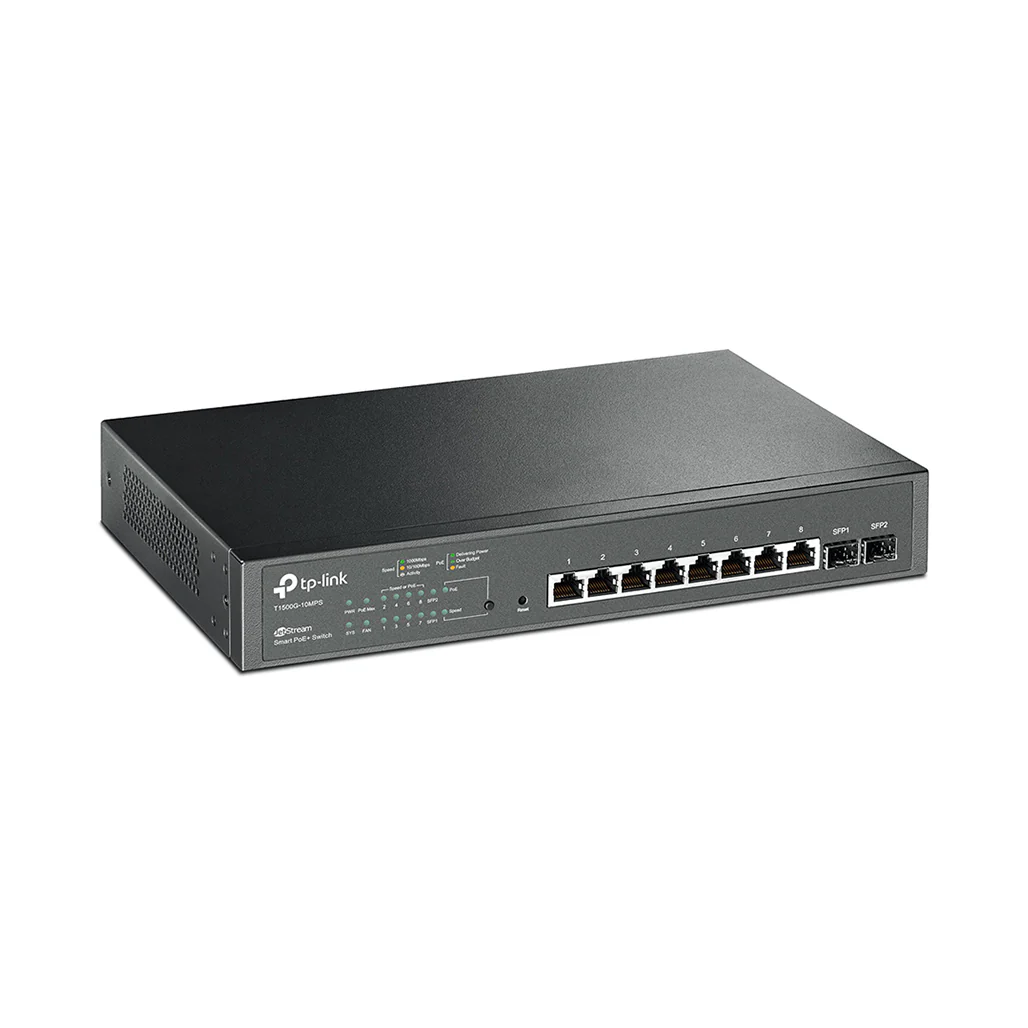

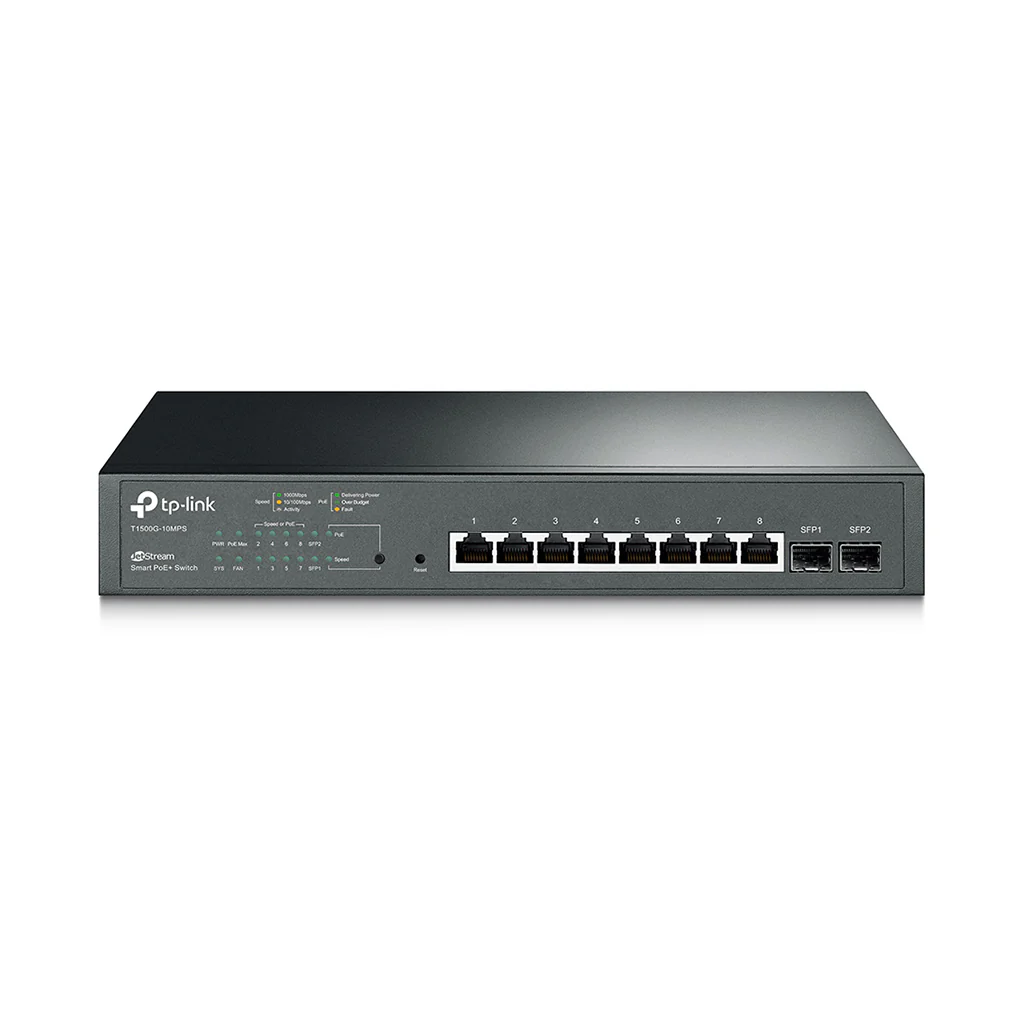

TP-Link T1500G-10MPS - JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots



The TP-Link T1500G-10MPS JetStream 8-Port Gigabit Smart PoE+ Switch is engineered to deliver advanced network management and high-performance connectivity. Designed for small to medium-sized business environments, this switch integrates PoE+ capabilities with extensive management features to enhance network efficiency and reliability.

High-Powered PoE+ Support
Featuring 8 PoE+ ports compliant with IEEE 802.3af/at standards, the T1500G-10MPS offers a total PoE power budget of 116W. This allows the switch to power devices such as wireless access points, IP cameras, and IP phones directly through the Ethernet cable, eliminating the need for additional power sources. The efficient power management ensures that your network devices are adequately powered while simplifying installation.

Robust Network Management
The T1500G-10MPS provides comprehensive management options through its web-based GUI and industry-standard CLI. It supports SNMP and RMON for detailed network monitoring and configuration. The dual firmware image feature enhances network reliability by providing a backup firmware to prevent downtime during updates.

Advanced Security and QoS Features
Security is reinforced with features like IP-MAC-Port Binding, ACL, Port Security, DoS Defend, and DHCP Snooping. The switch supports a range of Quality of Service (QoS) policies including L2 to L4 QoS, which optimizes voice and video applications for smooth performance. IGMP Snooping ensures efficient multicast traffic management, which is crucial for streaming and communication applications.

Flexible Deployment and Easy Integration
Equipped with 2 SFP slots for flexible fiber connections, the T1500G-10MPS supports a range of network configurations. The switch's compact design and rack-mountable option make it adaptable to various setups, ensuring it fits seamlessly into your existing infrastructure.

Layer 2 and Layer 3 Features
The switch supports advanced Layer 2 features such as VLAN, Link Aggregation, and Spanning Tree Protocols (STP, RSTP, MSTP). It also offers Layer 3 capabilities for enhanced network performance. With support for up to 512 VLANs and extensive multicast management features, the T1500G-10MPS is well-suited for managing complex network environments.

Key Features

• PoE+ Ports: 8 ports with IEEE 802.3af/at support, 116W total power budget.
• Management: Web-based GUI, CLI, SNMP, RMON, dual firmware image.
• Security: IP-MAC-Port Binding, ACL, Port Security, DoS Defend.
• QoS: L2 to L4 QoS, voice VLAN, advanced traffic prioritization.
• Flexibility: 2 SFP slots for fiber connectivity, rack-mountable design.

Specifications

Hardware Features

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
• Interface: 8 × 10/100/1000Mbps RJ45 Ports (PoE+), 2 × 100/1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX)
• Network Media: UTP/STP category 3, 4, 5, 5e, or above cable (maximum 100m), MMF and SMF for SFP Modules
• Fan Quantity: 1
• Physical Security Lock: Yes
• Power Supply: 100-240V, 50/60Hz
• Power Consumption: Maximum 136.6W (PoE on), 20.6W (PoE off)
• Dimensions (W x D x H): 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
• Mounting: Rack Mountable
• Max Power Consumption: 15.61W (no PD connected), 139.52W (with 116W PD connected)
• Max Heat Dissipation: 53.26 BTU/h (no PD connected), 476.04 BTU/h (with 116W PD connected)

Performance

• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.9Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 512KB
• Jumbo Frame: 9KB

Software Features

• Quality of Service: 802.1p CoS/DSCP priority, 4 priority queues, Voice VLAN
• Layer 2 Features: IGMP Snooping V1/V2/V3, 802.3ad LACP, Spanning Tree STP/RSTP/MSTP, BPDU Filtering/Guard, Loopback Detection
• Layer 2 Multicast: IGMP Snooping, MLD Snooping
• IPv6 Support: Dual IPv4/IPv6, MLD Snooping, IPv6 applications including DHCPv6, Ping6, Tracert6, etc.
• VLAN: Supports up to 512 VLANs simultaneously
• Access Control List: L2 to L4 package filtering

Management

• Interfaces: Web-based GUI, CLI, SNMP v1/v2c/v3, RMON
• Additional Features: Firmware Upgrade via TFTP & Web, Dual Image

Others

• Certification: CE, FCC, RoHS
• Package Contents: T1500G-10MPS, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux
• Environment: Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link T1500G-10MPS JetStream 8-Port Gigabit Smart PoE+ Switch combines high-performance PoE+ support with advanced network management capabilities. Its comprehensive feature set, including robust security options, extensive QoS policies, and flexible management interfaces, makes it an ideal solution for expanding and managing small to medium-sized business networks.
