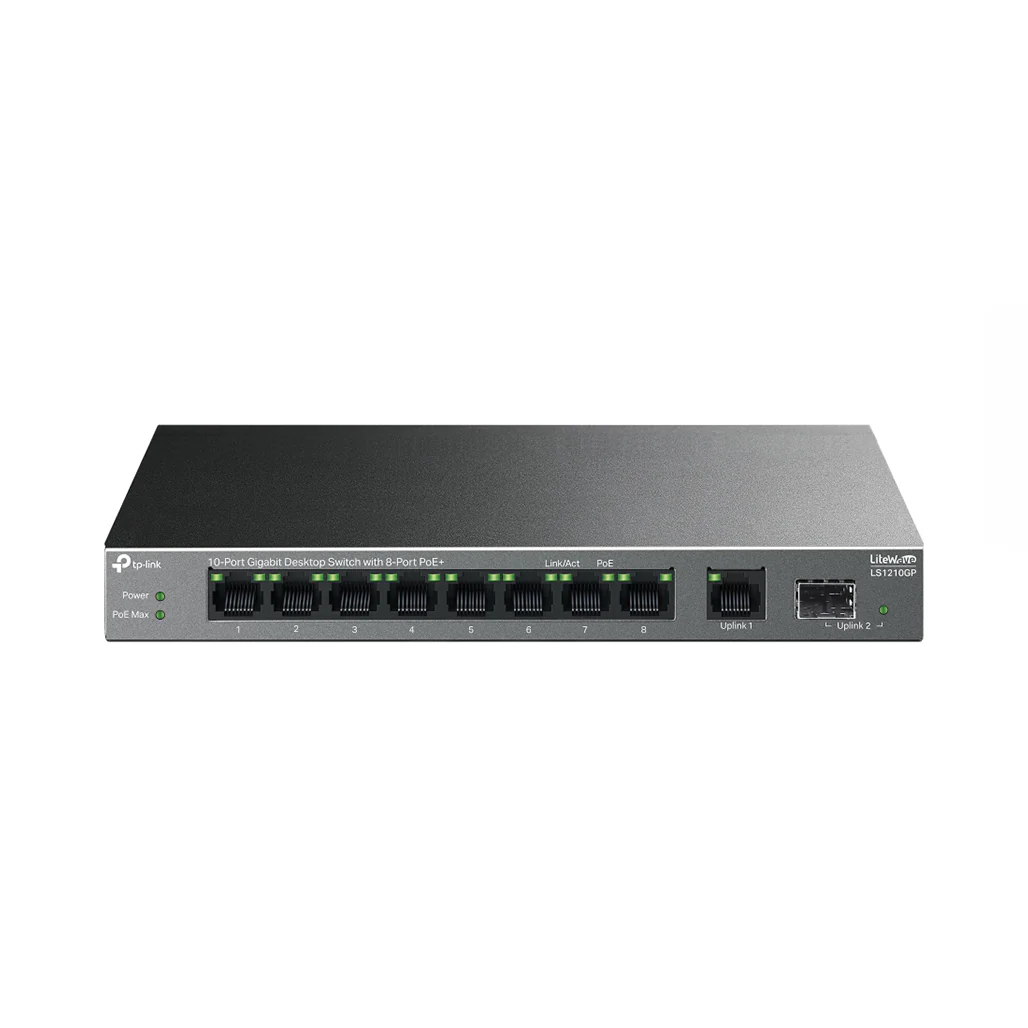

TP-Link LS1210GP - 10-Port Gigabit Desktop Switch with 8-Port PoE+

Enhance your network with the TP-Link LS1210GP, a versatile 10-port gigabit desktop switch featuring 8 PoE+ ports. Designed to deliver exceptional performance and flexibility, this switch is perfect for both home and business environments that require robust connectivity and efficient power management.

Comprehensive Network Expansion
The LS1210GP offers nine gigabit auto-negotiation RJ45 Ethernet ports and one gigabit SFP port, providing up to 20 Gbps switching capacity. The inclusion of both RJ45 and SFP ports ensures seamless integration with various network setups, accommodating a wide range of devices.

Power Over Ethernet (PoE+) Capabilities
Equipped with eight gigabit PoE+ ports, the LS1210GP supports 802.3af/at standards, delivering up to 30 W of power per port. This capability simplifies the installation of IP cameras, access points, and IP phones by enabling both data and power transmission through a single cable. The 61 W PoE power budget ensures ample support for multiple devices.

Extended PoE Transmission
With the Extend Mode feature, PoE transmission can reach up to 250 meters, making it ideal for deploying surveillance cameras or other PoE-powered devices across large areas. This extended range is particularly beneficial for expansive or multi-story installations.

Advanced Security and Performance Features
The LS1210GP includes Isolation Mode to separate client traffic and prevent data snooping or tampering. This feature is useful for enhancing security and managing broadcast storms. PoE Auto Recovery automatically reboots unresponsive PoE devices, minimizing downtime.

Effortless Installation and Silent Operation
Experience hassle-free setup with the plug-and-play functionality, which requires no configuration. The fanless design ensures quiet operation, making it suitable for noise-sensitive environments. The durable metal casing and versatile installation options (desktop or wall-mounted) contribute to the switch’s reliability and adaptability.

Efficient Power Management
The LS1210GP incorporates Green Technology to optimize power consumption based on link status and cable length. This not only reduces energy costs but also supports environmental sustainability.

Key Features

• Gigabit Ports: 9 × 10/100/1000 Mbps RJ45 ports and 1 × Gigabit SFP port for high-speed connectivity.
• PoE+ Support: 8 ports with up to 30 W output per port and a 61 W PoE power budget.
• Extended PoE Transmission: Up to 250 meters with Extend Mode for large-scale deployments.
• Isolation Mode: Enhances security by separating client traffic to prevent snooping and broadcast storms.
• Silent Operation: Fanless design ensures quiet performance suitable for any environment.
• Plug and Play: Easy setup with no configuration needed.

Specifications

Hardware Features

• Interface: 9 × 10/100/1000 Mbps RJ45 Ports (Ports 1–8 support PoE+ output), 1 × Gigabit SFP Port
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• Fan Quantity: Fanless
• Installation: Desktop, Wall Mounting
• Physical Security Lock: Yes
• Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
• PoE+ Ports (RJ45): Standard 802.3at/802.3af compliant, Up to 30 W PoE output per port
• PoE Power Budget: 61 W
• Dimensions (W × D × H): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
• Max Power Consumption: 7.3 W (220V/50Hz, no PD connected), 76.96 W (220V/50Hz, with 61 W PD connected)
• Max Heat Dissipation: 24.82 BTU/h (no PD connected), 261.66 BTU/h (with 61 W PD connected)

Performance

• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• MAC Address Table: 4K
• Jumbo Frame: 16 KB

Software Features

• Advanced Features: Extend Mode (Ports 1–4), Isolation Mode (Ports 1–8), PoE Auto Recovery (Ports 1–8)
• Compatible With: IEEE 802.3af/at Compliant PDs
• Flow Control: IEEE 802.3x
• QoS: 802.1p/DSCP
• IGMP Snooping
• Green Technology
• Transmission Method: Store-And-Forward

Others

• Certification: CE, FCC, RoHS
• Package Contents: LS1210GP Switch, Power Adapter, Installation Guide
• Environment:
  • Operating Temperature: 0°C–40°C (32°F–104°F)
  • Storage Temperature: -40°C–70°C (-40°F–158°F)
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing

Conclusion

The TP-Link LS1210GP 10-Port Gigabit Desktop Switch is a powerful and reliable networking solution that offers exceptional performance and flexibility. With its PoE+ capabilities, extended transmission range, and advanced security features, it is well-suited for various networking applications, including large-scale deployments and noise-sensitive environments. Enjoy seamless connectivity and efficient power management with this high-capacity switch.
