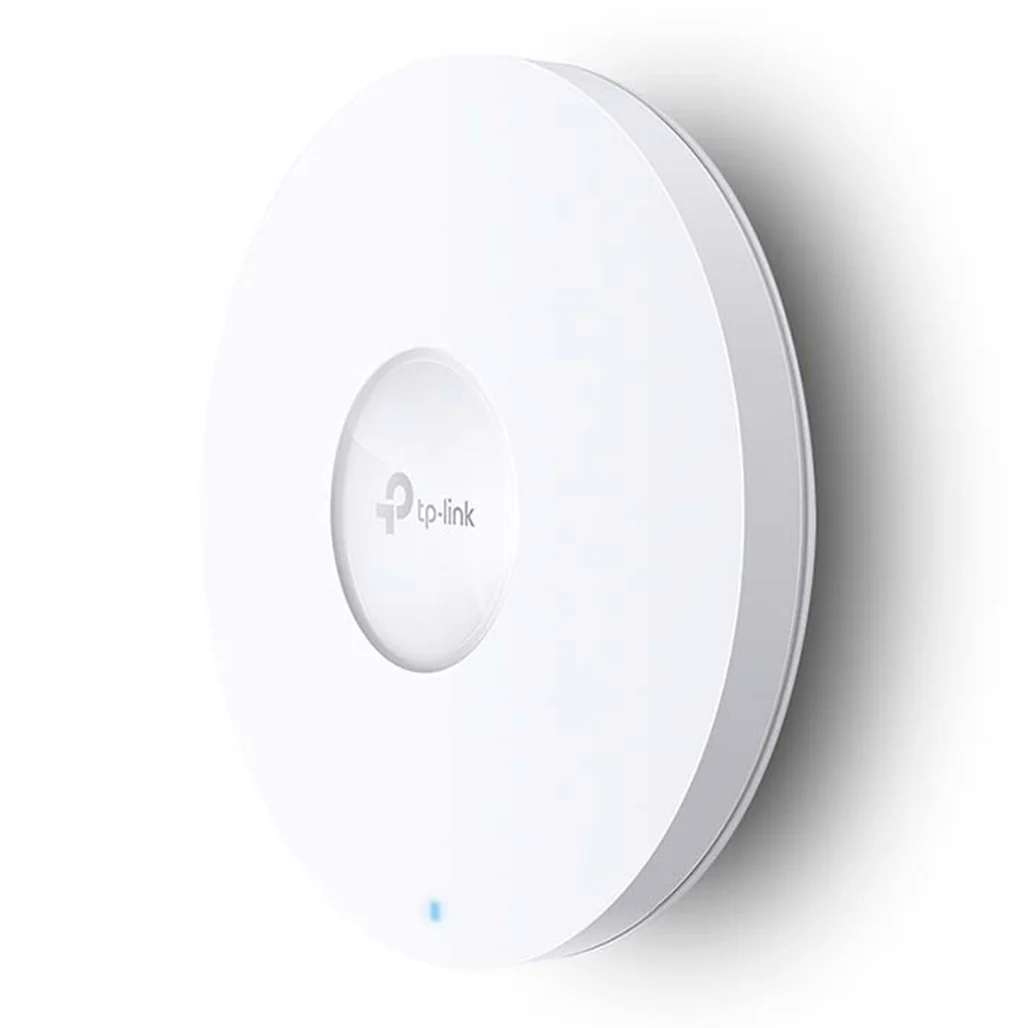

TP-Link EAP610 V2 - AX1800 Ceiling Mount WiFi 6 Access Point



The TP-Link EAP610 V2 AX1800 Ceiling Mount WiFi 6 Access Point delivers high-speed, reliable wireless connectivity with a sleek, ultra-slim design. With simultaneous speeds of up to 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band, this access point achieves a total Wi-Fi speed of 1775 Mbps. Its WiFi 6 technology enhances performance and efficiency, accommodating more connected devices and delivering faster speeds.

Designed for flexibility and ease of management, the EAP610 supports centralized cloud management via the Omada app or web UI. Omada Mesh technology enables seamless wireless connectivity between access points, extending network coverage and enhancing deployment options. Fast roaming capabilities ensure uninterrupted connectivity for applications such as video streaming and VoIP, even as users move between access points.

The access point supports various power options, including 802.3at PoE+, Passive PoE, and DC power, offering installation versatility. Its elegant, compact design ensures it blends seamlessly into modern environments like offices, hotels, classrooms, and cafés.

Key Features

• Ultra-Fast WiFi 6 Speeds: Delivers up to 1775 Mbps total with 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.
• High-Efficiency WiFi 6: Provides faster speeds and handles more connected devices.
• Centralized Cloud Management: Manage the network locally or remotely through the Omada app or web UI.
• Seamless Roaming: Ensures continuous connectivity for streaming and VoIP as users move between access points.
• Omada Mesh Technology: Extends network coverage and flexibility with wireless connectivity between access points.
• PoE+ Powered: Supports DC, 802.3at PoE+, and Passive PoE for flexible installation.
• Ultra-Slim Design: Compact and elegant design fits seamlessly in modern spaces.

Specifications

Hardware Features

• Interface: 1× Gigabit Ethernet (RJ-45) Port (Supports IEEE802.3at PoE and Passive PoE)
• Button: Reset
• Power Supply: 802.3at PoE, 48 V Passive PoE, 12 V / 1.5 A DC
• Power Consumption: EU: 13.7 W (PoE), 12.3 W (DC); US: 14.2 W (PoE), 12.8 W (DC)
• Dimensions: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
• Antenna Type: Internal Omni Antenna
  • 2.4 GHz: 2× 4 dBi
  • 5 GHz: 2× 5 dBi

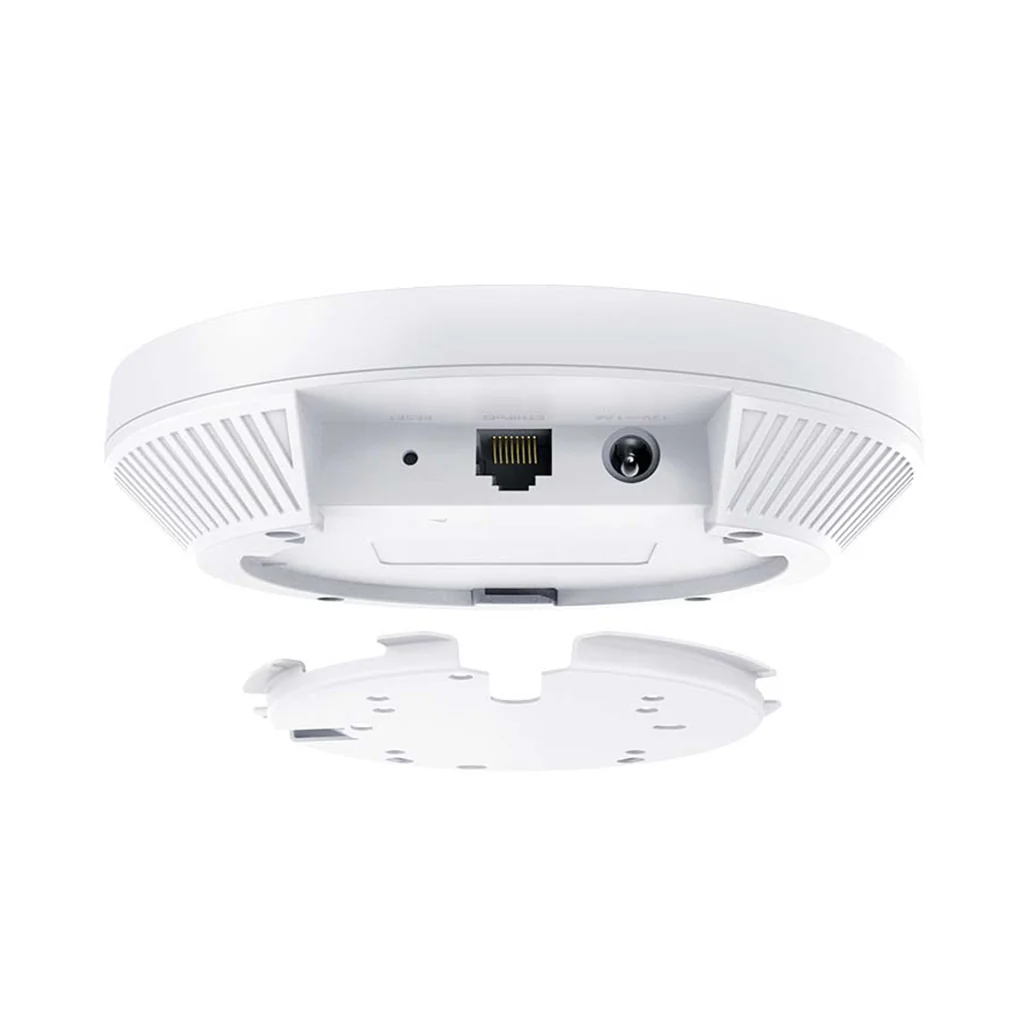

• Mounting: Ceiling/Wall Mounting (Kits Included), Junction Box Mounting

Wireless Features

• Wireless Client Capacity: 250+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate:
  • 5 GHz: Up to 1201 Mbps
  • 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 1024-QAM, Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 per band), Automatic Channel Assignment, Transmit Power Control, QoS (WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power:
  • CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz band1/2), ≤25 dBm (5 GHz band3)
  • FCC: ≤25 dBm (2.4 GHz), ≤25 dBm (5 GHz)

Management

• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300, OC200), Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)

Others

• Certification: CE, FCC, RoHS

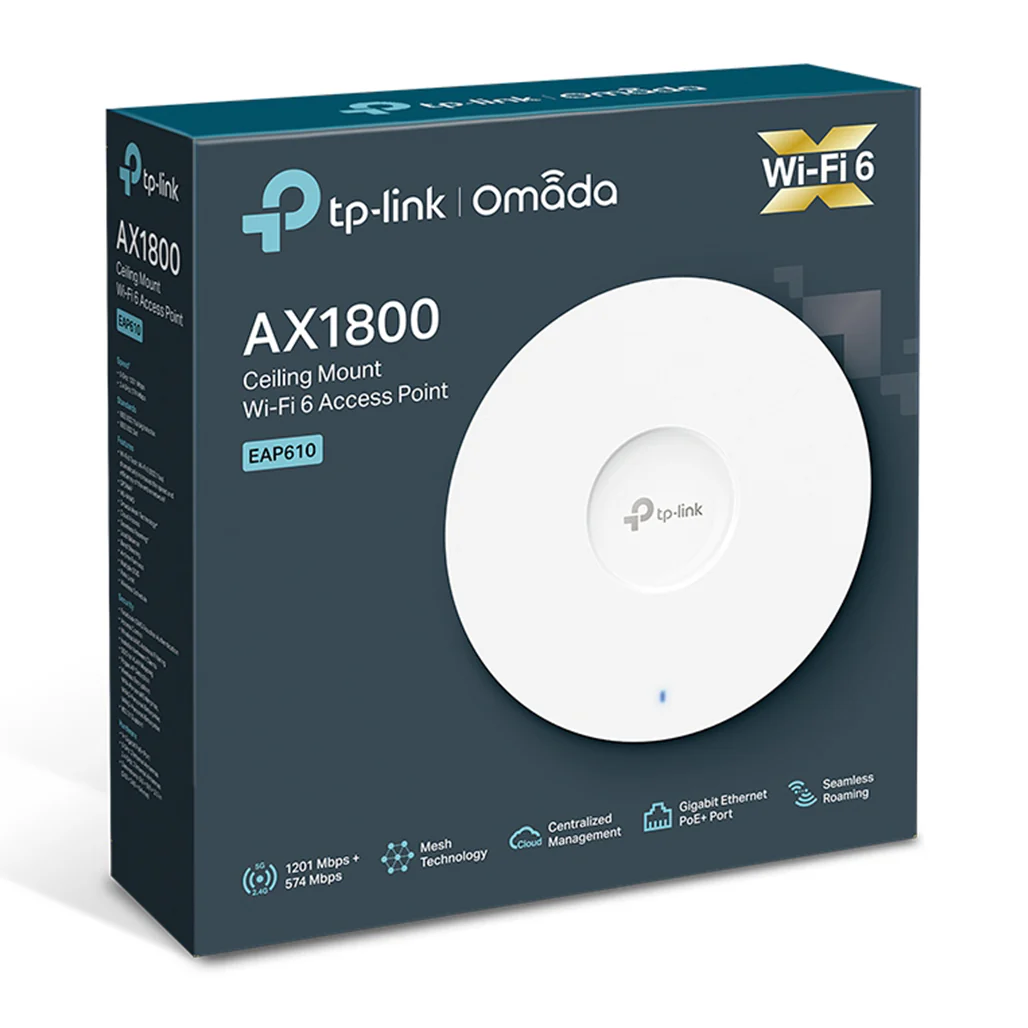

• Package Contents: EAP610, Power Adapter, Ceiling/Wall Mounting Kits, Installation Guide
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux
• Environment: Operating Temperature: 0–40°C (32–104°F), Storage Temperature: -40–70°C (-40–158°F), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing

Conclusion

The TP-Link EAP610 V2 AX1800 Ceiling Mount WiFi 6 Access Point combines advanced WiFi 6 technology with a sleek, space-saving design to offer exceptional performance and coverage. With its high-speed dual-band capabilities, seamless roaming, and flexible installation options, this access point is ideal for modern office spaces, hospitality settings, educational institutions, and more. The integration of Omada Mesh technology and centralized management ensures easy setup and optimal network performance, making the EAP610 a reliable choice for enhancing your wireless network.
