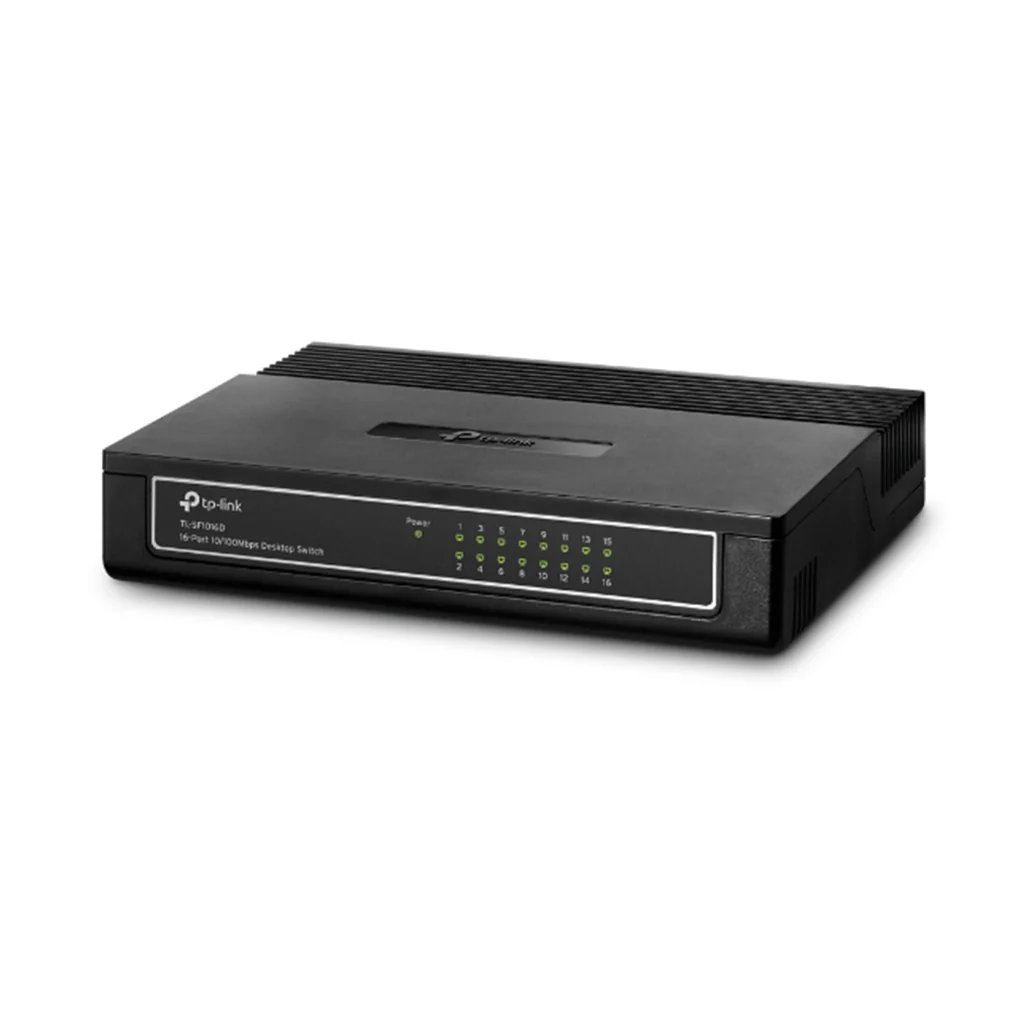

TP-Link TL-SF1016D - 16-Port Fast Ethernet Switch

The TP-Link TL-SF1016D 16-Port Fast Ethernet Switch is engineered to meet the networking needs of small office and home office (SOHO) environments. Designed for efficiency and ease of use, this switch features 16 auto-sensing 10/100Mbps RJ45 ports, ensuring seamless network connectivity without the hassle of configuration. With its plug-and-play capability, no additional setup is required, making it ideal for users seeking a straightforward networking solution.

The TL-SF1016D incorporates advanced energy-saving technology to reduce power consumption and supports a recyclable packaging design, aligning with eco-friendly practices. Its support for auto MDI/MDIX eliminates the need for crossover cables, while IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode manage network traffic effectively. This ensures reliable and efficient network performance.

Key Features:

• Efficient 16-Port Design: Offers 16 10/100Mbps RJ45 ports, all equipped with auto-negotiation and auto MDI/MDIX functions, allowing for hassle-free connection without the need for crossover cables.
• Energy-Efficient Operation: Features advanced green technology that reduces power consumption by adjusting energy usage based on link status and cable length.
• Reliable Performance: Utilizes IEEE 802.3x flow control for full-duplex and backpressure for half-duplex modes to handle network traffic effectively.
• Eco-Friendly Packaging: Most of the packaging materials are recyclable, supporting environmentally conscious practices.

Specifications:

• Hardware Features:

  • Interface: 16× 10/100 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
  • Fan Quantity: Fanless
  • Physical Security Lock: No
  • External Power Supply: External Power Adapter (Output: 5.0VDC / 0.6A)
  • Mac Address Table: 2K
  • Dimensions (W x D x H): 7.9 x 5.6 x 1.6 in. (200 x 142 x 40 mm)
  • Max Power Consumption: 3.2W
  • Max Heat Dissipation: 11.0 BTU/h

• Software Features:

  • Transfer Method: Store and Forward
  • Advanced Functions: Green Technology, 802.3X Flow Control

• Others:

  • Certification: FCC, CE, RoHS
  • Package Contents: 16-Port 10/100Mbps Desktop Switch TL-SF1016D, Power Adapter, User Guide
  • Environment: Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Conclusion: The TP-Link TL-SF1016D 16-Port Fast Ethernet Switch stands out with its high efficiency and user-friendly design, making it a reliable choice for expanding network connectivity in small and home office settings. The integration of advanced green technology and recyclable packaging underscores a commitment to environmental sustainability while delivering robust performance and ease of use.
