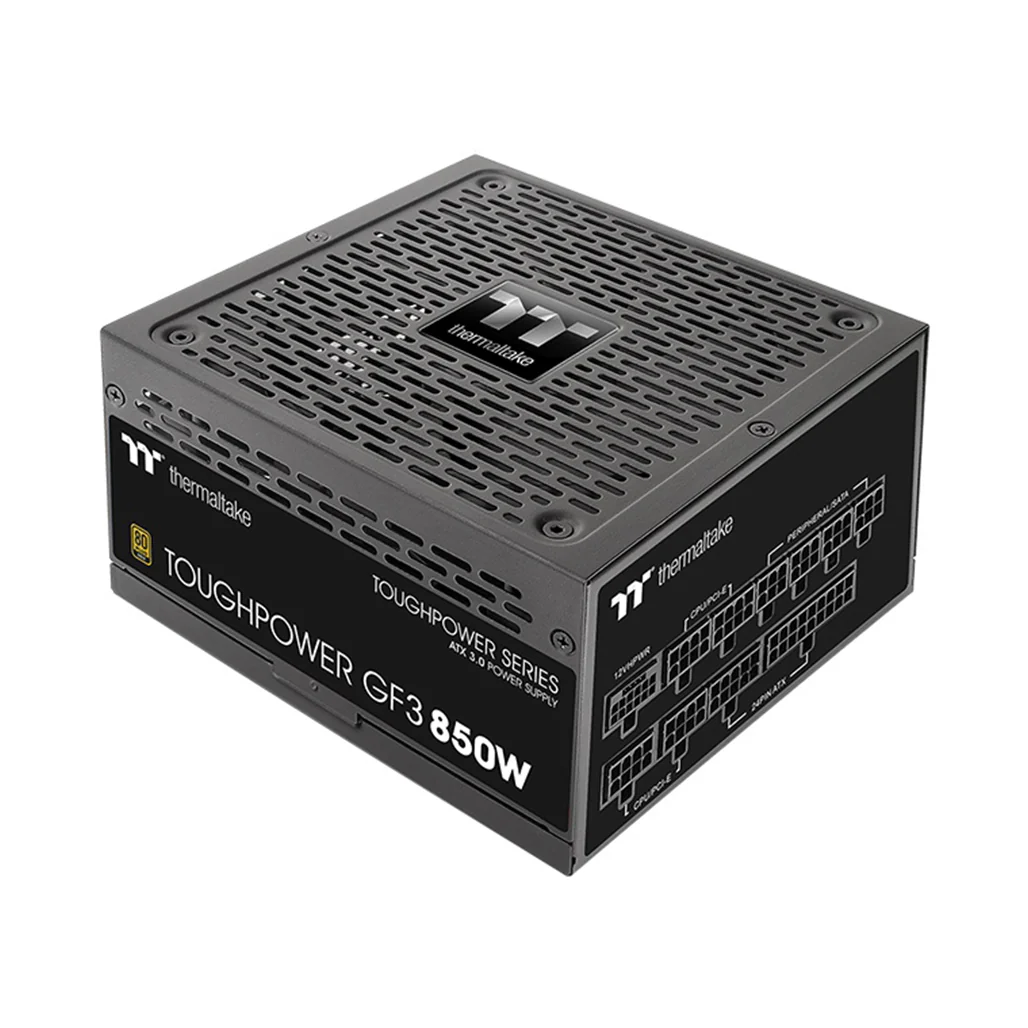

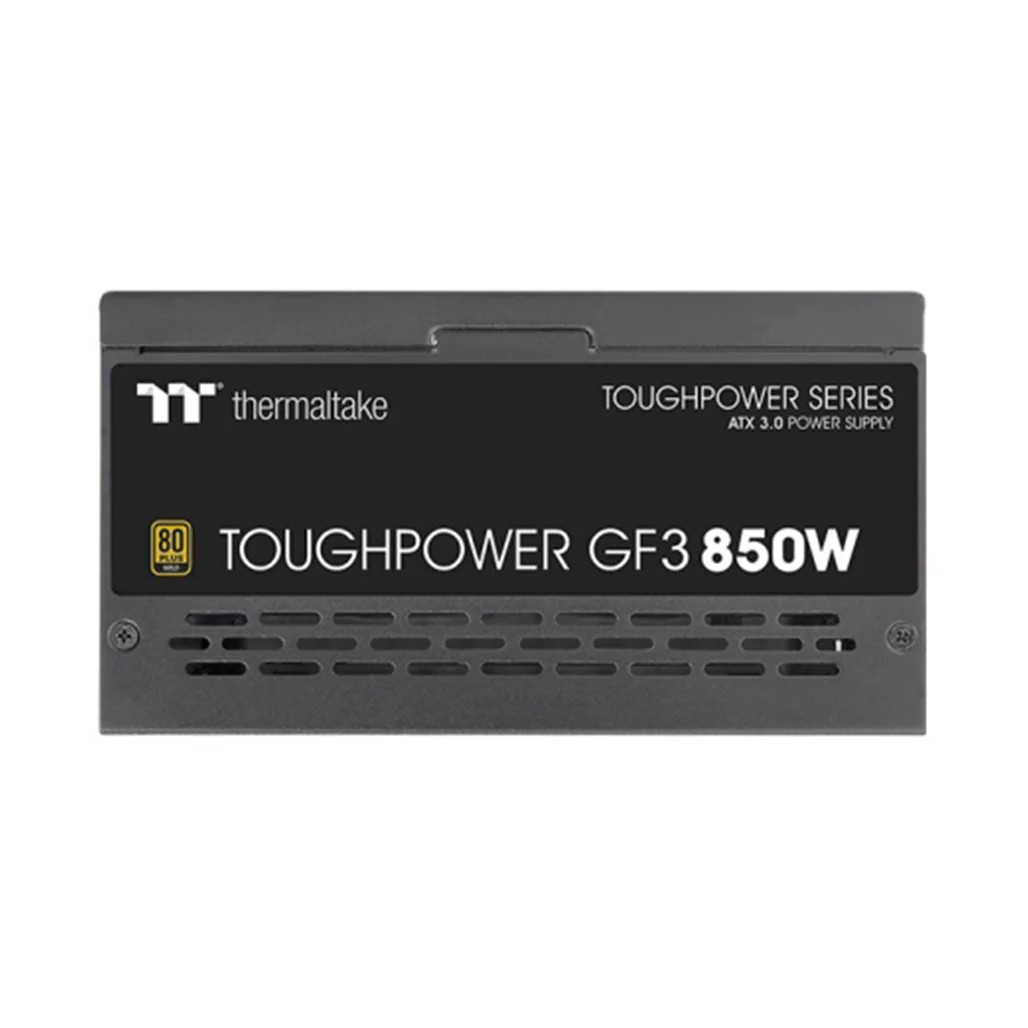

Thermaltake Toughpower GF3 850W Gold - TT Premium Edition, Fully Modular PSU with PCIe Gen 5.0 and 80 PLUS Gold Efficiency

The Thermaltake Toughpower GF3 850W Gold - TT Premium Edition is a robust power supply unit designed to support high-performance systems and the latest graphics technology. It features a native PCIe 12+4pin modular connector, making it compatible with next-gen PCIe 5.0 graphics cards and fully compliant with Intel ATX 3.0 specifications. With its 80 PLUS Gold certification, this PSU delivers efficient power with up to 90% efficiency, ensuring reduced energy consumption and heat output.

This power supply is engineered for high performance, incorporating features like a <30mV low ripple noise design and extremely strict voltage regulation of <±2%. The Toughpower GF3 850W Gold utilizes 100% high-quality Japanese capacitors and premium components to provide stable and reliable power. Additionally, the Smart Zero Fan technology ensures quiet operation by activating the fan only when the load exceeds 30%.

Key Features:

• PCIe Gen 5.0 Ready: Equipped with a 16-pin connector to support the latest generation of GPUs, offering robust and stable performance.

• 80 PLUS Gold Certification: Provides high energy efficiency up to 90%, which helps in reducing operational costs and energy consumption.

• Low Ripple Noise Design: Maintains ripple noise below 30mV on +12V, +5V, and +3.3V rails across all load levels for stable operation.

• Strict Voltage Regulation: Delivers exceptional voltage stability with regulation of <±2%, surpassing Intel’s standard.

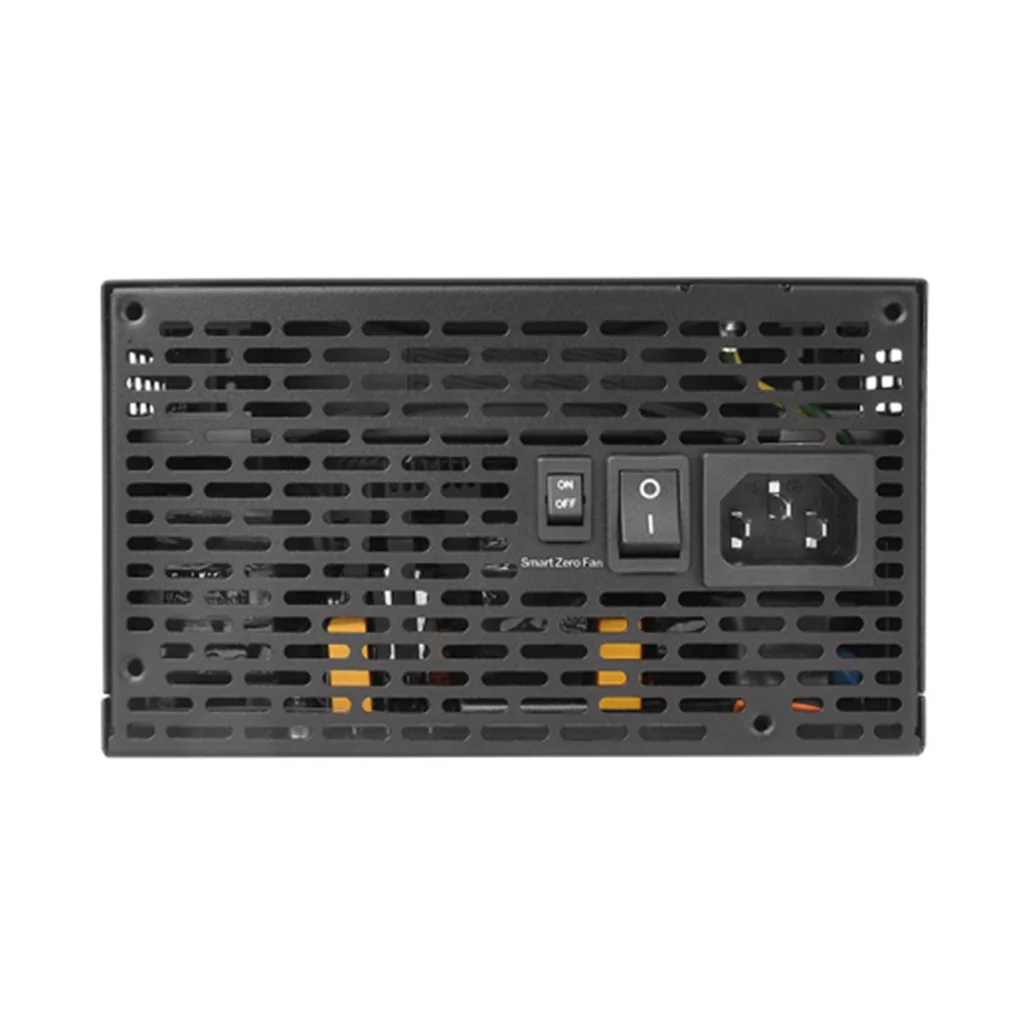

• Smart Zero Fan Technology: Keeps noise levels minimal by allowing the fan to remain off until the load surpasses 30%.

• High-Quality Japanese Capacitors: Uses 100% Japanese 105°C capacitors for superior durability and performance.

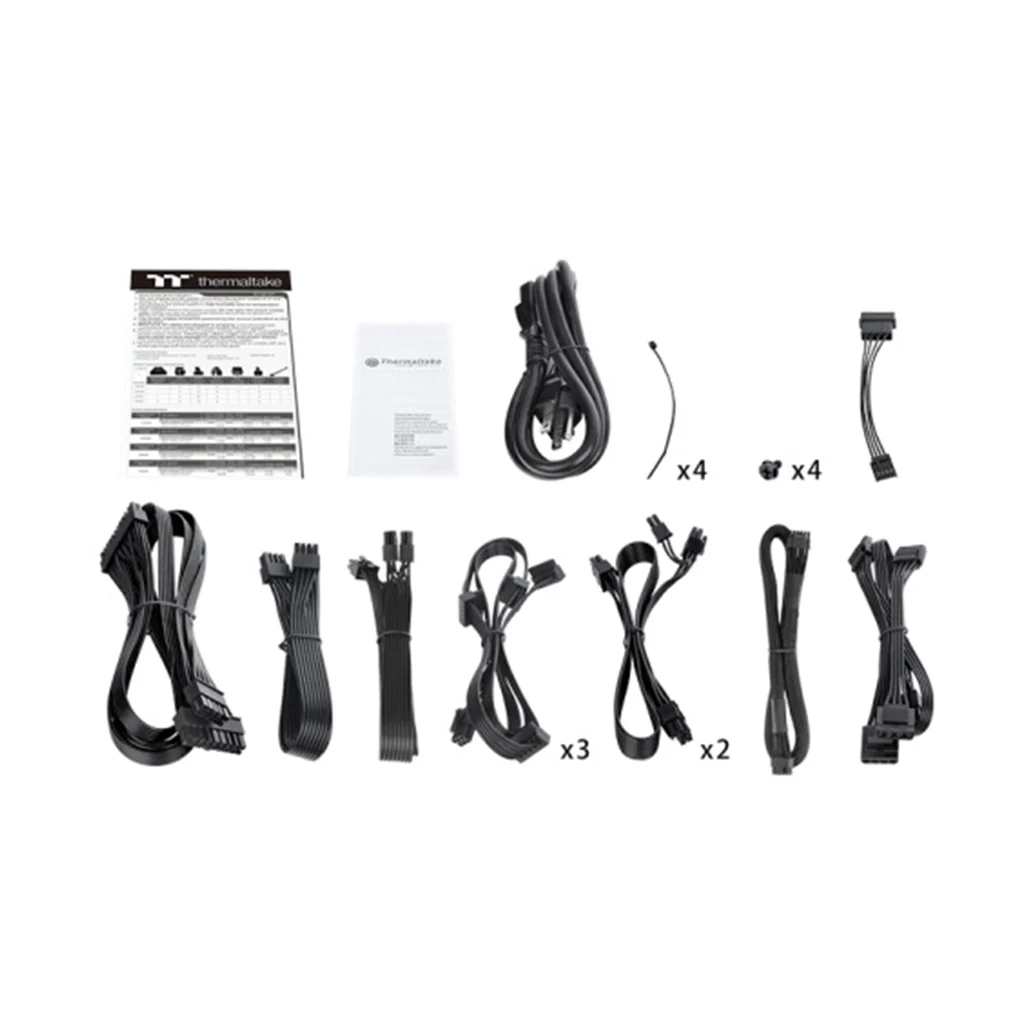

• Fully Modular Low-Profile Flat Cables: Enhances cable management and airflow with low-profile flat cables, reducing system clutter.

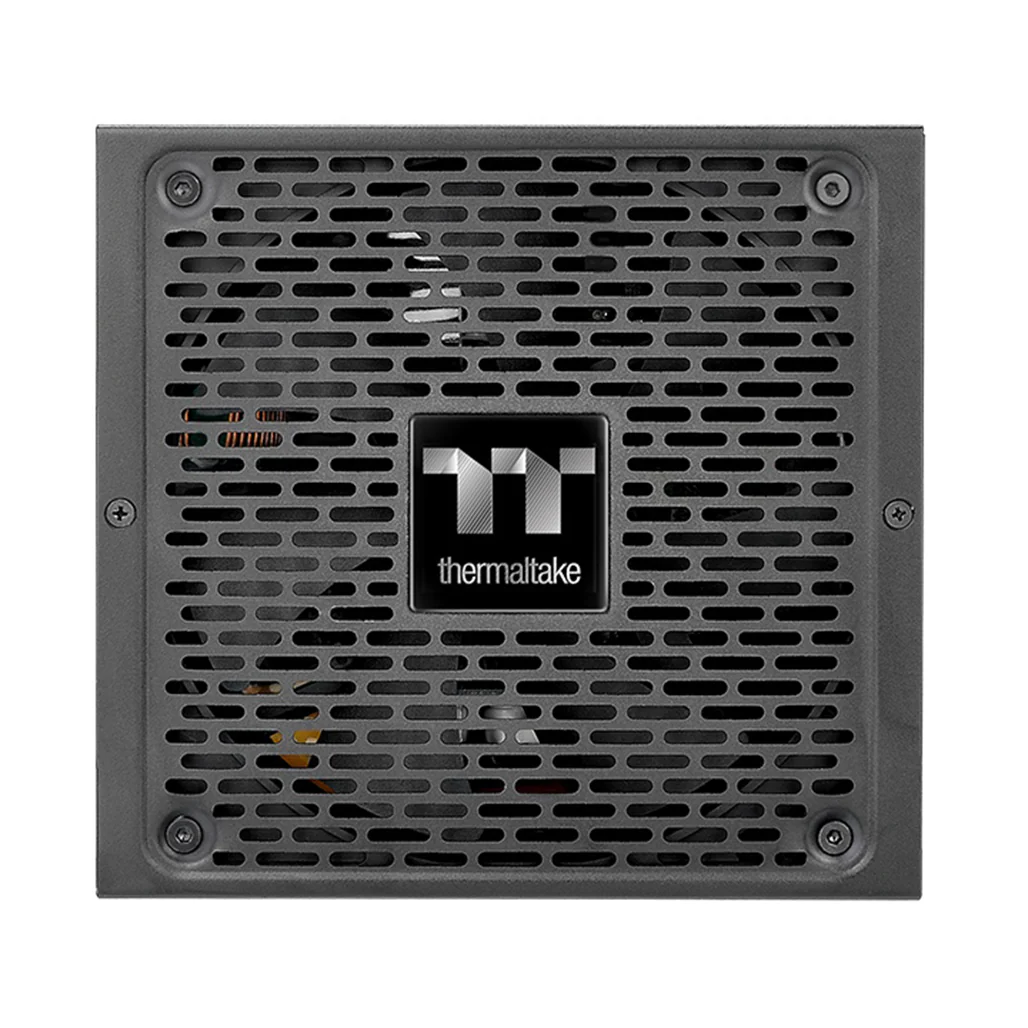

• 135mm Fluid Dynamic Bearing Fan: Ensures excellent cooling performance with quiet operation.

• CYBENETICS Certifications: Certified to CYBENETICS GOLD for efficiency and A- for noise levels, ensuring top performance in both aspects.

Specifications:

• Model: TPD-0850AH3FCG
• P/N: PS-TPD-0850FNFAGx-4
• Watts: 850W
• Max. Output Capacity: 850W
• Color: Black
• Dimensions (W x H x D): 150mm x 86mm x 160mm
• Weight: 1.69 kg
• Power Factor Correction: Active PFC
• Power Good Signal: 100-150 msec
• Hold Up Time: > 17msec at 100% full load
• Input Current: 10.0A / 5.0A
• Input Frequency Range: 50/60Hz
• Input Voltage: 100V – 240V~
• Operating Temperature: 0°C to +40°C
• Operating Humidity: 20% to 90%, non-condensing
• Storage Temperature: -20°C to +70°C
• Storage Humidity: 5% to 95%, non-condensing
• Cooling System: 13.5cm fluid bearing fan
• Efficiency: Meets 80 PLUS® Gold at 115V AC input
• MTBF: 100,000 hrs minimum
• Safety Approval: CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC

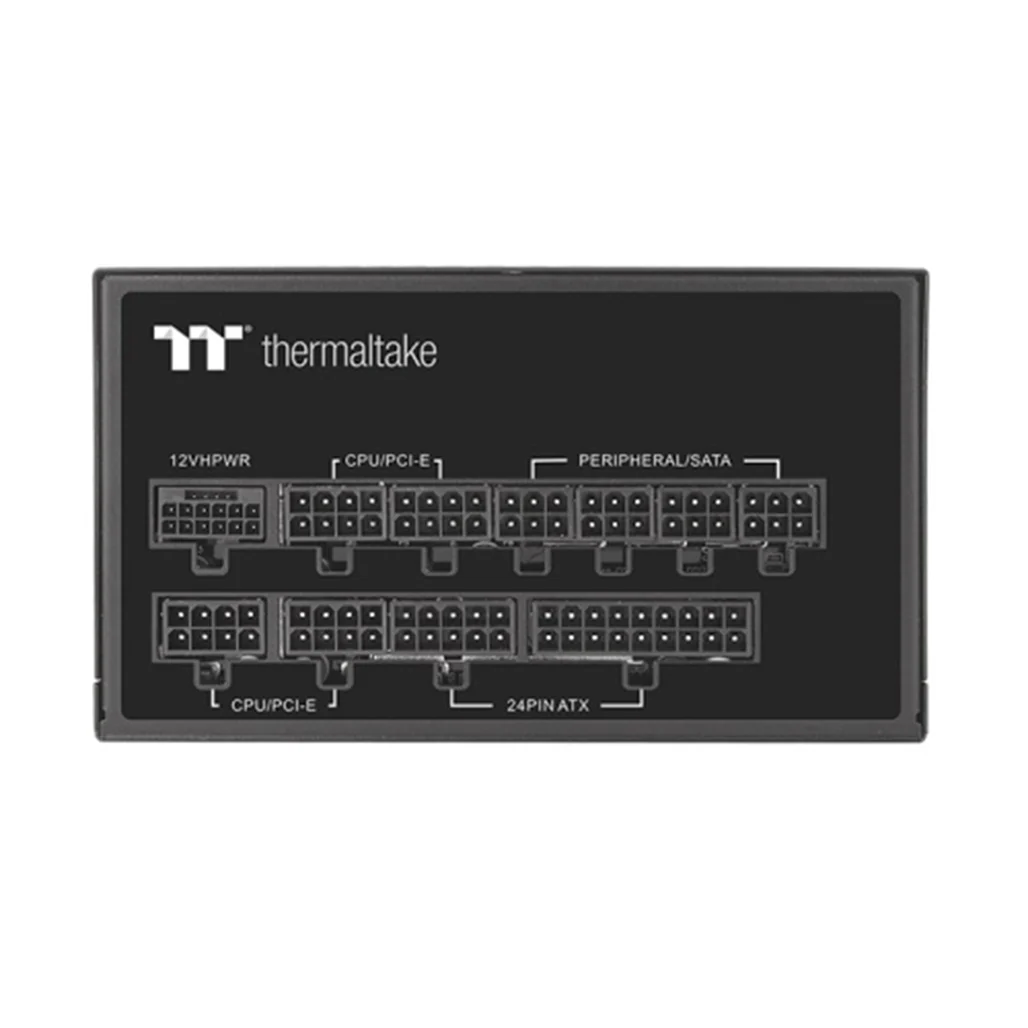

• Connectors: PCIe 6+2pin x 4, PCIe 12+4pin x 1
• Protection: OCP, OVP, UVP, OPP, SCP, OTP

Conclusion: The Thermaltake Toughpower GF3 850W Gold - TT Premium Edition offers a powerful and reliable solution for modern computing needs. Its compatibility with the latest PCIe Gen 5.0 graphics cards, combined with its high efficiency and premium build quality, ensures top performance and stability. This power supply is designed to meet the demands of high-performance systems while maintaining efficiency and quiet operation.
