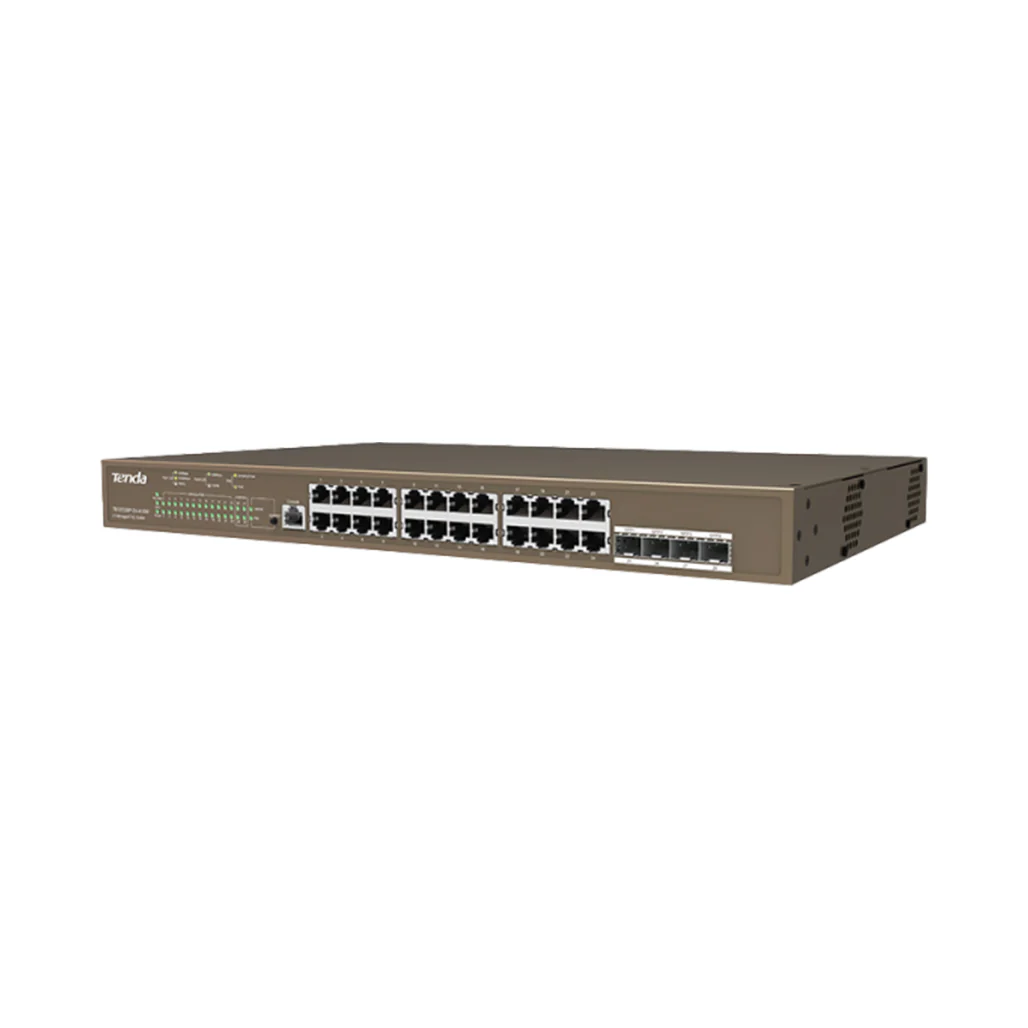

Tenda TEG5328P-24-410W Layer-3 Managed PoE+ Switch – 24×Gigabit + 4×SFP, 370 W Budget

A high-density PoE network switch is presented by the Tenda TEG5328P-24-410W, aimed at enterprises, campuses, and multi-building installations where many devices require both power and high throughput. It is equipped with 24 Gigabit Ethernet PoE+ ports and 4 Gigabit SFP uplink ports, so backbone connectivity is established with fiber and copper. With a total PoE power budget of up to 370 watts, substantial load of IP cameras, access points, or other powered network devices is supported without risk of over-powering or performance loss.

Comprehensive management features are included in this switch, enabling Layer-3 routing, VLAN separation (both Layer-2 and Layer-3), QoS scheduling, access control lists (ACL), DHCP snooping, static routing, and network security policies. The housing is built to protect from electrical disturbances: 6 kV lightning/surge protection is built in to ports and power input. A rack-mount enclosure (1U standard) allows the device to be installed in network closets or server racks for structured deployments, while efficient cooling and solid metal build improve durability under continuous operation.

---

Key Features and Explanations

• 24 PoE+ Gigabit Ports + 4 SFP Uplinks: Most connected devices may be powered directly over Ethernet, while SFP slots are used for long-distance or fiber backbone connections.

• High PoE Budget (≈ 370 W) & 30 W Per Port Capability: Each PoE port may deliver up to 30 W, enabling use of high-power devices; the total supply supports many devices at once.

• Layer-3 Managed Switch Functionalities: Static routing, inter-VLAN routing, ACLs and management of routing between segments is supported, allowing more efficient large network setup.

• Robust Protection & Surge Resistance: Lightning and surge protection to 6 kV ensures resilience in areas with electrical storms or unstable power.

• Advanced Traffic Management (QoS, VLAN, IGMP Snooping, etc.): Services may be prioritized, multicast traffic handled cleanly, unnecessary broadcast traffic minimized to maintain network performance.

• Rack-Mountable Metal Chassis & Efficient Cooling: Designed to fit standard server racks, with metal casing that aids heat dissipation, minimizing thermal stress.

---

Specifications

• 24 × 10/100/1000 Mbps RJ-45 PoE+ data/power ports

• 4 × 1000 Mbps SFP fiber uplink ports

• Total PoE power budget: approx. 370 W

• Per-port maximum PoE: up to 30 W

• Layer-3 features: static routing, inter-VLAN routing, routing between network segments

• VLAN support: IEEE 802.1Q tagging; support for Layer-2 and Layer-3 VLANs

• QoS: Multiple scheduling modes; priority mapping; port priority; DSCP / 802.1p trust modes

• Security controls: ACLs, MAC/IP filtering, DHCP snooping; protection versus DoS and ARP spoofing

• Surge/Lightning protection: 6 kV on ports and power input

• MAC address table size: ~16,000 entries

• Buffer memory: approx. 12 MB

• Switching capacity: ~56 Gbps

• Packet forwarding rate: ~41.7 million pps

• Jumbo frame support: ~10 KB MTU

• Auto-features: Auto-MDI/MDIX; auto-negotiation on RJ-45 ports

• Environmental ranges: Operating temp 0 °C to 45 °C; Storage temp -40 °C to 70 °C; Operating humidity 10-90% RH non-condensing

---

Conclusion

A full-featured managed PoE switch is provided by the Tenda TEG5328P-24-410W that can form the core of mid-to-large scale wired networks requiring power over Ethernet, fiber uplinks, security, and traffic control. Capacity is sufficient for dense device deployments, while protections and reliability features support long operational life. This switch is suitable for enterprise LAN access layers, surveillance aggregation, or any application where devices must be powered and segmented intelligently across a managed network.
