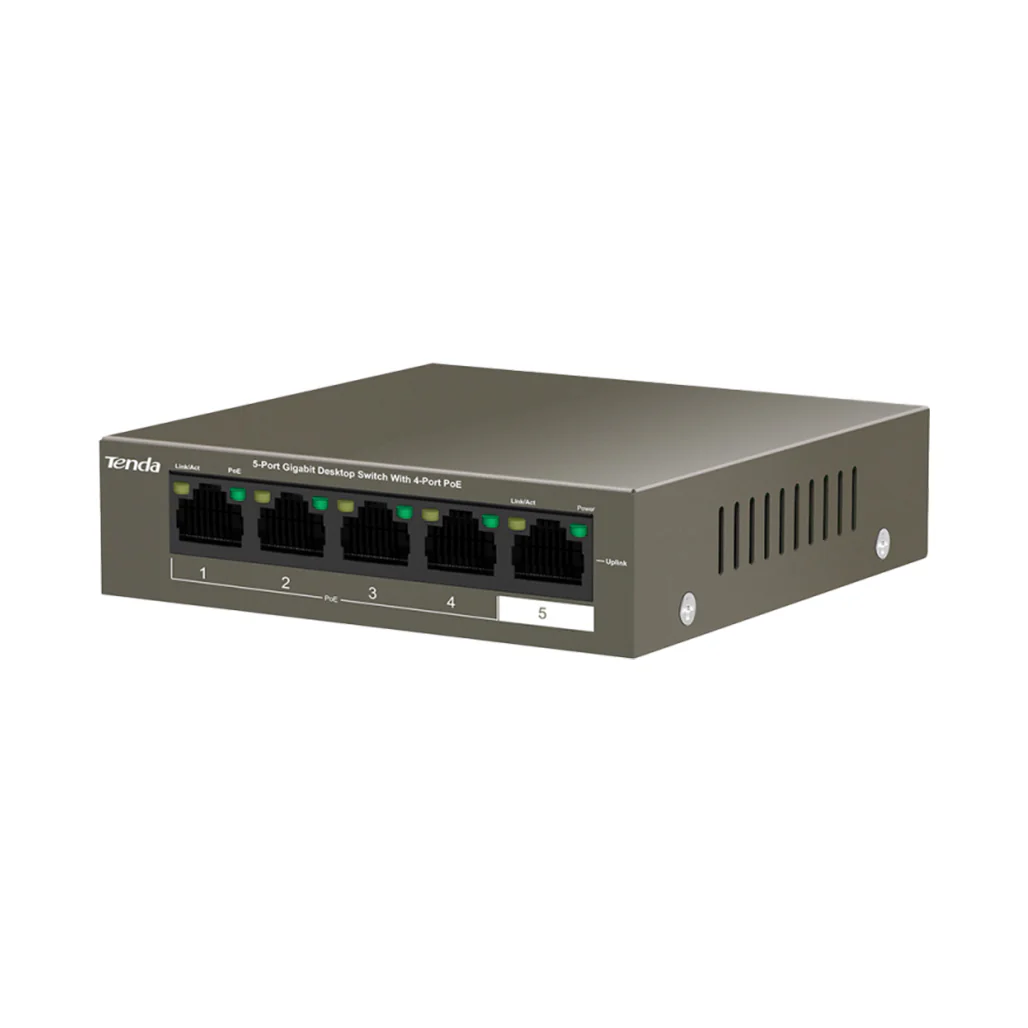

Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch – 4 PoE+ Ports + 1 Uplink, 58 W Budget

A powerful Gigabit PoE switch is provided by the Tenda TEG1105P-4-63W, ideal for powering devices like wireless access points, IP cameras, VoIP phones, or outdoor PoE devices. Four of its ports supply PoE+ according to IEEE 802.3af/at standards, with up to 30W per PoE port. The fifth port serves as an uplink at full Gigabit speed. With an unmanaged design, plug-and-play functionality is enabled, so setup is fast and network expansion is simplified.

High performance and reliability are ensured through a metal casing, fan-less design, and protective features such as lightning/surge protection. A One-Key VLAN mode is built in to isolate PoE ports from each other while still allowing communication with the uplink port, which helps improve security in camera or AP networks. Energy efficiency is improved with passive power management, and deployment is facilitated via a compact desktop or wall-mount form factor.

---

Key Features and Explanations

• Four PoE+ Ports + Uplink Port: Four ports deliver power and data to connected devices, while the fifth port is a dedicated Gigabit uplink to your router or switch.

• High Power Budget (58 W Total): Enough power is provided to meet the needs of multiple PoE devices without overloading; up to 30 W per port ensures support for high-powered units.

• One-Key VLAN Mode: Isolation of ports 1-4 from each other helps prevent network risks such as DHCP spoofing or broadcast storms, while communication with uplink remains intact.

• Metal Housing & Surge Protection: Protection up to 6 kV is built into both the Ethernet ports and the case to defend against electrical surges and lightning strikes.

• Gigabit Wire-Speed Switching: Full Gigabit performance is supported across all ports to avoid data bottlenecks in heavy traffic situations.

• Unmanaged / Plug-and-Play: No software configuration is required; auto negotiation and auto-MDI/MDIX simplify cable compatibility and setup.

---

Specifications

• Number of Ports: 5 Gigabit RJ-45 ports (4 PoE+/PoE out + 1 Uplink data-only)

• PoE Standards Supported: IEEE 802.3af and IEEE 802.3at on PoE ports

• Maximum PoE Power per Port: Up to 30 W

• Total PoE Power Budget: 58 W

• Switching Capacity: 10 Gbps full duplex

• Throughput: ~7.44 million packets per second (Mpps)

• Lightning / Surge Protection Rating: 6 kV

• Form Factor: Desktop / Wall-mountable metal housing

• Power Consumption (Full Load): Under ~63.7 W

• Power Input: AC 100-240 V ~50/60 Hz (Power Adapter Output: ~57.8 W)

• Auto Features: Auto-negotiation; Auto-MDI/MDIX on all ports

• One-Key VLAN Mode: Ports 1-4 isolated from each other but still connected to uplink when enabled

• Operating Temperature: 0 °C to 40 °C

• Storage Temperature: -40 °C to 70 °C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

---

Conclusion

A strong solution for small offices, surveillance systems, or PoE-powered WiFi networks is delivered by the Tenda TEG1105P-4-63W. High power output, robust safety features, and Gigabit speeds across all ports make it suitable for installations where reliable power delivery and data transfer are required. Network expansion is made easier due to its plug-and-play nature, while built-in protections help ensure longevity in challenging conditions.
