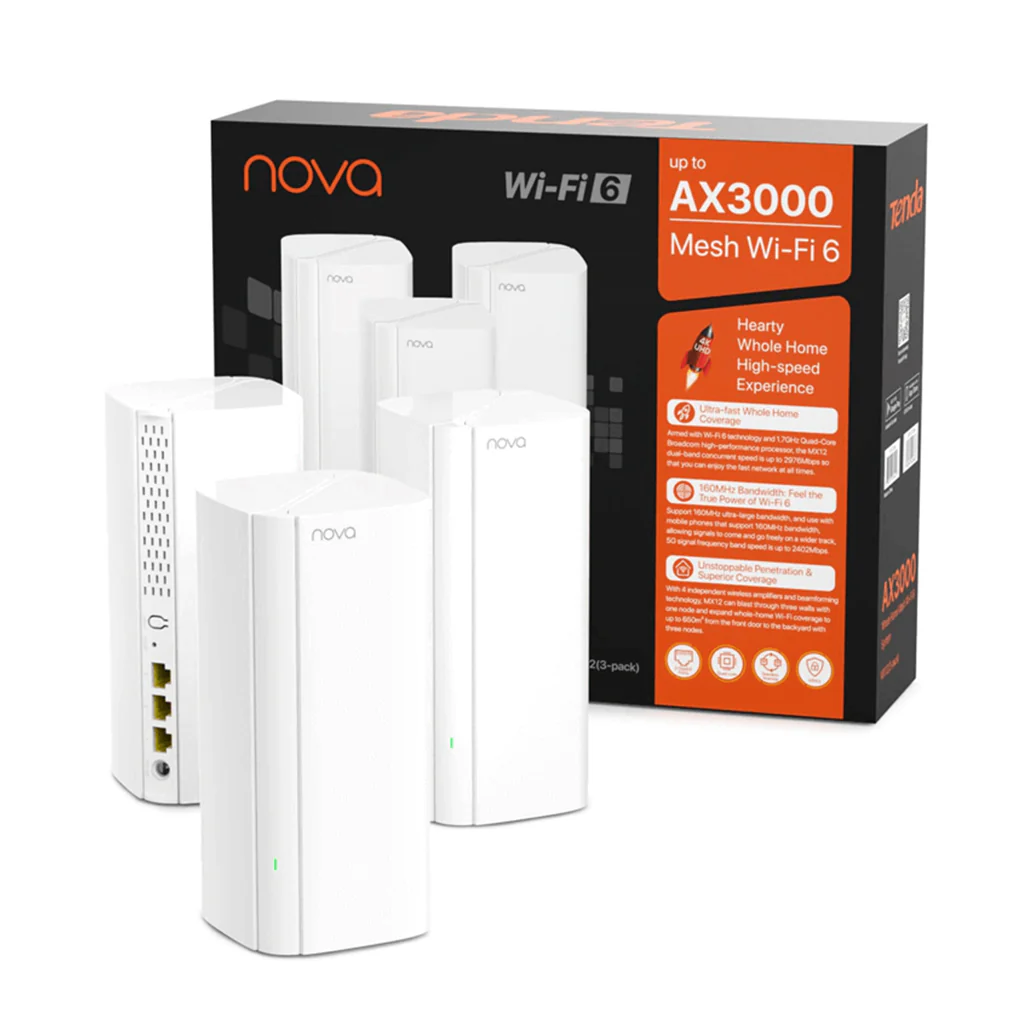

Tenda Nova EX12 AX3000 Whole-Home Mesh WiFi-6 System (3-Pack)

Stay connected across every room with the Nova EX12, a high-performance WiFi-6 mesh system. This 3-node pack delivers AX3000 speeds—ideal for modern homes with multiple devices, streaming, gaming, and smart gadgets. With its beamforming technology, internal amplifiers, and seamless roaming across the nodes, dead zones become a thing of the past. Gigabit ports on each node allow wired devices to also benefit from the speed.

Easy to set up, secure, and powerful, this system handles high traffic loads while keeping latency low. Great for households wanting full home coverage, strong signal indoors and outdoors, and solid performance with many connected devices.

---

Key Features

• Dual-band AX3000 WiFi-6 for fast throughput: blazing speeds on both 5 GHz and 2.4 GHz bands

• Covers large homes (up to ~7,000 ft²) with three mesh nodes, plus strong wall penetration via internal amplifiers & beamforming

• Seamless roaming via 802.11k/v and band steering: devices auto-switch to the best node without you doing anything

• Powerful hardware: 1.7 GHz quad-core processor with enough memory to support many connected devices without performance drops

• Full Gigabit LAN ports on each node for wired connections where needed

• Modern features like MU-MIMO, OFDMA, 1024-QAM to handle many simultaneous users

• Strong security with WPA3 and WPA2; guest network support and app/web management

• Mesh-button / app-guided setup for quick, hassle-free installation

---

Specs

• Wireless Standard & Protocols: 802.11ax/ac/n/a/b/g; WiFi-6 dual-band concurrent mode

• Maximum Data Rates: ~2402 Mbps on 5 GHz; ~574 Mbps on 2.4 GHz (approx. AX3000 combined)

• Number of Ethernet Ports per Node: 3 × Gigabit RJ-45 ports

• Antennas: 4 internal 3 dBi antennas per node

• Buttons: Reset Button; Mesh Button to pair nodes

• Power: AC 100-240 V ~ 50/60 Hz input; DC 12 V ⎓ 1.5 A per node

• Indicators: Tri-color LED showing status (green/yellow/red)

• Dimensions per Node: ~86 × 86 × 190 mm

• Wireless Roaming: Support for IEEE 802.11k/v

• Transmission Power (Typical): under regulatory limits (e.g. <20-23 dBm depending on band / region)

• Security: WPA3-SAE and WPA2-PSK

• Internet Connection Types: Dynamic IP, Static IP, PPPoE (and variants where applicable)

• Onboard Features: DHCP server + client list; guest network; firmware upgrade via app/web; parental controls; firewall protections

• Operating Temperature & Humidity: ~0-40 °C; storage temperature: ~-40-70 °C; non-condensing humidity rules
