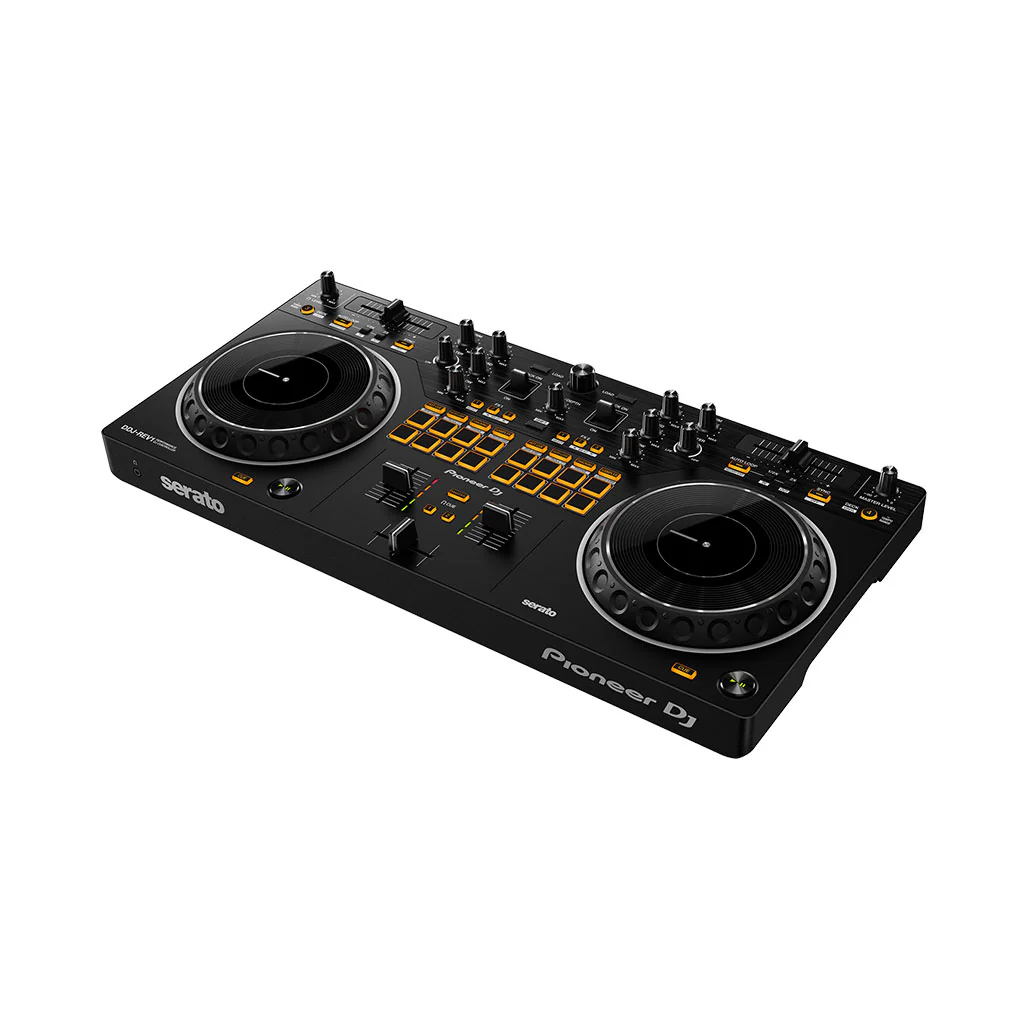

Pioneer DDJ-REV1 - Scratch-Style 2-Channel DJ Controller for Serato DJ Lite

The Pioneer DDJ-REV1 is engineered to cater to the needs of scratch DJs and open-format performers. This 2-channel DJ controller seamlessly integrates with Serato DJ Lite, providing a battle-style layout that mirrors the setup of a professional DJM-S mixer and PLX turntables. The controller’s design includes larger jog wheels, ideal for scratching, and a configuration that enhances ease of use for both mixing and scratching. Its robust build and intuitive controls are crafted to offer both aesthetic appeal and functional precision.

Equipped with Lever FX, the DDJ-REV1 allows DJs to dynamically apply and manipulate effects from Serato DJ Lite. The Tracking Scratch feature facilitates seamless scratching by automatically returning the music to the cue point, simplifying the scratching process. Additionally, the controller supports mixed microphone audio output, enabling vocal or speech integration directly into your stream without needing additional equipment. The integration with Serato DJ Lite and the option for a free trial of Serato DJ Pro make it a versatile choice for various DJ setups.

Key Features

• Battle-Style Layout: Emulates the setup of 2 x PLX turntables and a DJM-S series mixer, featuring a spacious control interface for mixing and scratching. The tempo sliders are 60mm long, providing finer control compared to the DDJ-SB3, and are positioned horizontally above the decks, with Performance Pads relocated to the mixer section for intuitive use.

• Enhanced Jog Wheels: The jog wheels are the same size as those on the DDJ-SR2, ensuring optimal performance for scratching and precise track manipulation.

• Lever FX: Apply effects dynamically by pulling the levers down for short bursts or pushing them up to lock in effects. This feature allows DJs to add texture to their music while keeping their hands free for scratching or track navigation.

• Tracking Scratch: This feature aids in scratching by automatically returning the music to the cue point when the jog wheel is moved. DJs can select the Scratch Crossfader Cuts pattern and start scratching with ease.

• Mixed Microphone Audio: For the first time in this category, the DDJ-REV1 allows for the mixing of microphone audio with the master output. This eliminates the need for external equipment, enabling seamless vocal integration into performances.

• Serato DJ Lite Integration: Connects to a PC/Mac with Serato DJ Lite for immediate use. The controller provides tactile control over various software features, with a dedicated Scratch Bank pad mode for quick access to scratch samples.

Specifications

• Dimensions: Width: 526 mm, Height: 59.2 mm, Depth: 255.5 mm
• Weight: 2.1 kg
• Soundcard: 24 bit/48 kHz
• Signal-to-Noise Ratio: 103 dB
• Distortion: Less than 0.005%
• Frequency Range: 20 - 20,000 Hz
• Channels: 2
• Deck Control: 4
• Jog Wheel (Maximum Dimensions): 154 mm
• Trim Knob: Yes
• Filter: Yes
• Sampler: Yes
• Hot Cues: 4
• Pad Modes: Hot Cue, Auto Loop, Tracking Scratch, Sampler, Trans, Scratch Bank
• Manual Loop: Yes
• Autoloop: Yes
• Fader: Channel Fader Start, Crossfader Start, Crossfader Curve Adjust
• Inputs: 1 MIC (1/4 inch TS Jack)

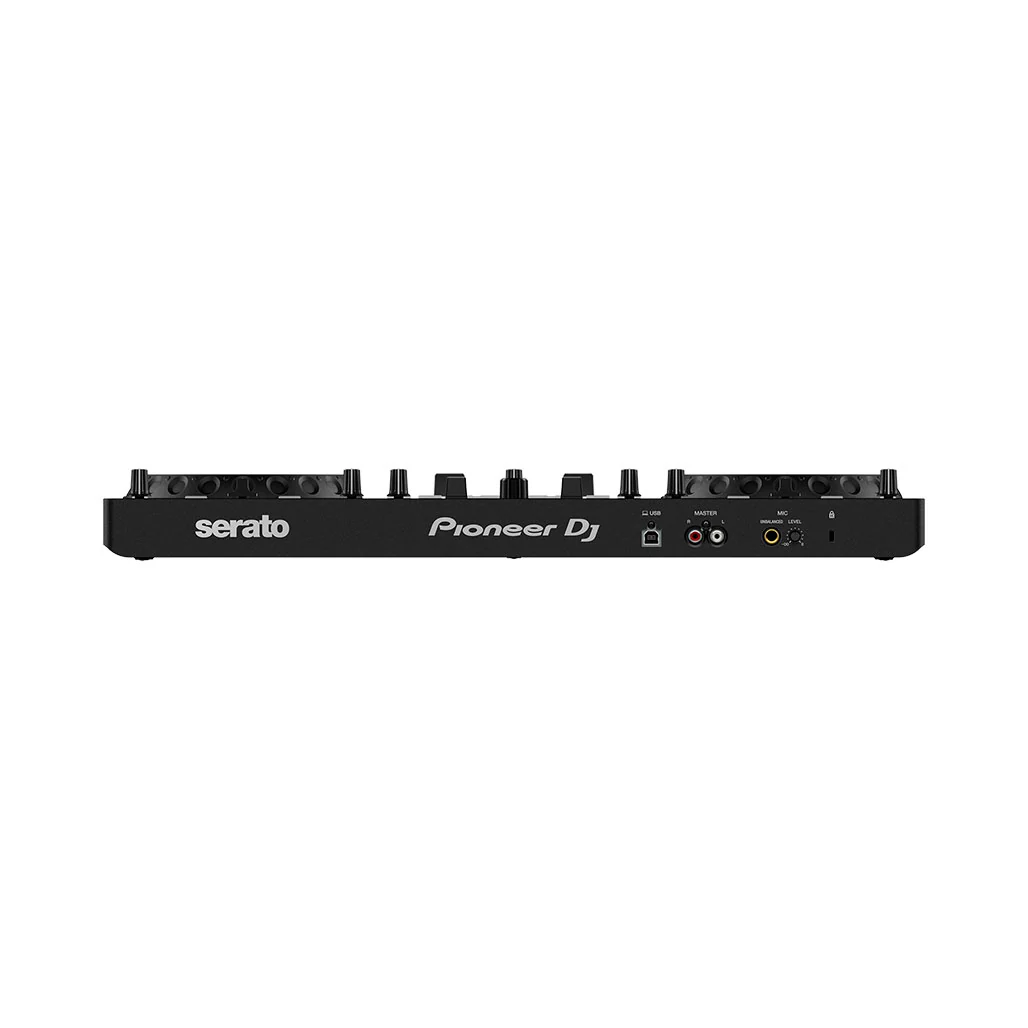

• Outputs: 1 MASTER (RCA), 1 PHONES (3.5-mm stereo mini jack)
• USB: 1 USB B port
• Power Consumption: 5V 500mA
• Power Supply: USB Type-B bus powered

In conclusion, the Pioneer DDJ-REV1 is a highly capable DJ controller tailored for scratch and open-format performances. Its battle-style layout, enhanced jog wheels, and features such as Lever FX and Tracking Scratch are designed to meet the demands of professional DJs. The built-in microphone mixing capability and seamless integration with Serato DJ Lite further enhance its utility, making it a valuable tool for both aspiring and seasoned DJs.
