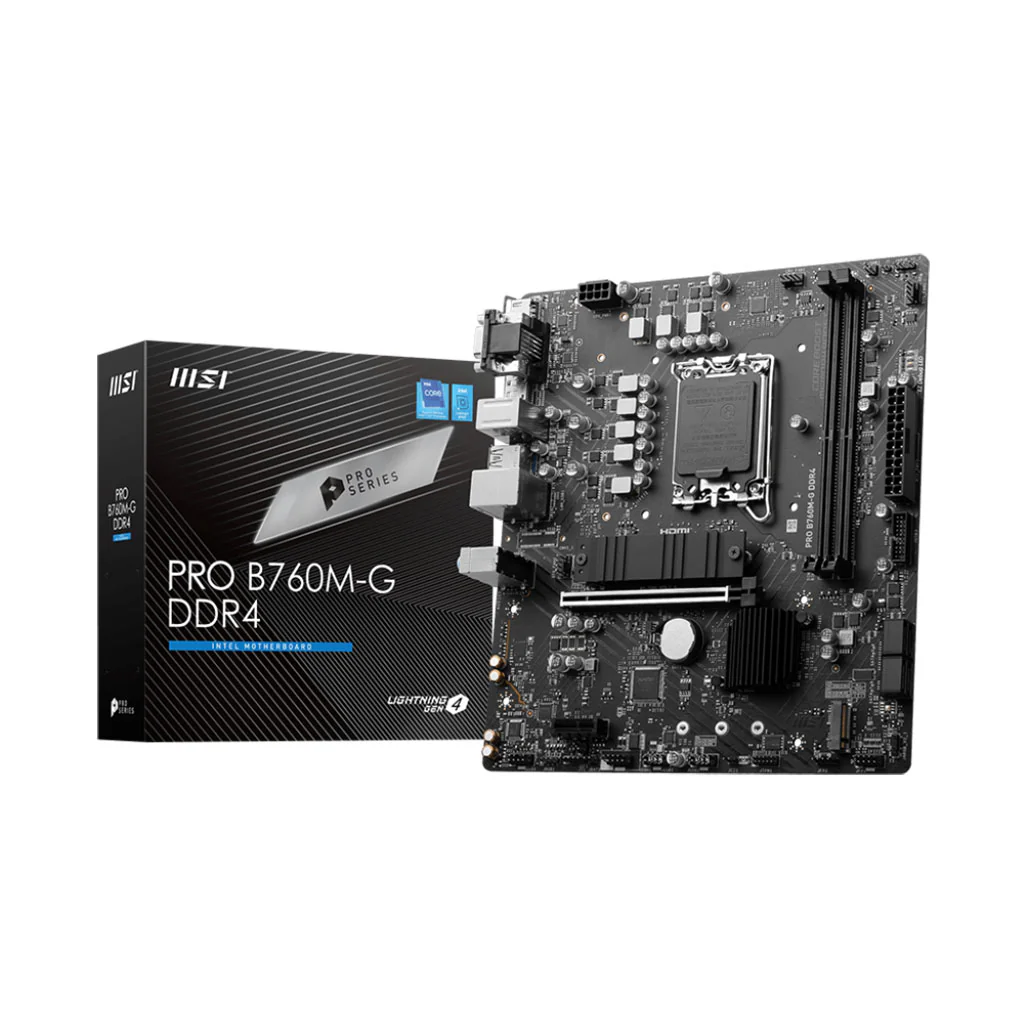

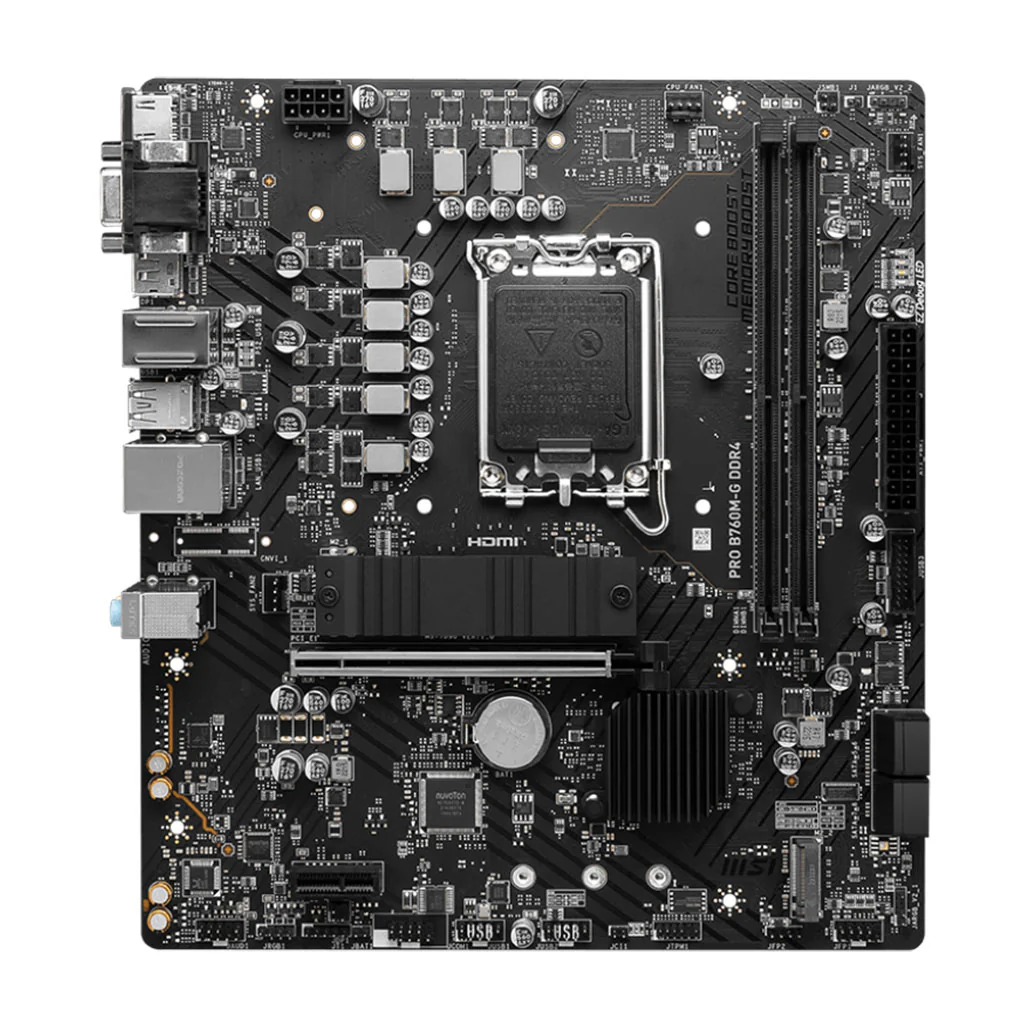

MSI PRO B760M-G DDR4 Motherboard - Optimized for 12th/13th/14th Gen Intel® CPUs with PCIe 4.0 and 2.5G LAN

The MSI PRO B760M-G DDR4 motherboard offers a powerful and flexible platform for Intel® Core™ 12th, 13th, and 14th Generation processors, as well as Pentium® Gold and Celeron® processors. With support for up to 64GB of high-speed DDR4 memory, the motherboard ensures exceptional performance for both gaming and professional applications. The advanced Core Boost technology and Memory Boost features optimize performance, stability, and compatibility, making this motherboard a top choice for high-demand computing tasks.

Equipped with PCIe 4.0 and Lightning Gen4 x4 M.2, the PRO B760M-G delivers lightning-fast data transfer speeds and efficient cooling with its M.2 Shield Frozr. The inclusion of 2.5G LAN enhances network performance, providing a stable and fast connection suitable for both gaming and multimedia activities. Additional features such as AUDIO BOOST for superior sound quality and Steel Armor for added protection ensure a robust and immersive user experience.

Key Features:

• Chipset: Intel B760, supporting 12th, 13th, and 14th Generation Intel® Core™ processors, as well as Pentium® Gold and Celeron® processors with LGA 1700 socket.
• Memory: 2 x DDR4 slots, supporting up to 64GB of memory with speeds up to 4800MHz (OC). Includes support for Dual-Channel mode, non-ECC, un-buffered memory, and Intel® Extreme Memory Profile (XMP).
• Onboard Graphics: HDMI™ 2.1 and DisplayPort 1.4 support up to 4K resolution at 60Hz, plus VGA support up to 2048x1536.
• Expansion Slots: 1 x PCI-E x16 slot (PCIe 4.0) and 1 x PCI-E x1 slot (PCIe 4.0).
• Storage: 2 x M.2 slots (M.2_1 supports PCIe 4.0 x4, M.2_2 supports PCIe 4.0 x4 / SATA), plus 4 x SATA 6G ports (SATA7 unavailable with M.2 SATA SSD in M2_2).
• RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.
• USB Ports: 2 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 4 x USB 3.2 Gen1 Type A (Rear), 2 x USB 3.2 Gen1 Type A (Front).
• Networking: Realtek® RTL8125B 2.5Gbps LAN.
• Audio: Realtek® ALC897 Codec with 7.1-Channel High Definition Audio.
• Internal I/O: Various connectors including power connectors, CPU fan, system fans, front panel, RGB LED connectors, and TPM 2.0 support.
• LED Features: 4 x EZ Debug LED for troubleshooting.
• Back Panel Ports: HDMI™, VGA, DisplayPort, Keyboard/Mouse, 2.5G LAN, Audio Connectors, USB 2.0, USB 3.2 Gen 1 (Type-A).
• Operating System Compatibility: Windows® 11 64-bit, Windows® 10 64-bit.
• PCB Dimensions: mATX form factor, 220mm x 243.84mm.

Conclusion: The MSI PRO B760M-G DDR4 motherboard stands out with its comprehensive feature set designed to support Intel® Core™ processors and deliver high-performance computing. By incorporating advanced technologies such as PCIe 4.0, 2.5G LAN, and Audio Boost, this motherboard is equipped to handle demanding tasks with ease. Enhanced by its robust design and versatile connectivity options, the PRO B760M-G ensures a reliable and efficient computing experience for both gamers and professionals.
