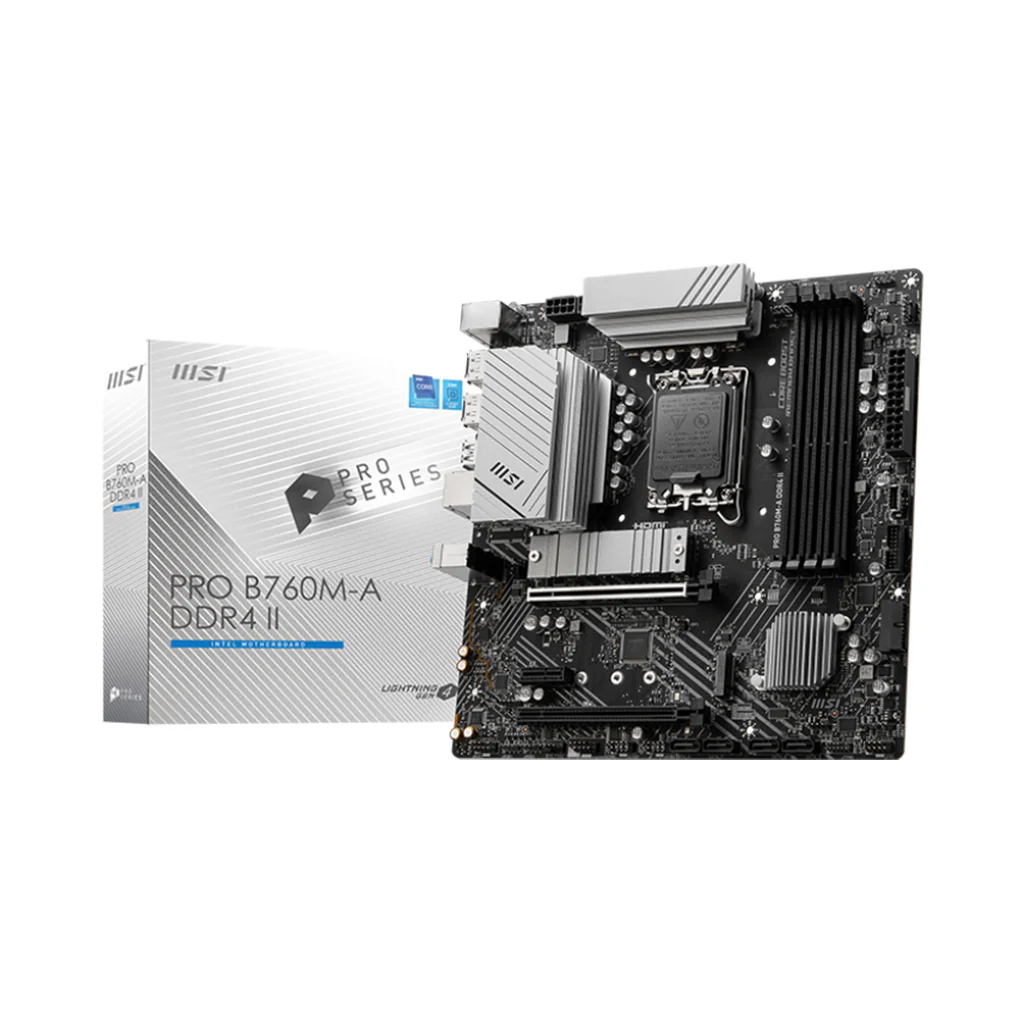

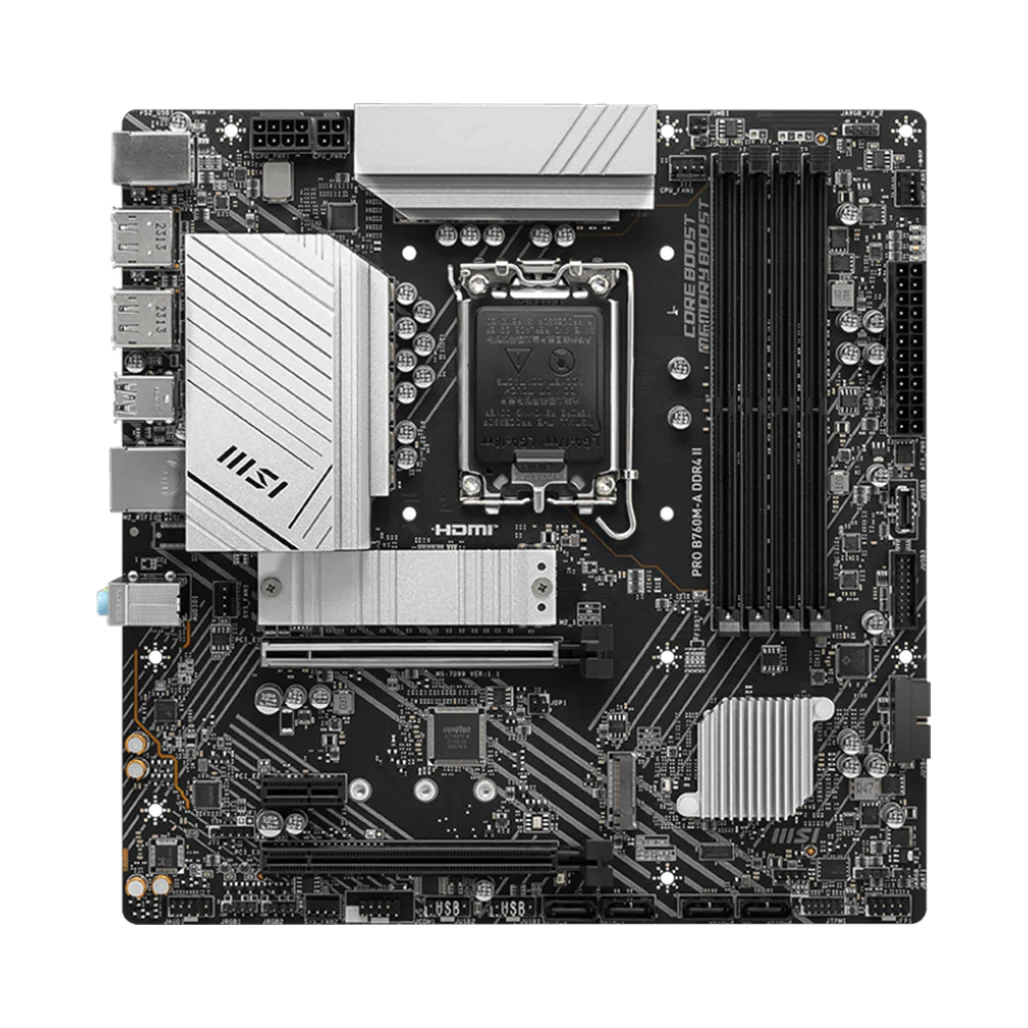

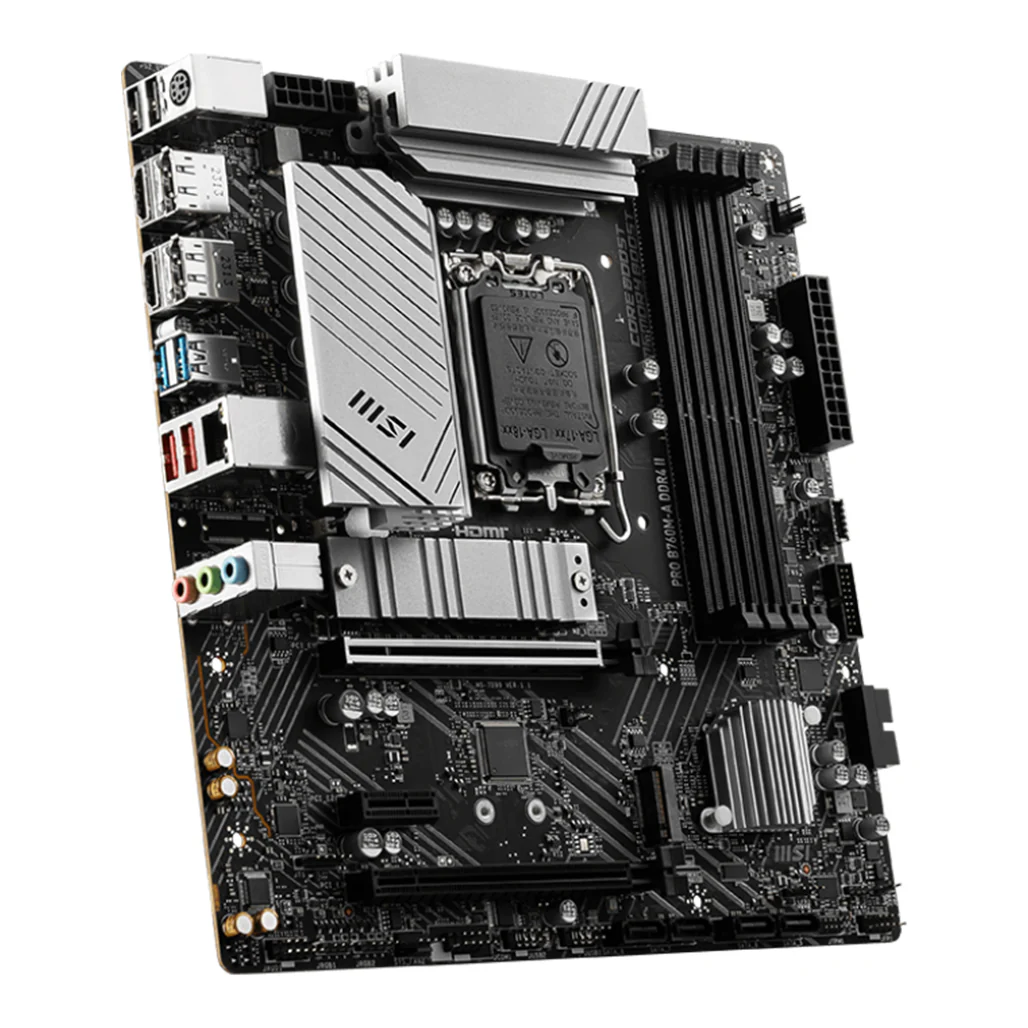

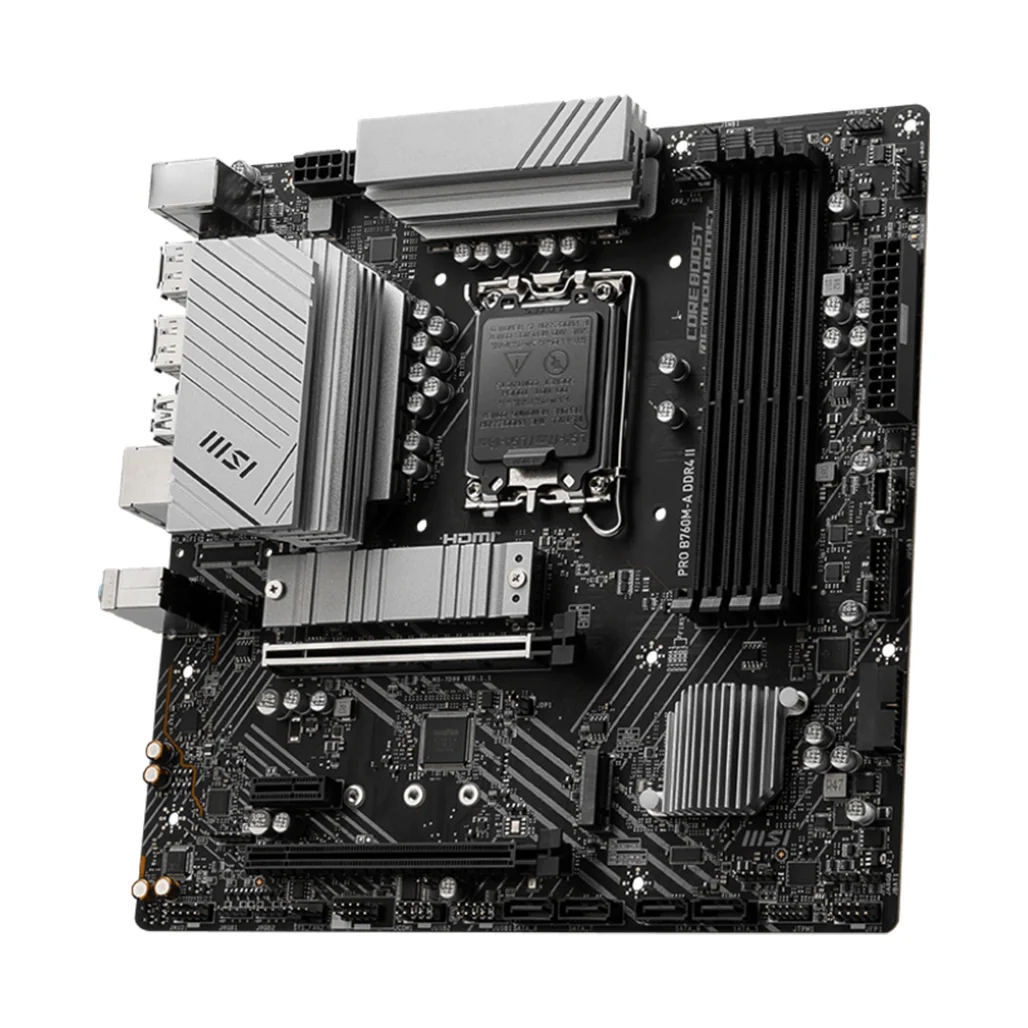

MSI PRO B760M-A DDR4 II Motherboard – Reliable Performance for Intel 14th Gen

The MSI PRO B760M-A DDR4 II is a feature-rich micro-ATX motherboard designed for Intel 14th, 13th, and 12th Gen processors. With LGA 1700 compatibility, dual-channel DDR4 memory support up to 5333 MHz (OC), and PCIe 4.0 slots, this board is ideal for power users, professionals, and gamers who seek stability and performance.

Equipped with dual M.2 slots, four SATA 6G ports, and RAID support, the PRO B760M-A DDR4 II offers fast and flexible storage solutions. Realtek® ALC897 7.1-Channel HD Audio ensures high-quality sound, while Realtek® 2.5G LAN delivers faster and more stable networking performance.

For graphics output, the motherboard provides two HDMI 2.1 ports and two DisplayPort 1.4 ports, supporting 4K resolution at 60Hz (depending on the CPU's integrated graphics). Expansion options include two PCIe x16 slots and one PCIe x1 slot, with PCIe 4.0 support for enhanced GPU and NVMe SSD performance.

A comprehensive internal I/O layout includes multiple fan headers, ARGB & RGB connectors, and USB ports, while the 4x EZ Debug LEDs make troubleshooting effortless. With Windows 11 and Windows 10 support, the PRO B760M-A DDR4 II is a versatile and reliable motherboard for modern computing needs.

Specifications:

• Chipset: Intel B760
• CPU Support: Intel® Core™ 14th/13th/12th Gen, Intel® Pentium® Gold & Celeron® Processors
• Socket: LGA 1700

Memory:

• Slots: 4x DDR4 DIMM
• Max Capacity: 128GB
• Speed Support: Up to 5333 MHz (OC)
• Dual-Channel Mode: Supported
• Intel® XMP Support: Yes
• Non-ECC, Un-buffered Memory: Supported

Graphics & Expansion Slots:

• Onboard Graphics:
  • 2x HDMI™ 2.1 (4K@60Hz)
  • 2x DisplayPort 1.4 (4K@60Hz)
• PCIe Slots:
  • PCIe 4.0 x16 (CPU)
  • PCIe 4.0 x4 (Chipset)
  • PCIe 3.0 x1 (Chipset)

Storage:

• M.2 Slots:
  • M.2_1 (CPU): PCIe 4.0 x4, supports 2280/2260/2242 devices
  • M.2_2 (Chipset): PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• SATA Ports: 4x SATA 6G
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 (SATA storage devices)

Audio:

• Codec: Realtek® ALC897
• Channels: 7.1-Channel High Definition Audio

LAN & Networking:

• Ethernet: Realtek® RTL8125BG 2.5G LAN

USB Connectivity:

• Rear I/O Ports:
  • 2x USB 2.0
  • 2x USB 5Gbps Type-A
  • 2x USB 10Gbps Type-A
• Front I/O Headers:
  • 4x USB 2.0
  • 4x USB 5Gbps Type-A
  • 1x USB 5Gbps Type-C

Internal I/O & Features:

• Power Connectors:
  • 1x ATX 24-pin
  • 2x CPU 8-pin
• Cooling & Fans:
  • 1x CPU Fan Header
  • 1x Pump Fan Header
  • 2x System Fan Headers
• RGB & LED:
  • 2x Addressable RGB (JARGB_V2)
  • 2x Standard RGB (JRGB)
• Debug Features:
  • 4x EZ Debug LED

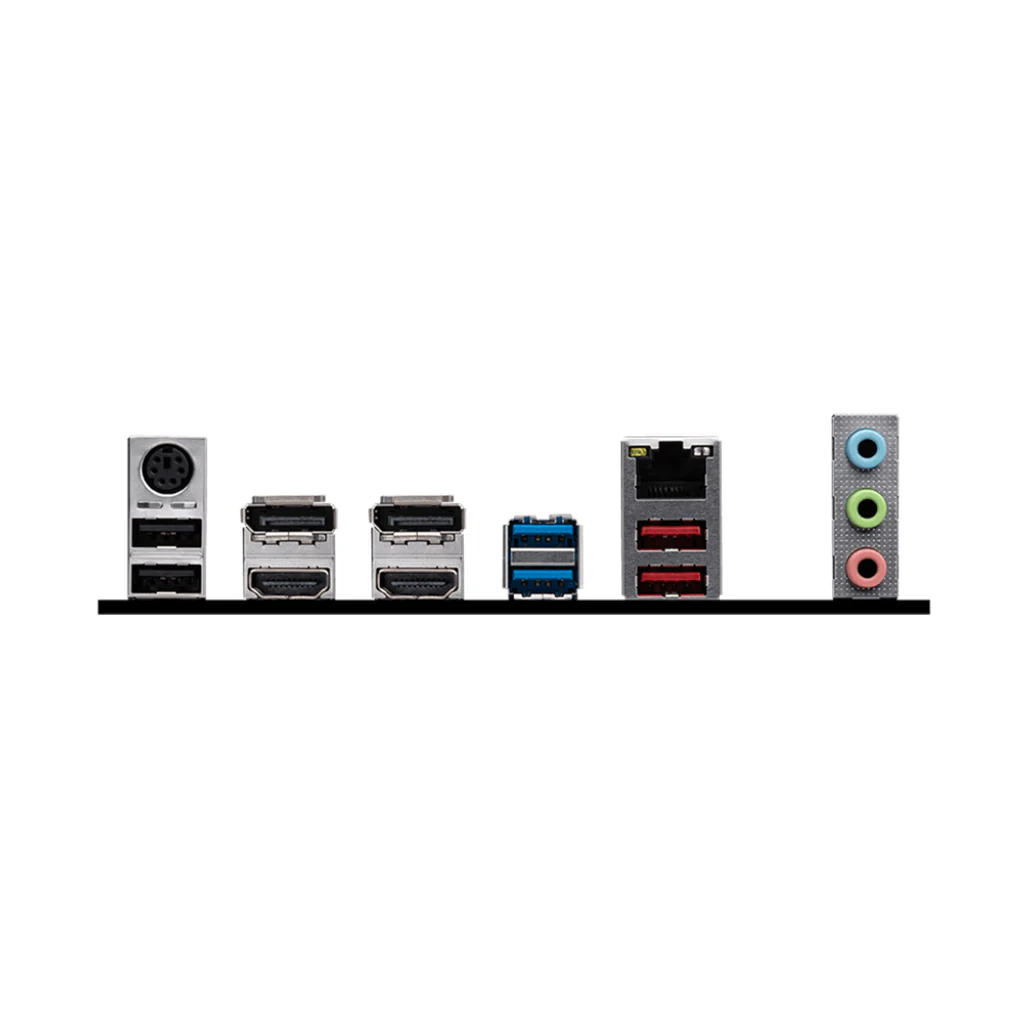

Back Panel Ports:

• Keyboard / Mouse Port
• 2x DisplayPort 1.4 (4K@60Hz)
• 2x HDMI™ 2.1 (4K@60Hz)
• USB 3.2 Gen 1 (5Gbps) Type-A
• USB 3.2 Gen 2 (10Gbps) Type-A
• USB 2.0 Ports
• 2.5G LAN Port
• Audio Connectors

Operating System Support:

• Windows® 11 64-bit
• Windows® 10 64-bit
