MSI Z790 Gaming Pro WiFi DDR5 ATX Motherboard | LGA 1700, 4x DDR5 Slots, PCIe 4.0, RGB Lighting



The MSI Z790 Gaming Pro WiFi DDR5 motherboard is engineered for gamers and PC enthusiasts seeking top-tier performance and advanced features. Designed for the LGA 1700 socket, it supports Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Intel® Pentium® Gold and Celeron® processors, providing a versatile foundation for high-performance builds.

This motherboard supports up to 192GB of DDR5 memory with speeds reaching up to 7200MHz (OC), ensuring fast and efficient multitasking. The board is equipped with a robust 14+1+1 Duet Rail Power System, including dual 8-pin CPU power connectors and Core Boost technology, to deliver stable and reliable power to your system.

For enhanced thermal performance, the Z790 Gaming Pro features an extended heatsink and high-efficiency thermal pads, while its premium cooling solution is designed to keep your system running smoothly under heavy loads. The motherboard also offers extensive connectivity options with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 slots with M.2 Shield Frozr, and a variety of USB ports, including USB 3.2 Gen 2x2 20G for rapid data transfer.

With MSI Mystic Light, you can customize your PC's RGB lighting with 16.8 million colors and dynamic effects, adding a personal touch to your setup. The motherboard also boasts high-quality audio with Audio Boost technology, providing an immersive sound experience for gaming and multimedia.

Key Features:

• Socket & Chipset: LGA 1700 socket with Intel® Z790 chipset, compatible with Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® processors.
• Memory: 4x DDR5 DIMM slots, maximum 192 GB, memory support up to 7200+(OC) MHz.
• Expansion Slots: 3x PCIe x16 slots (PCIe 4.0 & 3.0), 2x PCIe x1 slots.
• Storage: 3x M.2 slots (PCIe 4.0 x4), 4x SATA 6G ports.
• RAID Support: RAID 0, 1, 5, 10 for SATA; RAID 0, 1, 5 for M.2 NVMe.
• USB Ports: 4x USB 2.0 (front), 4x USB 3.2 Gen1 Type A (rear), 3x USB 3.2 Gen2 Type A (rear), 1x USB 3.2 Gen2 Type C (front), 1x USB 3.2 Gen2x2 Type C (rear).
• LAN & Wireless: Realtek® RTL8125BG 2.5Gbps LAN, Realtek® RTL8111H 1Gbps LAN, Intel® Wi-Fi 6E, Bluetooth® 5.3.
• Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, S/PDIF output.
• Video Output: 1x HDMI™ 1.4 (supports up to 4K 30Hz).
• Internal I/O: Various connectors including CPU fan, system fans, USB ports, RGB LED connectors, TPM pin header.
• LED Features: 4x EZ Debug LED.

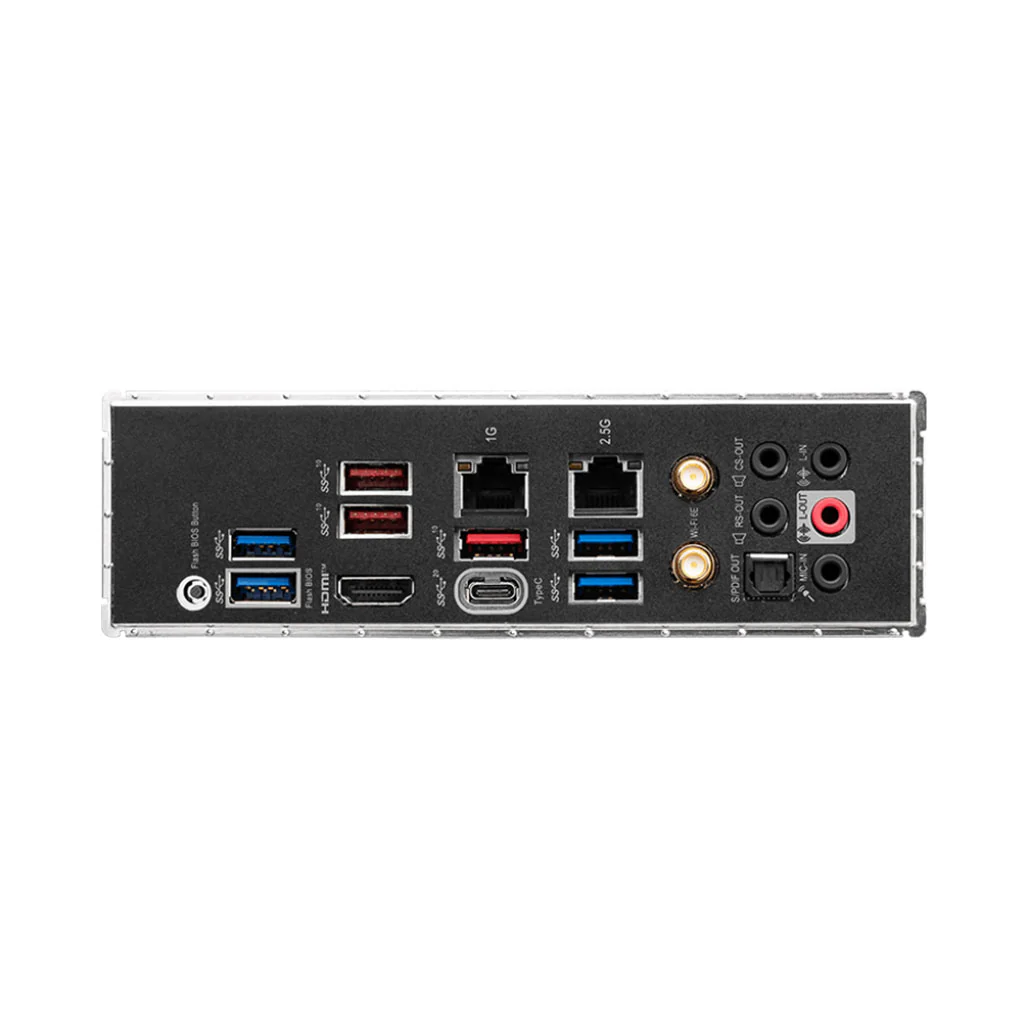

• Back Panel Ports: Includes USB 3.2 Gen 2x2 20Gbps Type-C, USB 3.2 Gen 1 and 2 Type-A, 1G and 2.5G LAN ports, Wi-Fi/Bluetooth antennas, HDMI™ port, and optical S/PDIF OUT.
• Form Factor: ATX, dimensions 243.84mm x 304.8mm.
• Operating System: Supports Windows® 11 64-bit and Windows® 10 64-bit.

Conclusion:

The MSI Z790 Gaming Pro WiFi DDR5 motherboard delivers high-end features and performance for demanding gaming and computing tasks. With support for the latest Intel processors, fast DDR5 memory, and a variety of connectivity options, it provides a powerful platform for building a cutting-edge PC. The inclusion of advanced cooling solutions, customizable RGB lighting, and premium audio technology makes it an excellent choice for gamers and enthusiasts seeking both style and performance.
