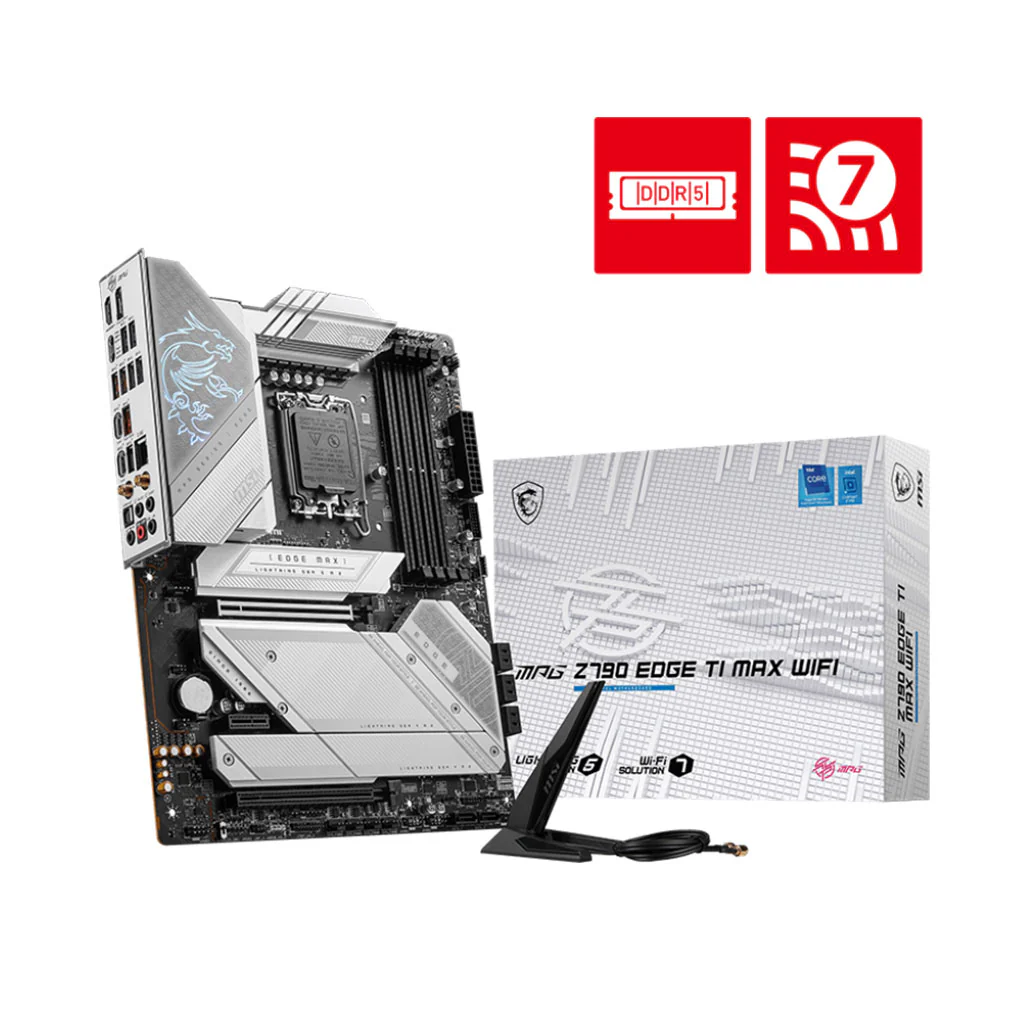

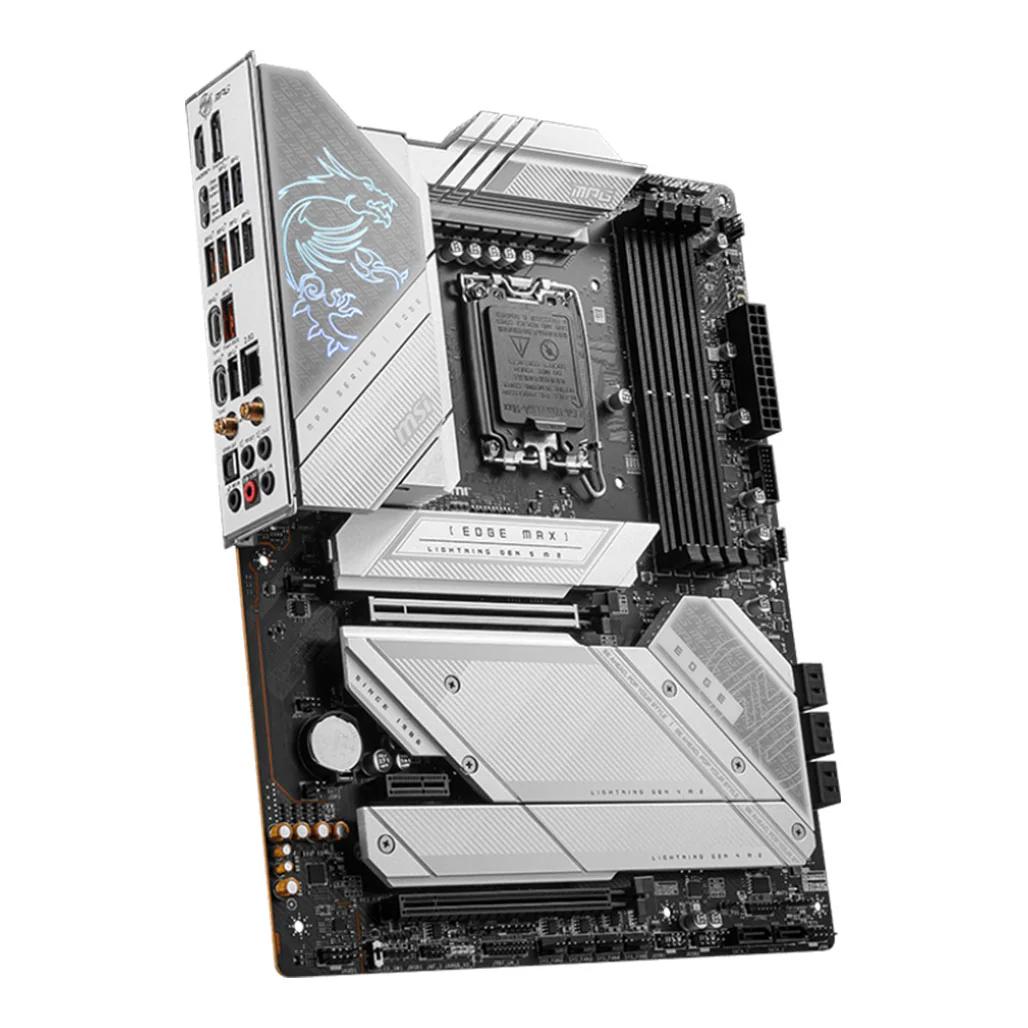

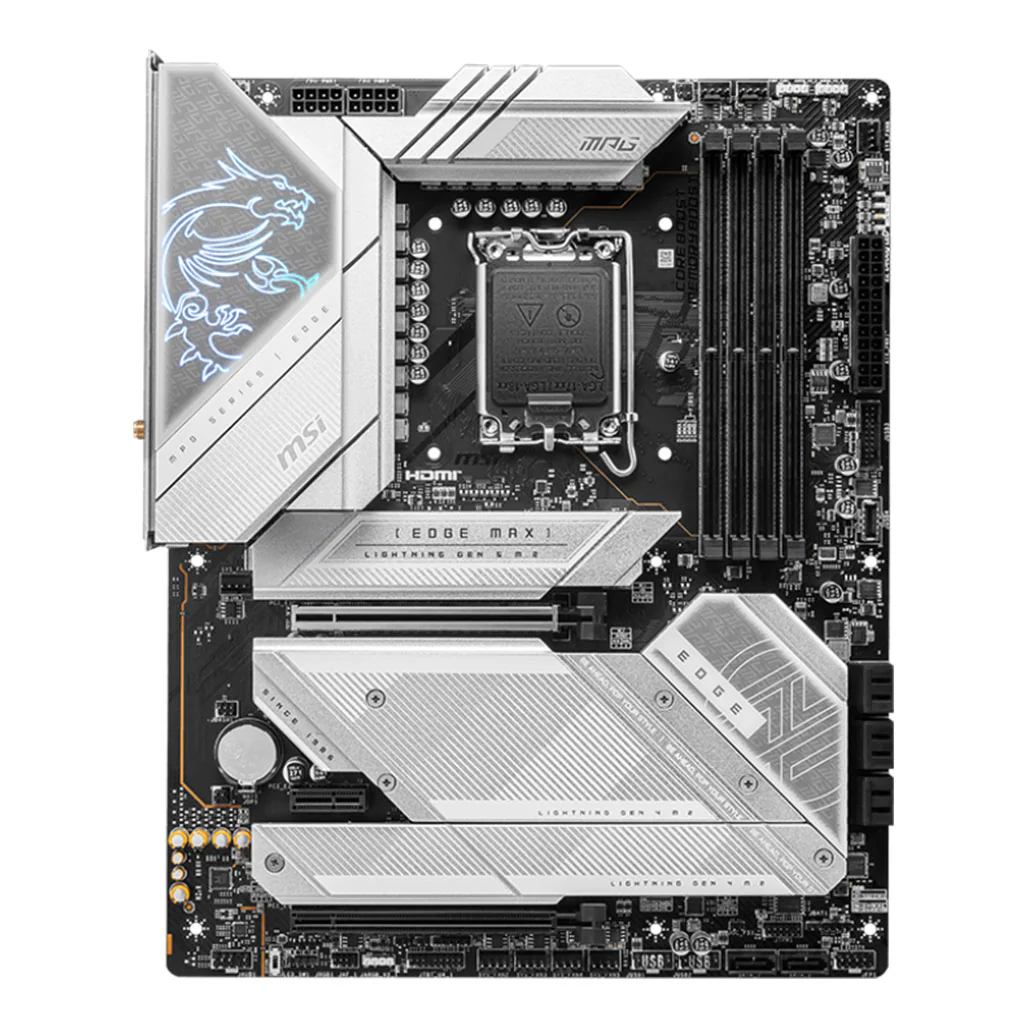

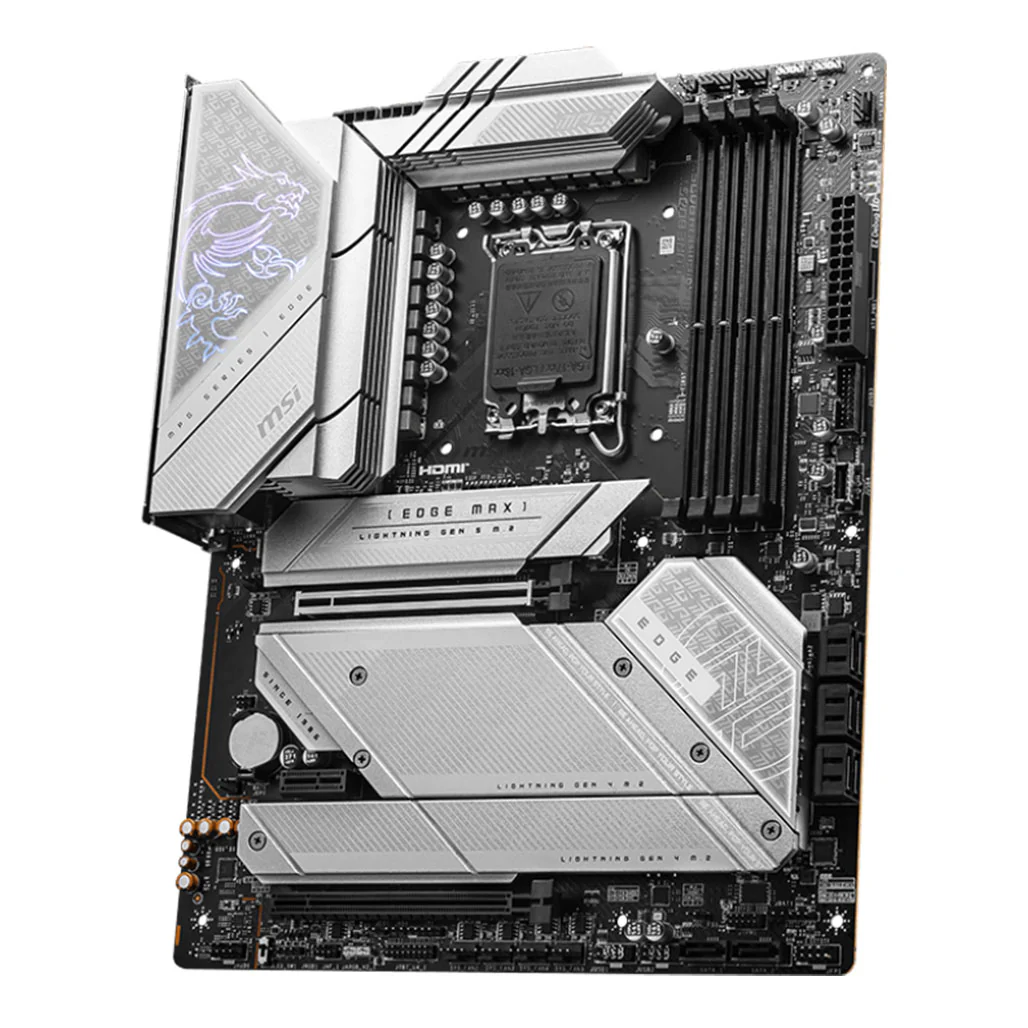

MSI MPG Z790 Edge Ti Max WiFi Motherboard - 911-7E25-005 | Premium ATX Board with PCIe 5.0, DDR5 Support, and Wi-Fi 7



The MSI MPG Z790 Edge Ti Max WiFi motherboard offers top-tier performance and advanced features tailored for high-end gaming and professional computing. Built with the Intel Z790 chipset and LGA 1700 socket, this ATX motherboard supports Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Intel® Pentium® Gold and Celeron® processors.

Equipped with four DDR5 UDIMM slots, it supports up to 192 GB of memory with speeds reaching up to 7800+ MHz (OC), ensuring exceptional performance for demanding applications. The board features two PCIe x16 slots and one PCIe x1 slot, with PCIe 5.0 and 4.0 support, providing high bandwidth for next-gen GPUs and expansion cards.

The MPG Z790 Edge Ti Max excels in cooling with its tool-free M.2 installation, extended heatsink, direct touch heat-pipe, and enhanced M.2 Shield Frozr. These features ensure optimal thermal management, keeping your system cool and stable even under high load.

Storage options are extensive with five M.2 slots and eight SATA 6G ports, supporting a range of RAID configurations for both SATA and NVMe devices. The board also includes an advanced Lightning Gen 5 PCIe slot with Steel Armor for superior durability and performance.

Connectivity is robust with a comprehensive array of USB ports, including USB 3.2 Gen 2x2 Type-C, and high-speed Intel® 2.5Gbps LAN. The integrated Wi-Fi 7 solution supports MU-MIMO, multiple frequency bands, and Bluetooth 5.4, providing cutting-edge wireless performance.

Key Features:

• Socket & Chipset: LGA 1700 socket with Intel Z790 chipset, supporting Intel® Core™ 14th, 13th, and 12th Gen processors, and Intel® Pentium® Gold and Celeron® processors.
• Memory: 4x DDR5 UDIMM slots, maximum 192 GB, speeds up to 7800+ MHz (OC), supports Intel® XMP 3.0.
• Expansion Slots: 2x PCIe x16, 1x PCIe x1, supports PCIe 5.0 and 4.0.
• Storage: 5x M.2 slots, 8x SATA 6G ports, RAID support for SATA and NVMe.

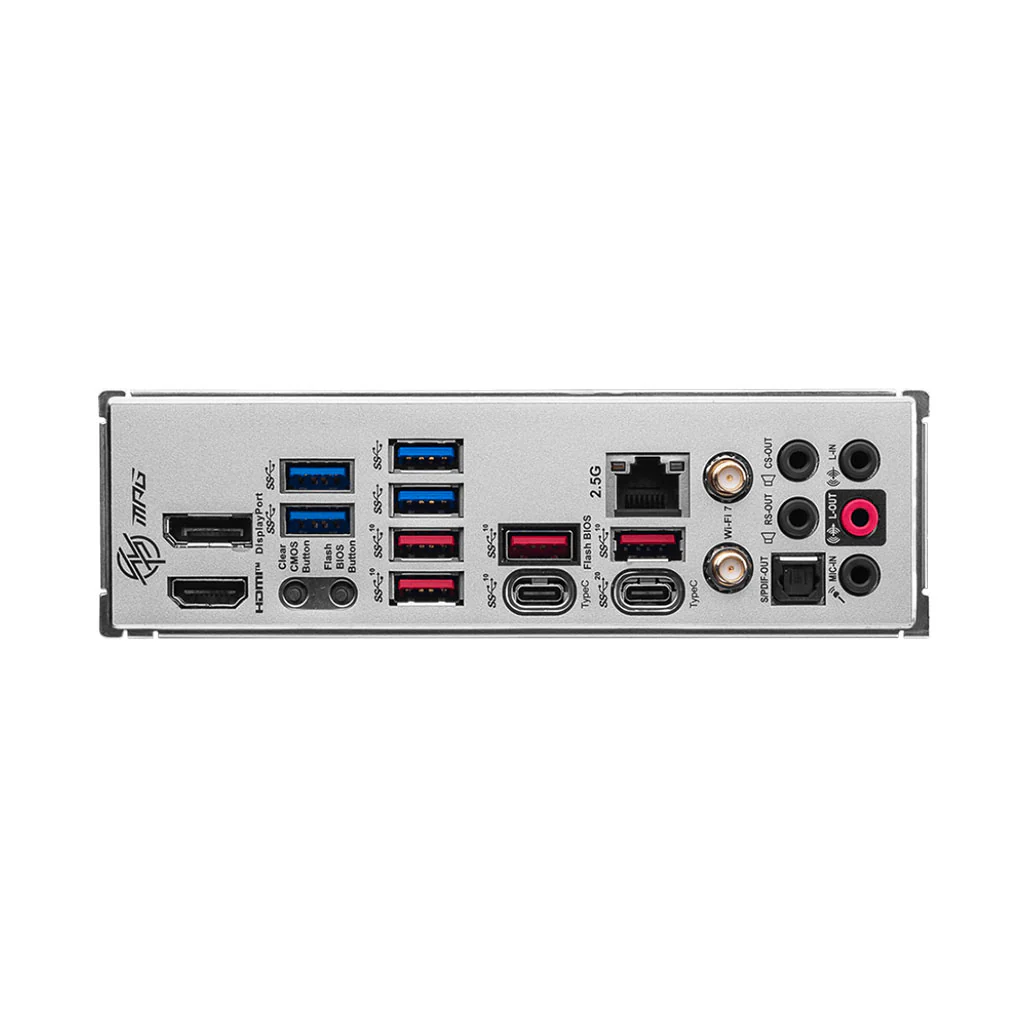

• USB Ports: 4x USB 2.0 (front), 4x USB 3.2 Gen 1 Type-A (rear), 2x USB 3.2 Gen 1 Type-A (front), 4x USB 3.2 Gen 2 Type-A (rear), 1x USB 3.2 Gen 2 Type-C (rear), 1x USB 3.2 Gen 2 Type-C (front), 1x USB 3.2 Gen 2x2 Type-C (rear).
• Networking: Intel® 2.5Gbps LAN, Wi-Fi 7, Bluetooth 5.4.
• Audio: Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio.
• Video Output: 1x HDMI™ 2.1, 1x DisplayPort 1.4.
• Cooling: Extended heatsink, direct touch heat-pipe, double-sided M.2 Shield Frozr, 7W/mK thermal pads.
• Operating System: Support for Windows® 10 64-bit, Windows® 11 64-bit.
• Form Factor: ATX, 243.84mm x 304.8mm.

Conclusion:

The MSI MPG Z790 Edge Ti Max WiFi motherboard is engineered for performance and durability, featuring the latest technologies and extensive connectivity options. Its advanced cooling solutions and support for cutting-edge components make it an excellent choice for building a high-performance gaming or workstation PC.
