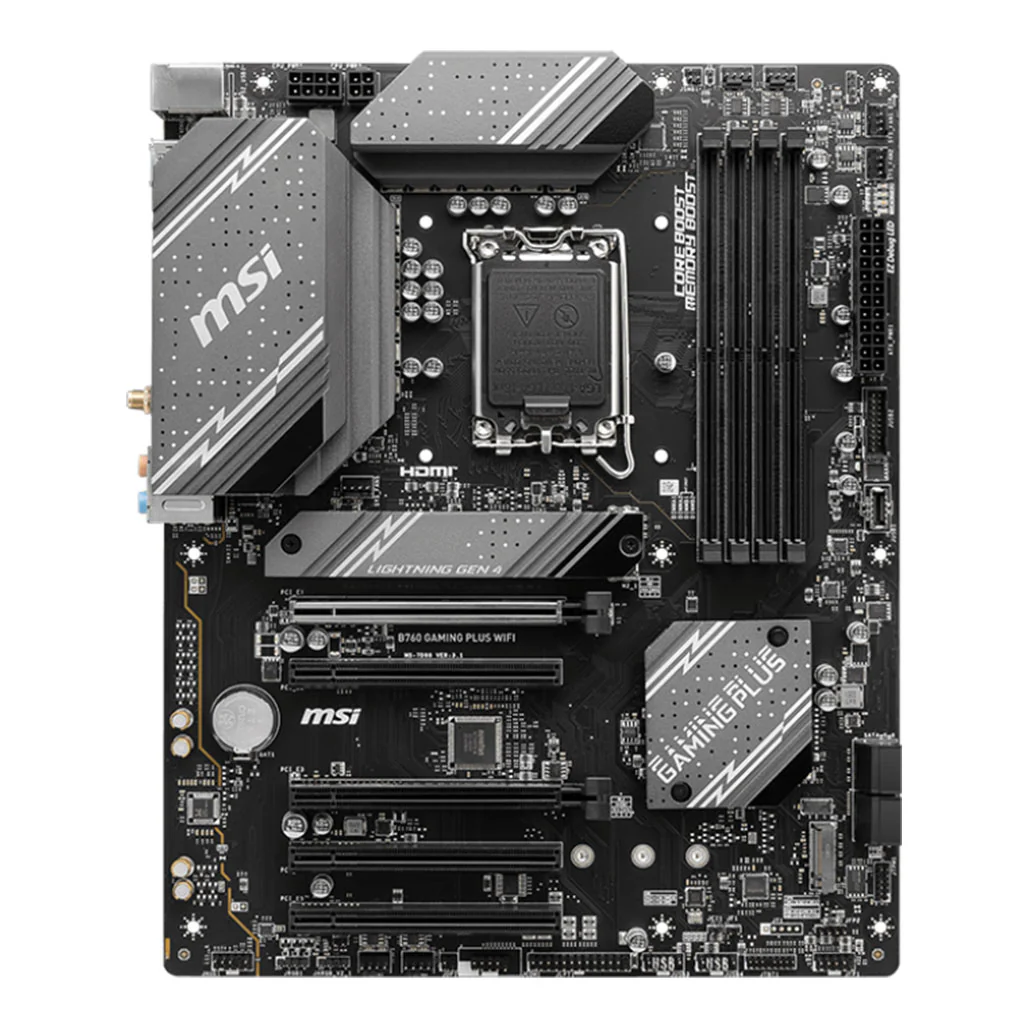

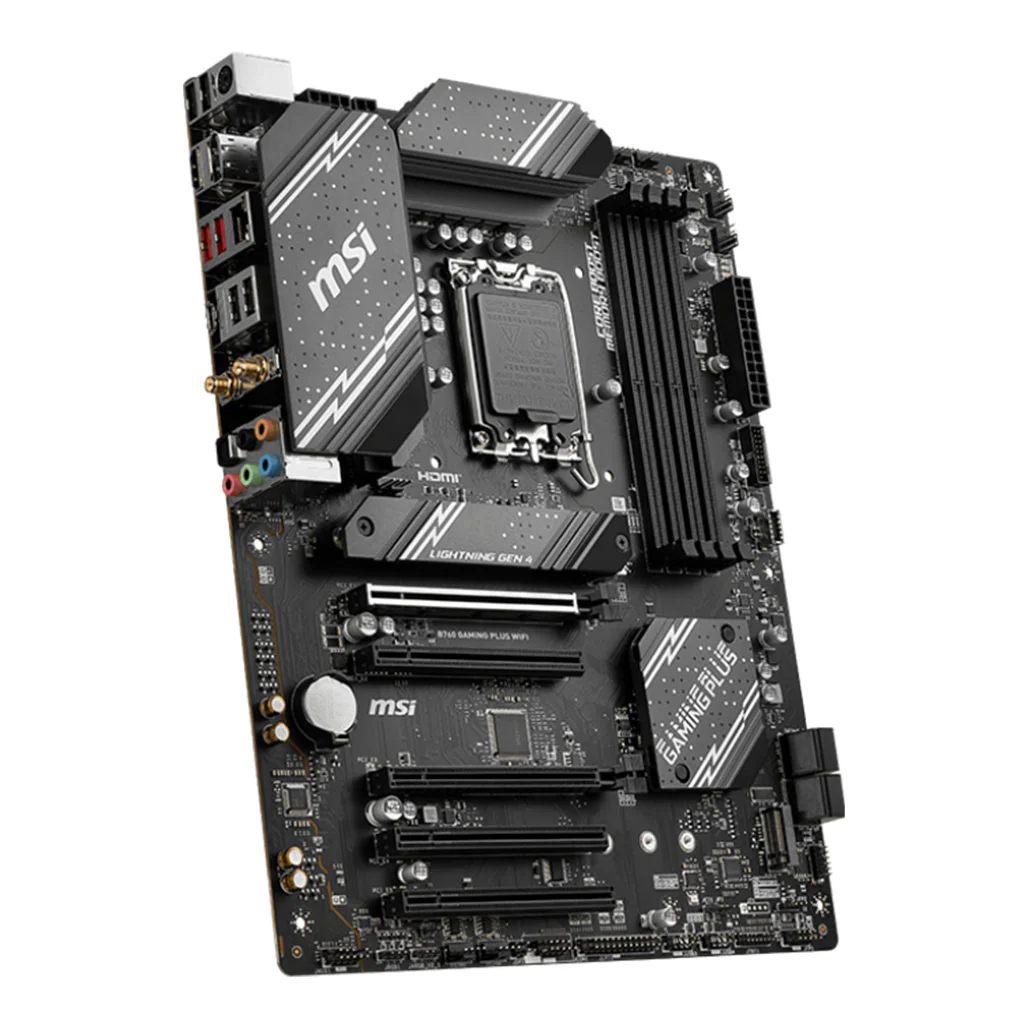

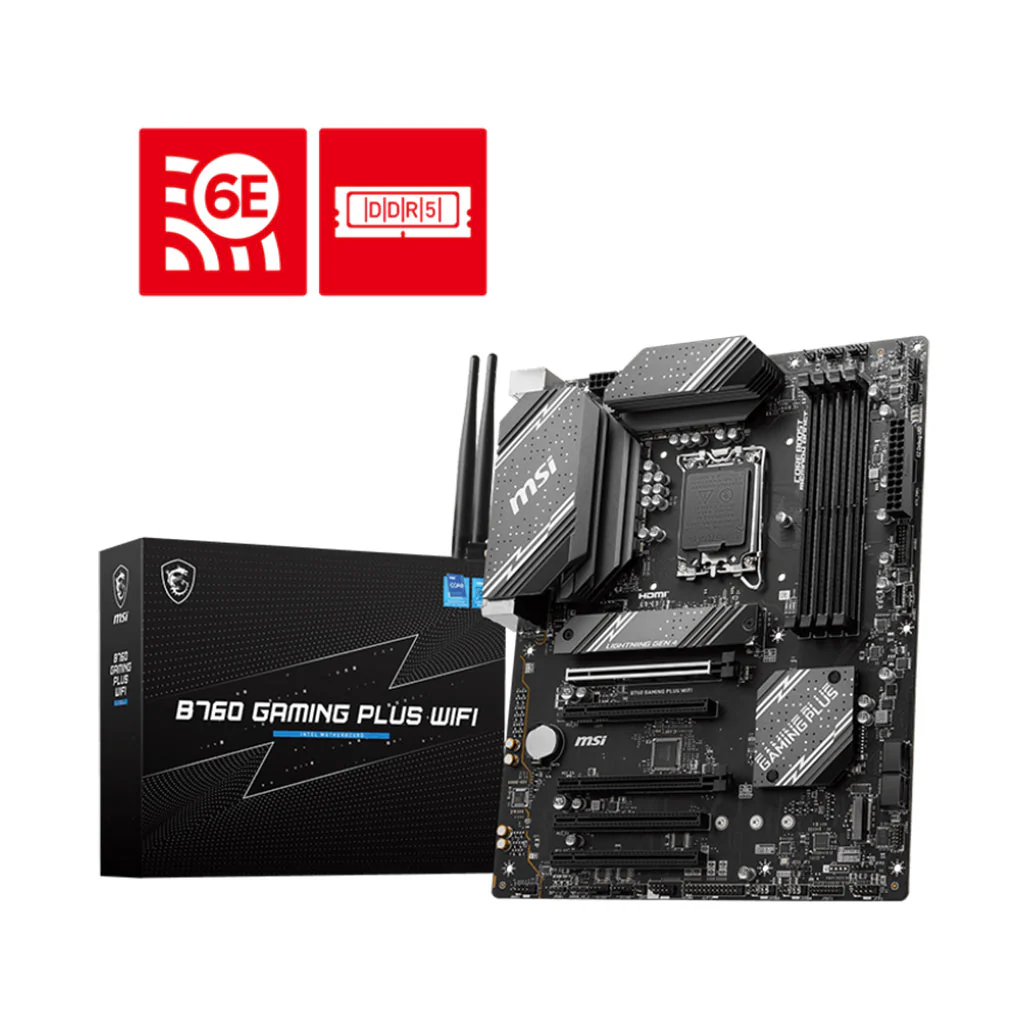

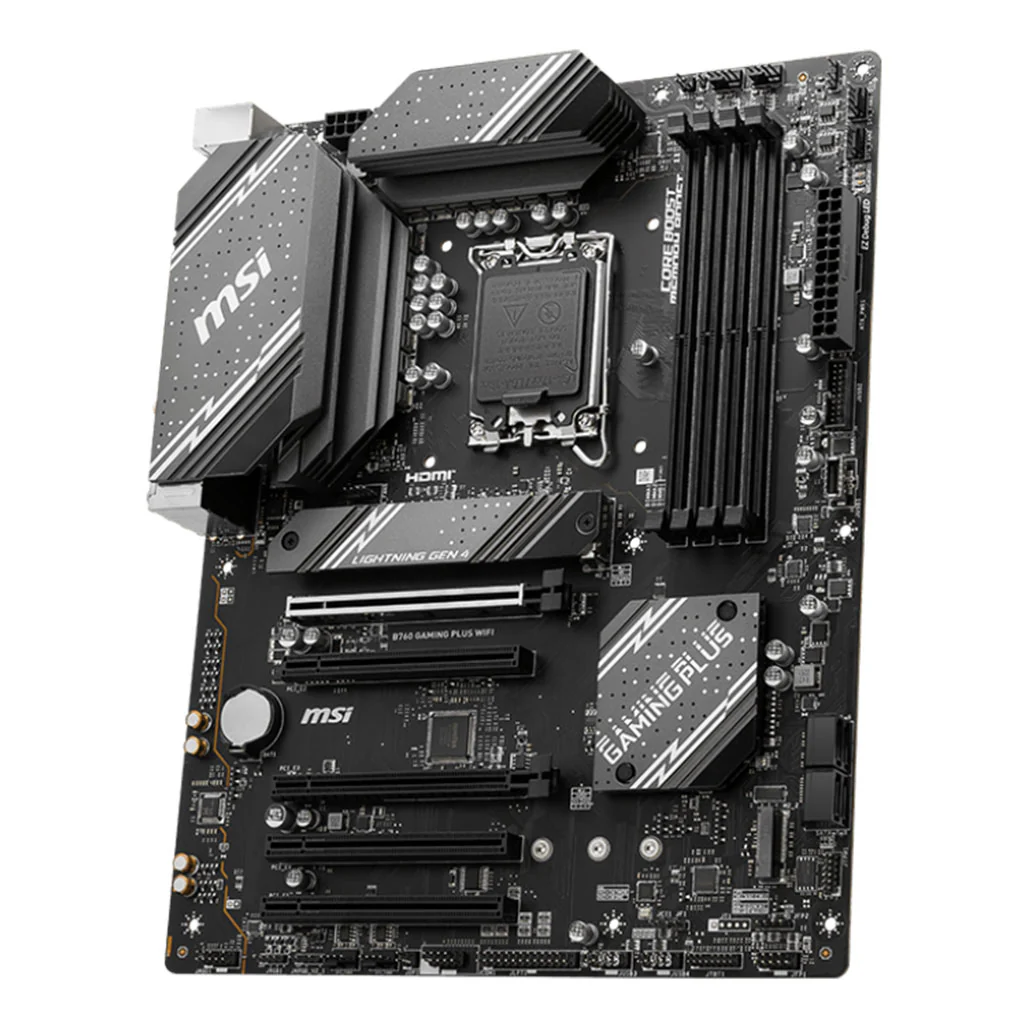

MSI B760 Gaming Plus WiFi Motherboard - 911-7D98-012 | High-Performance Gaming and Connectivity



The MSI B760 Gaming Plus WiFi motherboard delivers top-tier performance and advanced features designed for gamers and high-performance PC builders. Built with the Intel® B760 chipset and LGA 1700 socket, this motherboard supports Intel® Core™ 12th, 13th, and 14th Gen processors, as well as Intel® Pentium® Gold and Celeron® processors.

Equipped with four DDR5 memory slots, the B760 Gaming Plus WiFi supports up to 192 GB of high-speed memory, with overclocking capabilities reaching up to 6800 MHz. This ensures smooth multitasking and rapid data processing, ideal for gaming and professional applications. The board features a robust 12+1 Duet Rail Power System with P-PAK components, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for enhanced stability and performance.

For high-speed storage, the motherboard includes two M.2 slots (one PCIe 4.0 x4 and one PCIe 4.0/SATA) and four SATA 6G ports, allowing for versatile and fast storage configurations. The PCIe slots include support for Gen4 and Gen3, with a total of five slots to accommodate multiple expansion cards.

The B760 Gaming Plus WiFi offers advanced connectivity with a 2.5G LAN port and integrated Wi-Fi 6E, providing a stable and fast network connection. The board also supports Bluetooth® 5.3, offering seamless wireless peripheral connectivity. For premium audio, the motherboard is equipped with Realtek® ALC897 Codec, delivering high-definition 7.1-channel audio for an immersive gaming experience.

Key Features:

• Socket & Chipset: LGA 1700 socket with Intel® B760 chipset, supporting Intel® Core™ 12th, 13th, and 14th Gen processors.
• Memory: 4x DDR5 slots supporting up to 192 GB with overclocking frequencies up to 6800 MHz.
• Storage: 2x M.2 slots (PCIe 4.0 x4, PCIe 4.0/SATA) and 4x SATA 6G ports for flexible storage options.
• Expansion: 5x PCIe slots (1x Gen4, 2x Gen3, 2x Gen3) for multiple expansion cards.
• Networking: 2.5G LAN and Intel® Wi-Fi 6E with Bluetooth® 5.3 for high-speed, stable connectivity.
• Audio: Realtek® ALC897 Codec for 7.1-channel high-definition audio.
• Video Outputs: 1x HDMI™ 2.1 and 1x DisplayPort 1.4 for up to 4K resolution.

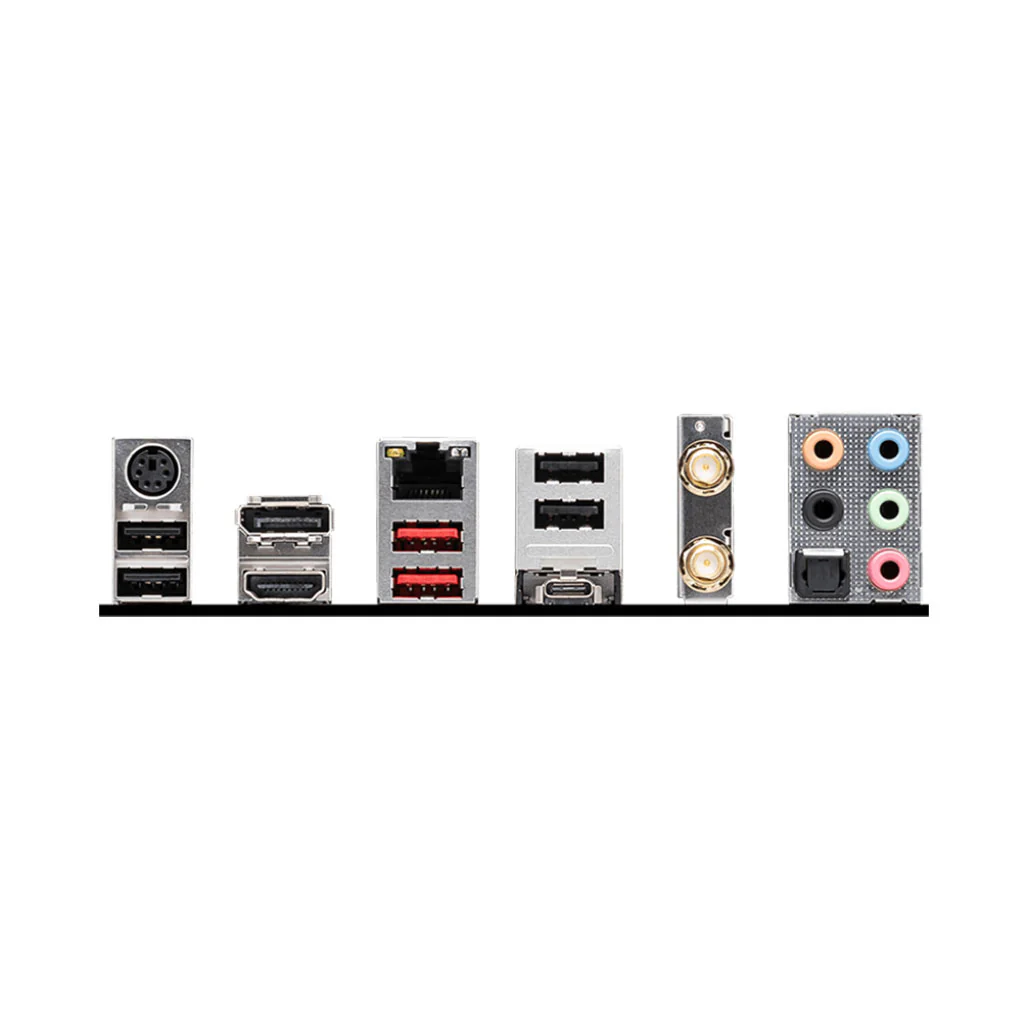

• USB Ports: 4x USB 2.0 (rear), 2x USB 3.2 Gen1 Type A (front), 1x USB 3.2 Gen1 Type C (front), 2x USB 3.2 Gen2 Type A (rear), 1x USB 3.2 Gen2 Type C (rear).
• Form Factor: ATX (243.84mm x 304.8mm) for versatile build options.

Specifications:

• Chipset: Intel® B760
• CPU: Supports Intel® Core™ 12th, 13th, and 14th Gen processors, Intel® Pentium® Gold, and Celeron® processors (LGA 1700)
• Memory: 4x DDR5 slots, maximum 192 GB, supports DDR5 6800+(OC) to 4800(JEDEC) MHz, Dual-Channel, non-ECC
• Onboard Graphics: 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz)
• Expansion Slots: 5x PCIe slots (1x Gen4 x16, 2x Gen3 x1, 1x Gen3 x4, 1x Gen3 x1)
• Storage: 2x M.2 slots (PCIe 4.0 x4, PCIe 4.0/SATA), 4x SATA 6G
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10
• USB Ports: 4x USB 2.0 (rear), 2x USB 3.2 Gen1 Type A (front), 1x USB 3.2 Gen1 Type C (front), 2x USB 3.2 Gen2 Type A (rear), 1x USB 3.2 Gen2 Type C (rear)
• LAN: Realtek® RTL8125BG 2.5G LAN
• Wireless LAN & Bluetooth: Intel® Wi-Fi 6E, Bluetooth® 5.3
• Audio: Realtek® ALC897 Codec, 7.1-Channel HD Audio
• Internal IO: Includes multiple fan headers, USB headers, RGB connectors, TPM pin header
• LED Feature: 4x EZ Debug LED
• Operating System: Support for Windows® 10 64-bit and Windows® 11 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)

Conclusion:

The MSI B760 Gaming Plus WiFi motherboard is engineered to deliver superior performance and connectivity for gaming and high-demand applications. With support for the latest Intel processors, DDR5 memory, and a comprehensive suite of connectivity options, this motherboard ensures a powerful and future-proof foundation for any PC build. Its advanced thermal and power solutions further enhance system stability and longevity, making it an excellent choice for gamers and power users alike.
