MSI MAG SHIELD M301 Micro-ATX - Gaming Case

The MSI MAG SHIELD M301 Micro-ATX gaming case is a compact yet efficient solution for building high-performance gaming setups. Its sleek and minimalistic design offers compatibility with Micro-ATX and Mini-ITX motherboards, making it suitable for small yet powerful PC configurations.

Designed with optimized airflow, the case includes a pre-installed 120mm rear non-LED fan and support for additional cooling solutions. The front panel accommodates two 120mm fans, while the rear panel provides space for a 120mm radiator. This setup ensures consistent airflow for stable thermal performance.

Storage flexibility is a key feature, with dedicated mounts for both 2.5" and 3.5" drives, allowing seamless installation of SSDs and HDDs. The case also provides four expansion slots, enabling support for additional hardware upgrades, including GPUs up to 250mm in length.

Front I/O connectivity includes a USB 3.2 Gen 1 Type-A port, a USB 1.0 Type-A port, and combined audio and microphone jacks, ensuring quick access for peripherals. The case supports ATX power supplies with a maximum length of 150mm, providing ample power for gaming components.

With a sturdy build and compact form factor, the MSI MAG SHIELD M301 is ideal for those looking to create an efficient and stylish gaming PC with essential features and cooling capabilities.

Specifications:

• Product Name: MSI MAG SHIELD M301
• Case Form Factor: Micro-ATX Tower
• Motherboard Support: Micro-ATX, Mini-ITX

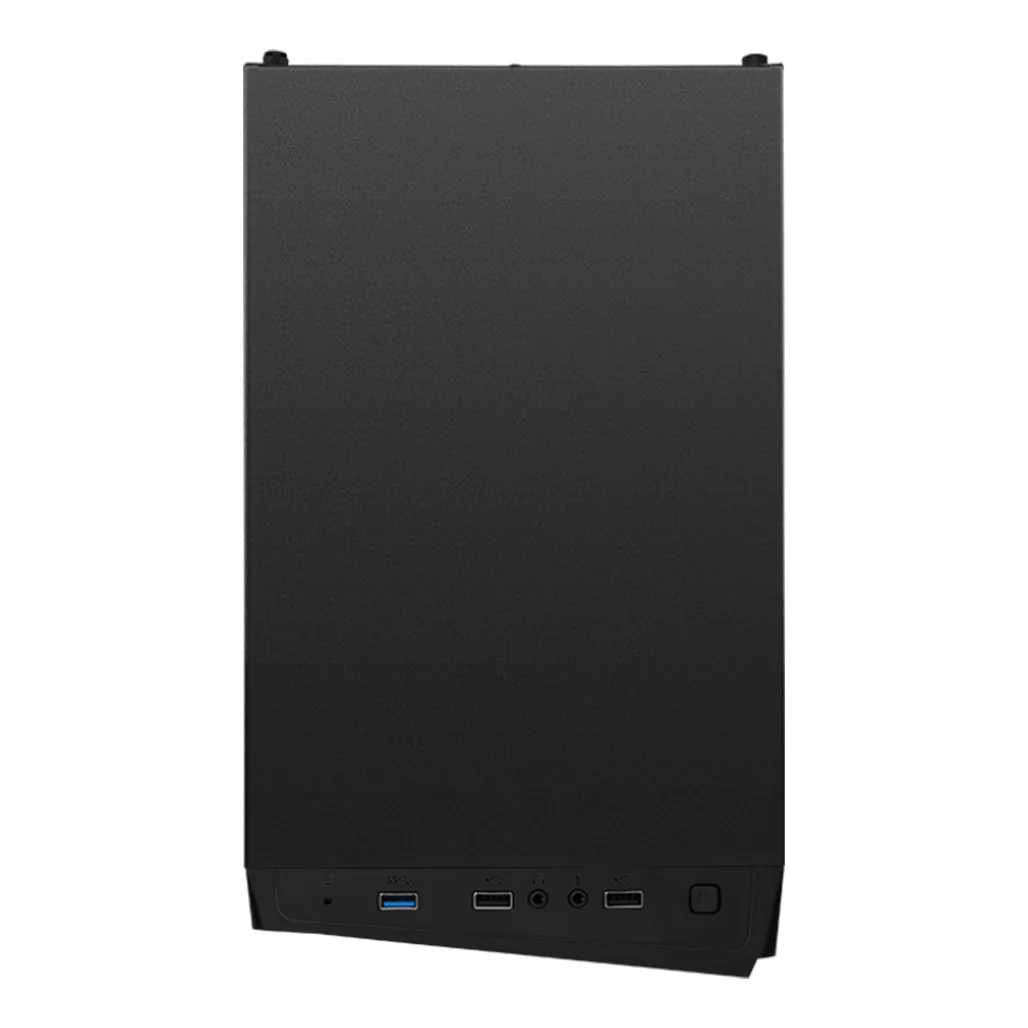

• I/O Ports:
  • 1x USB 3.2 Gen 1 Type-A
  • 2x USB 1.0 Type-A
  • 1x Audio-out / Mic-in
  • Power Button
  • Reset Button
• Drive Mounts:
  • 1x 2.5" SSD
  • 1x 3.5" HDD
• Expansion Slots: 4
• Maximum GPU Length: 250mm / 9.84 inches
• Maximum CPU Cooler Height: 160mm / 6.3 inches
• Power Supply Support: ATX
• Maximum PSU Length: 150mm / 5.91 inches
• Fan Support:
  • Front: 2x 120mm
  • Rear: 1x 120mm
• Pre-installed Fans:
  • Rear: 1x 120mm Non-LED Fan
• Radiator Support:
  • Rear: 1x 120mm
• Dimensions (L x W x H): 345 x 206 x 352 mm / 13.58 x 8.11 x 13.86 inches
• Net Weight: 2.28 kg / 5.03 lbs
• Gross Weight: 3.12 kg / 6.88 lbs
