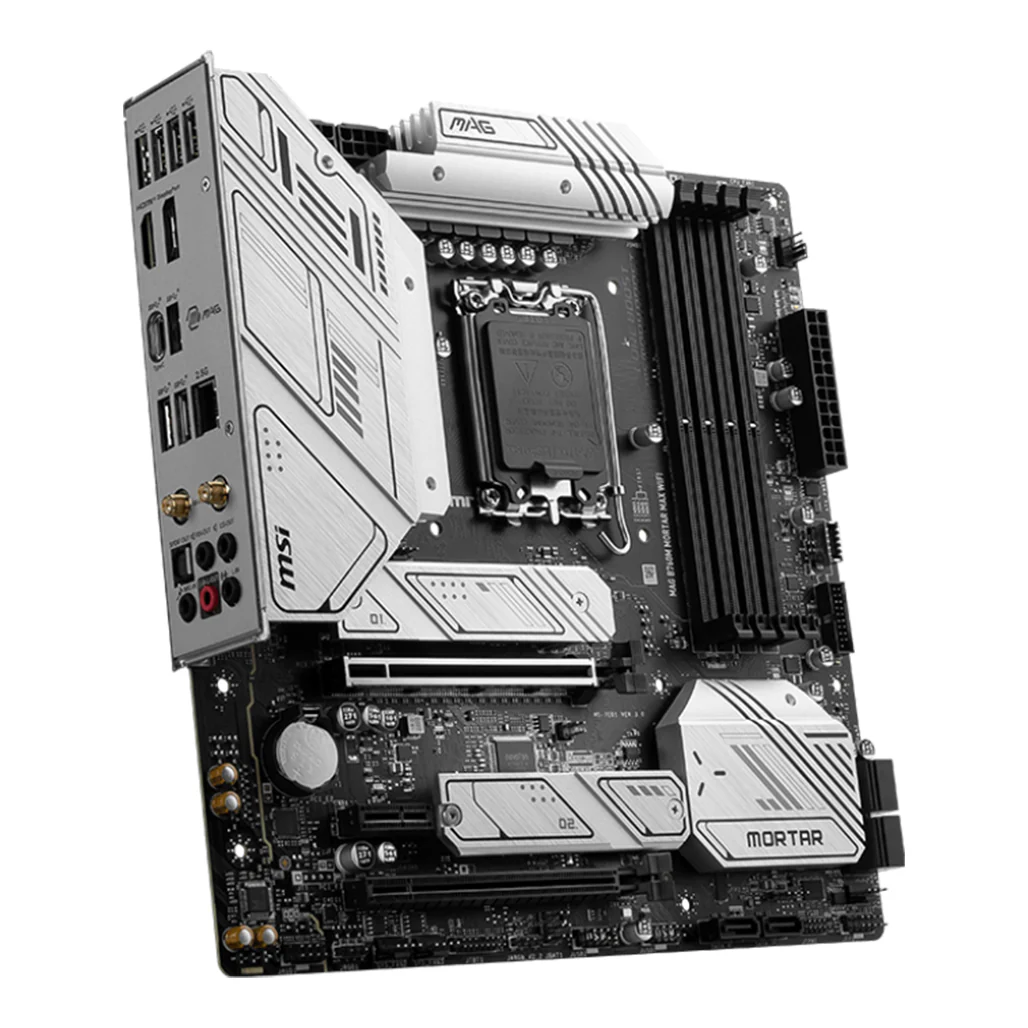

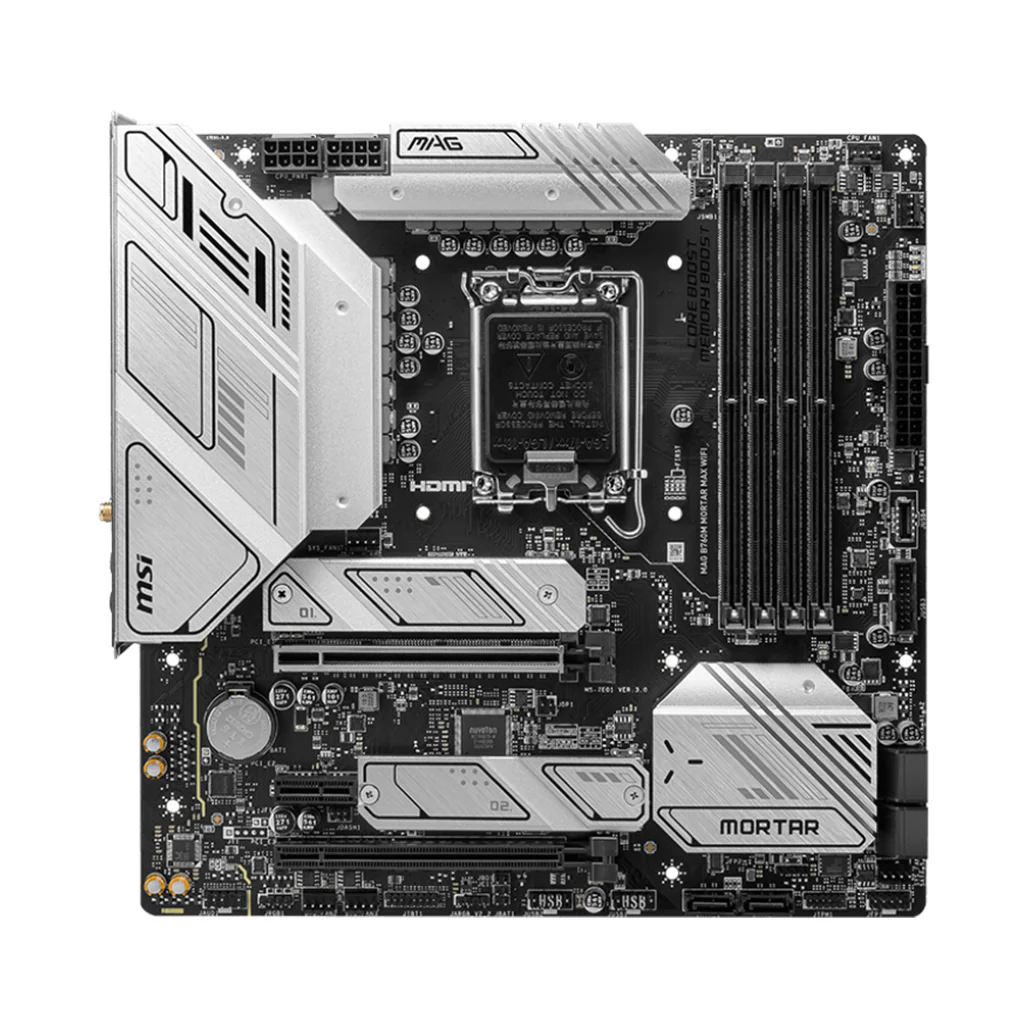

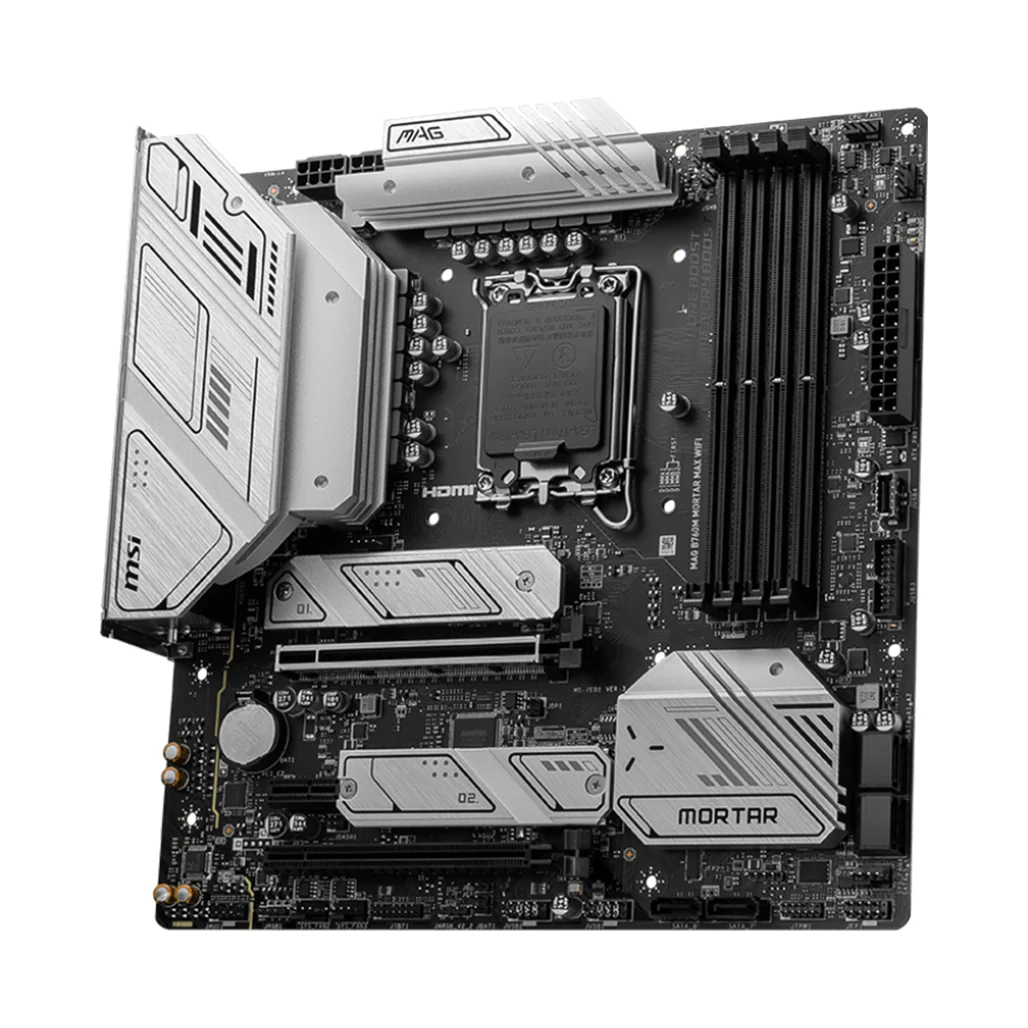

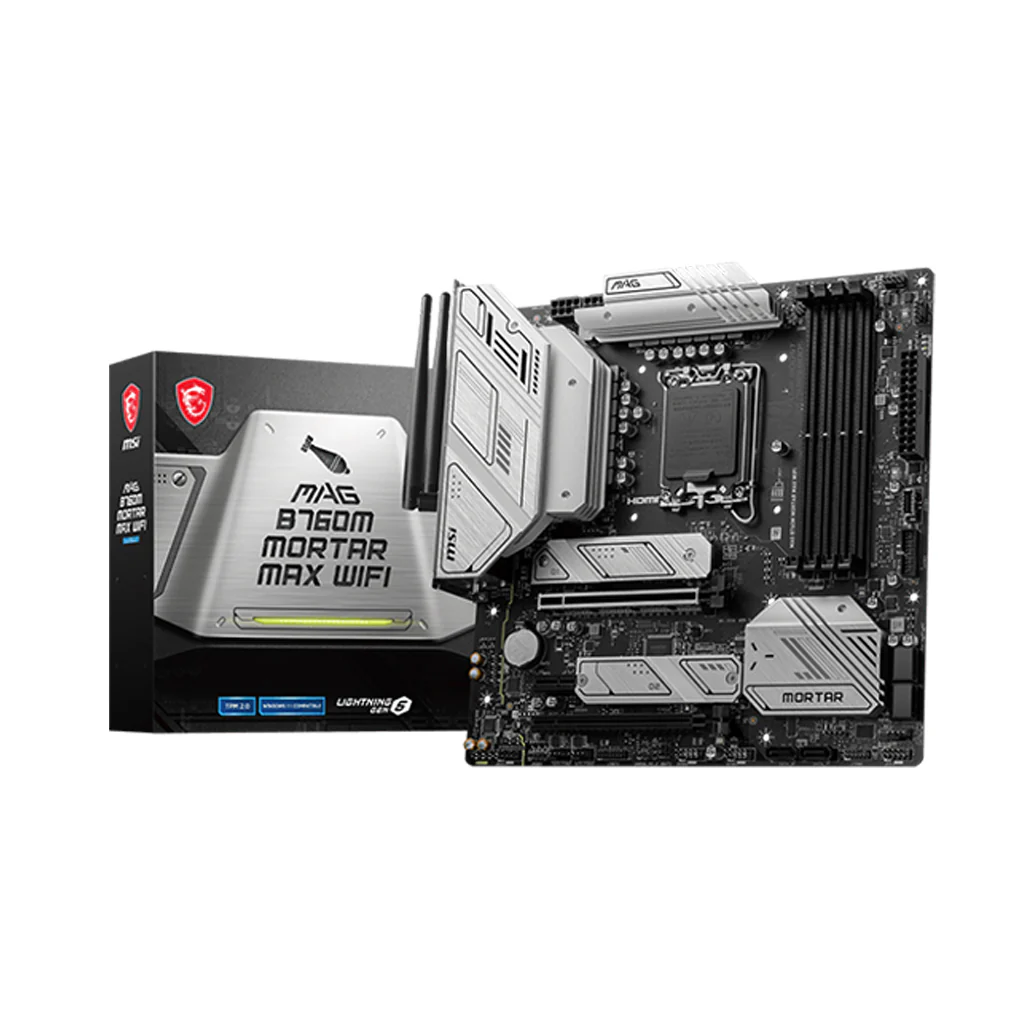

MSI MAG B760M MORTAR MAX WIFI – High-Speed DDR5 Motherboard for Intel 14th Gen

The MSI MAG B760M MORTAR MAX WIFI is a high-performance micro-ATX motherboard designed to support Intel 14th, 13th, and 12th Gen processors. Featuring LGA 1700 socket compatibility, PCIe 5.0, and dual-channel DDR5 memory support up to 7200+ MHz (OC), this motherboard is ideal for gamers, creators, and professionals who need top-tier performance and connectivity.

Equipped with dual M.2 PCIe 4.0 slots, six SATA 6G ports, and RAID support, this board ensures ultra-fast storage speeds and expanded storage capacity. Realtek® ALC897 7.1-Channel HD Audio with S/PDIF output delivers immersive sound, while Realtek® 2.5G LAN and Intel® Wi-Fi 6E provide lightning-fast networking and seamless wireless connectivity.

For graphics, the motherboard includes one HDMI 2.1 port and one DisplayPort 1.4, supporting 4K@60Hz and 8K@60Hz resolutions, making it an excellent choice for high-fidelity visual experiences (requires integrated graphics). Expansion options include two PCIe x16 slots (one PCIe 5.0 and one PCIe 4.0) and one PCIe 3.0 x1 slot, ensuring support for the latest GPUs and high-speed peripherals.

A fully featured internal I/O layout includes multiple fan headers, ARGB & RGB connectors, and USB ports, while EZ Debug LEDs provide troubleshooting assistance. With Windows 11 and Windows 10 support, the MAG B760M MORTAR MAX WIFI is an exceptional motherboard for high-performance computing and gaming builds.

Specifications:

• Chipset: Intel B760
• CPU Support: Intel® Core™ 14th/13th/12th Gen, Intel® Pentium® Gold & Celeron® Processors
• Socket: LGA 1700

Memory:

• Slots: 4x DDR5 DIMM
• Max Capacity: 256GB
• Speed Support: Up to 7200+ MHz (OC)
• Dual-Channel Mode: Supported
• Intel® XMP Support: Yes
• Non-ECC, Un-buffered Memory: Supported

Graphics & Expansion Slots:

• Onboard Graphics:
  • 1x HDMI™ 2.1 (4K@60Hz with HDR)
  • 1x DisplayPort 1.4 (8K@60Hz)
• PCIe Slots:
  • PCIe 5.0 x16 (CPU)
  • PCIe 4.0 x4 (Chipset)
  • PCIe 3.0 x1 (Chipset)

Storage:

• M.2 Slots:
  • M.2_1 (CPU): PCIe 4.0 x4, supports 2280/2260/2242 devices
  • M.2_2 (Chipset): PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• SATA Ports: 6x SATA 6G
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 (SATA storage devices)

Audio:

• Codec: Realtek® ALC897
• Channels: 7.1-Channel High-Performance Audio
• Optical Output: S/PDIF

LAN & Networking:

• Ethernet: Realtek® 2.5Gbps LAN
• Wireless LAN & Bluetooth:
  • Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz)
  • Supports MU-MIMO TX/RX, up to 2.4Gbps
  • Supports Bluetooth® 5.3

USB Connectivity:

• Rear I/O Ports:
  • 4x USB 2.0
  • 3x USB 10Gbps Type-A
  • 1x USB 20Gbps Type-C
• Front I/O Headers:
  • 4x USB 2.0
  • 2x USB 5Gbps Type-A
  • 1x USB 10Gbps Type-C

Internal I/O & Features:

• Power Connectors:
  • 1x ATX 24-pin
  • 2x CPU 8-pin
• Cooling & Fans:
  • 1x CPU Fan Header
  • 1x Pump Fan Header
  • 4x System Fan Headers
• RGB & LED:
  • 2x Addressable RGB (JARGB_V2)
  • 1x Standard RGB (JRGB)
• Debug Features:
  • 4x EZ Debug LED

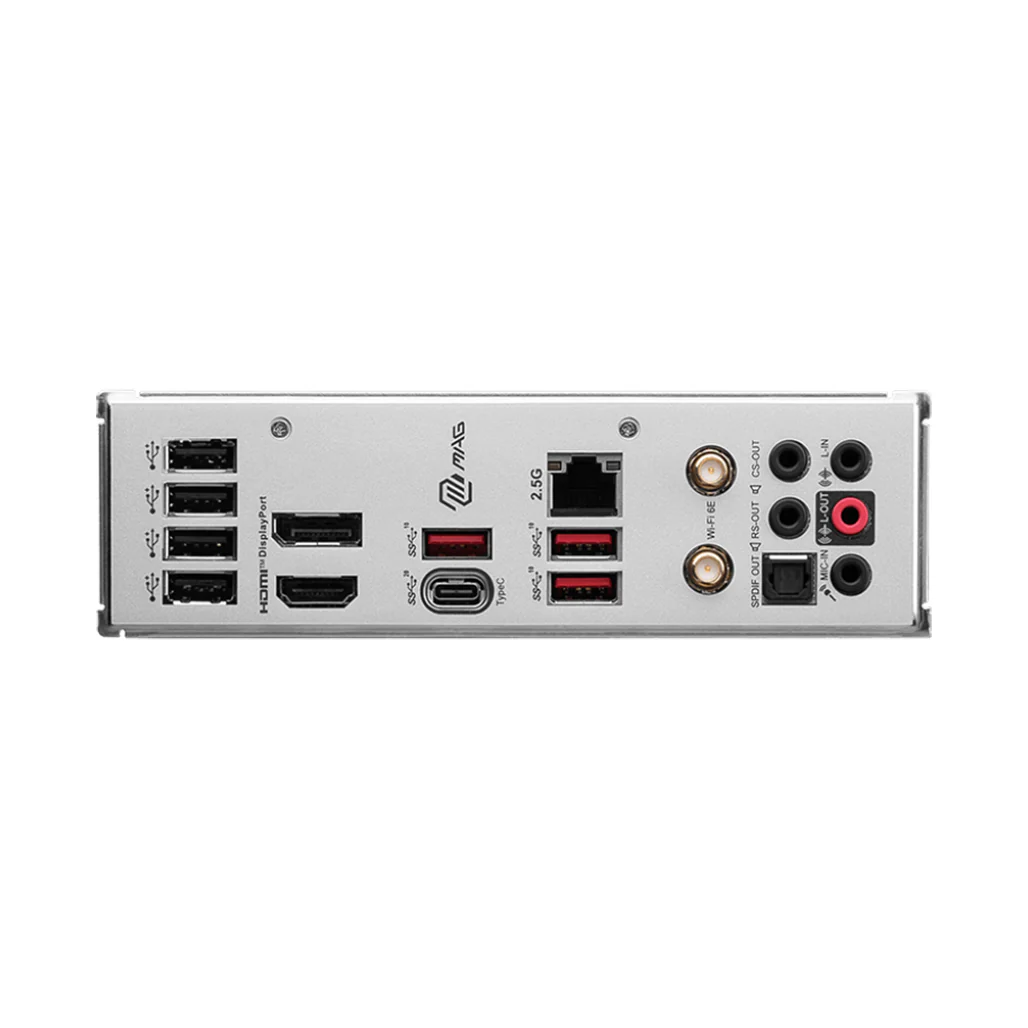

Back Panel Ports:

• USB 2.0 Ports
• 2.5G LAN Port
• Wi-Fi 6E / Bluetooth Antenna
• DisplayPort 1.4 (8K@60Hz)
• HDMI™ 2.1 (4K@60Hz HDR)
• USB 3.2 Gen 2x2 20Gbps Type-C
• USB 3.2 Gen 2 10Gbps Type-A
• Optical S/PDIF OUT
• HD Audio Connectors

Operating System Support:

• Windows® 11 64-bit
• Windows® 10 64-bit
