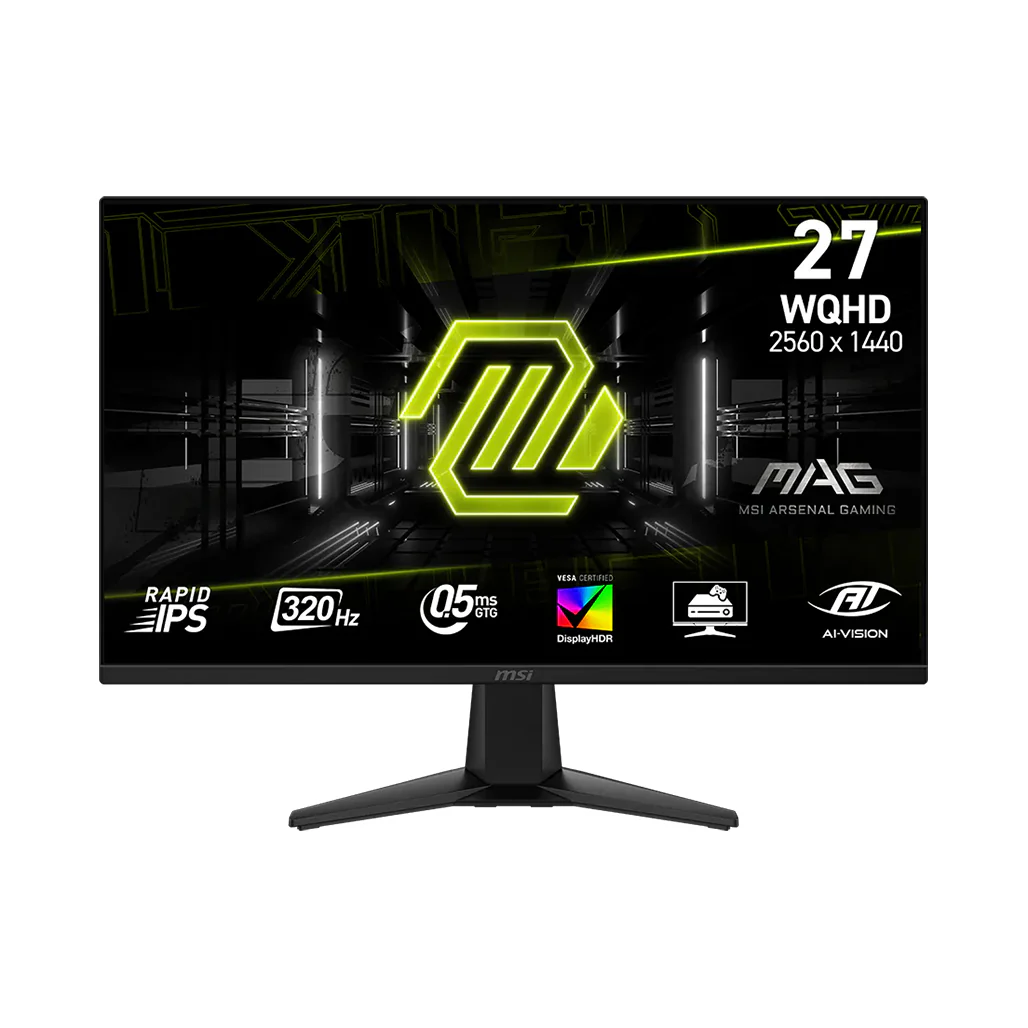

MSI MAG 275QF X32 - 27" 320Hz Gaming Monitor

The MSI MAG 275QF X32 is designed to deliver ultra-smooth performance and sharp visuals for competitive gaming and high-performance computing. Featuring a 27-inch WQHD (2560 × 1440) display with a Rapid IPS panel, clear image quality and wide viewing angles are provided while maintaining extremely fast response times. With a refresh rate of up to 320Hz and a 0.5ms response time, motion blur and screen tearing are significantly reduced, allowing fast-paced gameplay to be displayed with exceptional clarity.

A wide color gamut and HDR support are included to produce vibrant colors and improved contrast across games, multimedia content, and creative workflows. The anti-glare surface helps maintain visibility in bright environments, while the frameless design contributes to a modern setup that fits seamlessly into multi-monitor configurations. With advanced connectivity options and support for AMD FreeSync™ Premium technology, smoother gameplay and consistent frame synchronization are achieved.

---

Key Features

Ultra-Fast 320Hz Refresh Rate
A refresh rate of up to 320Hz is supported, allowing extremely smooth motion and improved responsiveness in fast-paced esports titles and competitive gaming scenarios.

Rapid IPS Panel Technology
The Rapid IPS panel is used to deliver fast response times while maintaining excellent color accuracy and wide viewing angles, ensuring consistent visuals from almost any perspective.

0.5ms Response Time (GtG, Min)
A minimal gray-to-gray response time of 0.5ms helps reduce ghosting and motion blur, allowing fast movements and transitions to appear crisp and clear.

WQHD Resolution for Sharp Detail
A 2560 × 1440 resolution provides greater image clarity compared with standard Full HD displays, allowing fine details in games, videos, and graphics to be viewed with improved sharpness.

AMD FreeSync™ Premium Support
Adaptive synchronization technology is supported to minimize screen tearing and stuttering by aligning the monitor refresh rate with the graphics card output.

VESA DisplayHDR 400 Certification
HDR capability is supported to enhance brightness, contrast, and color depth, resulting in more dynamic visuals and improved detail in both bright and dark scenes.

Wide Color Coverage
A wide color gamut covering 130% sRGB, 95% DCI-P3, and 89% Adobe RGB allows more accurate color reproduction for gaming, content creation, and multimedia viewing.

---

Specifications

Panel Size: 27”
Active Display Area (mm): 596.736 (H) x 335.664 (V)
Curvature: Flat
Panel Type: Rapid IPS
Panel Resolution: 2560 x 1440 (WQHD)
Pixel Pitch (H x V): 0.2331(H) x 0.2331(V)
Aspect Ratio: 16:9
Brightness (nits): SDR: 400 cd/m² / HDR: 400 cd/m²
Contrast Ratio: 1000:1
DCR: 100000000:1
Signal Frequency: 70.5~460 KHz(H) / 48~320 Hz(V)
Activated Range: 48~320Hz
Refresh Rate: 320Hz
Response Time: 0.5ms (GtG, Min)
Dynamic Refresh Rate Technology: AMD FreeSync™ Premium
HDR Support: VESA DisplayHDR 400

Video Ports:

• 1x HDMI™ 2.1 (WQHD@320Hz)

• 1x DisplayPort 1.4a (HBR3)

Audio Ports:

• 1x Headphone-out

Viewing Angle: 178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB: 89% / 95% / 130% (CIE1976 Standard)
Surface Treatment: Anti-glare
Display Colors: 1.07B, 10 bits (8 bits + FRC)
Frameless Design: Yes

Power Type: Internal Power Board
Power Input: 100~240V, 50/60Hz

Adjustment (Tilt): -5° ~ 20°
Kensington Lock: Yes
VESA Mounting: 100 x 100 mm

Dimension with Stand (W x D x H):
613.3 x 220.1 x 454.6 mm
(24.15 x 8.67 x 17.9 inch)

Dimension without Stand (W x D x H):
613.3 x 57.9 x 360.7 mm
(24.15 x 2.28 x 14.2 inch)

Weight (NW / GW): 3.95 kg (8.7 lbs) / 6.35 kg (14 lbs)

Carton Dimension (W x D x H):
684 x 129 x 463 mm
(26.93 x 5.05 x 18.23 inch)

Accessories:

• 1x DP Cable (1.4a)

• 1x Power Cord (C13)

• 1x Quick Guide

Note:
HDMI™: 2560 x 1440 (Up to 320Hz)
DisplayPort: 2560 x 1440 (Up to 320Hz)
Support: HDMI™ CEC, PIP/PBP
Non Support: KVM

---

Conclusion:
The MSI MAG 275QF X32 is built to deliver high-speed gaming performance with WQHD clarity, advanced panel technology, and HDR support. Its combination of a 320Hz refresh rate, Rapid IPS panel, and wide color coverage makes it suitable for competitive gaming, immersive multimedia viewing, and demanding visual tasks where responsiveness and image quality are essential.
