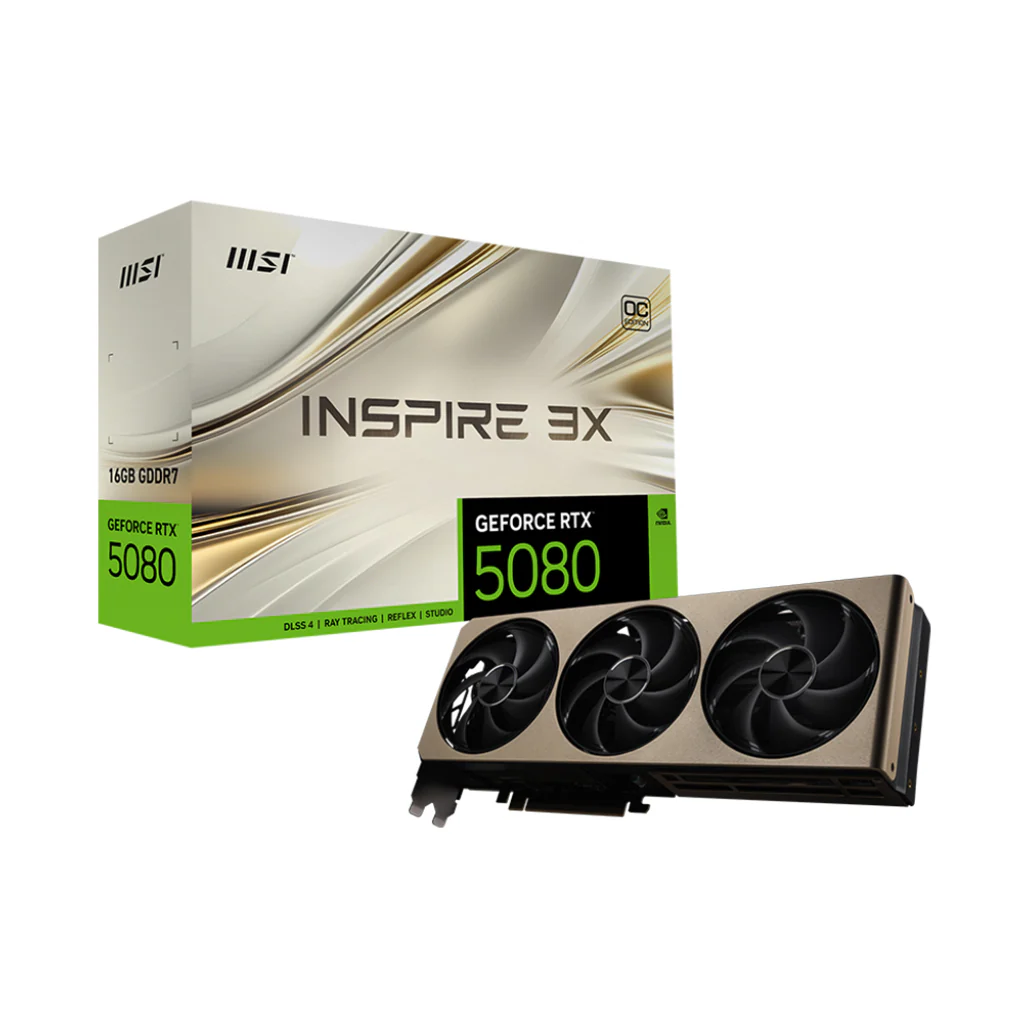

MSI GeForce RTX 5080 16G INSPIRE 3X OC – Compact DLSS 4 Graphics Card with Blackwell Architecture

The MSI GeForce RTX™ 5080 16G INSPIRE 3X OC is a compact powerhouse designed for gamers and creators seeking top-tier AI-enhanced performance in a small form factor. Powered by the latest NVIDIA Blackwell architecture, this graphics card integrates DLSS 4, Reflex 2, and neural rendering capabilities for true-to-life graphics and lightning-fast responsiveness. Whether you're creating digital art or dominating the latest AAA titles, this GPU delivers unmatched speed and fidelity.

With a cutting-edge thermal design and a unique Mondrian-inspired aesthetic, the INSPIRE 3X brings efficient cooling and artistic flair to any setup. It supports 4K at 480Hz and 8K at 120Hz, features advanced cooling with triple STORMFORCE fans and a nickel-plated copper baseplate, and includes robust build features like a metal backplate and extra fuses for added durability. For those looking to maximize space without compromising on performance, this SFF-ready graphics card is the ideal solution.

Key Features

1. NVIDIA Blackwell Architecture & DLSS 4
Built on the powerful Blackwell platform, the RTX 5080 supports fifth-generation Tensor Cores and fourth-generation Ray Tracing Cores. It’s optimized for AI-based enhancements like DLSS 4 with Multi-Frame Generation and NVIDIA ACE for digital humans and assistants.

2. Compact Design & SFF-Ready
The INSPIRE 3X OC is SFF-Ready (Small Form Factor), making it ideal for compact builds without sacrificing performance. It’s crafted to offer professional-grade output in a space-saving package.

3. Thermal Performance

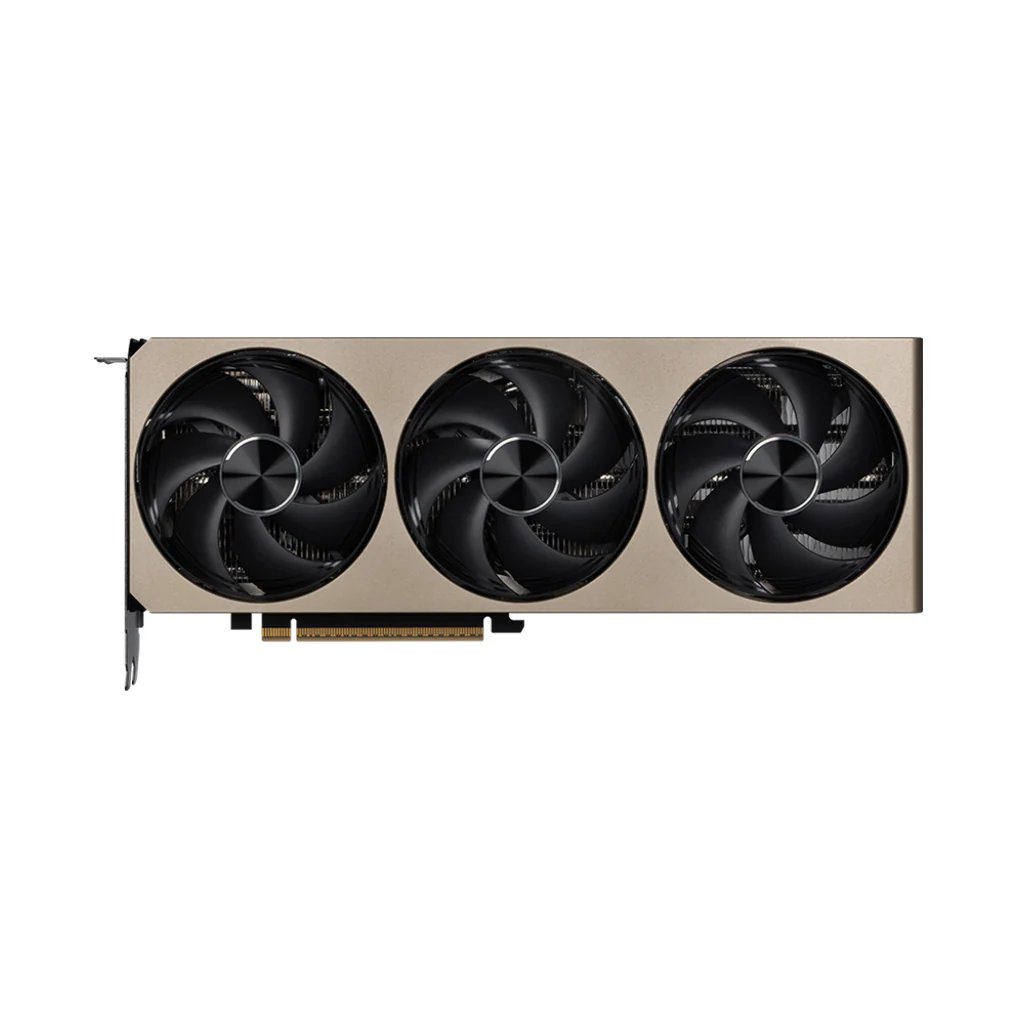

Advanced cooling includes triple STORMFORCE fans with claw texturing, a nickel-plated copper baseplate, and WAVE-CURVED 3.0 technology to ensure optimal airflow and heat dissipation. Zero Frozr and Air Antegrade Fin technology further enhance thermal efficiency.

4. Build Quality & Protection

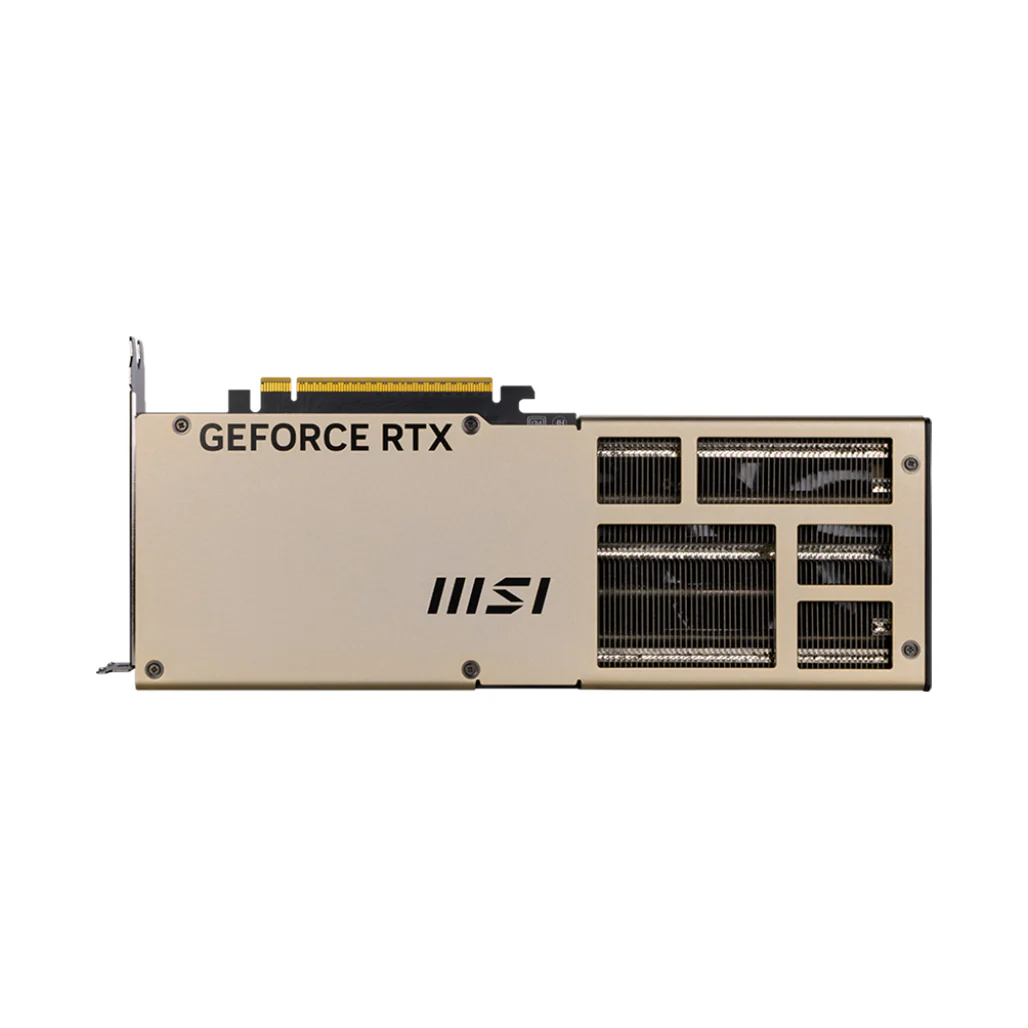

Features like metal backplate with airflow vents, high-quality clay-based thermal pads, and 2oz thickened copper PCB enhance durability and long-term performance. Built-in fuses protect against electrical surges.

5. Software Ecosystem
The GPU is supported by MSI Center for real-time monitoring and AI tuning, MSI Afterburner for full overclocking control, and MSI App Player for seamless mobile-to-PC gaming.

Specifications

• Marketing Name: GeForce RTX™ 5080 16G INSPIRE 3X OC

• Model Name: G5080-16I3C

• Graphics Processing Unit: NVIDIA® GeForce RTX™ 5080

• Interface: PCI Express® Gen 5

• Core Clocks:

  • Extreme Performance: 2655 MHz (via MSI Center)

  • Boost: 2640 MHz

• CUDA® Cores: 10,752 Units

• Memory Speed: 30 Gbps

• Memory: 16GB GDDR7

• Memory Bus: 256-bit

• Output Ports:

  • 3 x DisplayPort 2.1b

  • 1 x HDMI™ 2.1b (Supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

• HDCP Support: Yes

• Power Consumption: 360W

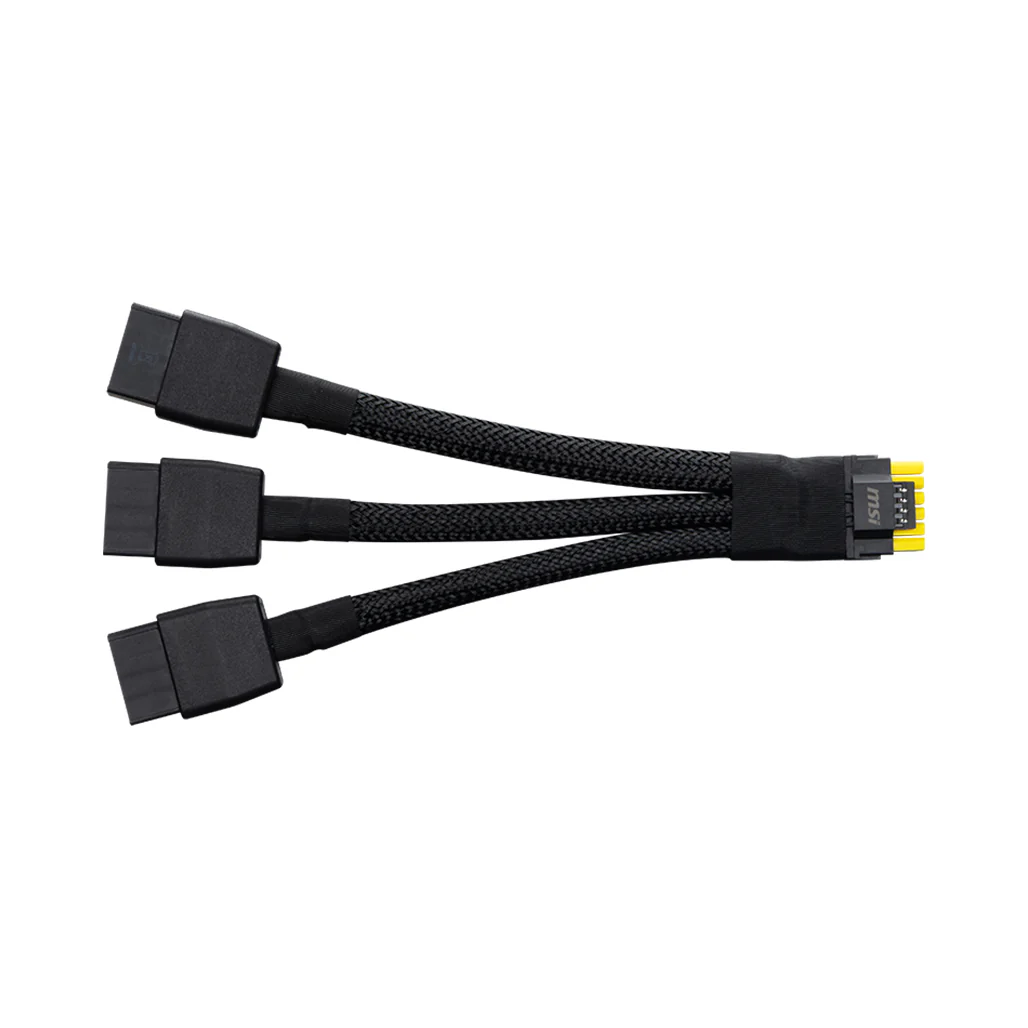

• Power Connectors: 1 x 16-pin (ATX 3.1 PSU recommended)

• Recommended PSU: 850W

• Card Dimensions: 288 x 112 x 50 mm

• Weight: 950 g (card) / 1437 g (with package)

• DirectX Support: 12 Ultimate

• OpenGL Support: 4.6

• Maximum Displays Supported: 4

• G-SYNC® Support: Yes

• Max Digital Resolution: 7680 x 4320

Conclusion:
The MSI GeForce RTX™ 5080 16G INSPIRE 3X OC offers a forward-looking design backed by the latest in NVIDIA’s GPU innovations. Ideal for compact builds, it merges artistic design with elite-level performance, cooling, and AI-powered enhancements—making it a smart investment for gamers, streamers, and content creators alike.
