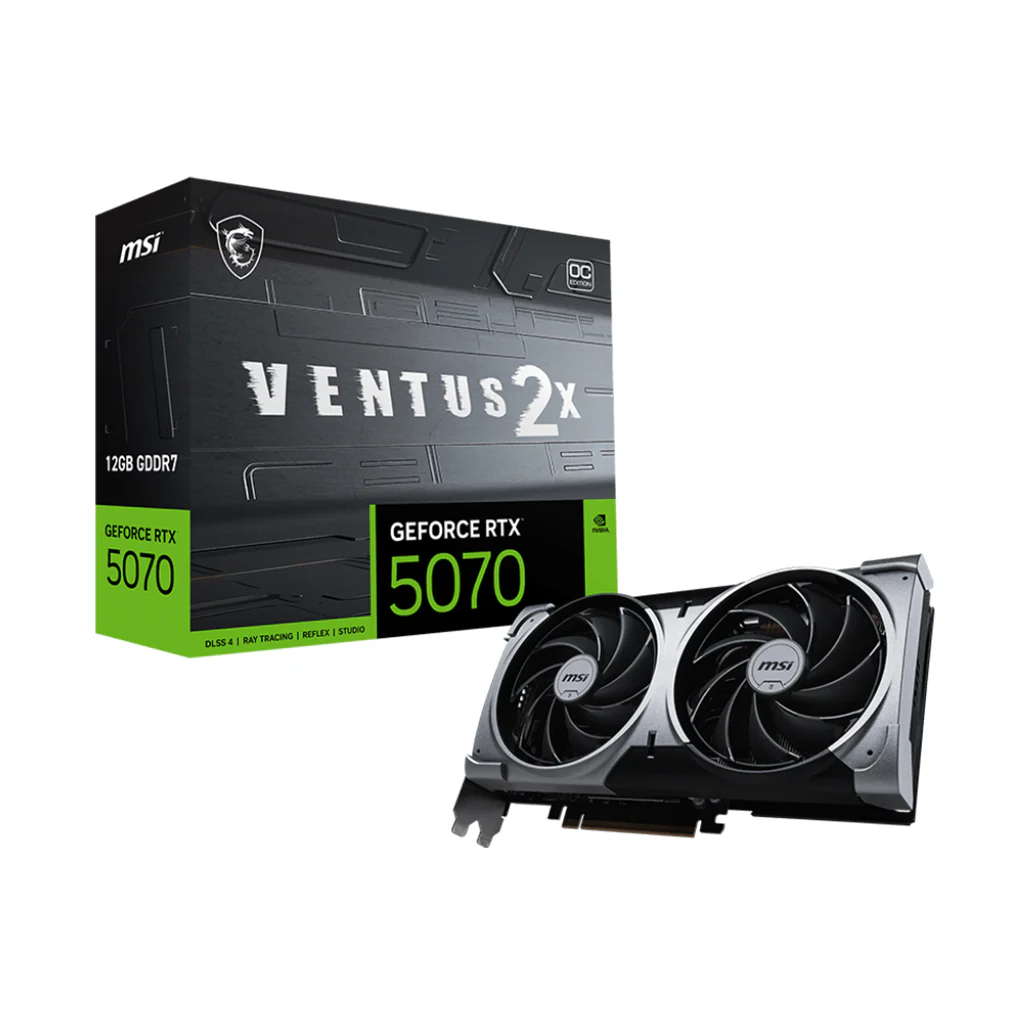

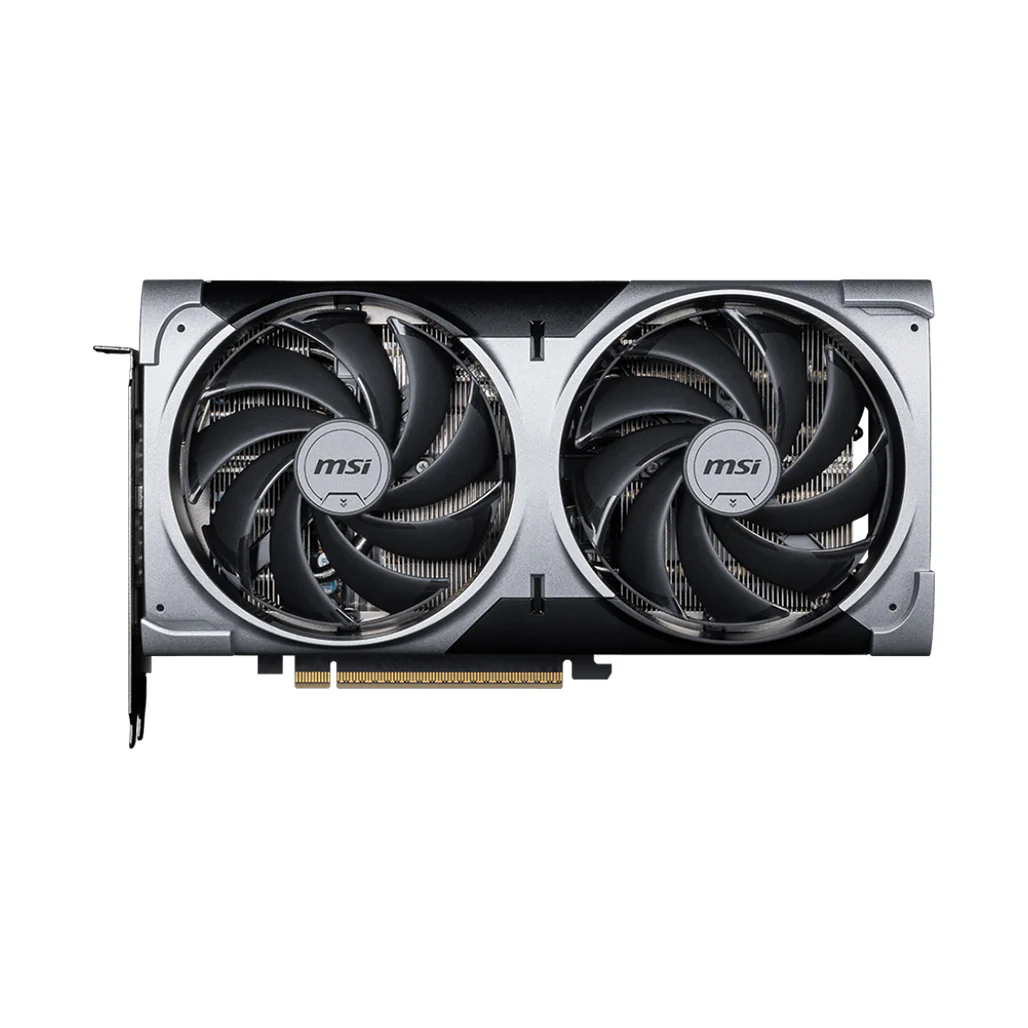

MSI GeForce RTX 5070 12G VENTUS 2X OC Graphics Card – GDDR7, DLSS 4, Ray Tracing, PCIe Gen 5

Experience next-generation gaming with the MSI GeForce RTX 5070 12G VENTUS 2X OC, engineered with NVIDIA’s groundbreaking Blackwell architecture. Powered by DLSS 4 and advanced ray tracing capabilities, this GPU delivers unmatched AI-enhanced graphics, ultra-realistic lighting, and game-ready responsiveness. Designed for gamers and creators alike, it supports multi-frame generation, neural shaders, and the latest NVIDIA Reflex 2 technology with Frame Warp to reduce latency and ensure every frame counts.

Built to handle the most demanding applications, the RTX 5070 VENTUS 2X OC combines a compact dual-fan thermal design with a reinforced metal backplate and nickel-plated copper baseplate for optimal cooling and stability. This SFF-ready GPU is perfect for smaller builds without compromising performance. Backed by MSI Center and Afterburner software, users gain full control over tuning, monitoring, and overclocking their graphics card to suit any workflow or gameplay intensity.

---

Key Features Explained

• NVIDIA Blackwell Architecture: Powers the latest graphics advancements including DLSS 4, FP4-optimized AI performance, and neural rendering technologies.

• DLSS 4 with Multi Frame Generation: Leverages AI to generate additional frames, boosting frame rates while preserving image quality.

• Fourth-Gen Ray Tracing Cores: Deliver real-time, full-scene ray tracing for true-to-life shadows, reflections, and lighting effects.

• NVIDIA Reflex 2 with Frame Warp: Reduces system latency for competitive gaming, ensuring responsive controls and accurate timing.

• NVIDIA Studio & ACE: Tools for creators and developers, supporting digital humans, AI assistants, and content creation workflows.

• MSI Dual-Fan Thermal Design: TORX Fan 5.0 ensures high-pressure airflow with low noise; core pipes and thermal padding improve heat dissipation.

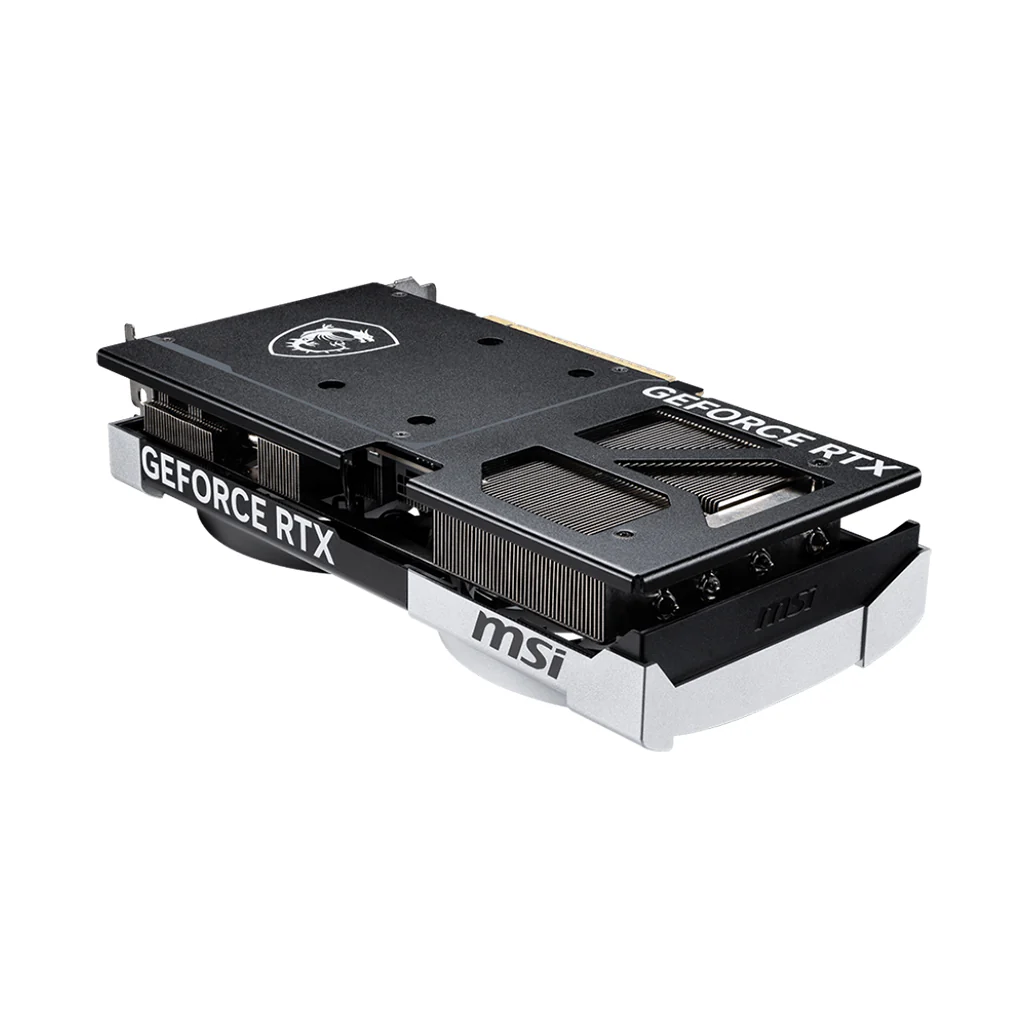

• Durable Build Quality: Reinforced metal structure, added fuses for PCB protection, and a metal backplate increase card durability.

• MSI Center & Afterburner: Real-time tweaking, AI tuning, and full overclocking control in a single software suite.

• SFF-Ready: Compact dimensions ideal for small form factor builds, maintaining high performance in a reduced footprint.

Specifications

• Product Name: MSI GeForce RTX™ 5070 12G VENTUS 2X OC

• Model Number: G5070-12V2C

• GPU: NVIDIA® GeForce RTX™ 5070

• Interface: PCI Express® Gen 5

• Core Clock Speeds:

  • Extreme Performance: 2557 MHz (via MSI Center)

  • Boost Clock: 2542 MHz

• CUDA® Cores: 6144

• Memory Speed: 28 Gbps

• Memory Capacity: 12GB GDDR7

• Memory Bus Width: 192-bit

• Display Outputs:

  • 3 x DisplayPort (v2.1b)

  • 1 x HDMI™ (2.1b, supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

• HDCP Support: Yes

• Power Consumption: 250W

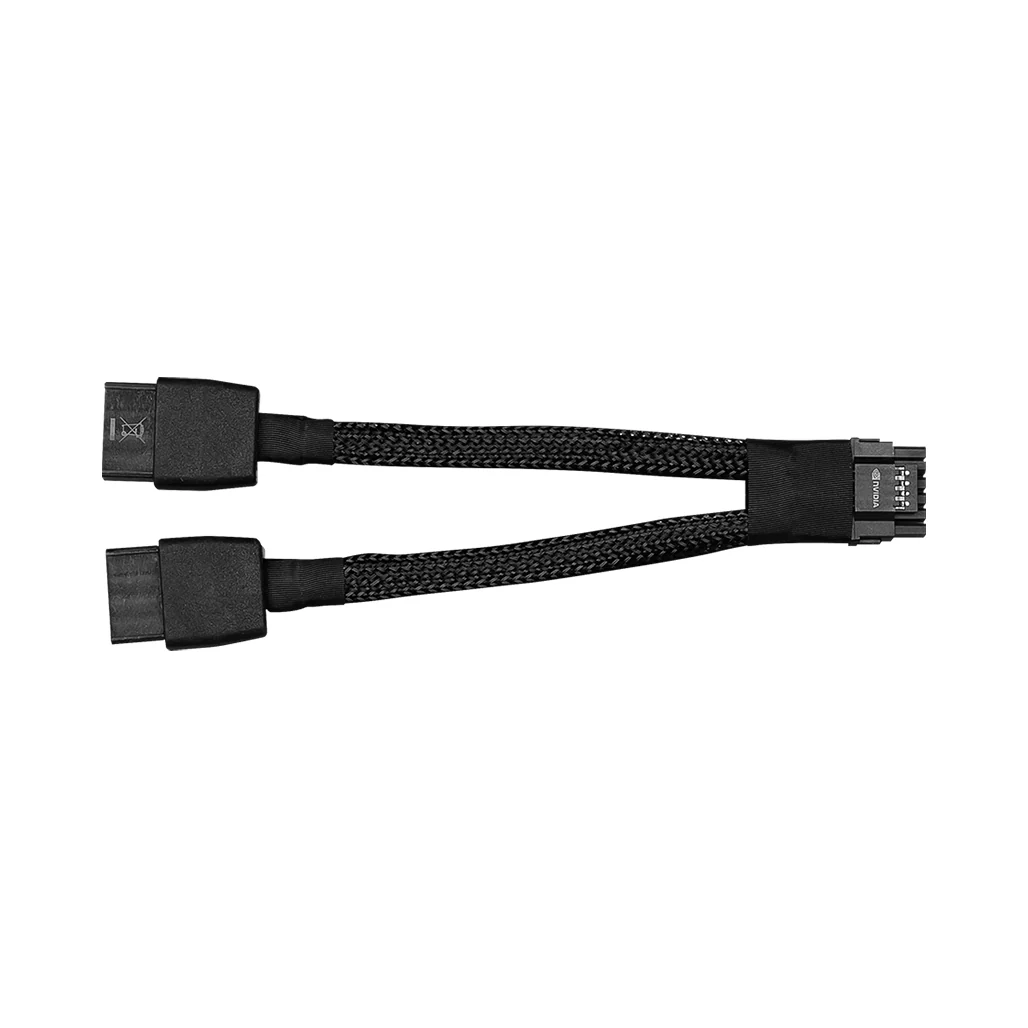

• Power Connector: 1 x 16-pin (ATX 3.1 PSU recommended)

• Recommended Power Supply: 650W

• Card Dimensions: 236 x 126 x 50 mm

• Weight:

  • Card: 774 g

  • Package: 1149 g

• DirectX Support: Version 12 Ultimate

• OpenGL Support: Version 4.6

• Maximum Number of Displays: 4

• NVIDIA G-SYNC® Support: Yes

• Maximum Digital Resolution: 7680 x 4320

Conclusion
The MSI GeForce RTX 5070 12G VENTUS 2X OC stands at the forefront of next-gen GPU technology, combining powerful AI-driven performance, cutting-edge ray tracing, and exceptional thermal efficiency. Whether you're building a compact gaming rig or a creative powerhouse, this card ensures future-ready performance and reliability with MSI’s signature engineering.
