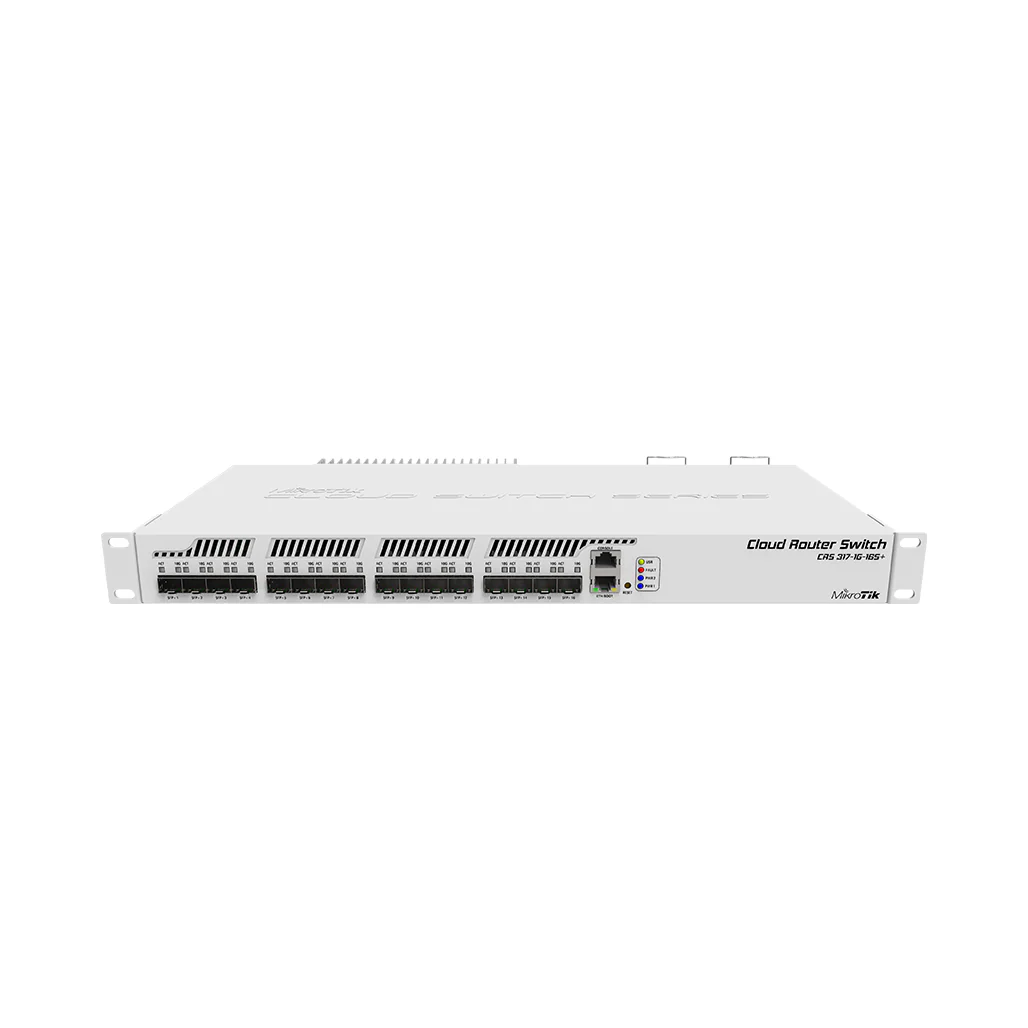

MikroTik Cloud Router Switch CRS317-1G-16S+RM - Rack-Mountable 10GbE Switch with 16 SFP+ Ports



The MikroTik Cloud Router Switch CRS317-1G-16S+RM is a high-performance, rack-mountable switch designed for demanding network environments. Featuring 16 SFP+ ports for 10GbE connectivity and a 1GbE copper port for management, this switch offers superior speed and flexibility for modern networks.

Powered by the next-generation 98DX8216 switching chip, the CRS317-1G-16S+RM ensures wire-speed performance across all 10GbE ports, with advanced features like hardware-based Spanning Tree Protocol and Link Aggregation (LACP) for enhanced network reliability and performance.

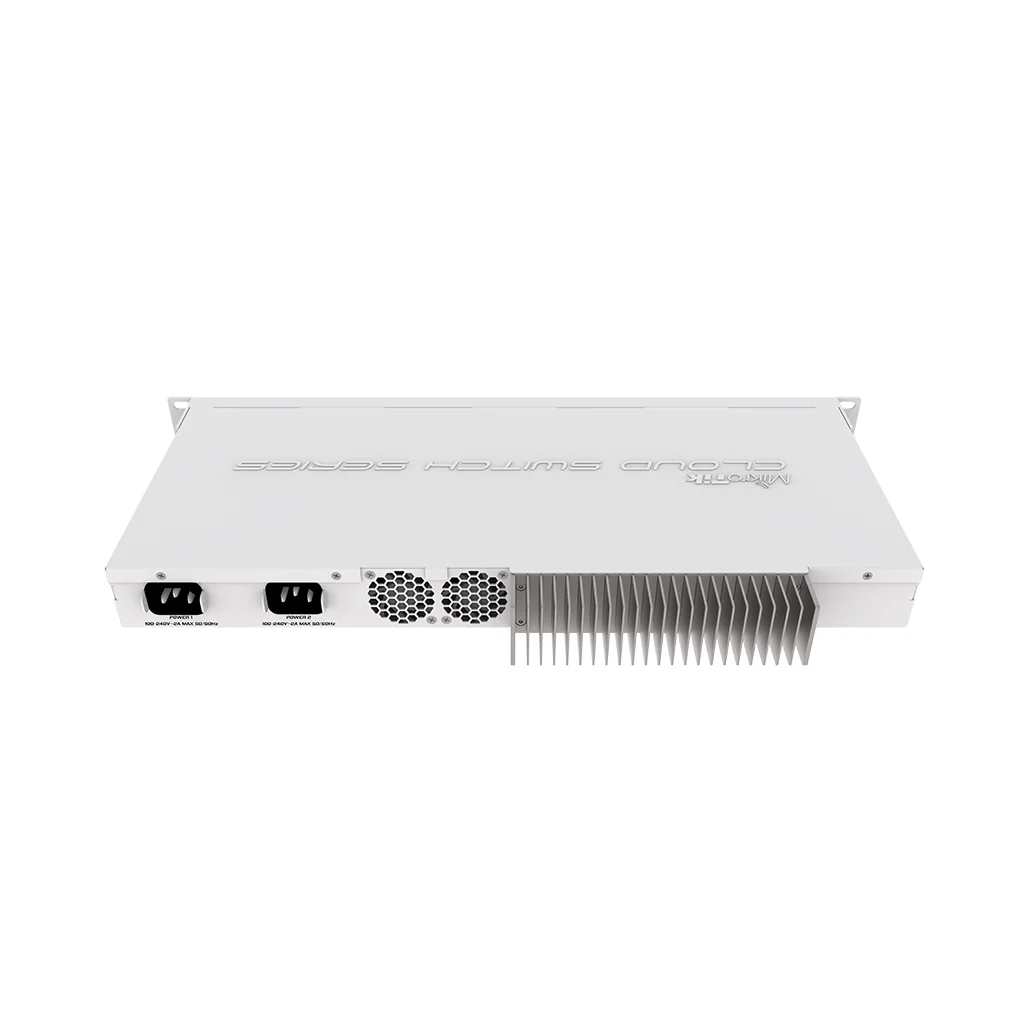

The switch includes dual redundant power supplies and passive cooling with automatic fans to maintain optimal operating temperatures, even in hot environments.

Key Features:

• High-Speed Connectivity: 16 SFP+ ports for 10GbE and 1GbE copper port for management.
• Professional Performance: Wire-speed operation with hardware-based Spanning Tree Protocol and Link Aggregation (LACP).
• Redundant Power Supply: Dual AC inputs with an operating range of 100-240V.
• Efficient Cooling: Passive cooling with automatic fans for high-temperature environments.

Specifications:

• Product Code: CRS317-1G-16S+RM
• Architecture: ARM 32bit
• CPU: 98DX8216
• CPU Core Count: 2
• CPU Nominal Frequency: 800 MHz
• Switch Chip Model: 98DX8216
• Dimensions: 443 x 224 x 44 mm
• RouterOS License: 6
• Operating System: RouterOS / SwitchOS
• Size of RAM: 1 GB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C

Powering:

• Number of AC Inputs: 2
• AC Input Range: 100-240 V
• Max Power Consumption: 44 W
• Cooling Type: 2 Fans

Ethernet:

• 10/100/1000 Ethernet Ports: 1

Fiber:

• SFP+ Ports: 16

Peripherals:

• Serial Console Port: RJ45

Other:

• CPU Temperature Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS

Conclusion:

The MikroTik Cloud Router Switch CRS317-1G-16S+RM is engineered for high-performance networking with its 16 SFP+ ports and advanced features. It provides reliable, scalable, and efficient connectivity for enterprise-grade networks, featuring robust power management and cooling systems to ensure stable operation in demanding conditions.
