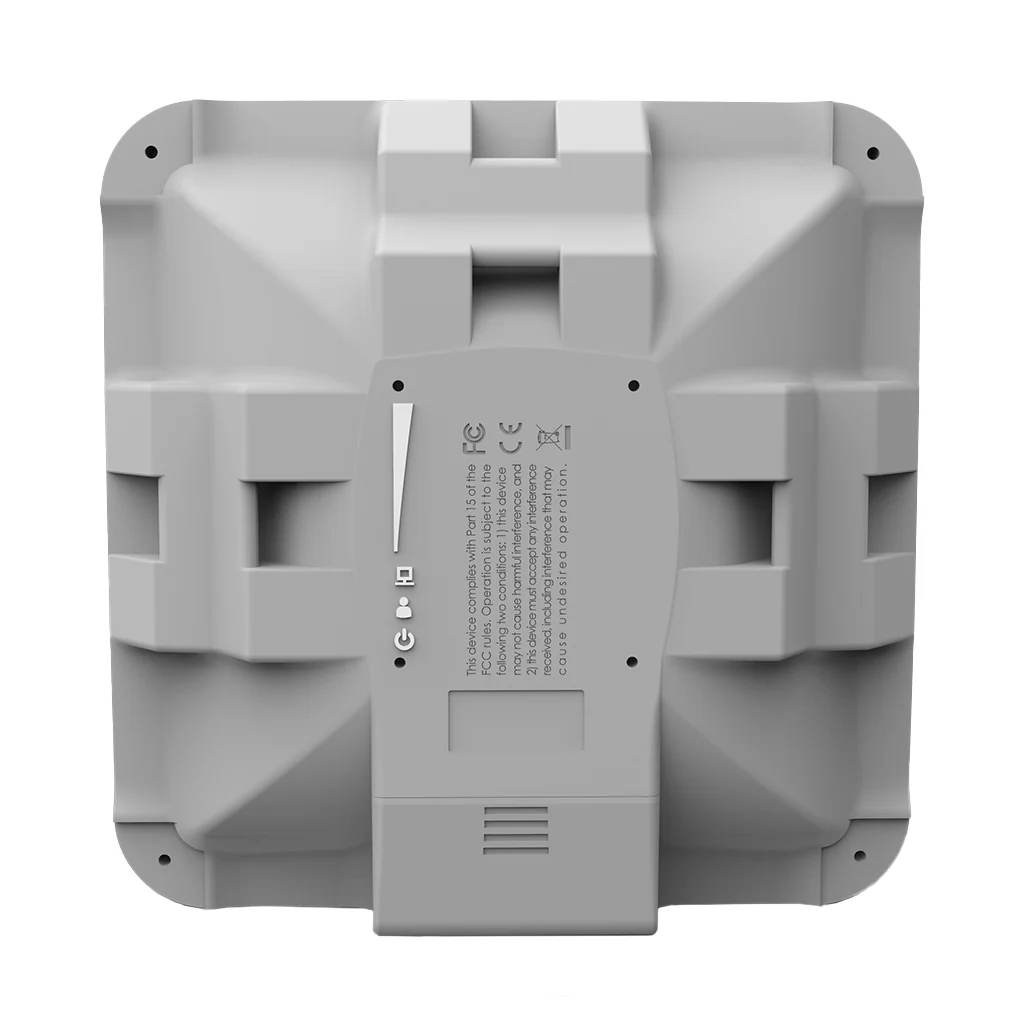

MikroTik Lite 2 - Outdoor Wireless Device with Integrated 10dBi Antenna | RBSXTsq2nD

The MikroTik Lite 2 is a compact and high-performance outdoor wireless device designed for reliable point-to-point connections or as a CPE unit. It features an integrated 10 dBi antenna in a sleek and weatherproof enclosure, making it ideal for various outdoor networking scenarios. The device's reduced physical size and improved antenna design ensure enhanced performance and easier installation.

This device is perfect for environments where space is limited yet powerful connectivity is required. Its lightweight and thin profile, combined with its robust build, make the Lite 2 an excellent choice for extending wireless coverage or creating high-speed links in challenging conditions. The MikroTik Lite 2 is equipped with RouterOS for versatile configuration and management, ensuring a dependable networking solution for both residential and professional applications.

Key Features:

• Compact and Lightweight Design: The SXTsq Lite2 offers a slim profile that is half as thick as previous models, allowing for more flexible installation options.
• Integrated 10 dBi Antenna: Provides a robust 10 dBi gain for effective 2.4 GHz wireless communication.
• Versatile Use: Suitable for both point-to-point links and CPE applications, delivering reliable connectivity in various settings.
• Weatherproof and Durable: Designed to withstand outdoor conditions with an IP54 rating.

Specifications:

• Product Code: RBSXTsq2nD
• Architecture: MIPSBE
• CPU: QCA9533
• CPU Core Count: 1
• CPU Nominal Frequency: 650 MHz
• Dimensions: 129 x 129 x 34 mm
• RouterOS License: 3
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 5 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 10-30 V

Wireless Specifications:

• Wireless 2.4 GHz Max Data Rate: 300 Mbit/s
• Wireless 2.4 GHz Number of Chains: 2
• Wireless 2.4 GHz Standards: 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz: 10
• Wireless 2.4 GHz Chip Model: QCA9533
• Wireless 2.4 GHz Generation: Wi-Fi 4

Ethernet:

• 10/100 Ethernet Ports: 1

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP Rating: IP54

Conclusion:

The MikroTik Lite 2 provides a compact and efficient solution for outdoor wireless networking. Its integrated 10 dBi antenna and enhanced design offer improved performance for point-to-point links and CPE applications. The device's rugged construction and ease of installation make it a reliable choice for extending network coverage or establishing robust wireless connections in outdoor environments.
