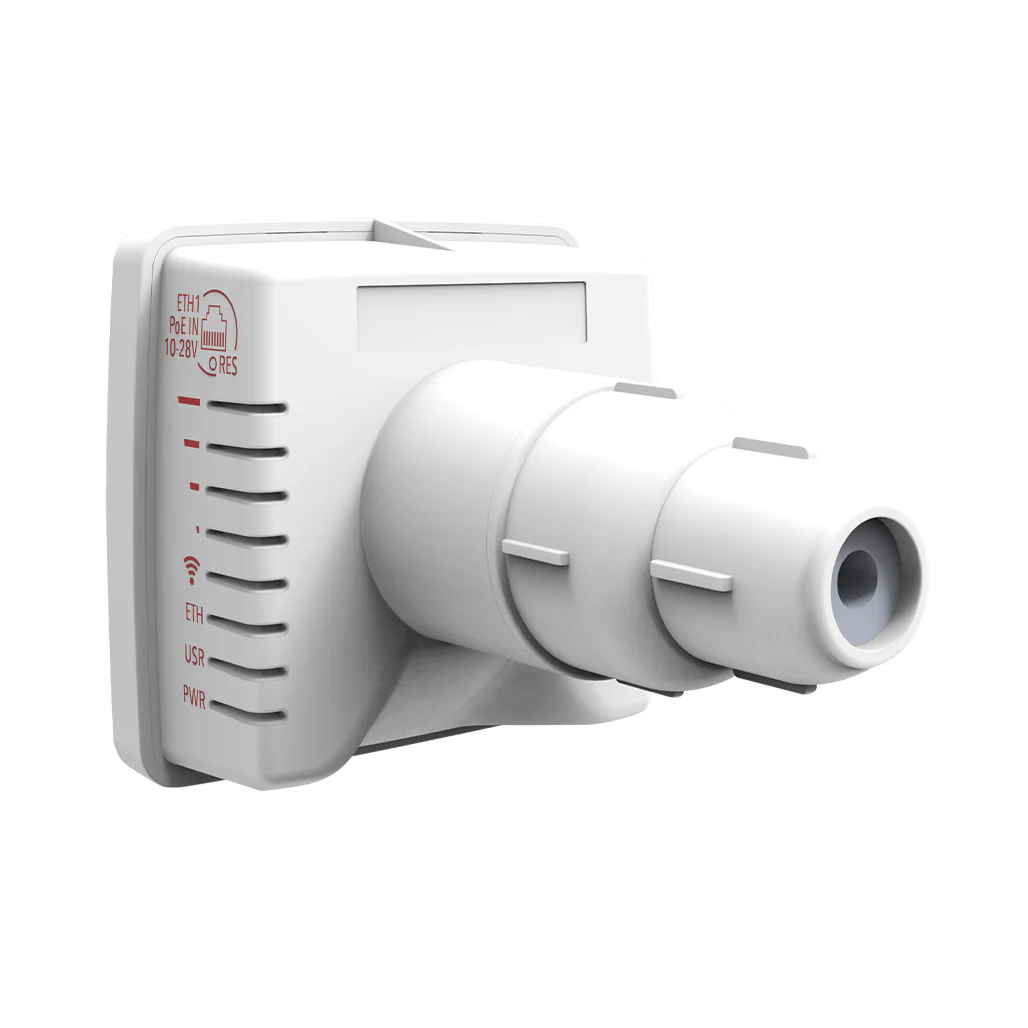

MikroTik LDF 2 Outdoor Wireless Device - Dual Chain 2.4GHz System with Integrated Antenna | RBLDF-2nD

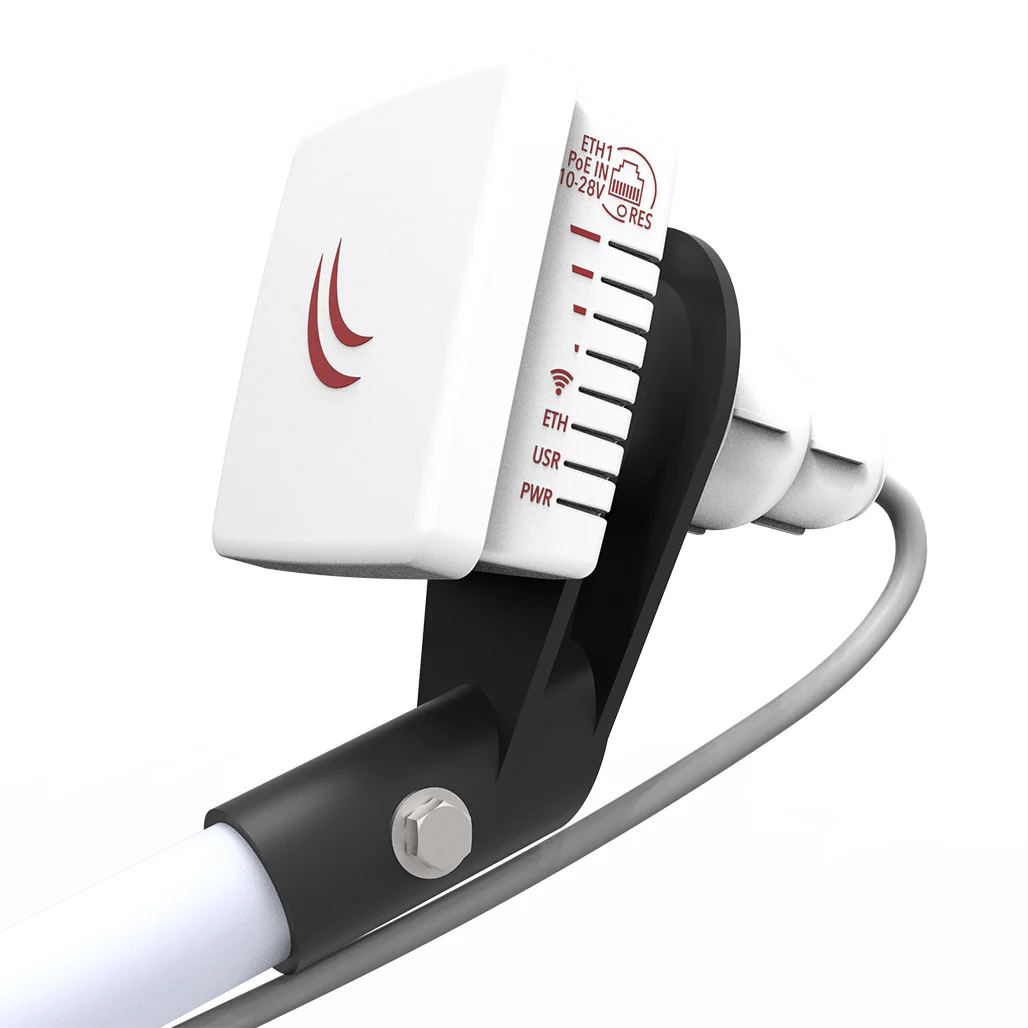

Enhance your outdoor wireless network with the MikroTik LDF 2, a compact and efficient device designed for high-performance long-range wireless connectivity. The LDF 2 features an integrated antenna and is intended to be used with satellite offset dishes, which serve as reflectors to significantly boost the wireless signal. This system is ideal for deploying robust wireless links over extended distances, leveraging the power of dish antennas to achieve impressive signal amplification.

The MikroTik LDF 2 offers an affordable and practical solution for outdoor wireless installations. With a built-in antenna providing up to 10 dBi gain on the 2.4GHz band, it supports a maximum data rate of 300 Mbit/s and operates on the Wi-Fi 4 standard. Its compact design ensures ease of shipping and installation, while its compatibility with a range of satellite dishes makes it a versatile choice for various deployment scenarios. The device comes preconfigured with RouterOS, allowing for straightforward setup and operation.

Key Features:

• Integrated Antenna System: Includes a built-in antenna with 10 dBi gain, optimized for use with satellite offset dishes.
• Long-Range Wireless Connectivity: Supports up to 300 Mbit/s data rate on the 2.4GHz band, ensuring strong and reliable connections over extended distances.
• Compact Design: Small and lightweight, facilitating easy deployment and low shipping costs.
• Versatile Installation: Compatible with satellite dishes featuring a 40 mm offset mount, providing flexibility in deployment.
• Preinstalled RouterOS: Comes with RouterOS preinstalled for immediate use, simplifying setup and configuration.

Specifications:

• Product Code: RBLDF-2nD
• Architecture: MIPSBE
• CPU: QCA9533
• CPU Core Count: 1
• CPU Nominal Frequency: 650 MHz
• Dimensions: 84 mm x 84 mm x 115 mm
• RouterOS License: 3
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 7 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 10-28 V

Wireless Specifications:

• Wireless 2.4 GHz Max Data Rate: 300 Mbit/s
• Wireless 2.4 GHz Number of Chains: 2
• Wireless 2.4 GHz Standards: 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz: 10
• Wireless 2.4 GHz Chip Model: QCA9533
• Wireless 2.4 GHz Generation: Wi-Fi 4

Ethernet:

• 10/100 Ethernet Ports: 1

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS

Conclusion:

The MikroTik LDF 2 provides a practical and cost-effective solution for enhancing outdoor wireless networks. By utilizing existing satellite dishes as reflectors, it enables high-performance, long-range connectivity with ease. The integration of an efficient antenna system and the convenience of RouterOS ensure that it delivers reliable and powerful wireless solutions for various outdoor applications.
