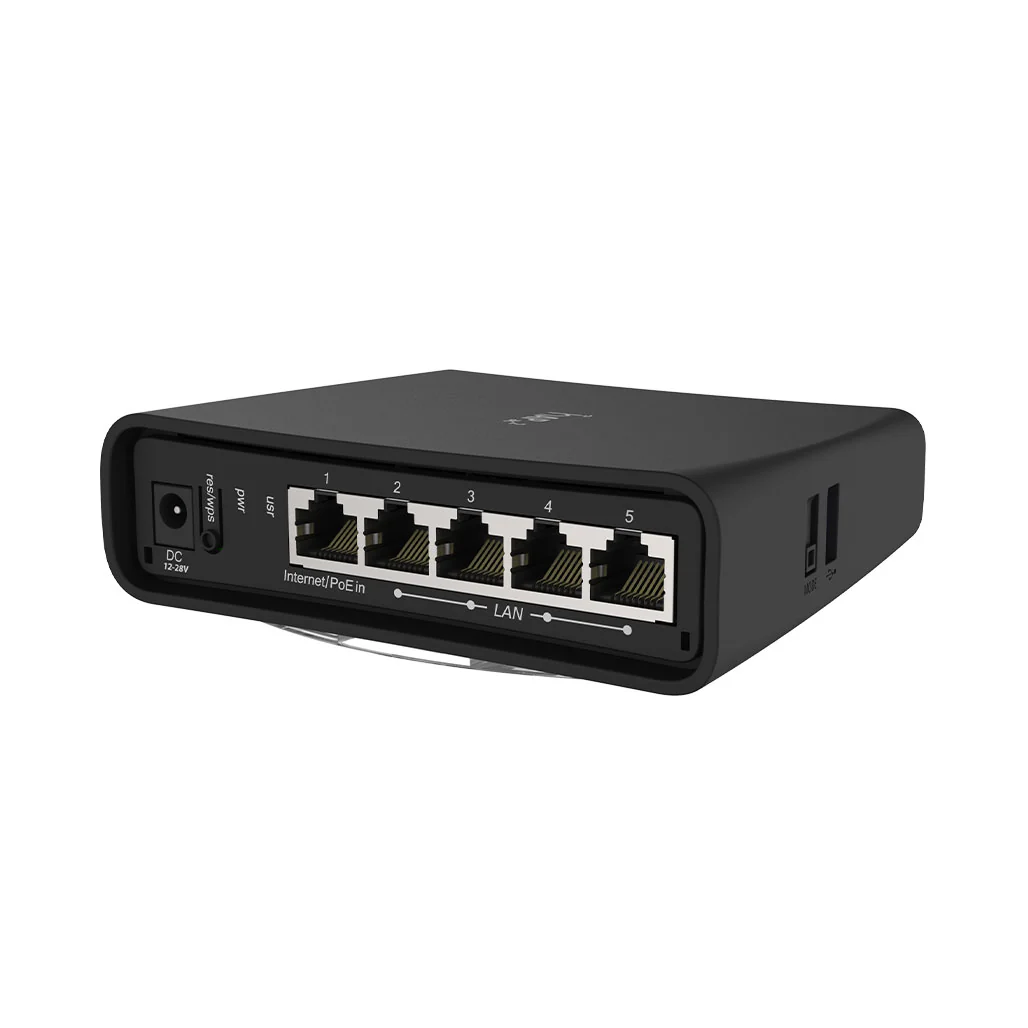

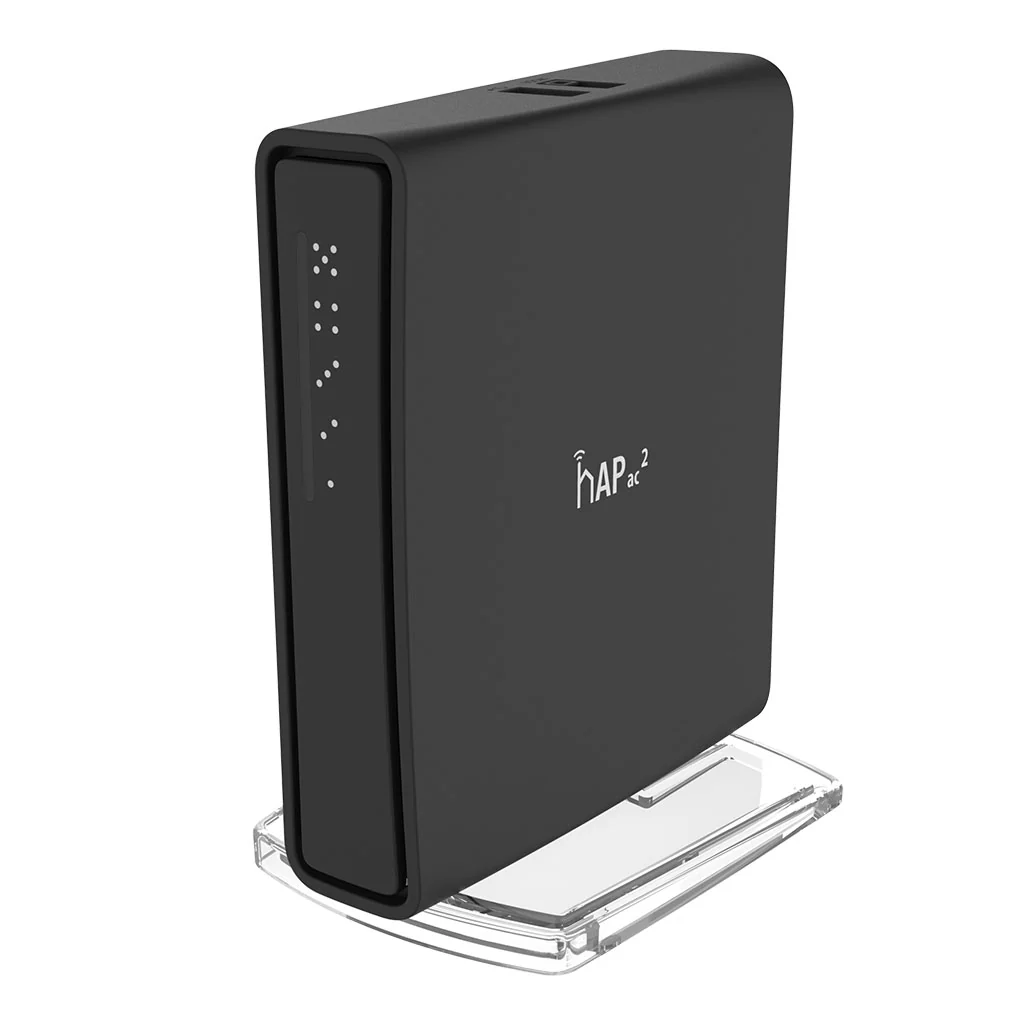

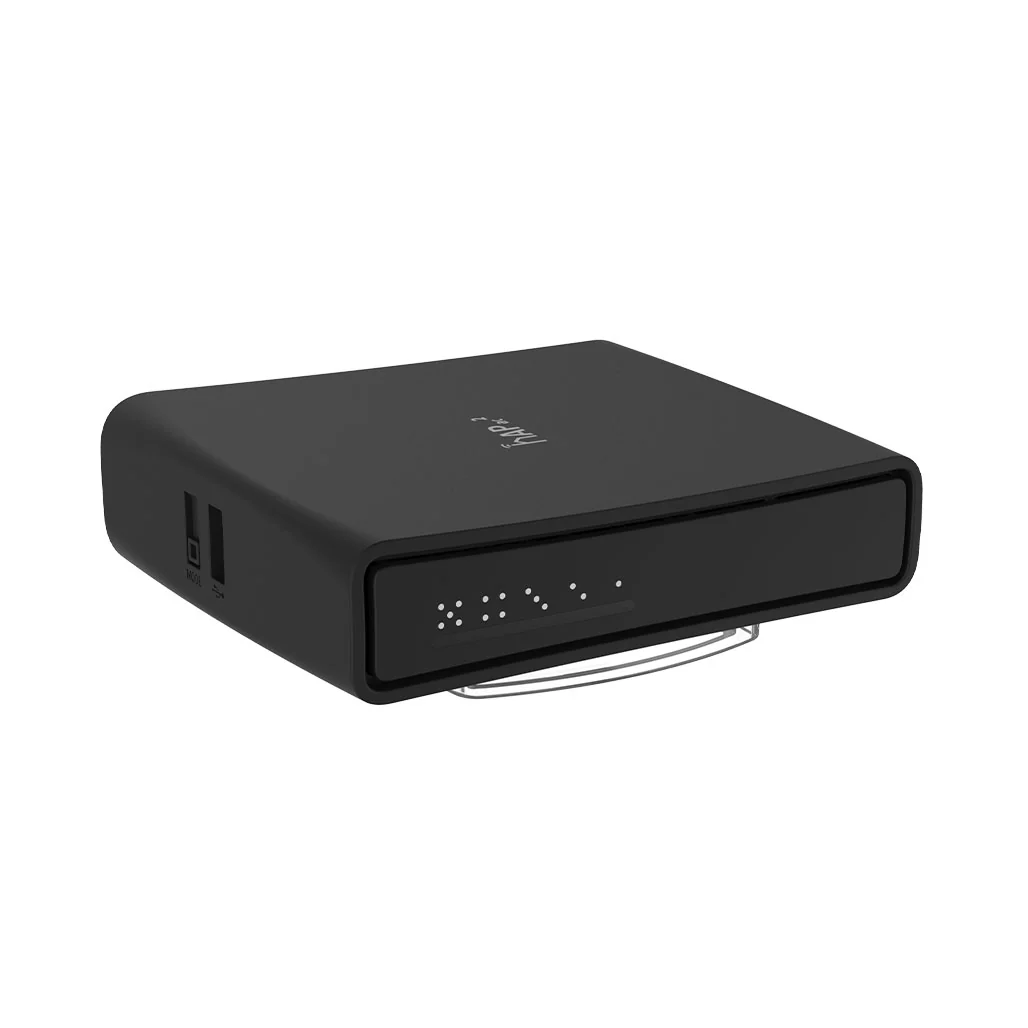

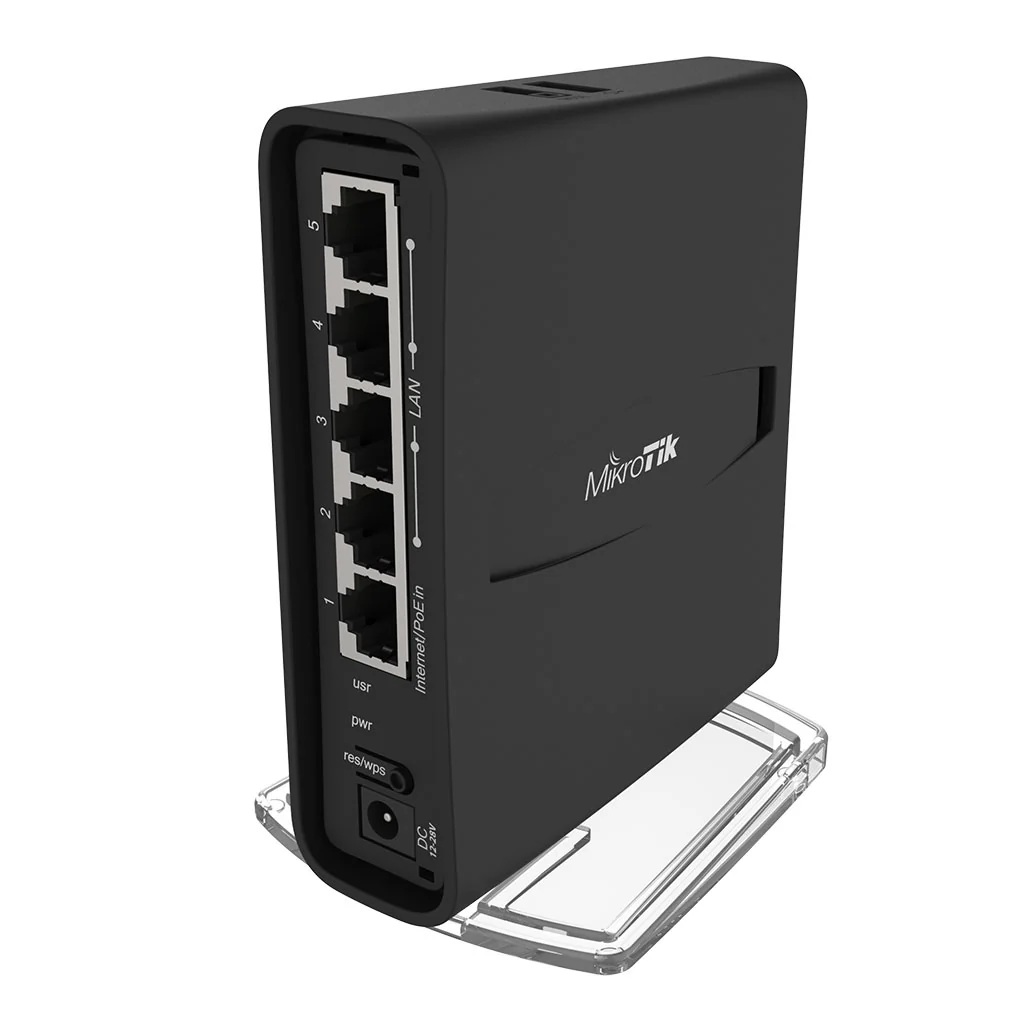

MikroTik hAP ac² Dual-Concurrent 2.4/5GHz Access Point with Gigabit Ethernet | RBD52G-5HacD2HnD-TC



The MikroTik hAP ac² is an advanced dual-concurrent access point designed to deliver seamless WiFi coverage across both 2.4 GHz and 5 GHz frequencies simultaneously. With its capability to handle both frequency bands, this access point ensures robust and reliable wireless connectivity for various applications, from residential to office environments. The device features five Gigabit Ethernet ports for high-speed wired connections, along with a USB port that supports external storage or 4G/LTE modems.

The hAP ac² is engineered for versatility, with a new universal case design that allows for both horizontal (desktop) and vertical (tower case) mounting. Additionally, the unit includes a wall-mounted kit for added flexibility. The access point also supports IPsec hardware acceleration, providing enhanced security and performance for encrypted communications.

Key Features:

• Dual-Concurrent Frequency Bands: Simultaneously operates on 2.4 GHz and 5 GHz bands, offering high-speed and stable wireless coverage.
• Gigabit Ethernet Ports: Equipped with five 10/100/1000 Ethernet ports to ensure fast and reliable wired connections.
• USB Port for Versatility: Includes a USB port for connecting external storage devices or 4G/LTE modems.

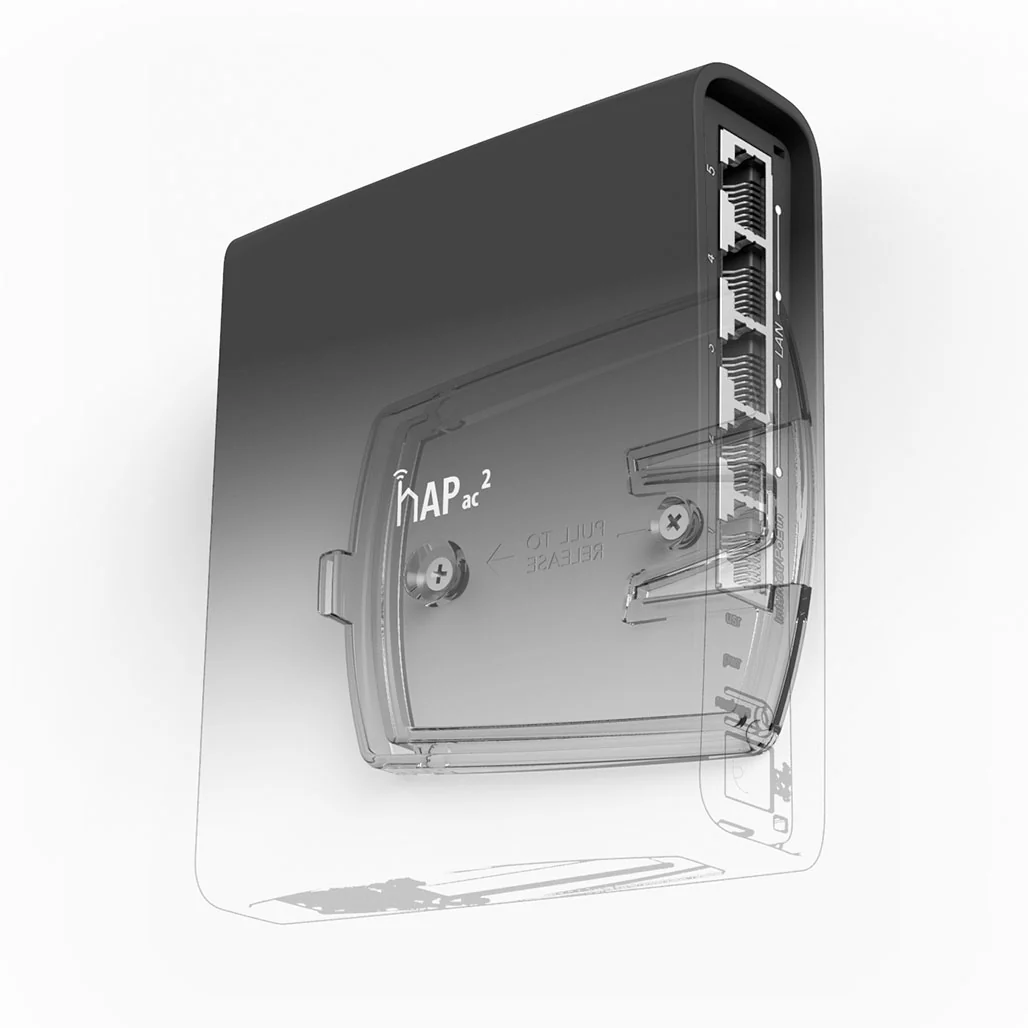

• Universal Mounting Options: Features a design that supports both horizontal and vertical positioning, with a wall-mount kit included.
• IPsec Hardware Acceleration: Provides hardware support for IPsec encryption, enhancing security and performance.

Specifications:

• Product Code: RBD52G-5HacD2HnD-TC
• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU Core Count: 4
• CPU Nominal Frequency: 716 MHz
• Switch Chip Model: IPQ-4018
• Dimensions: 34 x 119 x 98 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 50°C
• IPsec Hardware Acceleration: Yes

Powering:

• Number of DC Inputs: 2 (DC Jack, PoE-IN)
• DC Jack Input Voltage: 12-30 V
• Max Power Consumption: 21 W
• Max Power Consumption Without Attachments: 16 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 18-28 V

Ethernet:

• 10/100/1000 Ethernet Ports: 5

Peripherals:

• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB Type A
• Max USB Current (A): 1

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP Rating: IP20

Other:

• Mode Button: Yes

Wireless Specifications:

• 2.4 GHz Max Data Rate: 300 Mbit/s
• 2.4 GHz Number of Chains: 2
• 2.4 GHz Standards: 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz: 2.5
• 2.4 GHz Chip Model: IPQ-4018
• 2.4 GHz Generation: Wi-Fi 4
• 5 GHz Max Data Rate: 867 Mbit/s
• 5 GHz Number of Chains: 2
• 5 GHz Standards: 802.11a/n/ac
• Antenna Gain dBi for 5 GHz: 2.5
• 5 GHz Chip Model: IPQ-4018
• 5 GHz Generation: Wi-Fi 5
• WiFi Speed: AC1200

Conclusion:

The MikroTik hAP ac² is a comprehensive dual-concurrent access point designed to deliver high-performance WiFi across both frequency bands. Its combination of Gigabit Ethernet ports, USB connectivity, and versatile mounting options make it an ideal solution for enhancing network performance in a variety of settings. The addition of IPsec hardware acceleration further ensures secure and efficient communication. This access point provides a reliable and adaptable networking solution to meet diverse connectivity needs.
