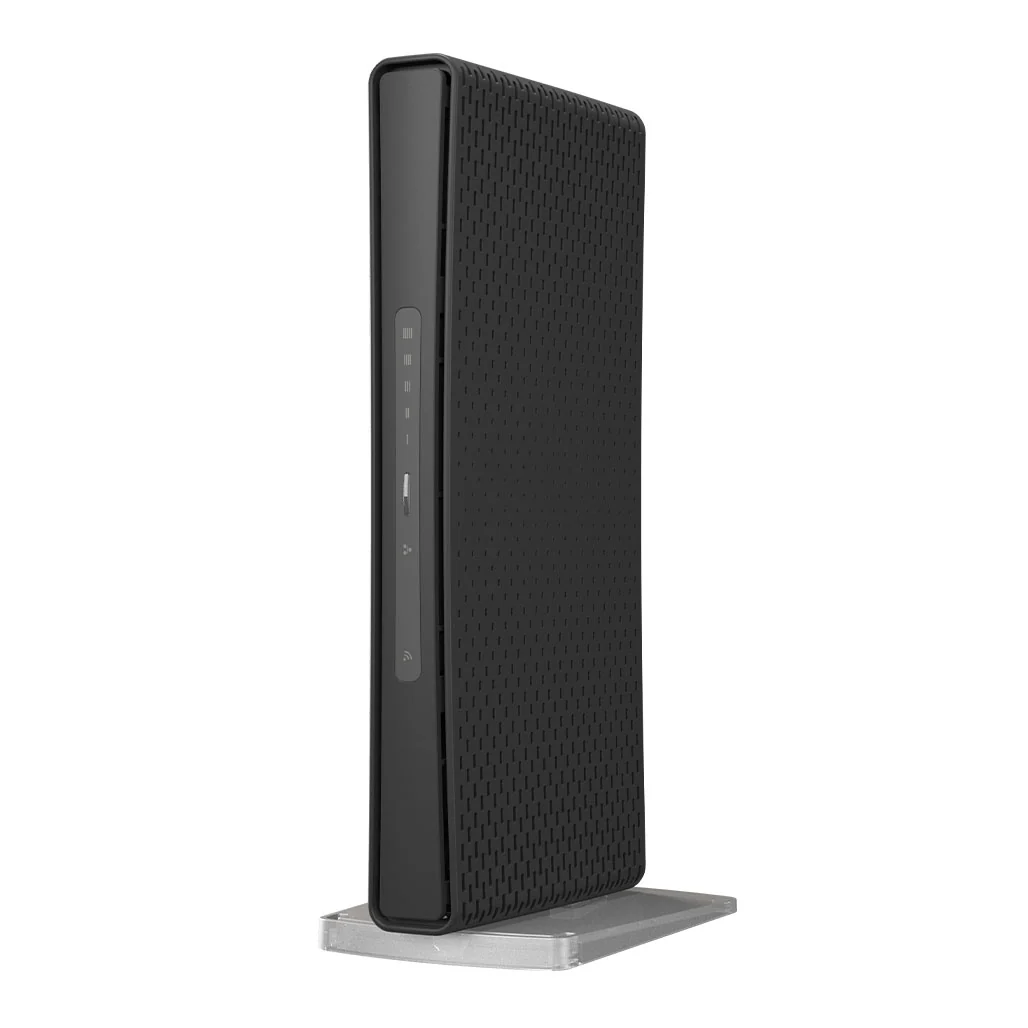

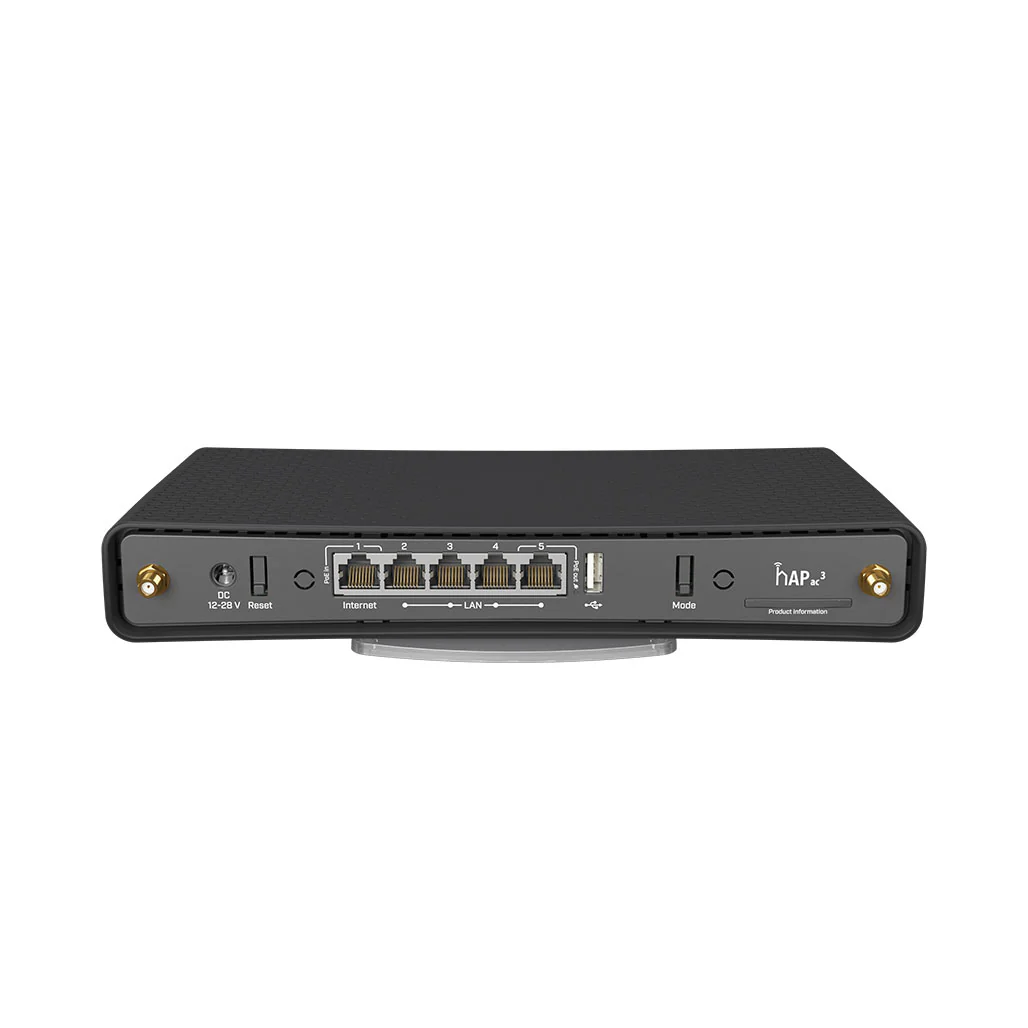

MikroTik hAP ac³ Dual-Band Router with 5 Gigabit Ethernet Ports | RBD53iG-5HacD2HnD



The MikroTik hAP ac³ is a robust and versatile dual-band wireless router designed to meet the demands of modern homes and small offices. Featuring high-performance capabilities with 5 Gigabit Ethernet ports, this router ensures fast and reliable wired connections while delivering excellent wireless coverage. Its external high-gain antennas enhance signal strength, ensuring strong and stable WiFi connectivity throughout your space.

Equipped with a powerful quad-core CPU and 256 MB of RAM, the hAP ac³ is capable of handling even the most demanding networking tasks. The device includes PoE support, allowing it to power or be powered by other PoE-enabled devices. It also features a full-size USB port for additional storage options, and the new enclosure design supports both vertical and horizontal mounting, with a wall-mount kit included.

Key Features:

• Dual-Band Wireless: Supports simultaneous 2.4 GHz and 5 GHz operation for optimal WiFi performance.
• High-Gain Antennas: Equipped with external antennas for enhanced wireless coverage and stability.
• Gigabit Ethernet Ports: Includes five 10/100/1000 Ethernet ports for high-speed wired connections.
• Power Over Ethernet (PoE) Support: Powers or is powered by other PoE devices, simplifying setup and reducing cable clutter.
• USB Port: Full-size USB port for connecting additional storage devices.

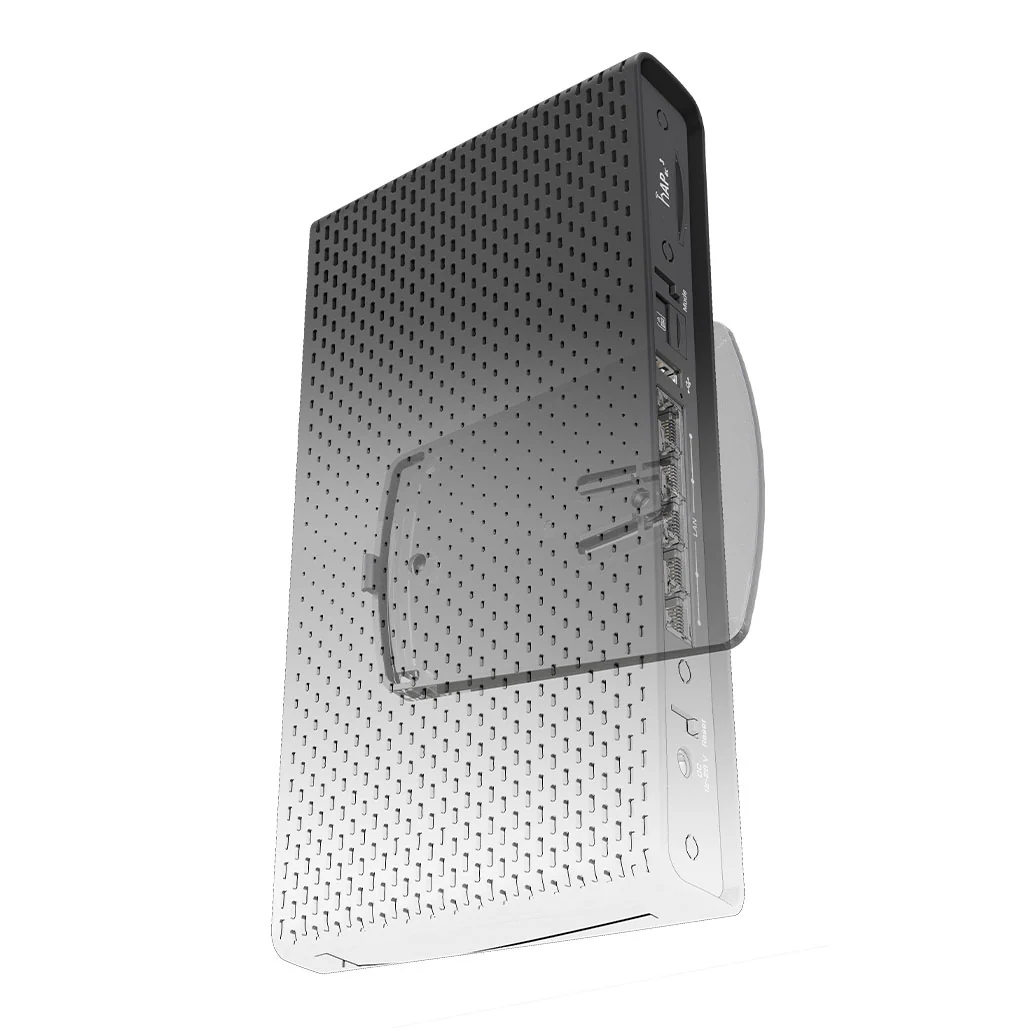

• Versatile Mounting Options: Can be mounted vertically or horizontally, with a wall-mount kit provided.

Specifications:

• Product Code: RBD53iG-5HacD2HnD
• Architecture: ARM 32bit
• CPU: IPQ-4019
• CPU Core Count: 4
• CPU Nominal Frequency: 716 MHz
• Switch Chip Model: IPQ-4019
• Dimensions: 251 x 129 x 39 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 256 MB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C
• IPsec Hardware Acceleration: Yes

Powering:

• Number of DC Inputs: 2 (DC Jack, PoE-IN)
• DC Jack Input Voltage: 12-28 V
• Max Power Consumption: 30 W
• Max Power Consumption Without Attachments: 12 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 18-28 V

Ethernet:

• 10/100/1000 Ethernet Ports: 5
• Number of 1G Ethernet Ports with PoE-Out: 1

Peripherals:

• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB Type A
• Max USB Current (A): 1

PoE-Out:

• PoE-Out Ports: Ether5
• PoE Out: Passive PoE
• Max Out Per Port Output (Input 18-30 V): 0.5 A
• Max Total Out (A): 0.5 A

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP Rating: IP20

Other:

• Mode Button: Yes

Wireless Specifications:

• 2.4 GHz Max Data Rate: 300 Mbit/s
• 2.4 GHz Number of Chains: 2
• 2.4 GHz Standards: 802.11b/g/n
• Antenna Gain dBi for 2.4 GHz: 3
• 2.4 GHz Chip Model: IPQ-4019
• 2.4 GHz Generation: Wi-Fi 4
• 5 GHz Max Data Rate: 867 Mbit/s
• 5 GHz Number of Chains: 2
• 5 GHz Standards: 802.11a/n/ac
• Antenna Gain dBi for 5 GHz: 5.5
• 5 GHz Chip Model: IPQ-4019
• 5 GHz Generation: Wi-Fi 5
• WiFi Speed: AC1200

Conclusion:

The MikroTik hAP ac³ is a high-performance dual-band router that provides extensive coverage and robust connectivity for demanding home and small office environments. With its high-gain antennas, ample RAM, and quad-core CPU, it ensures reliable and fast wireless performance. The addition of PoE support and versatile mounting options make it a flexible and practical choice for various networking needs.
