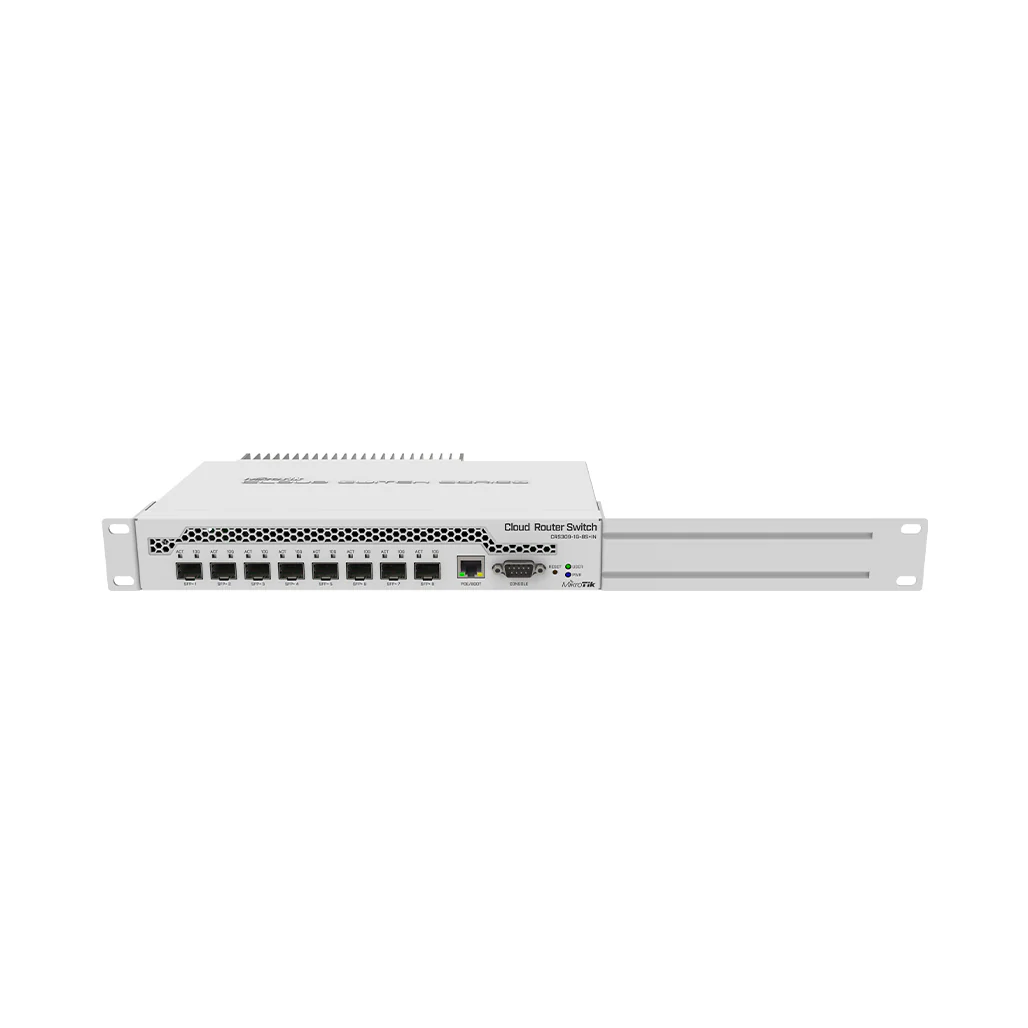

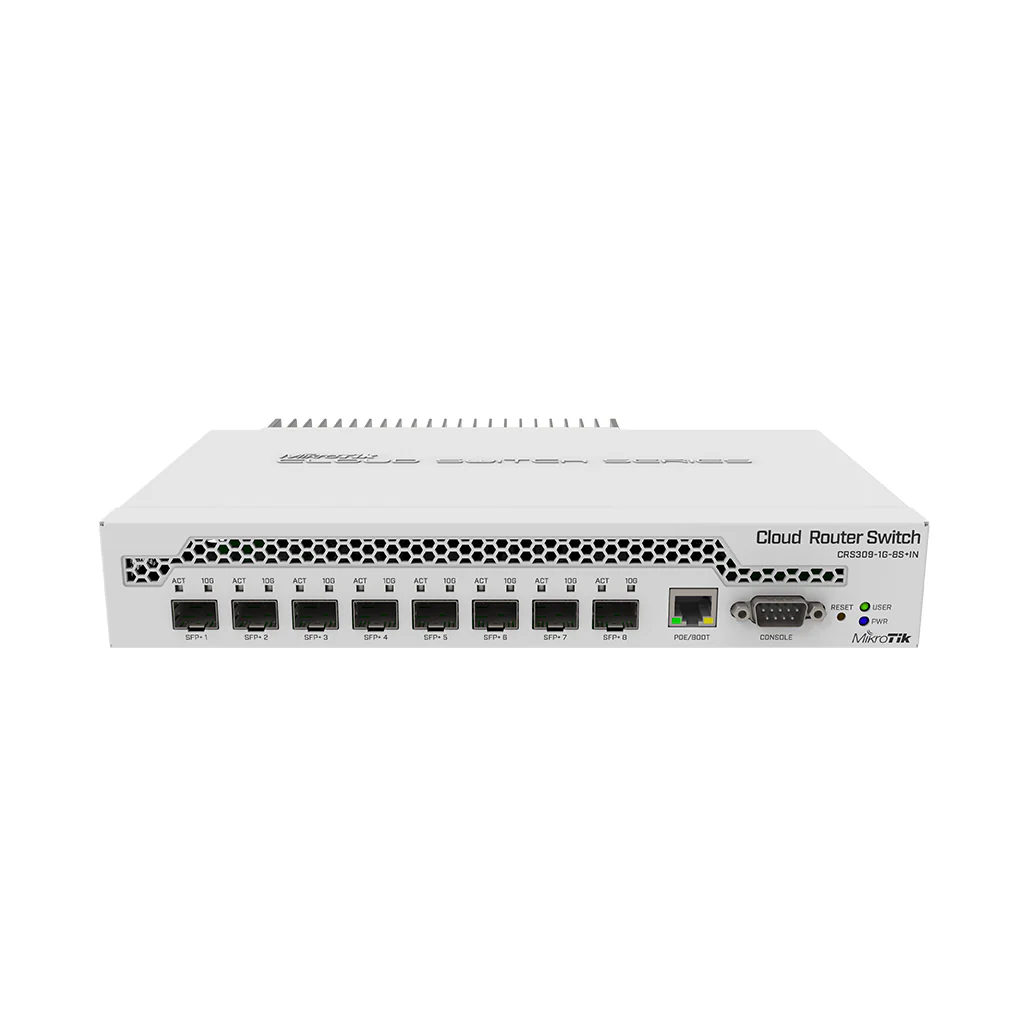

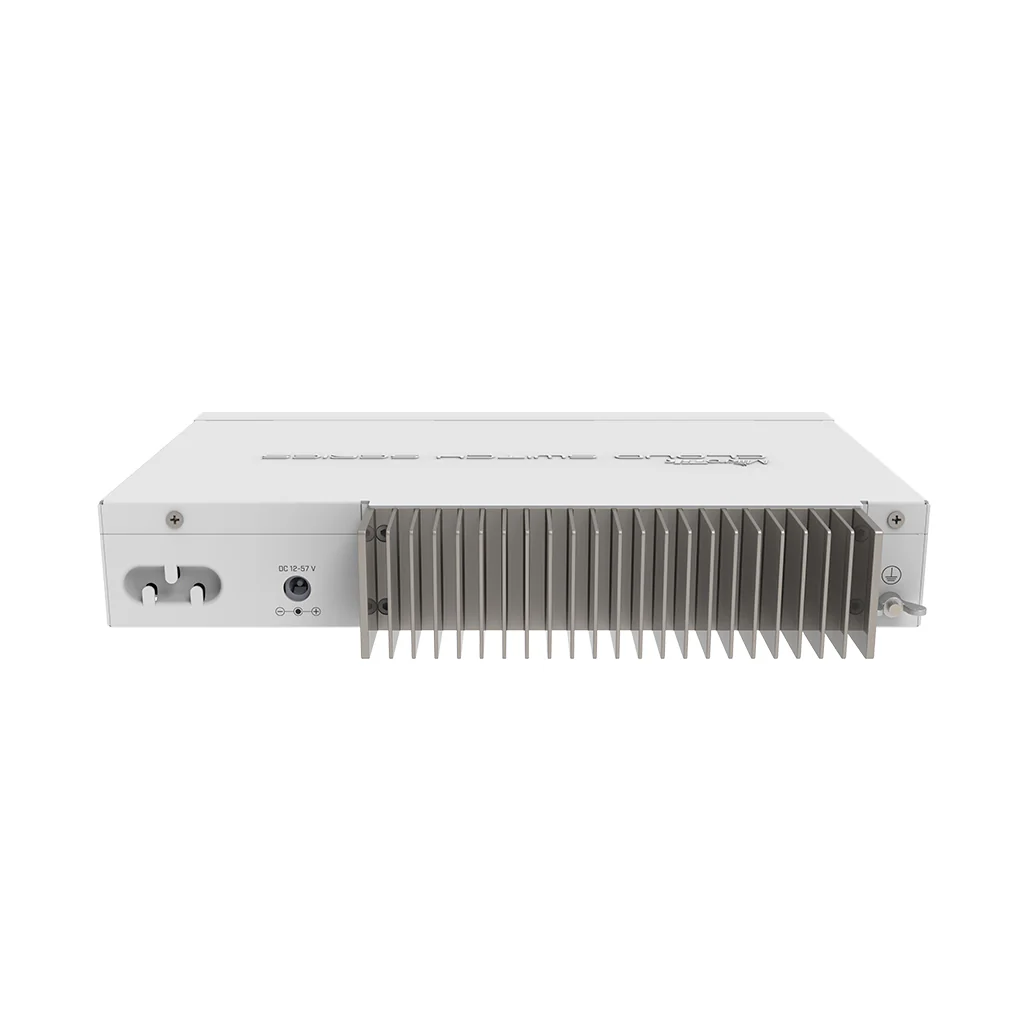

MikroTik CRS309-1G-8S+IN Desktop Switch | 1 Gigabit Ethernet Port, 8 SFP+ 10Gbps Ports



Experience high-performance networking with the MikroTik CRS309-1G-8S+IN desktop switch, a compact yet powerful device designed for demanding networking environments. This switch features eight SFP+ ports, each supporting up to 10 Gbps, offering a total switching capacity of 162 Gbps and non-blocking throughput of 81 Gbps. Its dual-core 800 MHz CPU and 512 MB RAM ensure efficient management and seamless data handling.

Designed with flexibility in mind, the CRS309-1G-8S+IN includes a management Ethernet port with PoE power input, an RS232 serial port, and a grounding terminal. Users can choose between RouterOS and SwOS for the operating system, making it adaptable to various network requirements. The device's robust performance and versatile features make it an excellent choice for high-speed network setups in compact spaces.

Key Features:

• High-Speed SFP+ Ports: Eight SFP+ slots support up to 10 Gbps each, delivering a total switching capacity of 162 Gbps and non-blocking throughput of 81 Gbps.
• Powerful Performance: Equipped with a dual-core 800 MHz CPU and 512 MB RAM for efficient data handling and network management.
• Flexible Operating System: Dual boot capability allows selection between RouterOS and SwOS to suit different networking needs.
• Comprehensive Connectivity: Includes a management Ethernet port with PoE power input, RS232 serial port, and a grounding terminal for versatile installation options.

Specifications:

• Product Code: CRS309-1G-8S+IN
• Architecture: ARM 32-bit
• CPU: 98DX8208
• CPU Core Count: 2
• CPU Nominal Frequency: 800 MHz
• Switch Chip Model: 98DX8208
• Dimensions: 272 x 191 x 44 mm
• RouterOS License: 5
• Operating System: RouterOS / SwitchOS
• Size of RAM: 512 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 2 (PoE-IN, DC jack)
• DC Jack Input Voltage: 12-57 V
• Max Power Consumption: 23 W
• Max Power Consumption Without Attachments: 17 W
• Cooling Type: Passive
• PoE In: 802.3af/at
• PoE In Input Voltage: 18-57 V

Ethernet:

• 10/100/1000 Ethernet Ports: 1

Fiber:

• SFP+ Ports: 8

Peripherals:

• Serial Console Port: RS232

Other:

• CPU Temperature Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The MikroTik CRS309-1G-8S+IN desktop switch combines compact design with high-speed performance, making it an ideal choice for network environments requiring both power and efficiency. With its versatile operating system options and robust connectivity features, this switch is well-suited for managing high-throughput network demands in a variety of settings.
