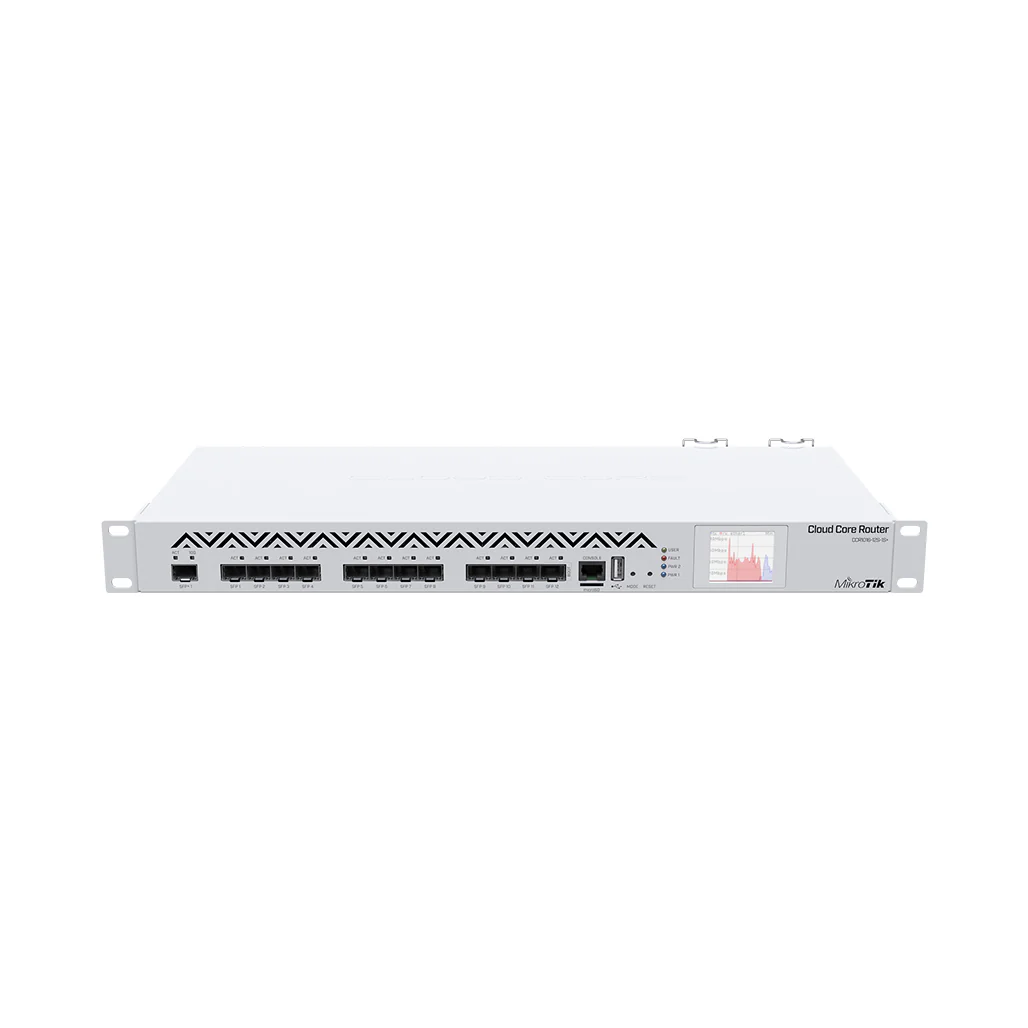

MikroTik Cloud Core Router CCR1016-12S-1S+ | 16-Core CPU, 12x SFP Ports, 1x SFP+ Port

The MikroTik CCR1016-12S-1S+ is an industrial-grade router engineered for high-performance and reliability, featuring a state-of-the-art 16-core Tilera CPU. This router is designed to handle large volumes of data and high-speed networking demands, making it an ideal choice for enterprise environments and demanding network setups.

Equipped with twelve SFP ports and one SFP+ port for 10G connectivity, the CCR1016-12S-1S+ provides versatile and scalable network solutions. The router is housed in a 1U rackmount case and includes a serial console port, a touchscreen LCD for intuitive management, and a USB port for additional connectivity.

The CCR1016-12S-1S+ comes with redundant power supplies to ensure uninterrupted operation and includes one RJ45 SFP 10/100/1000M copper module for flexibility in network connections.

Key Features:

• High-Performance Processing: 16-core Tilera CPU with a nominal frequency of 1.2 GHz, capable of handling millions of packets per second.
• Flexible Connectivity: Twelve SFP ports and one SFP+ port for 10G connectivity, providing extensive network options.
• User-Friendly Management: Touchscreen LCD, serial console port, and USB port for easy configuration and monitoring.
• Reliable Operation: Redundant power supplies and robust cooling system with two fans to ensure continuous performance and reliability.

Specifications:

• Product Code: CCR1016-12S-1S+
• Architecture: TILE
• CPU: TLR4-01680
• CPU Core Count: 16
• CPU Nominal Frequency: 1.2 GHz
• Dimensions: 443 x 197 x 44 mm
• RouterOS License: 6
• Operating System: RouterOS
• Size of RAM: 2 GB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C
• IPsec Hardware Acceleration: Yes

Powering:

• Number of AC Inputs: 2
• AC Input Range: 100-240V
• Max Power Consumption: 47.5 W
• Max Power Consumption Without Attachments: 34 W
• Cooling Type: 2 fans

Fiber:

• SFP DDMI: Yes
• SFP Ports: 12
• SFP+ Ports: 1

Peripherals:

• Memory Card Type: microSD
• Memory Cards: 1
• Serial Console Port: RJ45
• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB type A
• Max USB Current (A): 1

Other:

• CPU Temperature Monitor: Yes
• PCB Temperature Monitor: Yes
• Mode Button: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The MikroTik CCR1016-12S-1S+ is a powerful and reliable router designed for high-speed and high-volume networking needs. With its advanced 16-core CPU, extensive port options, and redundant power supplies, it offers exceptional performance and flexibility for enterprise-grade applications. This router ensures robust and efficient network management, making it a valuable addition to any professional networking setup.
