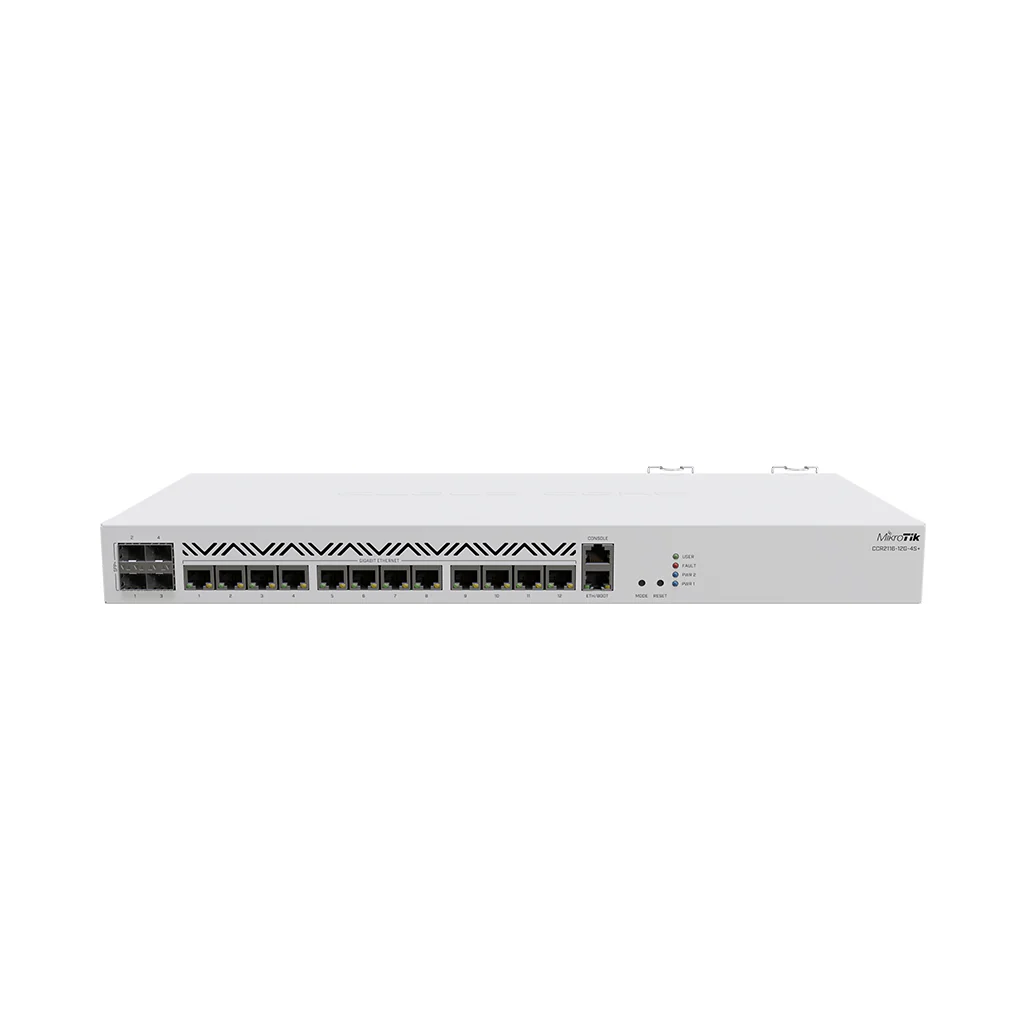

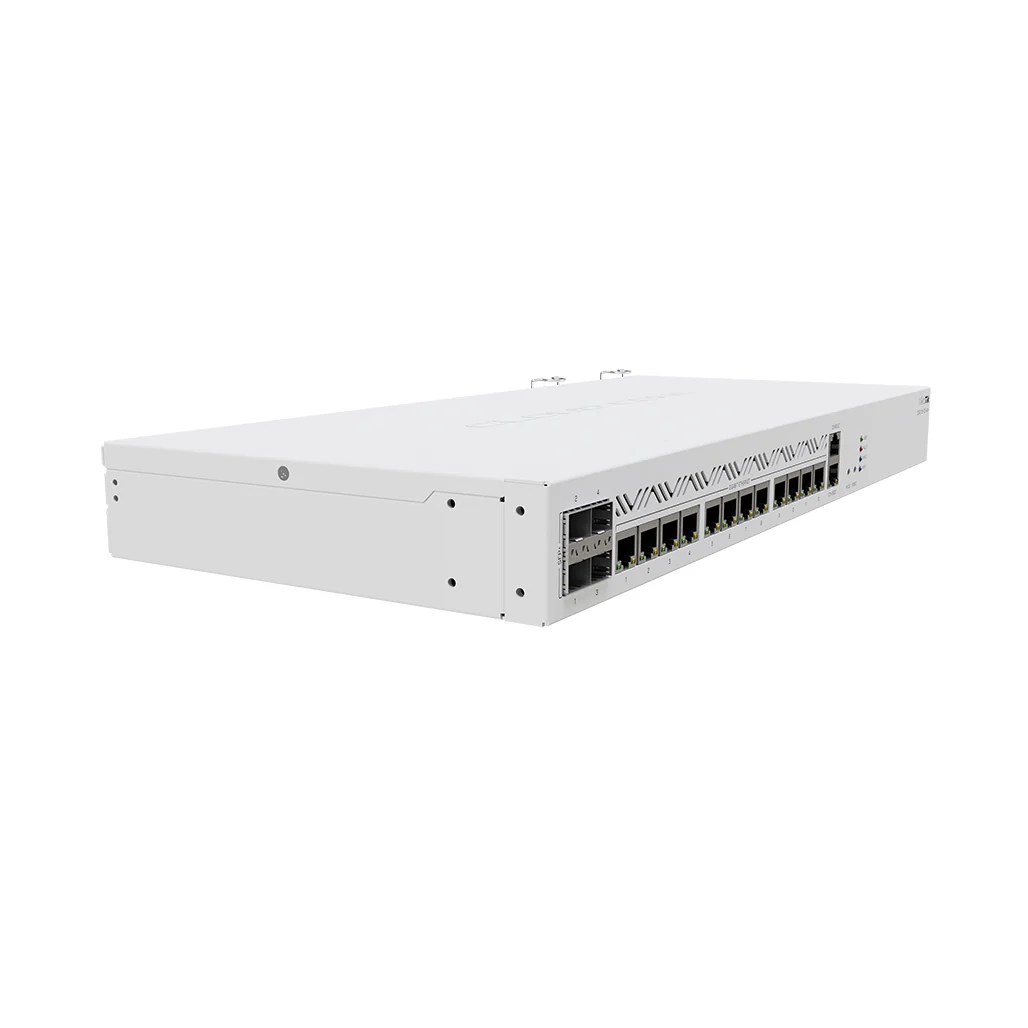

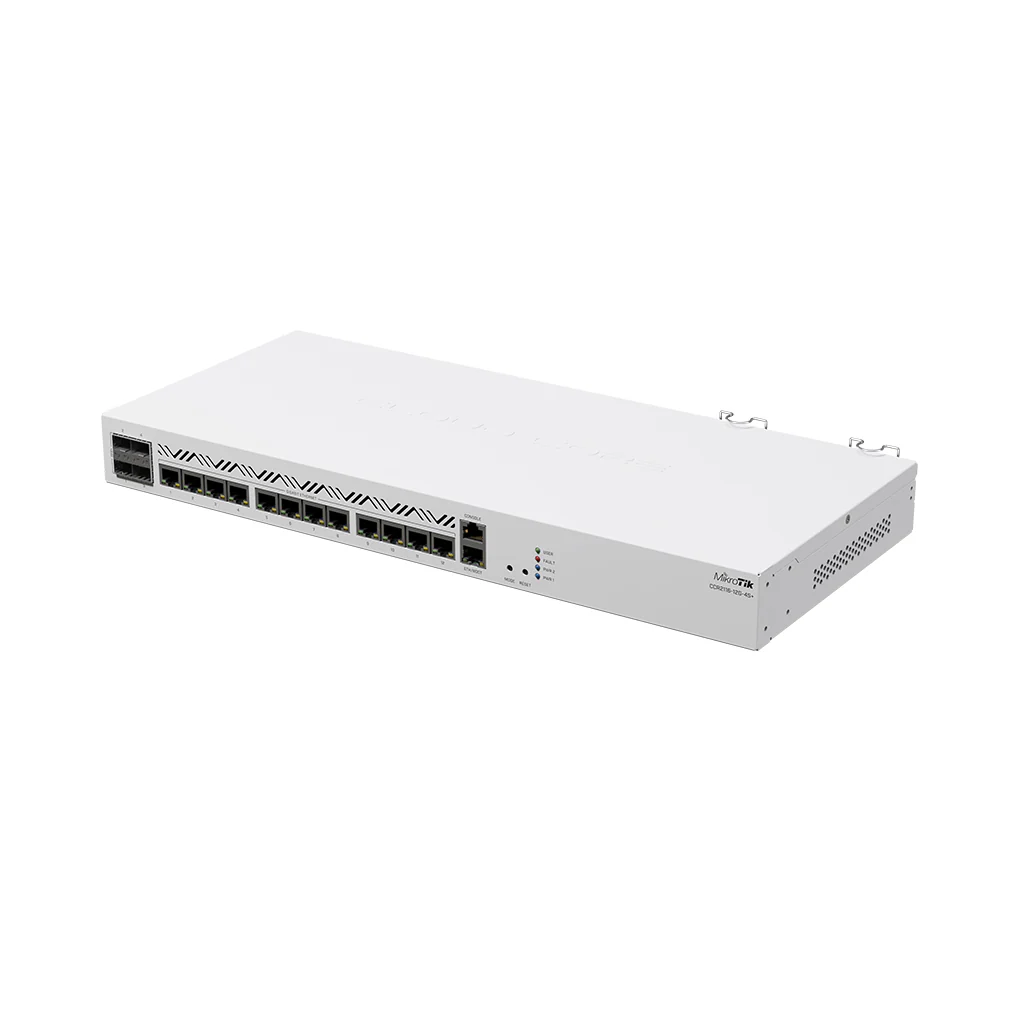

MikroTik Cloud Core Router CCR2116-12G-4S+ | 16-Core 2GHz CPU, 13x Gigabit Ethernet, 4x 10G SFP+

The MikroTik CCR2116-12G-4S+ is a cutting-edge Cloud Core Router designed to push the boundaries of high-performance networking. Featuring the advanced Amazon Annapurna Labs Alpine CPU with 16 cores running at 2 GHz, this router sets a new benchmark for single-core performance in the CCR product family, delivering exceptional power and efficiency for demanding network environments.

With four 10G SFP+ ports connected through a full-duplex Marvell Aldrin switch chip and 13 Gigabit Ethernet ports, including one dedicated directly to the CPU, the CCR2116-12G-4S+ ensures unparalleled connectivity and throughput. The router is engineered to handle complex tasks such as dynamic routing, extensive BGP configurations, and sophisticated quality of service settings with ease.

The robust architecture supports Layer 3 Hardware Offloading, enhancing performance and efficiency. Whether you are managing a large ISP network or a complex enterprise environment, this router offers the reliability and power needed for advanced networking operations.

Key Features:

• High-Performance CPU: 16-core ARM 64-bit processor running at 2 GHz, offering superior single-core performance and efficiency.
• Advanced Connectivity: Four 10G SFP+ ports and 13 Gigabit Ethernet ports with full-duplex connections to ensure high-speed data transfer and minimal bottlenecks.
• Enhanced Management: Includes a serial console port and M.2 slot for additional versatility and management options.

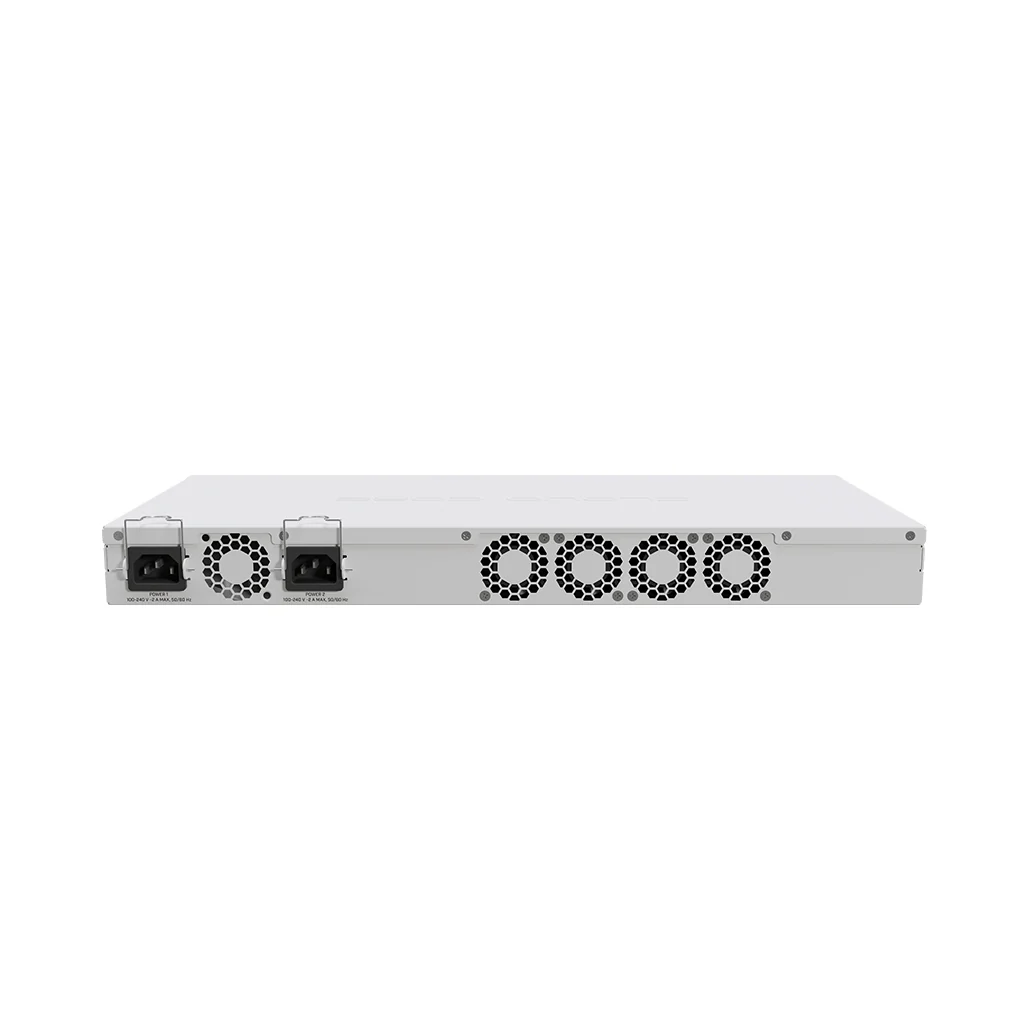

• Reliable Operation: Dual-redundant power supplies and a robust cooling system with four fans to ensure continuous and reliable performance.

Specifications:

• Product Code: CCR2116-12G-4S+
• Architecture: ARM 64-bit
• CPU: AL73400
• CPU Core Count: 16
• CPU Nominal Frequency: 2000 MHz
• Dimensions: 443 x 199 x 44 mm
• RouterOS License: 6
• Operating System: RouterOS v7
• Size of RAM: 16 GB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C
• IPsec Hardware Acceleration: Yes

Powering:

• Number of AC Inputs: 2
• AC Input Range: 100-240V
• Max Power Consumption: 83 W
• Max Power Consumption Without Attachments: 60 W
• Cooling Type: 4 fans

Ethernet:

• 10/100/1000 Ethernet Ports: 13

Fiber:

• SFP+ Ports: 4

Peripherals:

• Serial Console Port: RJ45
• Number of M.2 Slots: 1

Other:

• CPU Temperature Monitor: Yes
• PCB Temperature Monitor: Yes
• Mode Button: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS

Conclusion:

The MikroTik CCR2116-12G-4S+ is a high-performance router that combines powerful processing capabilities with advanced connectivity options. Its 16-core CPU, extensive Ethernet and fiber ports, and robust features make it an excellent choice for large-scale network operations and high-demand environments. With reliable power supplies and efficient cooling, this router ensures top-notch performance and stability for complex networking tasks.
