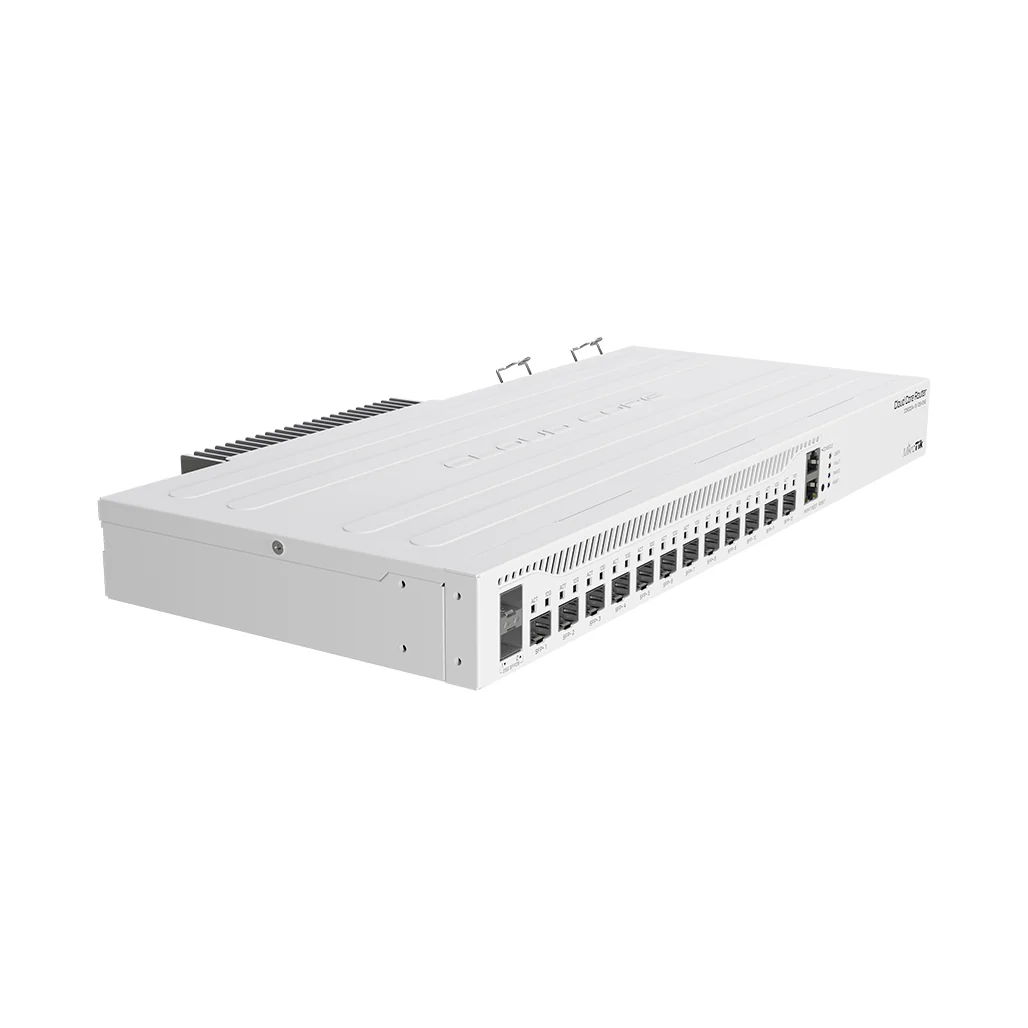

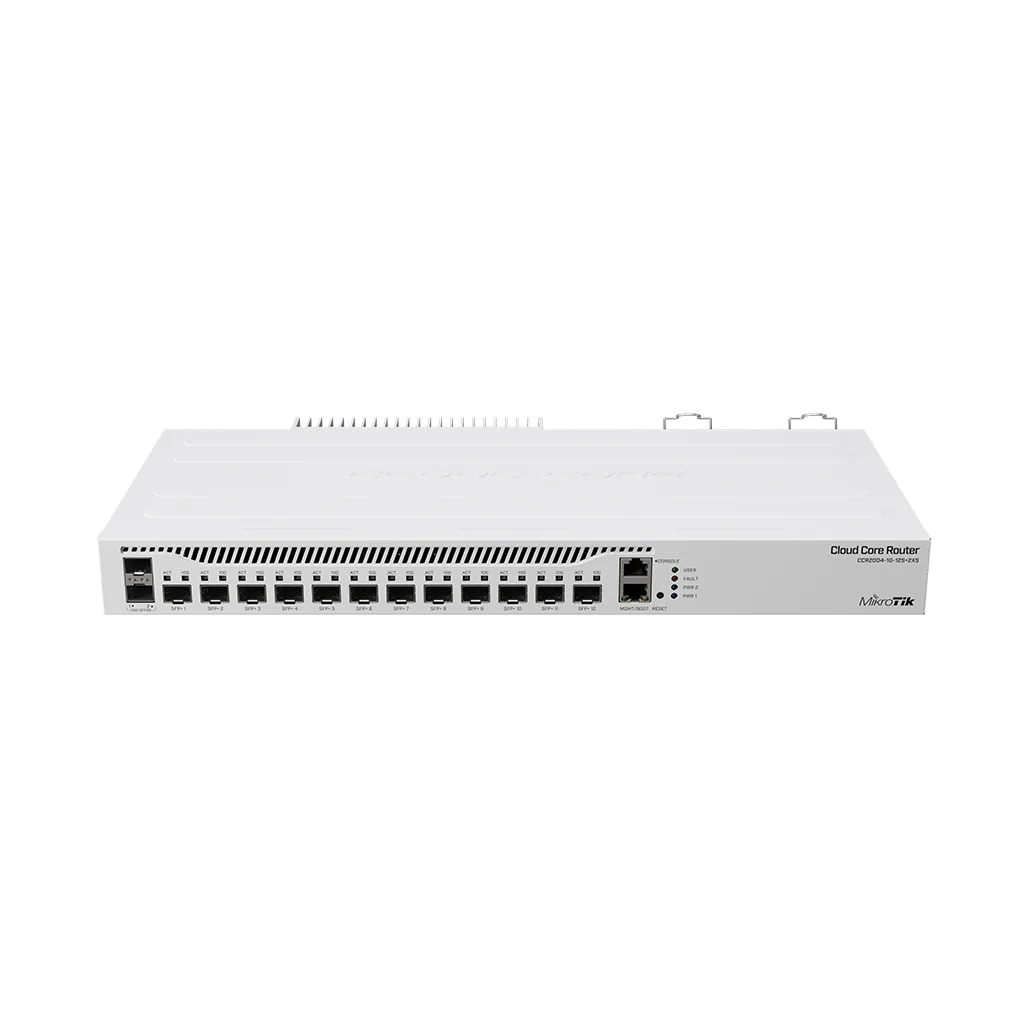

MikroTik CCR2004-1G-12S+2XS Ethernet Router | 12x 10G SFP+, 2x 25G SFP28 Ports

The MikroTik CCR2004-1G-12S+2XS is a cutting-edge Ethernet router designed to deliver exceptional performance and versatility for demanding network environments. This router features a robust configuration with 12 x 10G SFP+ ports and 2 x 25G SFP28 ports, making it an ideal choice for high-speed data transfer and expansion of your networking setup.

Equipped with the powerful ARM 64-bit AL32400 CPU, running at 1.7 GHz, the CCR2004-1G-12S+2XS provides top-tier performance, handling single tunnel throughput up to 3.4 Gbps and efficient BGP feed processing. This performance is comparable to the renowned CCR1009/CCR1016 routers, ensuring reliability and speed.

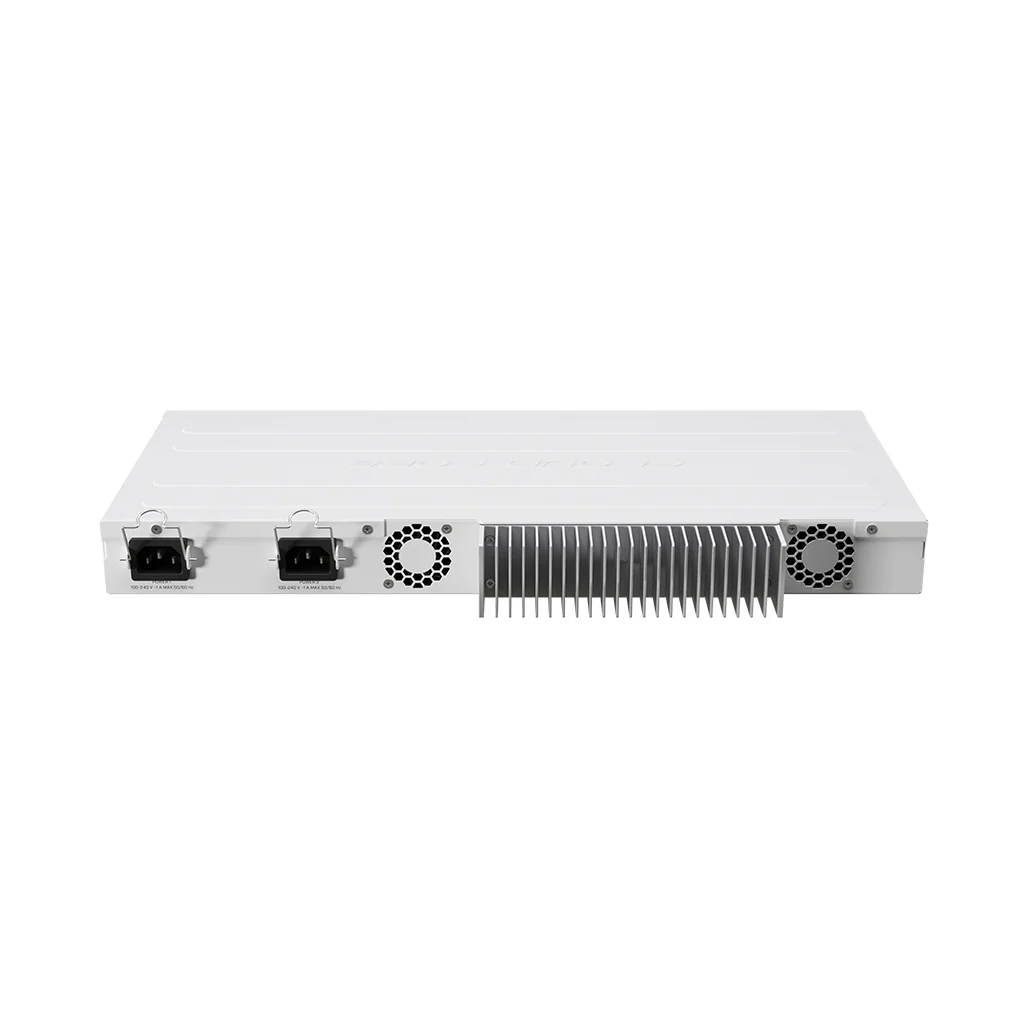

With dual redundant power supplies, the CCR2004-1G-12S+2XS minimizes downtime and maintains continuous operation. Its advanced cooling system, featuring two fans, keeps the device running smoothly even under heavy loads. The router also includes a serial console port for easy management and monitoring.

Key Features:

• High-Speed Connectivity: 12 x 10G SFP+ ports and 2 x 25G SFP28 ports for fast and flexible network expansion.
• Powerful Performance: ARM 64-bit AL32400 CPU with a nominal frequency of 1.7 GHz, providing up to 3.4 Gbps single tunnel throughput and efficient BGP feed handling.
• Reliable Operation: Dual redundant power supplies and advanced cooling with two fans to ensure continuous performance and minimize downtime.
• Efficient Management: Includes a serial console port and comprehensive monitoring features, such as CPU, PCB temperature monitors, and voltage monitoring.

Specifications:

• Product Code: CCR2004-1G-12S+2XS
• Architecture: ARM 64-bit
• CPU: AL32400
• CPU Core Count: 4
• CPU Nominal Frequency: 1700 MHz
• Dimensions: 443 x 224 x 44 mm
• RouterOS License: 6
• Operating System: RouterOS v7
• Size of RAM: 4 GB ECC
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C
• IPsec Hardware Acceleration: Yes

Powering:

• Number of AC Inputs: 2
• AC Input Range: 100-240V
• Max Power Consumption: 49 W
• Max Power Consumption Without Attachments: 32 W
• Cooling Type: 2 fans

Ethernet:

• 10/100/1000 Ethernet Ports: 1

Fiber:

• SFP+ Ports: 12
• Number of 25G SFP28 Ports: 2

Peripherals:

• Serial Console Port: RJ45

Other:

• CPU Temperature Monitor: Yes
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The MikroTik CCR2004-1G-12S+2XS is a high-performance Ethernet router designed for sophisticated networking needs. With its extensive port configuration, powerful CPU, and redundant power supply, it is well-suited for demanding applications and environments. This router provides the reliability and speed required for advanced network setups, ensuring robust and efficient performance.
