Mikrotik RB912UAG-6HPnD-OUT BaseBox 6 | 6GHz Integrated AP/Backbone/CPE with SMA Connectors

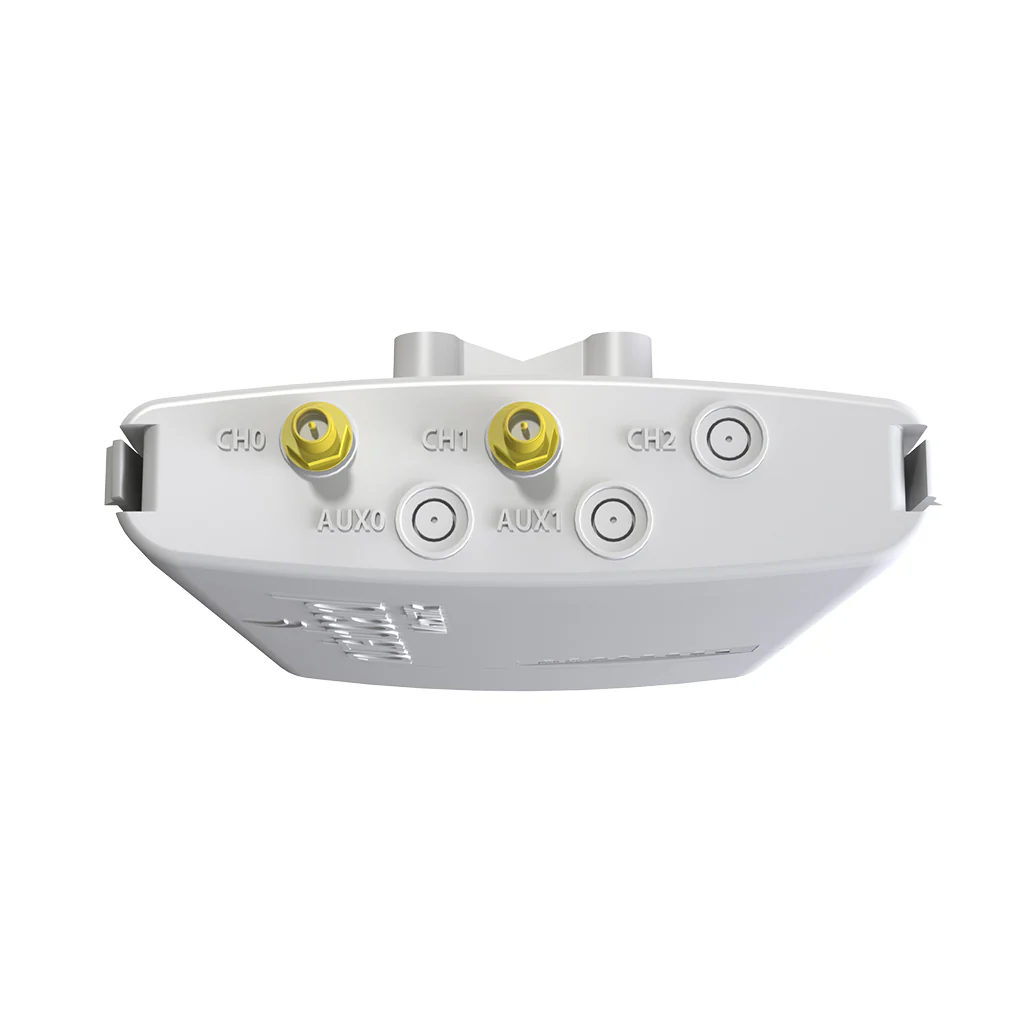

The Mikrotik RB912UAG-6HPnD-OUT BaseBox 6 is a robust outdoor wireless device designed for high-performance 6GHz applications. Building on the legacy of the RB912 model, this unit is equipped with two SMA connectors for antenna integration and includes a cable hood to guard against moisture. For enhanced versatility, the BaseBox 6 features additional antenna connector slots and a miniPCIe slot, allowing for the addition of a dual-band wireless interface or a 3G/4G modem.

This device is ideal for deployment with Mikrotik’s 6GHz CPEs, such as the DynaDish 6 and SXT 6, offering superior wireless connectivity in demanding environments. It is engineered to withstand extreme temperatures and provides reliable performance for a range of outdoor networking needs.

Key Features:

• Outdoor Durability: The BaseBox 6 is built with an IP54-rated enclosure that protects against dust and moisture, ensuring reliability in harsh weather conditions.
• Enhanced Connectivity: Comes with two SMA connectors for antenna integration and a miniPCIe slot for adding additional wireless capabilities or a 3G/4G modem.
• High Wireless Performance: Supports a maximum data rate of 300 Mbit/s on the 6GHz band, compliant with Wi-Fi 4 (802.11a/n) standards.
• Versatile Deployment: Designed to work seamlessly with Mikrotik’s 6GHz CPEs, offering flexibility for various outdoor networking setups.
• Included Accessories: Comes with a power supply unit and PoE injector for easy setup and installation.

Specifications:

• Product Code: RB912UAG-6HPnD-OUT
• Architecture: MIPSBE
• CPU: AR9342
• CPU Core Count: 1
• CPU Nominal Frequency: 600 MHz
• Dimensions: 246 x 135 x 50 mm
• RouterOS License: 4
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C

Powering:

• Number of DC Inputs: 1 (PoE-IN)
• Max Power Consumption: 23 W
• Max Power Consumption Without Attachments: 12 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 10-30 V

Wireless Specifications:

• Wireless 6 GHz Max Data Rate: 300 Mbit/s
• Wireless 6 GHz Number of Chains: 2
• Wireless 6 GHz Standards: 802.11a/n
• Wireless 6 GHz Chip Model: AR9342
• Wireless 6 GHz Generation: Wi-Fi 4

Ethernet:

• 10/100/1000 Ethernet Ports: 1

Peripherals:

• Number of SIM Slots: 1 Modem (Mini SIM)
• MiniPCI-e Slots: 1
• Number of USB Ports: 1
• USB Power Reset: Yes
• USB Slot Type: USB Type A
• Max USB Current (A): 1

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes

Certification & Approvals:

• Certification: EAC
• IP Rating: IP54

Wireless Specifications:

• 6 GHz Transmit (dBm) and Receive Sensitivity:
  • 6MBit/s: Transmit 30 dBm, Receive Sensitivity -93 dBm
  • 54MBit/s: Transmit 26 dBm, Receive Sensitivity -80 dBm
  • MCS0: Transmit 29 dBm, Receive Sensitivity -93 dBm
  • MCS7: Transmit 23 dBm, Receive Sensitivity -76 dBm

Conclusion:

The Mikrotik RB912UAG-6HPnD-OUT BaseBox 6 offers an advanced solution for outdoor 6GHz wireless connectivity. Its robust construction and versatile features make it suitable for demanding environments, while its integration with Mikrotik's 6GHz CPEs enhances its utility. With its durable design, high performance, and comprehensive connectivity options, this device is well-equipped to meet diverse networking needs.
