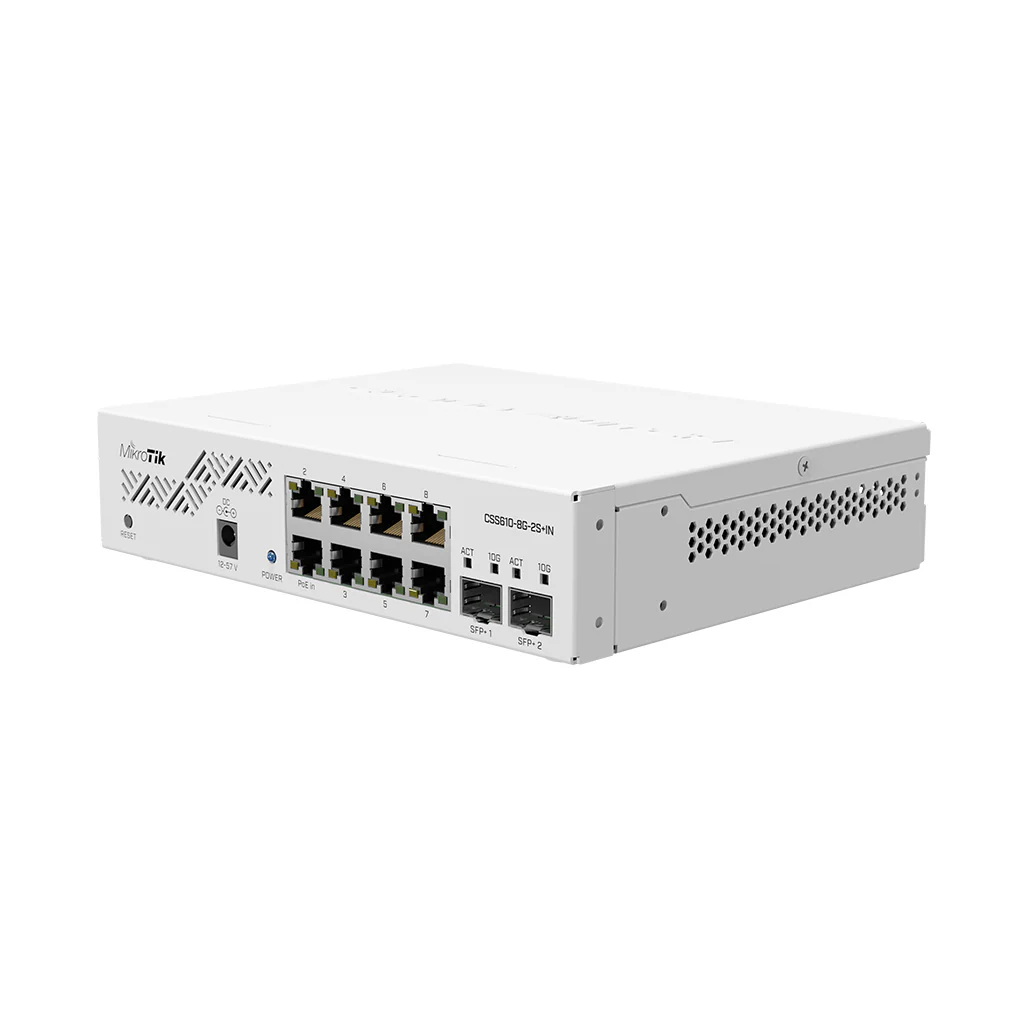

Mikrotik CSS610-8G-2S+IN | 8x Gigabit Ethernet Smart Switch with PoE-out and 2x SFP Cages



The Mikrotik CSS610-8G-2S+IN is a compact yet powerful smart switch designed to meet the growing demands for efficient network management in a small form factor. Equipped with 8 Gigabit Ethernet ports and 2 SFP+ cages, this switch delivers robust performance and flexibility for both small and medium-sized networks. Its lightweight SwOS interface allows for straightforward configuration directly from your web browser, ensuring ease of use and comprehensive control over network settings.

This smart switch offers a range of features including port-to-port forwarding, broadcast storm control, MAC filtering, VLAN configuration, traffic mirroring, and bandwidth limitation. The ability to adjust MAC and IP header fields further enhances its versatility. The CSS610-8G-2S+IN is designed to provide reliable connectivity and management, making it a suitable choice for various networking environments.

Key Features:

• 8 Gigabit Ethernet Ports: Provides reliable network connectivity for various devices.
• 2 SFP+ Cages: Allows for high-speed fiber connections, expanding network capabilities.
• SwOS Lite Operating System: Ensures easy configuration and management through a web browser.
• Advanced Network Management: Includes features such as port-to-port forwarding, VLAN configuration, broadcast storm control, MAC filtering, and bandwidth limitation.
• Passive Cooling: Operates silently and efficiently with a passive cooling system.
• Compact Design: Dimensions of 200 x 164 x 44 mm make it suitable for space-constrained environments.

Specifications:

• Product Code: CSS610-8G-2S+IN
• Switch Chip Model: 88E6193X
• Dimensions: 200 x 164 x 44 mm
• Operating System: SwitchOS Lite
• Storage Size: 64 KB
• Storage Type: FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C

Powering:

• Number of DC Inputs: 2 (DC jack, PoE-IN)
• DC Jack Input Voltage: 12-57 V
• Max Power Consumption: 11 W
• Max Power Consumption Without Attachments: 5 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 12-57 V

Ethernet:

• 10/100/1000 Ethernet Ports: 8

Fiber:

• SFP+ Ports: 2

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The Mikrotik CSS610-8G-2S+IN offers a blend of high-performance features and compact design, making it a valuable addition to any network. With its 8 Gigabit Ethernet ports and 2 SFP+ cages, it delivers versatile connectivity and advanced management capabilities. This smart switch provides a reliable solution for efficient network management, combining ease of use with robust functionality.
