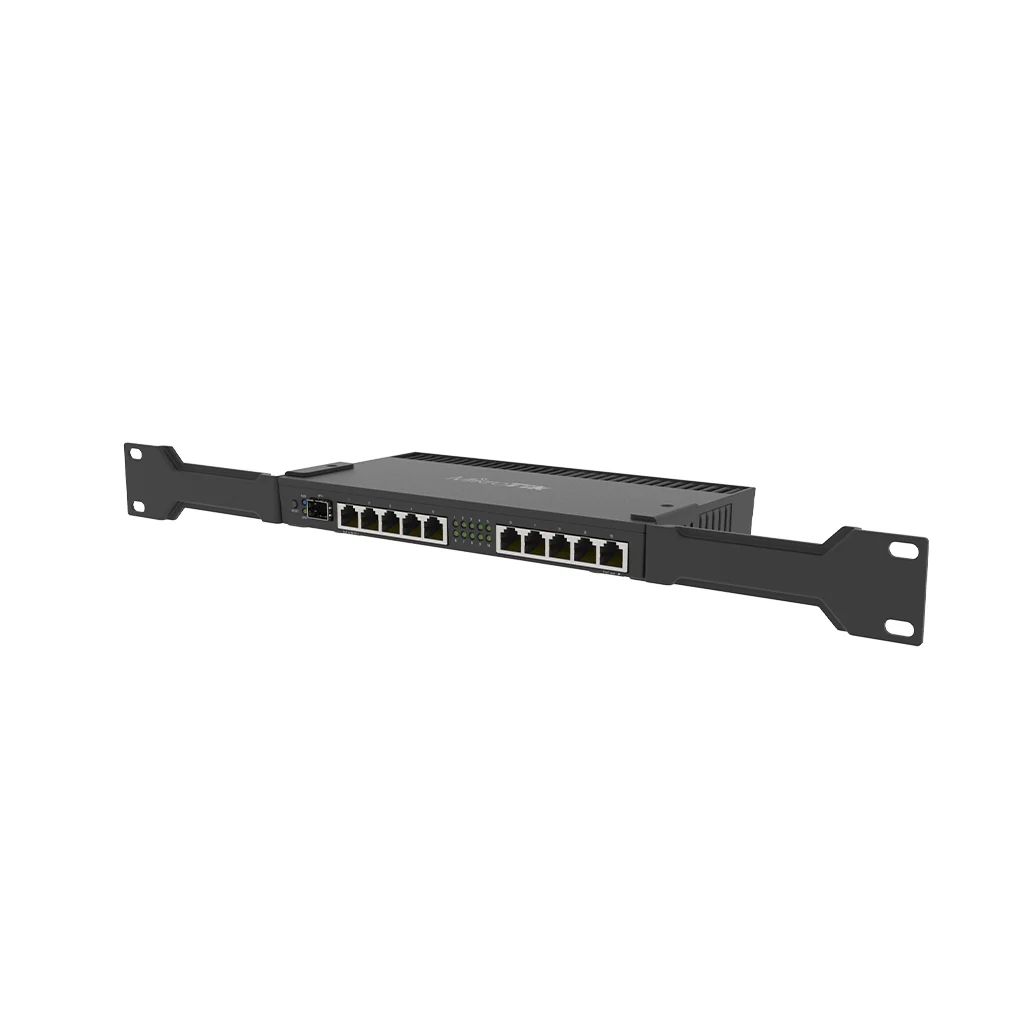

Mikrotik RB4011iGS+RM Router with 10 Gigabit Ethernet Ports and SFP+ 10Gbps Interface

The Mikrotik RB4011iGS+RM is a high-performance router designed to deliver exceptional network capabilities and flexibility. Featuring ten Gigabit Ethernet ports and a SFP+ 10Gbps interface, this router is built to handle demanding network environments with ease. Powered by a robust quad-core Cortex A15 CPU and equipped with 1GB of RAM, the RB4011iGS+RM offers reliable performance and supports IPsec hardware acceleration for enhanced security. The unit’s sleek, matte black metal enclosure ensures both durability and a professional appearance, while its compact size fits perfectly in a standard 1U rack space with the included rackmount ears.

The RB4011iGS+RM router is optimized for various networking needs, providing PoE output on port #10 and featuring passive PoE input for flexible power options. With its passive cooling design, this router operates quietly and efficiently, making it ideal for both small and large-scale installations. The device is designed to work within a temperature range of -40°C to 70°C, ensuring reliable operation even in challenging environments. The inclusion of advanced features such as a voltage monitor and PCB temperature monitor further enhances the device’s functionality and performance.

Key Features:

• Ten Gigabit Ethernet Ports: Allows for high-speed network connections and supports a variety of networking needs.
• SFP+ 10Gbps Interface: Provides high-speed fiber connectivity for improved network performance.
• Quad-Core Cortex A15 CPU: Ensures powerful processing capabilities for demanding network tasks.
• IPsec Hardware Acceleration: Enhances security by offloading encryption tasks from the CPU.
• PoE Output on Port #10: Supports power over Ethernet to connected devices.
• Passive PoE Input: Offers flexible power options with a range of 18-57V.
• Compact and Professional Design: Features a matte black metal enclosure and fits into a 1U rack space with included rackmount ears.

Specifications:

• Product Code: RB4011iGS+RM
• Architecture: ARM 32bit
• CPU: AL21400
• CPU Core Count: 4
• CPU Nominal Frequency: Auto (533 - 1900 MHz)
• Switch Chip Model: RTL8367SB
• Dimensions: 228 x 120 x 30 mm
• RouterOS License: 5
• Operating System: RouterOS v7
• Size of RAM: 1 GB
• Storage Size: 512 MB
• Storage Type: NAND
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C
• IPsec Hardware Acceleration: Yes

Powering:

• Number of DC Inputs: 2 (DC jack, PoE-IN)
• DC Jack Input Voltage: 12-57 V
• Max Power Consumption: 33 W
• Max Power Consumption Without Attachments: 18 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 18-57 V

PoE-out:

• PoE-out Ports: Ether10
• PoE Out: Passive PoE up to 57V
• Max Out Per Port Output (Input 18-30 V): 600 mA
• Max Out Per Port Output (Input 30-57 V): 420 mA
• Max Total Out (A): 600 mA

Ethernet:

• 10/100/1000 Ethernet Ports: 10

Fiber:

• SFP+ Ports: 1

Peripherals:

• Serial Console Port: RJ45

Other:

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The Mikrotik RB4011iGS+RM router, with its ten Gigabit Ethernet ports and SFP+ 10Gbps interface, provides a comprehensive solution for high-speed networking. Its powerful quad-core CPU and 1GB of RAM support demanding network tasks while ensuring security with IPsec hardware acceleration. The router’s design, which includes passive PoE capabilities and a robust cooling system, makes it suitable for various environments and applications. With its reliable performance and advanced features, the RB4011iGS+RM meets the needs of both small and large network setups.
