The Story

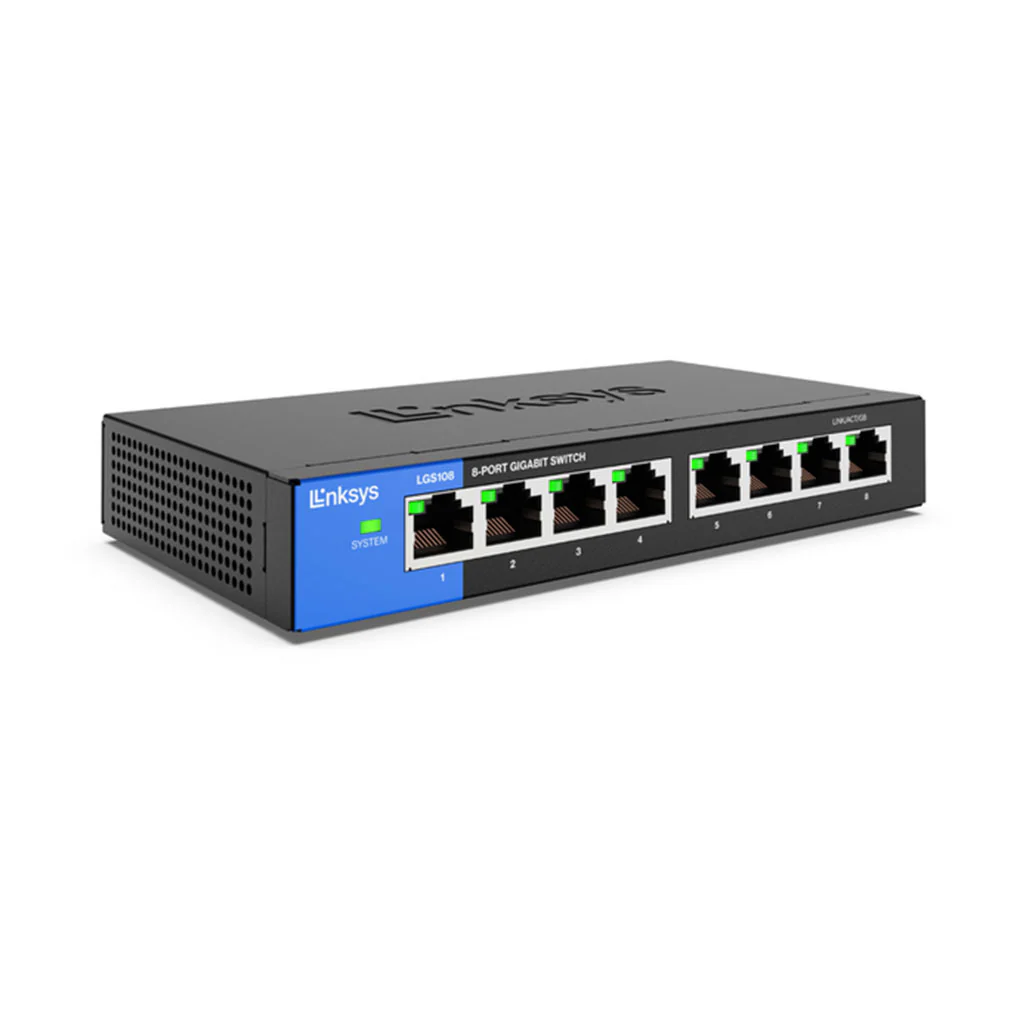

The Linksys LGS108 is a high-performance 8-port Gigabit unmanaged switch designed to enhance network efficiency and productivity. With wired connection speeds of up to 1000 Mbps, it is ideal for accelerating data transfer between network servers, drives, and printers. Its auto-sensing ports and easy plug-and-play setup ensure a hassle-free installation process, while the integrated Quality of Service (QoS) feature optimizes network traffic for better performance.
Key Features:
- High-Speed Performance: Delivers wired connection speeds up to 1000 Mbps for fast data transfer.
- 8 Gigabit Ethernet Ports: Equipped with 8 auto-sensing Gigabit Ethernet ports for seamless connectivity.
- Energy Efficiency: Complies with EEE (Energy Efficient Ethernet) 802.3az standard to reduce power consumption.
- Plug & Play: Simple and straightforward installation with no configuration required.
- Quality of Service (QoS): Enhances network performance by prioritizing traffic efficiently.
Specifications (Rewritten):
- Switch Type: Unmanaged
- Number of Ports: 8 Gigabit Ethernet (10/100/1000 Mbps)
- Power Consumption: 0.997W (idle) / 3.355W (maximum)
- Dimensions (LxWxH): 168 x 90 x 26 mm
- Weight: 0.358 kg
- Operating Humidity: 10–90% (non-condensing)
- Operating Temperature: 0–50°C
- Storage Temperature: -40–70°C
- Power Input: 12V 0.5A
- MAC Address Table Size: 4,000 entries
-
Performance:
- 0.01488 Mpps for 10M port
- 0.1488 Mpps for 100M port
- 1.488 Mpps for 1000M port
- Power: 100-240VAC, 50/60Hz, 5VDC
- Regulatory Compliance: FCC Class B, CE
- Mounting: Wall-mounted
- Power Saving Features: Includes cable connected detection, cable length detection, and sleep mode.
-
Network Standards:
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3x
- Bandwidth: 16 Gbps (non-blocking)
Conclusion: The Linksys LGS108 8-Port Gigabit Unmanaged Switch is an excellent choice for businesses and home networks seeking reliable, high-speed Ethernet connectivity. Its energy-efficient design and ease of installation make it a practical solution for expanding network capacity while maintaining optimal performance.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Linksys LGS108 is a high-performance 8-port Gigabit unmanaged switch designed to enhance network efficiency and productivity. With wired connection speeds of up to 1000 Mbps, it is ideal for accelerating data transfer between network servers, drives, and printers. Its auto-sensing ports and easy plug-and-play setup ensure a hassle-free installation process, while the integrated Quality of Service (QoS) feature optimizes network traffic for better performance.
Key Features:
- High-Speed Performance: Delivers wired connection speeds up to 1000 Mbps for fast data transfer.
- 8 Gigabit Ethernet Ports: Equipped with 8 auto-sensing Gigabit Ethernet ports for seamless connectivity.
- Energy Efficiency: Complies with EEE (Energy Efficient Ethernet) 802.3az standard to reduce power consumption.
- Plug & Play: Simple and straightforward installation with no configuration required.
- Quality of Service (QoS): Enhances network performance by prioritizing traffic efficiently.
Specifications (Rewritten):
- Switch Type: Unmanaged
- Number of Ports: 8 Gigabit Ethernet (10/100/1000 Mbps)
- Power Consumption: 0.997W (idle) / 3.355W (maximum)
- Dimensions (LxWxH): 168 x 90 x 26 mm
- Weight: 0.358 kg
- Operating Humidity: 10–90% (non-condensing)
- Operating Temperature: 0–50°C
- Storage Temperature: -40–70°C
- Power Input: 12V 0.5A
- MAC Address Table Size: 4,000 entries
-
Performance:
- 0.01488 Mpps for 10M port
- 0.1488 Mpps for 100M port
- 1.488 Mpps for 1000M port
- Power: 100-240VAC, 50/60Hz, 5VDC
- Regulatory Compliance: FCC Class B, CE
- Mounting: Wall-mounted
- Power Saving Features: Includes cable connected detection, cable length detection, and sleep mode.
-
Network Standards:
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3u
- IEEE 802.3x
- Bandwidth: 16 Gbps (non-blocking)
Conclusion: The Linksys LGS108 8-Port Gigabit Unmanaged Switch is an excellent choice for businesses and home networks seeking reliable, high-speed Ethernet connectivity. Its energy-efficient design and ease of installation make it a practical solution for expanding network capacity while maintaining optimal performance.
