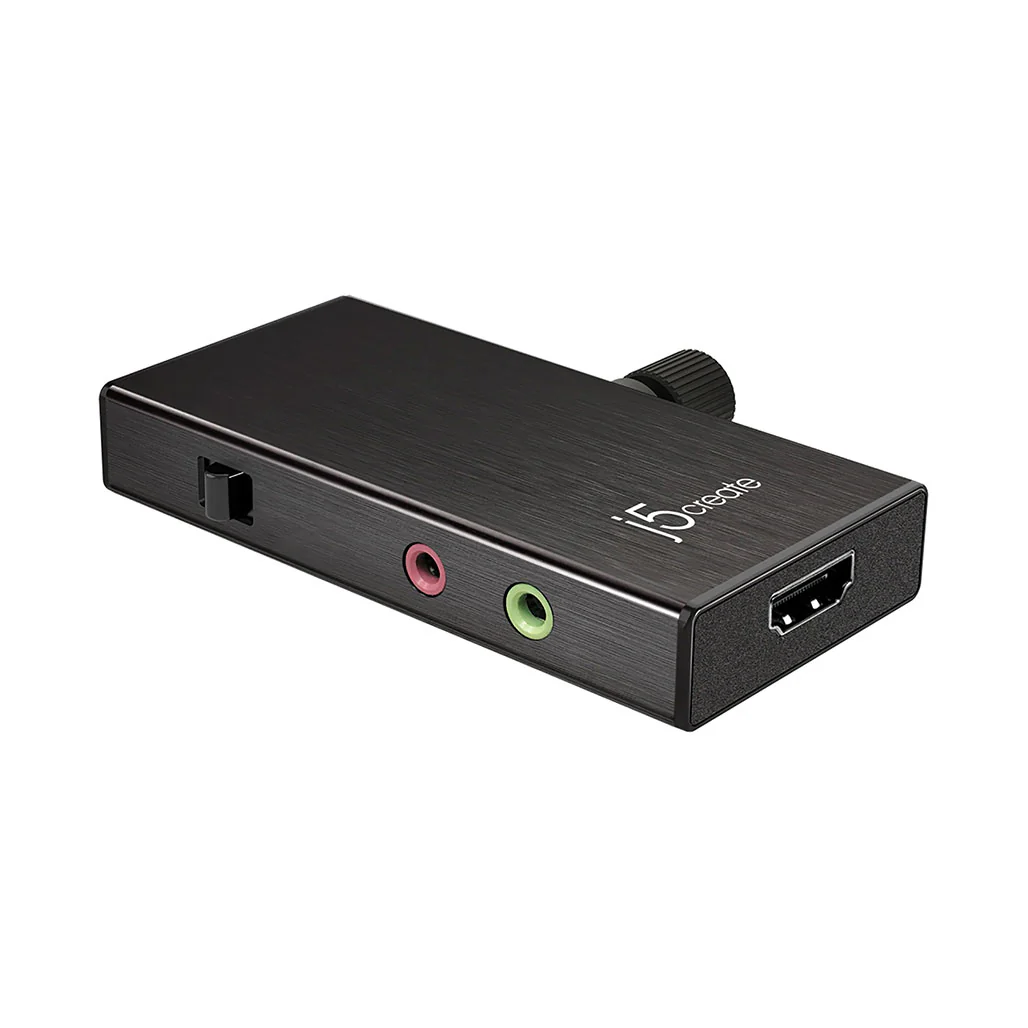

J5Create Live Capture Adapter HDMI to USB-C with Power Delivery - JVA02

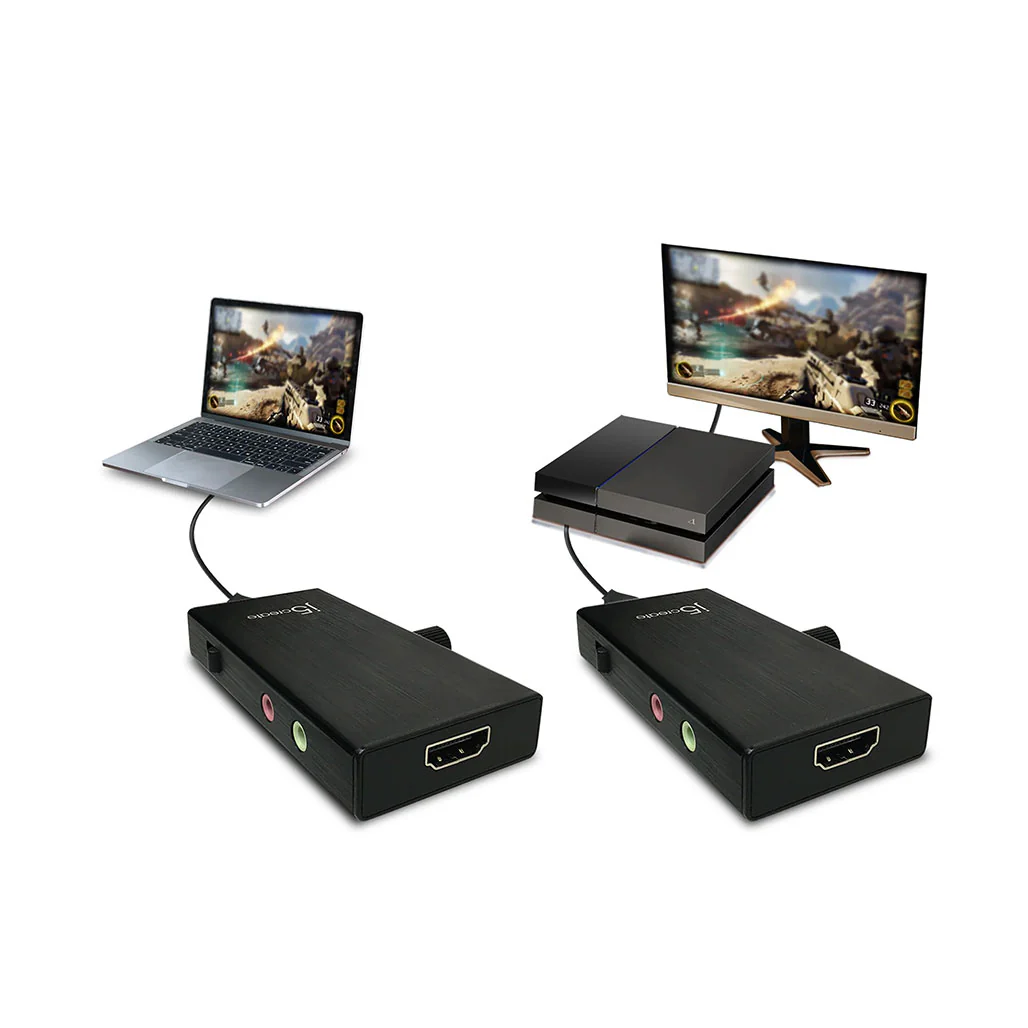

Capture and stream studio-quality video with the J5Create Live Capture Adapter JVA02. This precision-engineered HDMI™ capture card delivers uncompressed 1080p @ 60 fps over USB™ 3.0, while USB-C™ Power Delivery 3.0 keeps your camera and peripherals powered. An onboard audio mixer lets you blend Mic In and HDMI™ audio—or switch between them—without external gear. Housed in lightweight aluminum and complete with dual cold-shoe mounts, the JVA02 is built for content creators and live streamers who demand reliability and portability.

Key Features

• Full-Motion 1080p @ 60 fps
  Uncompressed video capture over USB™ 3.0 for crystal-clear, lag-free streaming.

• USB-C™ Power Delivery 3.0
  Simultaneously power your camera or charge USB™ devices up to 60 W PD while broadcasting.

• Integrated Audio Mixer
  Toggle between 3.5 mm Mic In, HDMI™ audio, or a combined feed for flexible sound control.

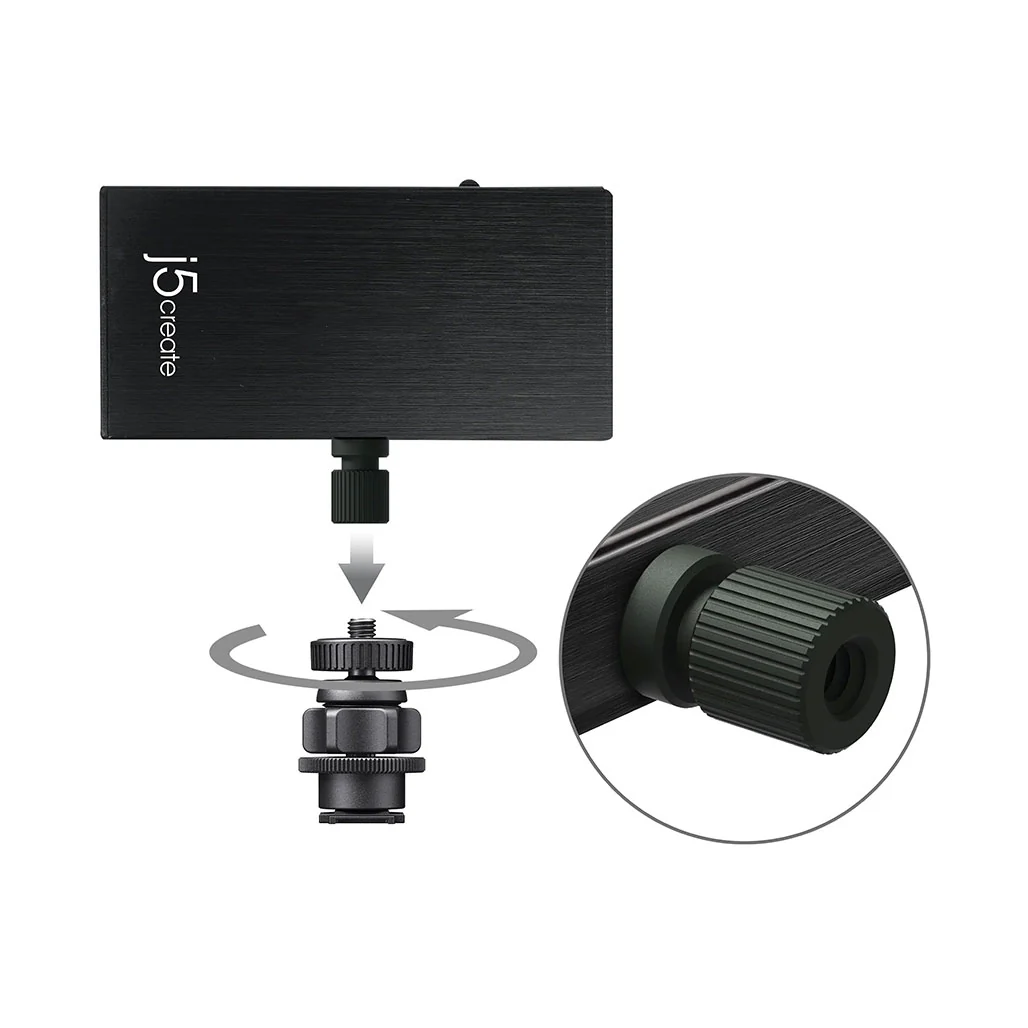

• Dual Cold-Shoe Mounts
  Securely attach to cameras or rigs for stable, on-the-move capture.

• Compact Aluminum Chassis
  Durable, heat-dissipating design keeps the adapter cool during extended recording sessions.

Specifications

Hardware

• Model: JVA02

• Host Connector: USB-C® 3.1 Gen 1 Female

• Audio I/O:

  • 1 × 3.5 mm Mic In

  • 1 × 3.5 mm Audio Out

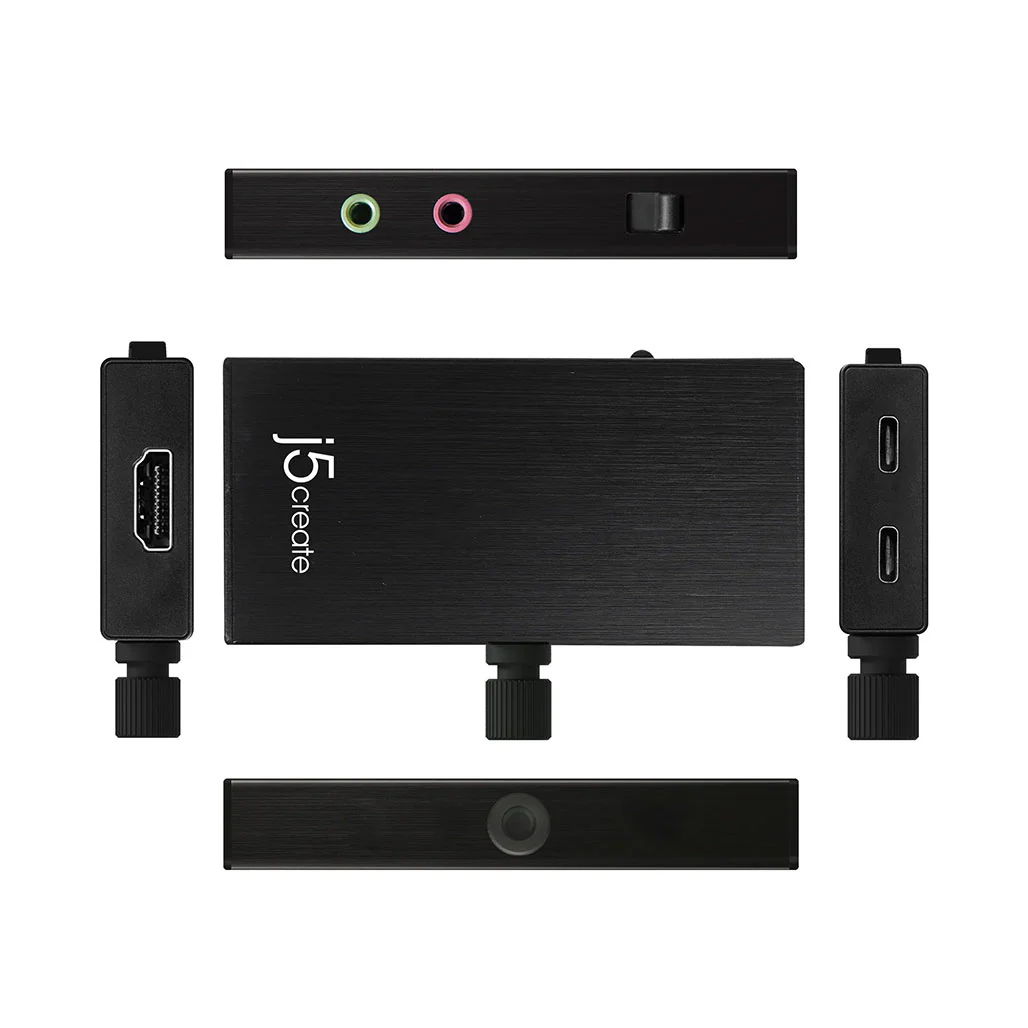

• Ports:

  • 1 × USB-C® 3.1 Gen 1 (Host)

  • 1 × USB-C® PD 3.0 (60 W)

  • 1 × HDMI™ Input

Performance

• Video Capture: 1920 × 1080 @ 60 Hz

• Audio: 2.1-channel via HDMI™, 48 kHz, 24-bit Sigma-Delta ADC

• Compression: MJPEG/YUV 4:2:2 (USB 3.0); MJPEG (USB 2.0)

• Encode Formats: MP4, MJPEG, H.264/AVC + AACX

Power

• Input: 20 V ⎓ 3 A

• Output: 20 V ⎓ 3 A

• Consumption: ≤ 280 mA

Physical

• Cable: 3.3 ft (1 m) USB-C™ and USB 3.0 to Type-A cables included

• Material: Aluminum enclosure

• Dimensions: 5.27 × 2.54 × 0.69 in (133.8 × 64.5 × 17.5 mm)

• Weight: 5.03 oz (142.5 g)

Environmental

• Operating Temp: 32–104 °F (0–40 °C)

• Operating Humidity: < 80 % non-condensing

• Storage Temp: 14–149 °F (−10–65 °C)

• Storage Humidity: < 85 % non-condensing

Package Contents

• 1 × JVA02 Live Capture Adapter

• 1 × USB-C® 2.0 to USB-C® cable

• 1 × USB-C® 3.0 to USB™ Type-A cable

• 2 × Cold-Shoe Adapters

• 1 × Quick Installation Guide
