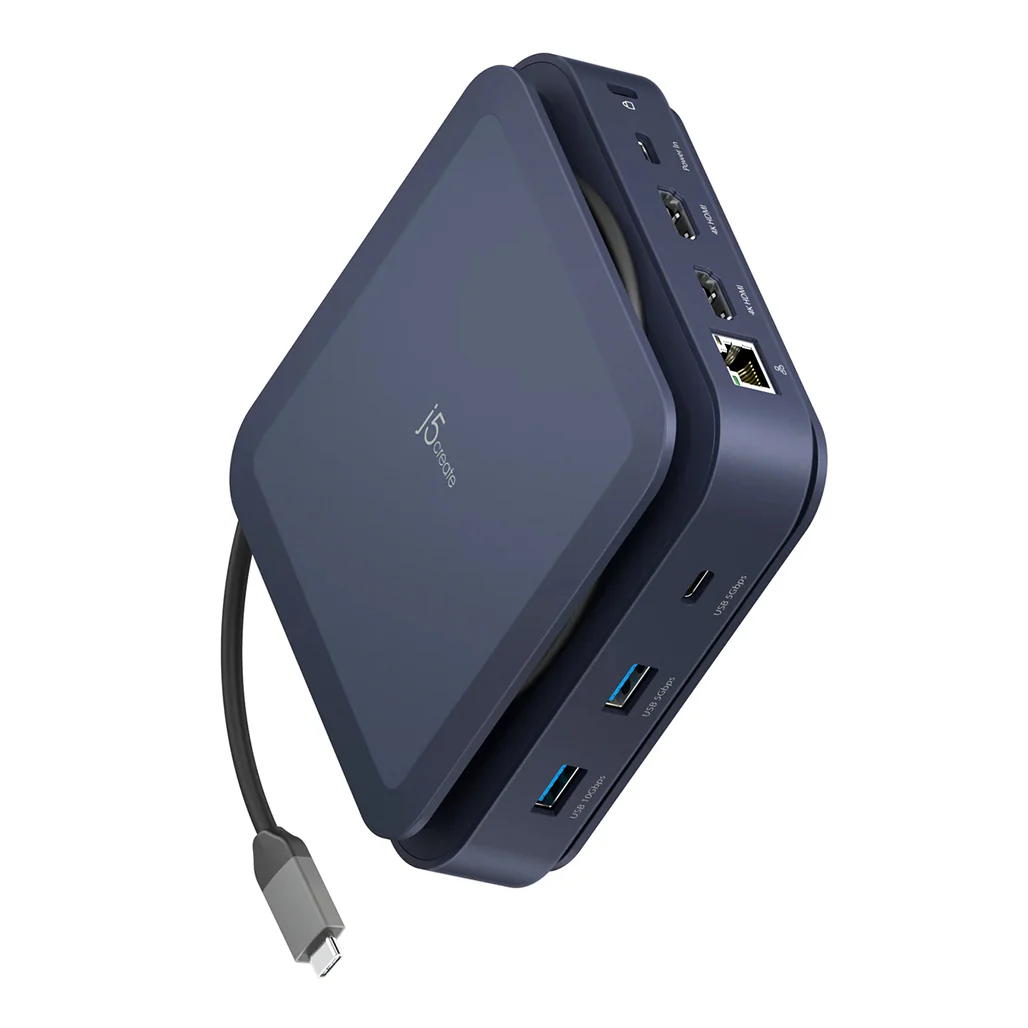

J5Create JCD3198 USB-C Dock Dual 4K HDMI

A compact 11-in-1 USB-C docking station is provided for modern home and office workstations, combining dual 4K HDMI display support with high-speed data, networking, and power delivery. Through a single USB-C connection, essential ports including HDMI, USB-C, USB Type-A, Gigabit Ethernet, SD and microSD card reader, and audio jack are made accessible, allowing a clean and efficient desktop setup to be achieved.

Advanced USB Power Delivery 3.1 functionality is supported, enabling up to 140W power input and up to 130W pass-through charging to the host device. A fast and stable wired internet connection is ensured via the Gigabit Ethernet port, while ultra-high-speed USB ports are included for demanding peripherals and data transfers. A built-in cable storage compartment and a vertical dock holder are included to support flexible placement and improved desk organization, making this dock suitable for productivity-focused environments.

Key Features

• Dual 4K HDMI display support is enabled, allowing extended or mirrored displays to be used for improved multitasking.

• USB Power Delivery 3.1 up to 140W is supported, ensuring efficient power distribution and single-cable charging convenience.

• High-speed USB connectivity is provided through USB 10Gbps and 5Gbps ports, allowing peripherals and storage devices to be connected reliably.

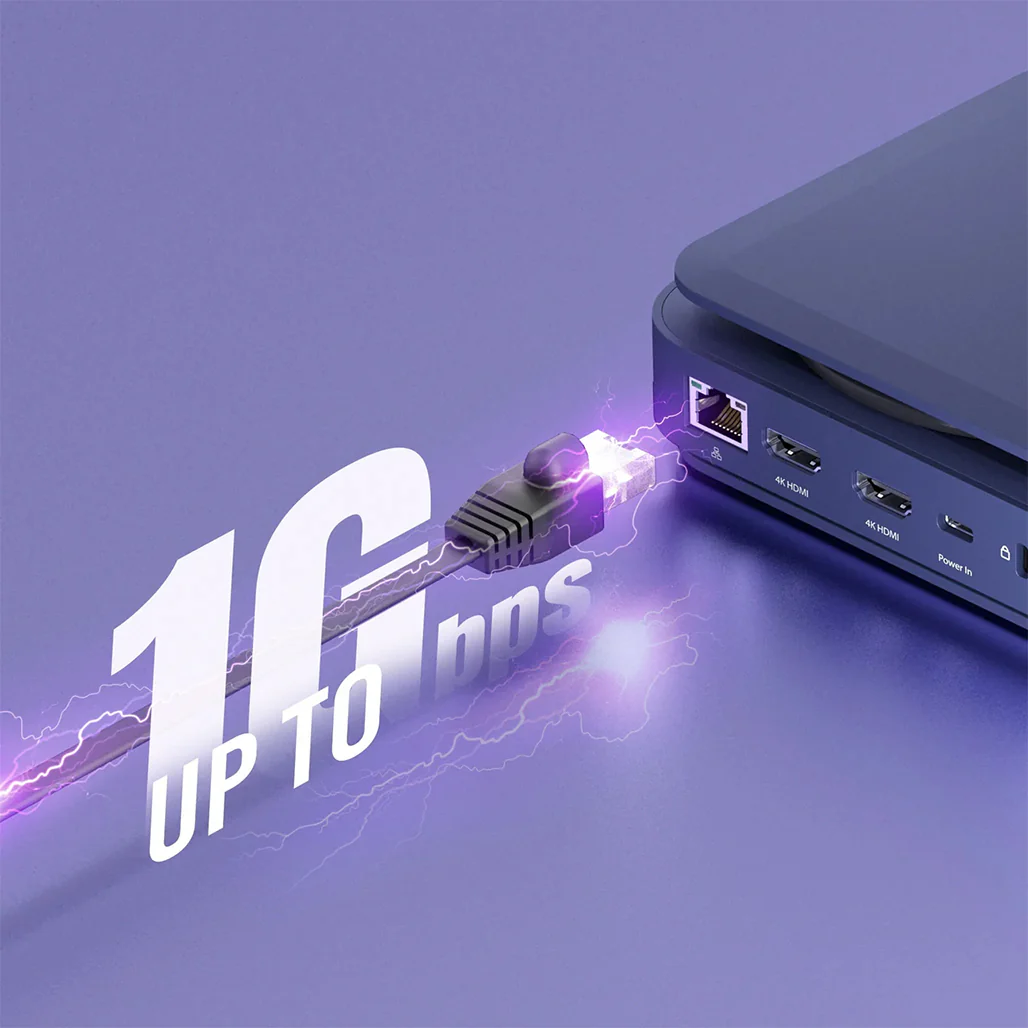

• Gigabit Ethernet networking is supported, delivering a stable and dependable wired internet connection.

• SD and microSD 3.0 card reader is integrated, enabling convenient access to media files from memory cards.

• Vertical dock holder is included, allowing desk space to be saved and airflow to be improved.

• Built-in cable storage compartment is included, supporting cleaner cable management and flexible port access.

• Broad compatibility is supported with Windows and macOS systems, ensuring versatile use across devices.

Specifications

• audio supportedYeshost connector

• 1 - USB-C® Male (PD 3.1 130W, 28V / 4.65A)

• network interfaceYesports

• 1 - USB-C® PD-in PD3.1 140W (28V/5A)

• 2 - USB-C® 5Gbps & 10Gbps

• 2 - USB™ Type-A 5Gbps & 10Gbps

• 1 - Combo 3.5mm Audio Jack

• 1 - HDMI™ (USB™ display max resolution 4K@30Hz)

• 1 - HDMI™ (DP™-Alt max resolution 4K@60Hz)

• 1 - RJ45 Gigabit Ethernet

• 1 - SD™/microSD™ 3.0

• power sourceBus-powered or self-poweredvideo output

• 2- HDMI™ Female

• warranty2 Year Limited

• audio channel2.1 via HDMI™compatible networks10/100/1000 Mbpsdisplays supported

• 2

• max data transfer rate

• 10Gbps

• max display refresh rate

• 60 Hz

• max display resolution

• 3840 x 2160

• input currentUp to 5Ainput voltageUp to 28Voutput currentUp to 4.65Aoutput voltageUp to 28Vpower consumption≤ 900 mApower deliveryUp to 140W via USB-C®

• cable length2.28 ft (69.5 cm)colorDark Blueenclosure typePlasticoperating humidity< 85% non-condensingoperating temperature30 to 116°F (-1 to 41°C)product depthBody: 5.12 in. (130 mm)

• Holder: 3.15 in. (80 mm)

• product heightBody: 1.71 in. (43.5 mm)

• Holder: 1.3 in. (33 mm)

• product weightBody: 14.7 oz (416 g)

• Holder: 0.8 oz (22 g)

• product widthBody: 5.12 in. (130 mm)

• Holder: 5.12 in. (130 mm)

• storage humidity< 85% non-condensingstorage temperature0 to 155°F (-17 to 68°C)

Conclusion
This USB-C dock is designed for users who require dual 4K displays, reliable power delivery, and comprehensive connectivity through a single cable. It is well suited for professional workstations, home offices, and mobile setups where productivity, space efficiency, and stable performance are required across compatible Windows and macOS devices.
