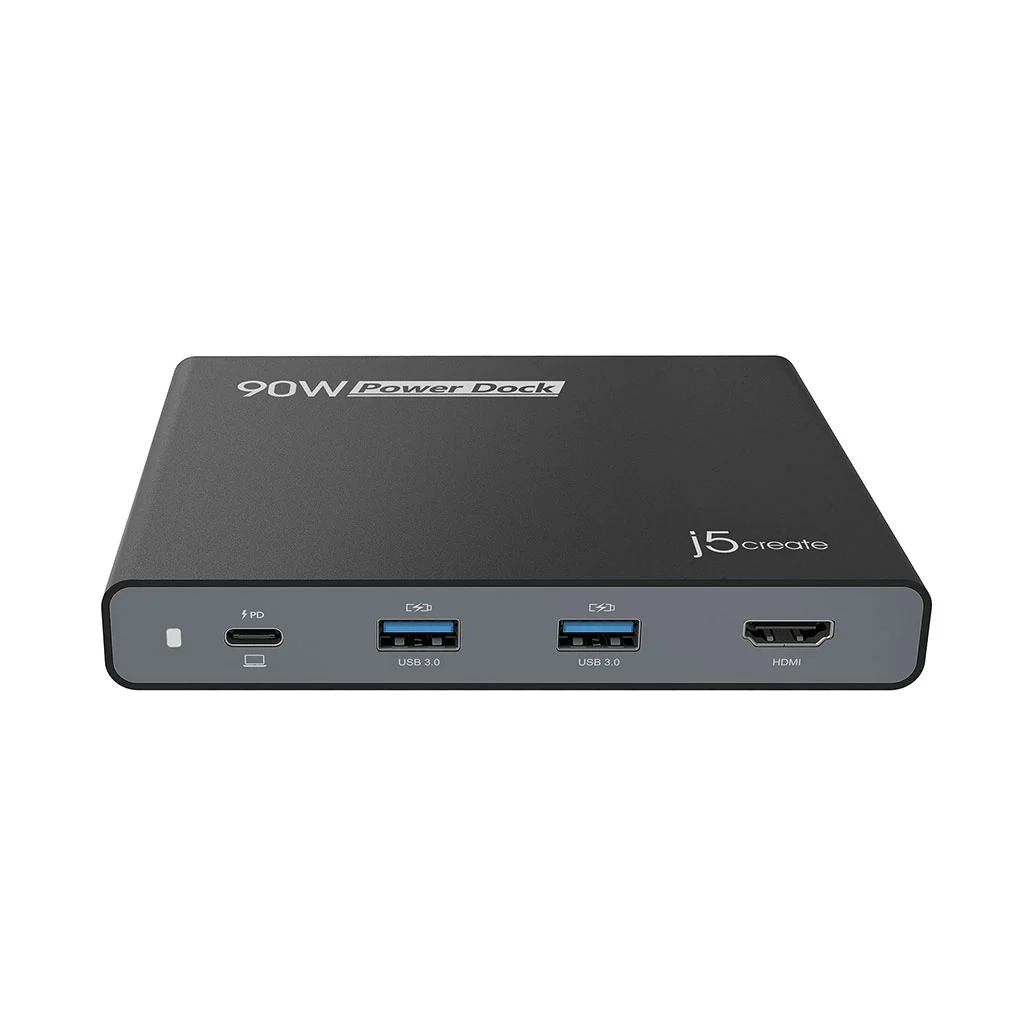

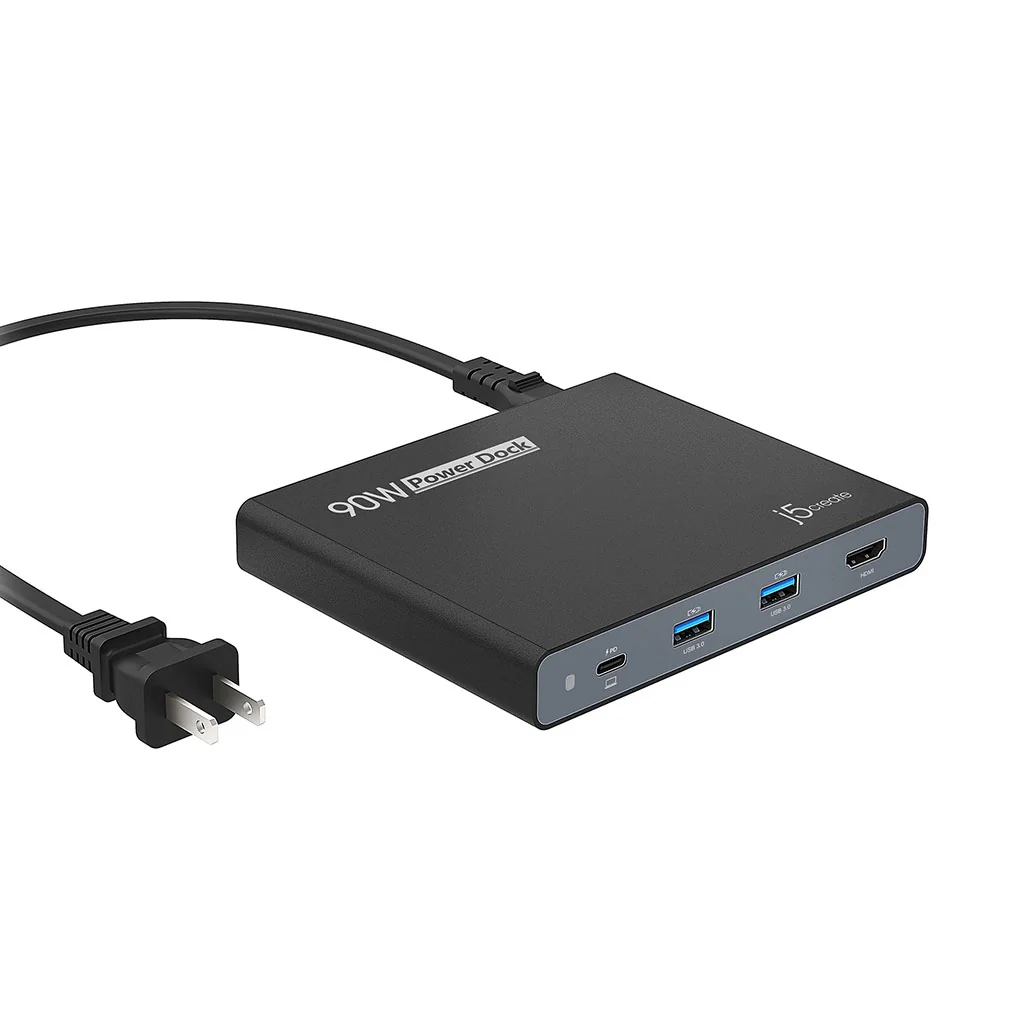

J5Create 90W Built-in USB-C™ Travel Dock - JCDP392 | Portable 4K HDMI Docking Station with Power Delivery

Stay powered and connected wherever you go with the J5Create 90W Built-in USB-C™ Travel Dock (JCDP392). This sleek, aluminum-clad hub packs four essential ports into a portable form factor: a 4K HDMI™ output, two USB™ 3.0 Type-A ports, and a USB-C™ Power Delivery input that delivers up to 65 W to your laptop. Engineered for mobile professionals, the JCDP392 supports fast charging of USB-C™ and USB™ Type-A devices while enabling crisp external video, high-speed data transfers, and reliable audio—all from a single USB-C™ connection.

Key Features

• All-in-One Portability
  Connect a 4K HDMI™ display and two SuperSpeed USB™ 3.0 peripherals, while charging your laptop at 65 W via USB-C™ PD.

• 4K Video Output
  Drive an external monitor at up to 3840 × 2160 @ 30 Hz or 1080 p @ 60 Hz for presentations and streaming.

• High-Speed Data
  USB™ 3.0 ports deliver up to 5 Gbps for rapid file transfers and peripheral support.

• Universal Compatibility
  Works seamlessly with Windows®, macOS®, and Android™ devices.

• Detachable Power & USB-C™ Cables
  Reduce cable clutter with removable cords for easier packing and setup.

Specifications

Hardware

• Model: JCDP392

• Host Connector: USB-C™ 3.1 Male

• Ports:

  • 1 × USB-C™ PD 3.0 (Host)

  • 2 × USB™ 3.0 Type-A (5 Gbps)

  • 1 × 4K HDMI™ Female

• Power Source: Bus-powered or self-powered

Performance

• Audio: 2.1-channel via HDMI™

• Displays Supported: 1

• Max Data Transfer Rate: 5 Gbps

• Max Display Refresh Rate: 4K @ 30 Hz, 1080 p @ 60 Hz

• Max Display Resolution: 3840 × 2160

Power

• Input Current: Up to 1.5 A

• Input Voltage: 100–240 V AC, 50–60 Hz

• Output Current: USB-C™ up to 3.25 A; USB Type-A up to 2.4 A

• Output Voltage: USB-C™ up to 20 V; USB Type-A up to 5 V

• Power Consumption: ≤ 900 mA

• Power Delivery: Up to 65 W via USB-C™

Physical Specifications

• Cable Length: 5 in. (127 mm)

• Color: Black

• Enclosure: Aluminum

• Dimensions: 5.08 × 4.13 × 0.77 in. (129 × 105 × 19.5 mm)

• Weight: 9.07 oz (257 g)

• Operating Temperature: 32–128 °F (0–53 °C)

• Operating Humidity: < 85 % non-condensing

• Storage Temperature: 14–149 °F (−10–65 °C)

• Storage Humidity: < 85 % non-condensing

Package Contents

• 1 × JCDP392 90W Built-in USB-C™ Travel Dock

• 1 × USB-C™ to USB-C™ 3.1 Cable (1.97 ft/60 cm)

• 1 × Detachable Power Cord (varies by region)
