Gigabyte X570 Aorus ELITE 1.0 AM4 Motherboard - High-Performance ATX Board for AMD Ryzen™ 5000/4000 Series with PCIe 4.0 and DDR4 Support



The Gigabyte X570 Aorus ELITE 1.0 AM4 motherboard is engineered to deliver exceptional performance and advanced features for AMD Ryzen™ processors. Built with the AMD X570 chipset, this motherboard supports a wide range of Ryzen™ CPUs, including the latest Ryzen™ 5000 Series and Ryzen™ 4000 Series processors. The board's robust design ensures reliable operation and scalability, making it an excellent choice for high-end gaming, content creation, and demanding applications.

This motherboard supports up to 128 GB of DDR4 memory across four DIMM slots, with support for high-speed memory modules up to 4733 MHz (overclocked). It features PCIe 4.0 technology, providing faster data transfer rates for SSDs and graphics cards, while the extensive connectivity options, including multiple USB ports and M.2 slots, offer versatile expansion capabilities. The integrated Realtek® ALC1200 codec delivers high-definition audio, enhancing your overall computing experience.

Key Features:

• AMD X570 Chipset: Ensures support for the latest AMD Ryzen™ 5000 and 4000 Series processors, providing enhanced performance and future-proofing.
• High-Speed Memory Support: Accommodates up to 128 GB of DDR4 memory with speeds of up to 4733 MHz (overclocked) for improved system responsiveness.
• PCIe 4.0 and PCIe 3.0 Support: Includes PCIe 4.0 slots for faster SSD and GPU performance, as well as PCIe 3.0 slots for versatile expansion.
• Comprehensive Connectivity: Features multiple USB ports, including USB 3.2 Gen 2 Type-A and Type-C™ ports, HDMI output, and ample SATA 6Gb/s connectors.
• Advanced Audio: Equipped with Realtek® ALC1200 codec for high-definition audio output and support for various channel configurations.
• Efficient Cooling and Monitoring: Includes headers for CPU and system fans, water cooling, and multiple LED strip connectors, along with robust hardware monitoring for temperature and fan speed.

Specifications:

• CPU: AMD Socket AM4, supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors (Please refer "CPU Support List" for more information.)
• Chipset: AMD X570
• Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
• Onboard Graphics: Integrated Graphics Processor:

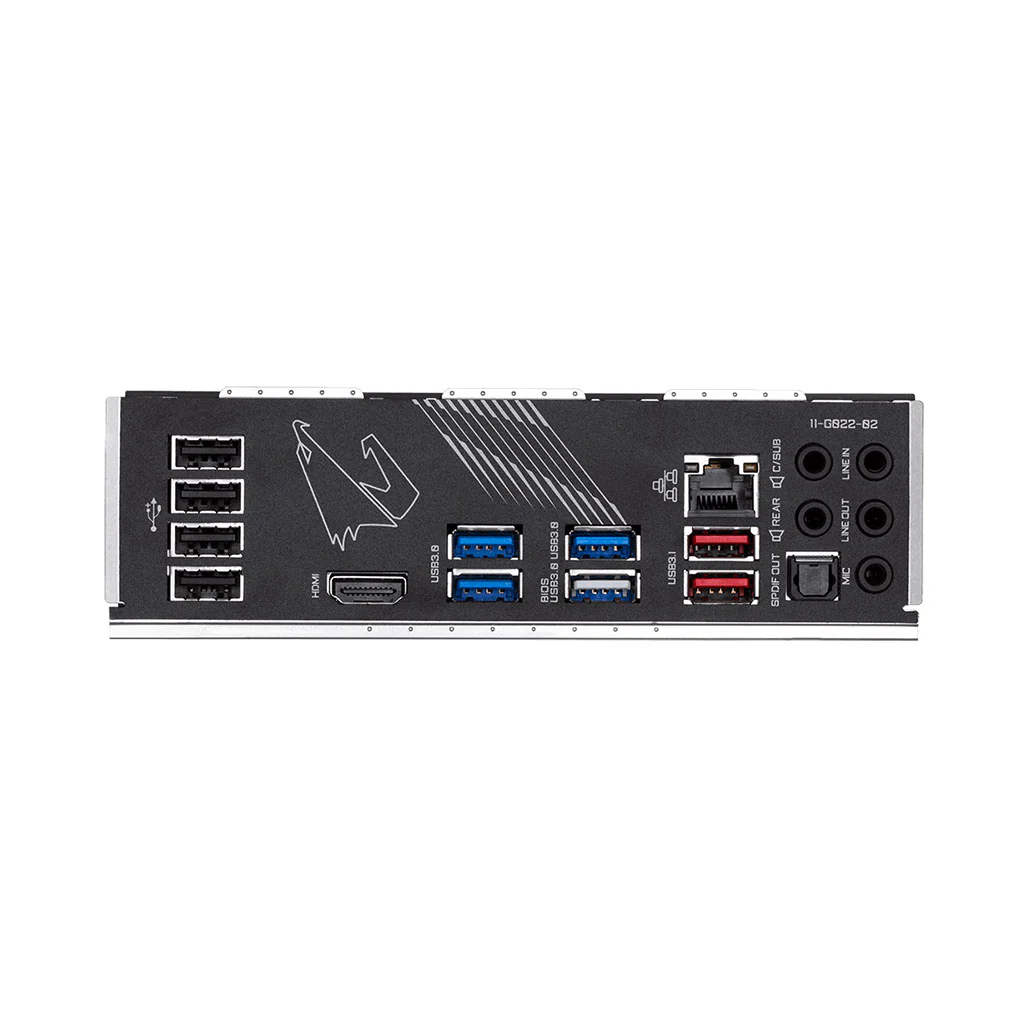

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Maximum shared memory of 16 GB
• Audio: Realtek® ALC1200 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN: Intel® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots:
  • Integrated in the CPU (PCIEX16):
    • AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:
      • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    • AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™ Processors:
      • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    • 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
  • Integrated in the Chipset (PCIEX4/PCIEX1):
    • 1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)
    • 2 x PCI Express x1 slots, supporting PCIe 4.0/3.0
• Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™ Processors only.
• Storage Interface:
  • Integrated in the CPU (M2A_SOCKET):
    • AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:
      • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
    • AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors:
      • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  • Integrated in the Chipset (M2B_SOCKET):
    • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support)
    • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10
• USB:
  • Integrated in the CPU:
    • 4 x USB 3.2 Gen 1 ports on the back panel
  • Chipset:
    • 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
    • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  • Chipset+2 USB 2.0 Hubs:
    • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 2 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button
• Back Panel Connectors:
  • 4 x USB 2.0/1.1 ports
  • 1 x HDMI port
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring:
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
• BIOS:
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
