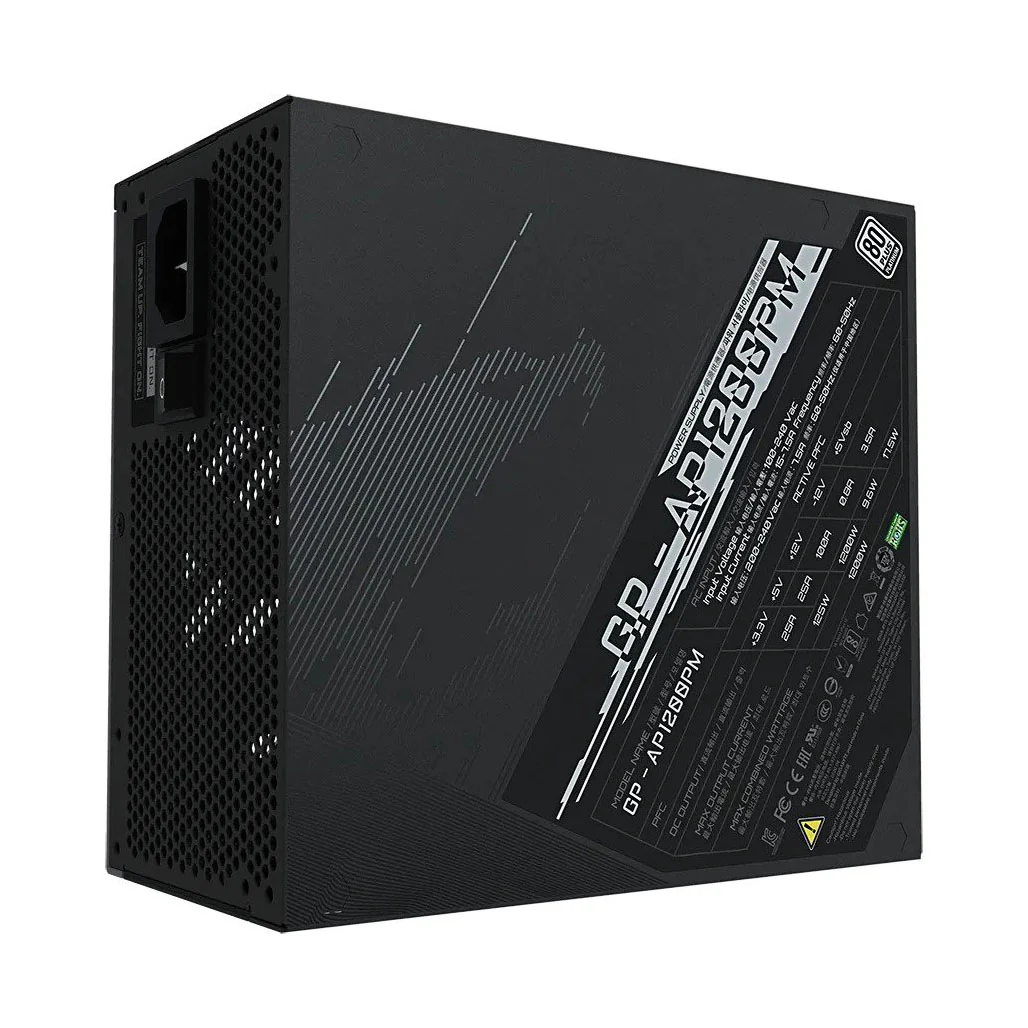

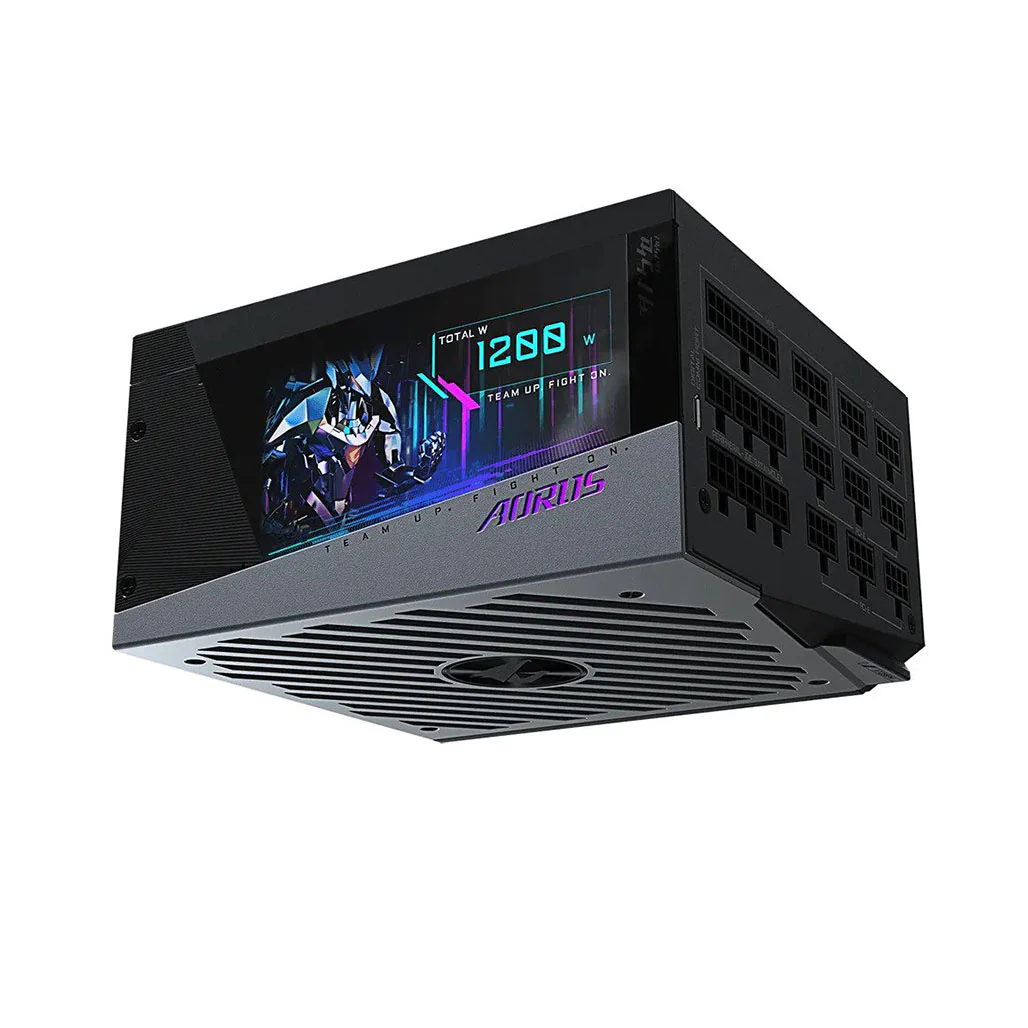

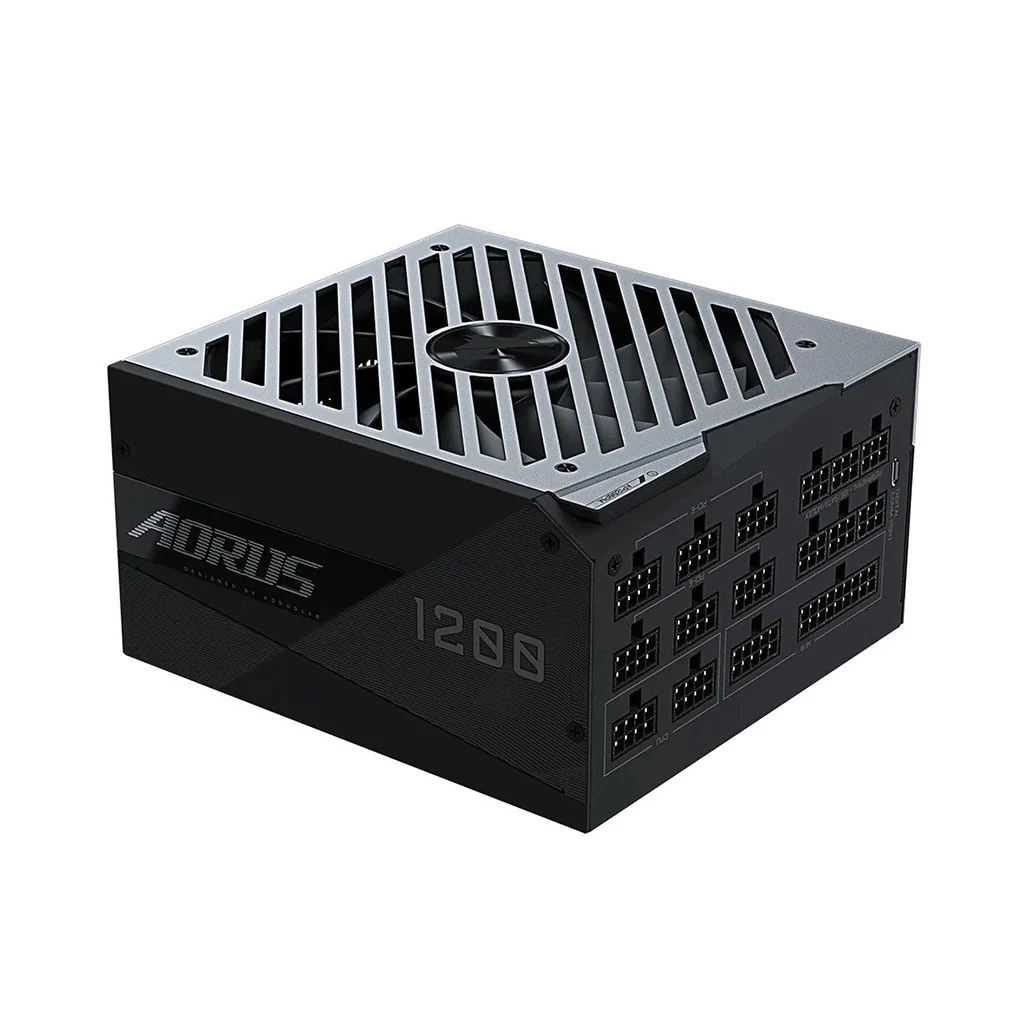

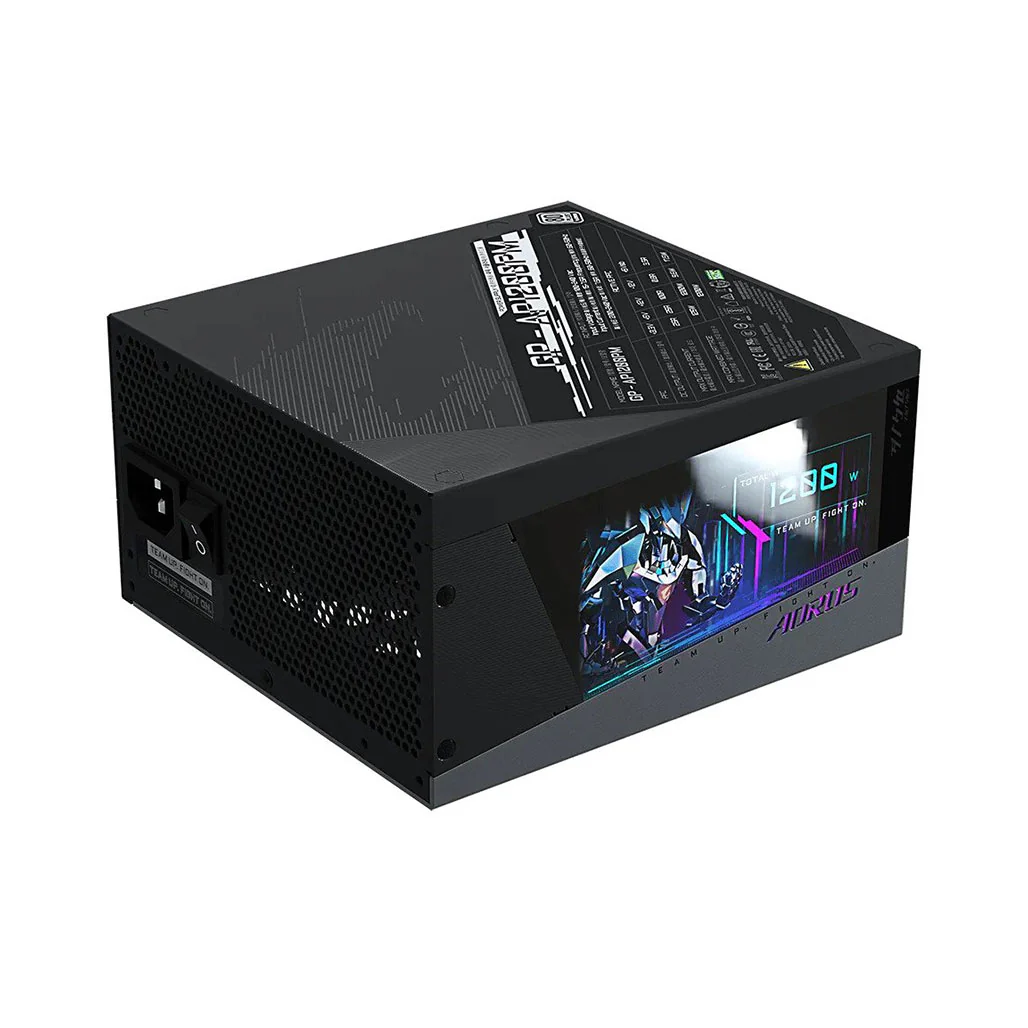

Gigabyte Aorus P1200W RGB Fully Modular Power Supply - 1200W Platinum Efficiency with RGB Lighting



The Gigabyte Aorus P1200W RGB Fully Modular Power Supply is engineered to provide high-efficiency power delivery with cutting-edge features and aesthetics. With an output capacity of 1200W and an 80 PLUS Platinum certification, this power supply ensures up to 92% efficiency at typical loads, minimizing energy waste and heat generation. The fully modular design allows for a clean and organized build, with all-black, flat cables that reduce clutter and improve airflow within the case.

The P1200W RGB power supply is equipped with a robust 140mm double ball bearing fan, which enhances cooling efficiency and maintains a quiet operation. The fan speed is dynamically adjusted based on power load, ensuring optimal cooling and extending the lifespan of the unit. Additionally, the power supply features comprehensive protection mechanisms, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), and OTP (Over Temperature Protection), to safeguard your components and ensure stable operation.

The built-in RGB lighting adds a customizable visual element to your setup, allowing you to match the power supply's lighting effects with your overall system aesthetics. The Gigabyte Aorus P1200W is designed to meet the demands of high-performance gaming and workstation systems, offering reliable power delivery and striking design.

Key Features:

• Output Capacity: 1200W, providing ample power for high-end gaming and workstation builds.
• 80 PLUS Platinum Certification: Achieves up to 92% efficiency at typical loads, reducing energy waste and heat.
• Fully Modular Design: Allows for a neat and tidy build with flat, all-black cables.

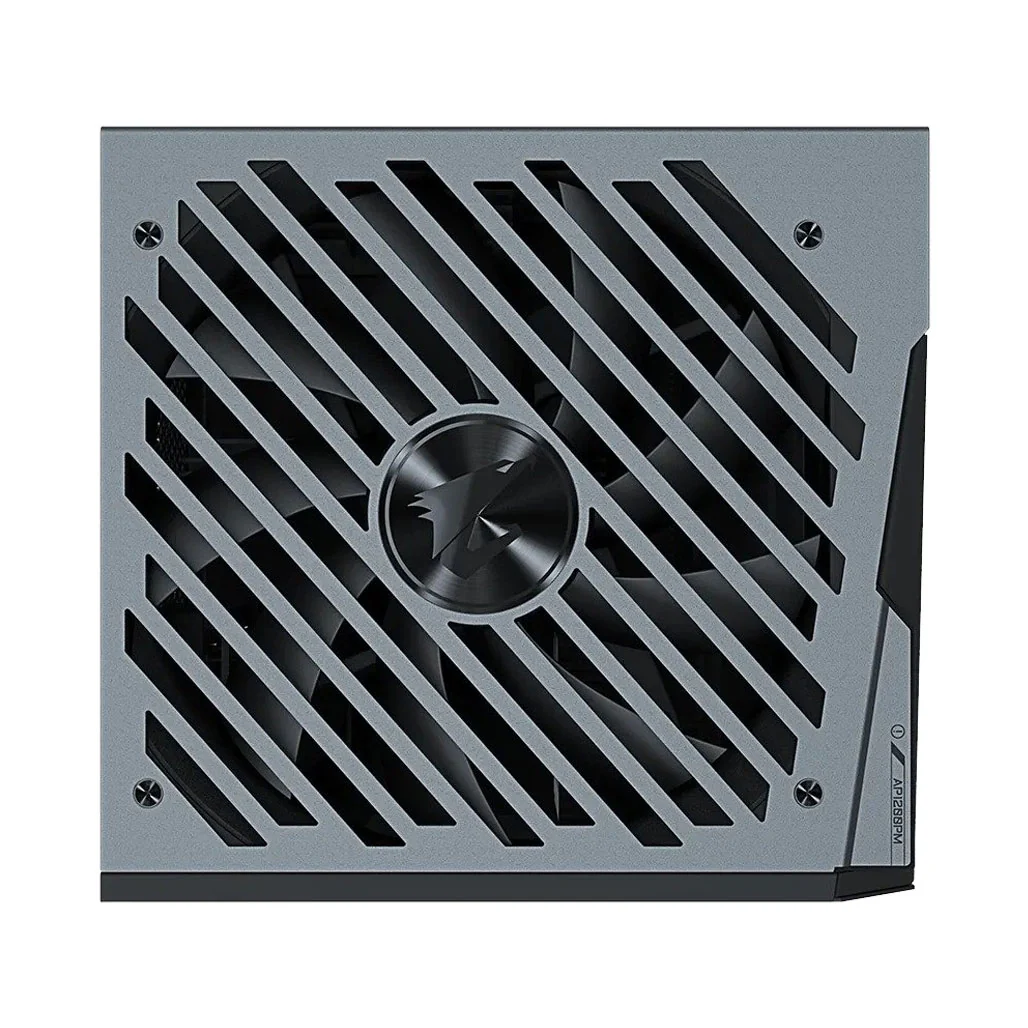

• 140mm Double Ball Bearing Fan: Ensures efficient cooling and quiet operation with dynamic fan speed adjustment.
• RGB Lighting: Customizable lighting effects to enhance the visual appeal of your system.

Specifications:

• Model: GP-AP1200PM
• Type: Intel Form Factor ATX 12V v2.31
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-7.5A
• Input Frequency: 60-50 Hz
• Output Capacity: 1200W
• Dimension: 150 x 160 x 86 mm
• Fan Type: 140mm Double Ball Bearing Fan
• 80 PLUS: Platinum
• Efficiency: 92% at typical load
• MTBF: >100,000 hours
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 100-150ms
• Hold Up Time: >16ms
• Cable Type: Flat, All black
• Connectors:
  • ATX/MB 20+4 Pin x 1: 610mm x1
  • CPU/EPS 4+4 Pin x 2: 650mm x2
  • PCI-e 6+2 Pin x 10: 650mm+150mm x4 / 650mm x2
  • SATA x 16: 650mm+150mm+150mm+150mm x4
  • 4 Pin Peripheral x 6 + 4-Pin Floppy x 2: 600mm+120mm+120mm+150mm x2

The Gigabyte Aorus P1200W RGB Fully Modular Power Supply combines high-efficiency power delivery with customizable RGB lighting and robust protection features, making it a reliable choice for powering high-performance systems.
