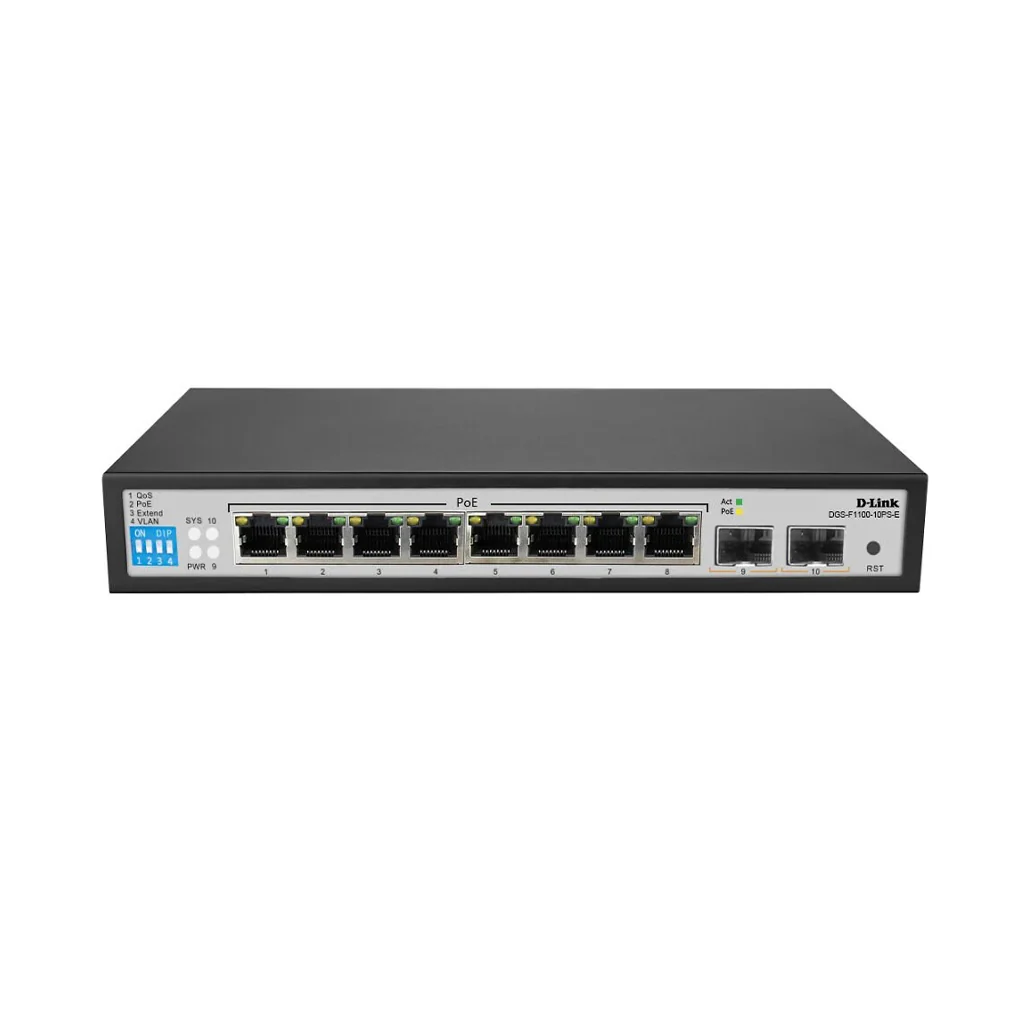

D-Link PoE Gigabit ManagedSwitch - DGS-F1100-10PS-E

The D-Link DGS-F1100-10PS-E PoE Gigabit Managed Switch is an advanced networking solution tailored for small, medium, and enterprise businesses. It provides robust performance and versatile features, making it suitable for environments requiring high-speed connectivity and reliable power over Ethernet (PoE) capabilities. Designed to support a variety of PoE standards, this switch is ideal for deploying IP cameras, VoIP phones, and access points without the need for additional power adapters. The switch’s comprehensive management features and energy-efficient technologies make it a flexible choice for modern network infrastructures.

With a focus on security and network management, the DGS-F1100-10PS-E incorporates advanced features such as Static MAC, Storm Control, and IGMP Snooping to enhance network performance and security. Static MAC allows for the creation of a whitelist for specific ports, ensuring that only authorized devices can connect. Storm Control helps prevent network congestion by blocking excessive broadcast, multicast, or unknown unicast traffic. IGMP Snooping optimizes multicast traffic by reducing the load on Layer 3 routers, improving overall network efficiency. Additionally, the switch supports PoE with a maximum budget of 96 watts, providing up to 30 watts per port, and offers extend mode functionality for enhanced transmission distance.

Key Features

• PoE Support: Complies with IEEE 802.3af and 802.3at PoE standards, delivering up to 30 watts per port. This feature simplifies installation by powering devices such as IP cameras and VoIP phones directly through the network cable, reducing the need for separate power sources.
• Advanced Security: Equipped with Static MAC, Storm Control, and IGMP Snooping to enhance network security and manage multicast traffic efficiently. Static MAC restricts access to authorized devices, while Storm Control prevents network flooding. IGMP Snooping optimizes multicast traffic, saving bandwidth and reducing network load.
• High-Speed Connectivity: Features 8 x 10/100/1000BASE-T PoE ports and 2 Gigabit SFP ports, offering fast data transfer rates and flexible network expansion options. The switch supports full-duplex communication and has a switching capacity of 20 Gbps, ensuring high performance for demanding applications.
• Energy Efficiency: Supports IEEE 802.3az Energy-Efficient Ethernet to automatically reduce power consumption based on network activity. This feature helps lower operational costs and minimizes environmental impact by adjusting power usage for inactive ports and optimizing power based on cable length.
• Comprehensive Management: Provides multiple management options, including a web-based GUI, CLI (Telnet and SSH), and SNMP support. This flexibility allows for detailed network configuration, monitoring, and troubleshooting. The switch also supports advanced features like VLANs, QoS, and link aggregation for optimized network performance.
• Versatile Installation: The fanless design ensures silent operation, while the compact dimensions (225 x 120 x 35 mm) and 6kV surge protection enhance reliability. The switch supports a range of mounting options and is suitable for both desktop and rack installations.

Specifications

• Model: DGS-F1100-10PS-E
• Ports: 8 x 10/100/1000BASE-T PoE Ports, 2 x 100/1000 Mbps SFP Ports
• PoE Standards: IEEE 802.3af/at
• Power Budget: 96W (30W max per port)
• Switching Capacity: 20 Gbps
• MAC Address Table: 8K entries
• Forwarding Rate: 88 Mpps
• Operating Temperature: 0°C ~ 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 95% relative humidity (non-condensing)
• Storage Humidity: 5% to 90% relative humidity (non-condensing)
• Dimensions: 225 x 120 x 35 mm
• Power Input: DC 12V 1A

The D-Link DGS-F1100-10PS-E PoE Gigabit Managed Switch stands out as a reliable and feature-rich networking solution for businesses seeking efficient and flexible network management. Its PoE capabilities, combined with advanced security features and energy-efficient design, make it an excellent choice for modern network deployments. Whether used for connecting IP surveillance systems, VoIP phones, or expanding network infrastructure, the DGS-F1100-10PS-E delivers high performance and scalability while ensuring ease of management and installation.
