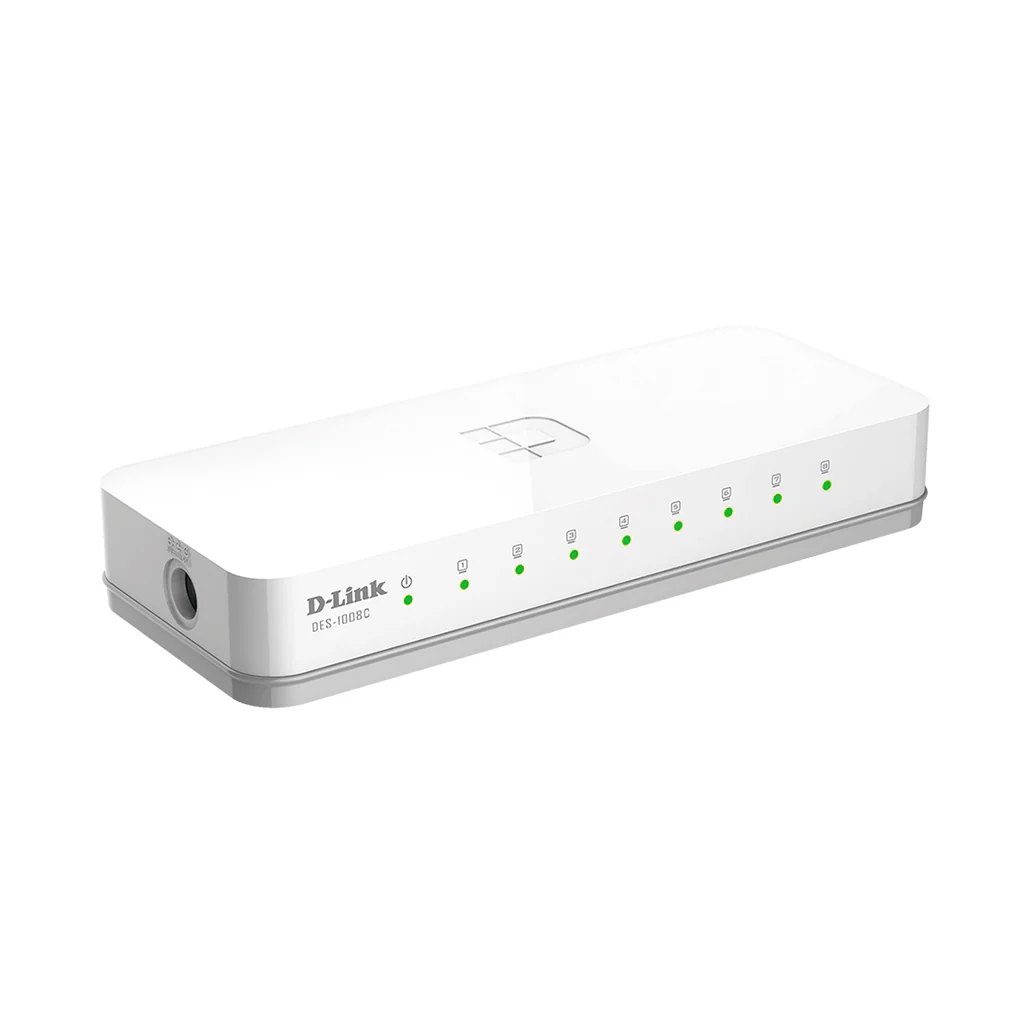

D-Link 8-Port Fast Ethernet Unmanaged Switch - DES-1008C

The D-Link DES-1008C is an efficient 8-port unmanaged switch designed to offer reliable and fast network connectivity for small offices and home environments. With its Fast Ethernet capabilities, it provides a practical solution for expanding network bandwidth, making it suitable for various networking needs such as file transfers, online gaming, and streaming media.

Key Features:

• Fast Networking Performance: The DES-1008C supports data transfer speeds of up to 200 Mbps at full duplex, ensuring smooth and quick file transfers, efficient online gaming, and uninterrupted streaming media. Each port is equipped with LED indicators for easy monitoring of connection status, and Auto MDI/MDIX crossover simplifies the connection process by eliminating the need for crossover cables.

• Economical and Plug-and-Play: This switch offers a cost-effective solution for expanding network capabilities with eight 10/100 Mbps ports. It supports plug-and-play functionality, requiring no configuration and making it an ideal choice for users seeking to upgrade their network easily. The switch is perfect for small and medium businesses or home offices needing enhanced network performance without complex setup.

• Energy Efficiency: The DES-1008C incorporates IEEE 802.3az Energy Efficient Ethernet (EEE) technology, which reduces power consumption and minimizes heat generation without compromising network performance. It automatically detects inactive ports and adjusts power usage based on network activity and cable length, contributing to energy savings and cost reduction.

• Reliable Connectivity: Equipped with 802.3x flow control, the DES-1008C minimizes packet loss by managing data flow efficiently even when the receiving buffer is full. This feature ensures a more stable and reliable network connection, essential for uninterrupted data transmission and network reliability.

Specifications:

• Auto MDI/MDIX: Yes
• Control: 802.3x Flow
• Dimensions: 131 x 54 x 21 mm
• Energy Efficiency Ethernet (EEE): Yes
• FAN: Fanless
• Head-of-line (HOL) Blocking Prevention: Yes
• Interfaces: 8 x 100Base-TX
• Jumbo Frame: 2048 Bytes
• MAC Address Table Size: 2,000
• Max. Packet Forwarding Rate: 1.19 Mpps
• Maximum Heat Dissipation: 0.691 BTU/h
• Maximum Power Consumption: 1.55 W
• MTBF: 1,579,582 hours
• Operating Humidity: 10% ~ 90% RH
• Operating Temperature: 0 ~ 40 °C
• Packet Buffer Size: 96 KB
• Power Input: DC 5V, 0.55A
• Power Saving By Link Status: Yes
• Standby Power Consumption: 0.55 W
• Storage Humidity: 5% ~ 95% non-condensing
• Storage Temperature: -40 ~ 70 °C
• Store & Forwarding Forwarding: Yes
• Switching Capacity: 1.6 Gbps
• Weight: 742 g

The D-Link DES-1008C provides an effective and affordable way to enhance network performance with its Fast Ethernet speeds and energy-saving features. Its straightforward installation and reliable connectivity make it a practical choice for upgrading or expanding a network in both home and small office settings.
