$52.50
Original: $175.00

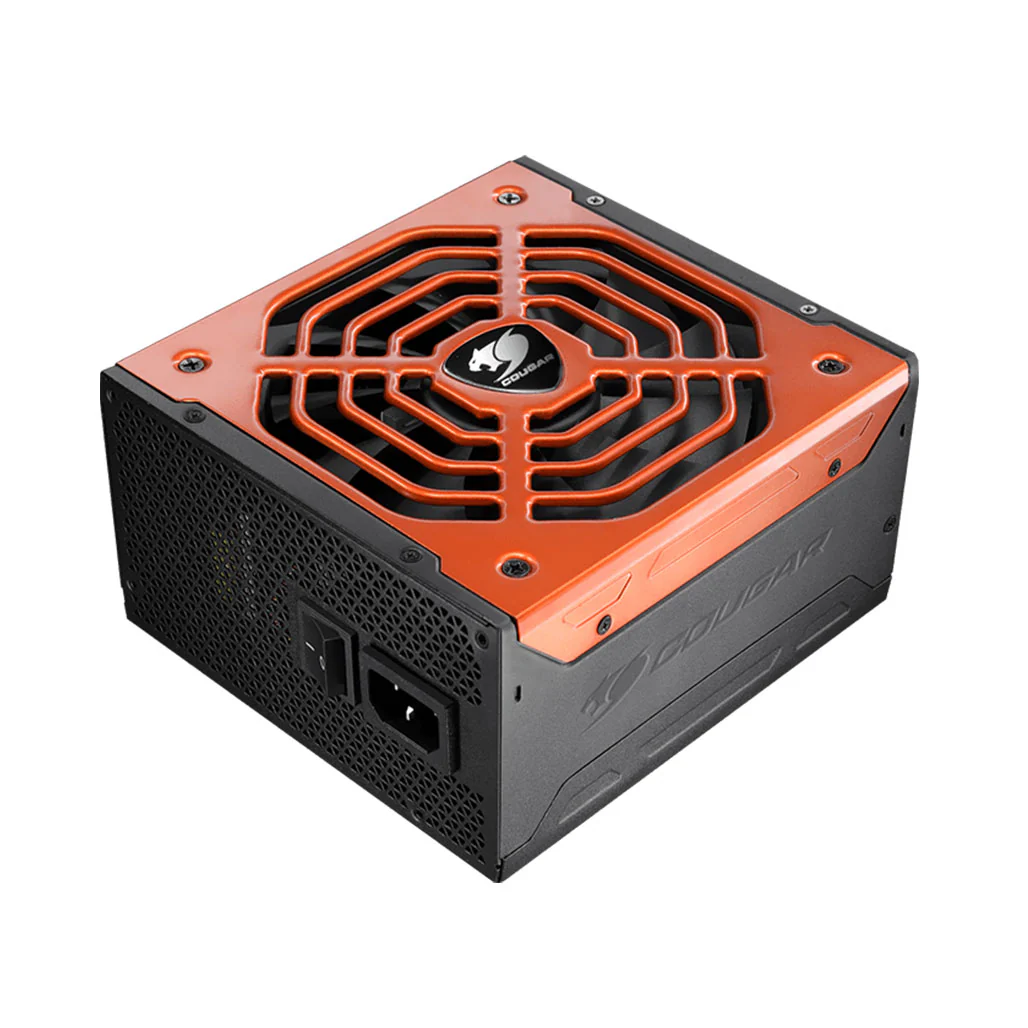

-70%Cougar Power Supply 850W BRONZE BXM850—
$175.00
$52.50The Story
80 PLUS Bronze Certified
Up to 86% efficiency power conversion to cut down your electricity bill
Semi-modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow
HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels
Superior fan Curve Tuning
Advanced technology for noise minimization
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature
Ultra-stable Voltage Outputs
DC to DC technology for enhanced voltage stability
Dimension
160 x 150 x 86 (mm)
Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP
Maximum safety for your key system components
| Model Name | AC Input | DC output | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
| BXM700 | AC100-240V 50/60Hz 12A |
24A | 22A | 58.3A | 0.3A | 3A | 700W |
| 140W | 700W | ||||||
| BXM850 | AC100-240V 50/60Hz 16A |
25A | 25A | 70.8A | 0.3A | 3A | 850W |
| 150W | 850W | ||||||
| Connector | Main | CPU | Peripherals | S-ATA | PCI-E |
| Pin | 24(20+4) Pins | 8(4+4) Pins | 4 Pins | 5 Pins | 8(6+2) Pins |
| BXM700 | 1 | 2 | 3 | 8 | 4 |
| BXM850 | 1 | 2 | 3 | 8 | 6 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
80 PLUS Bronze Certified
Up to 86% efficiency power conversion to cut down your electricity bill
Semi-modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow
HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels
Superior fan Curve Tuning
Advanced technology for noise minimization
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature
Ultra-stable Voltage Outputs
DC to DC technology for enhanced voltage stability
Dimension
160 x 150 x 86 (mm)
Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP
Maximum safety for your key system components
| Model Name | AC Input | DC output | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
| BXM700 | AC100-240V 50/60Hz 12A |
24A | 22A | 58.3A | 0.3A | 3A | 700W |
| 140W | 700W | ||||||
| BXM850 | AC100-240V 50/60Hz 16A |
25A | 25A | 70.8A | 0.3A | 3A | 850W |
| 150W | 850W | ||||||
| Connector | Main | CPU | Peripherals | S-ATA | PCI-E |
| Pin | 24(20+4) Pins | 8(4+4) Pins | 4 Pins | 5 Pins | 8(6+2) Pins |
| BXM700 | 1 | 2 | 3 | 8 | 4 |
| BXM850 | 1 | 2 | 3 | 8 | 6 |
